Door Courtesy Light and Courtesy Switch Circuit

CIRCUIT DESCRIPTION
The door courtesy switch goes on when the door is opened and goes off when door is closed.

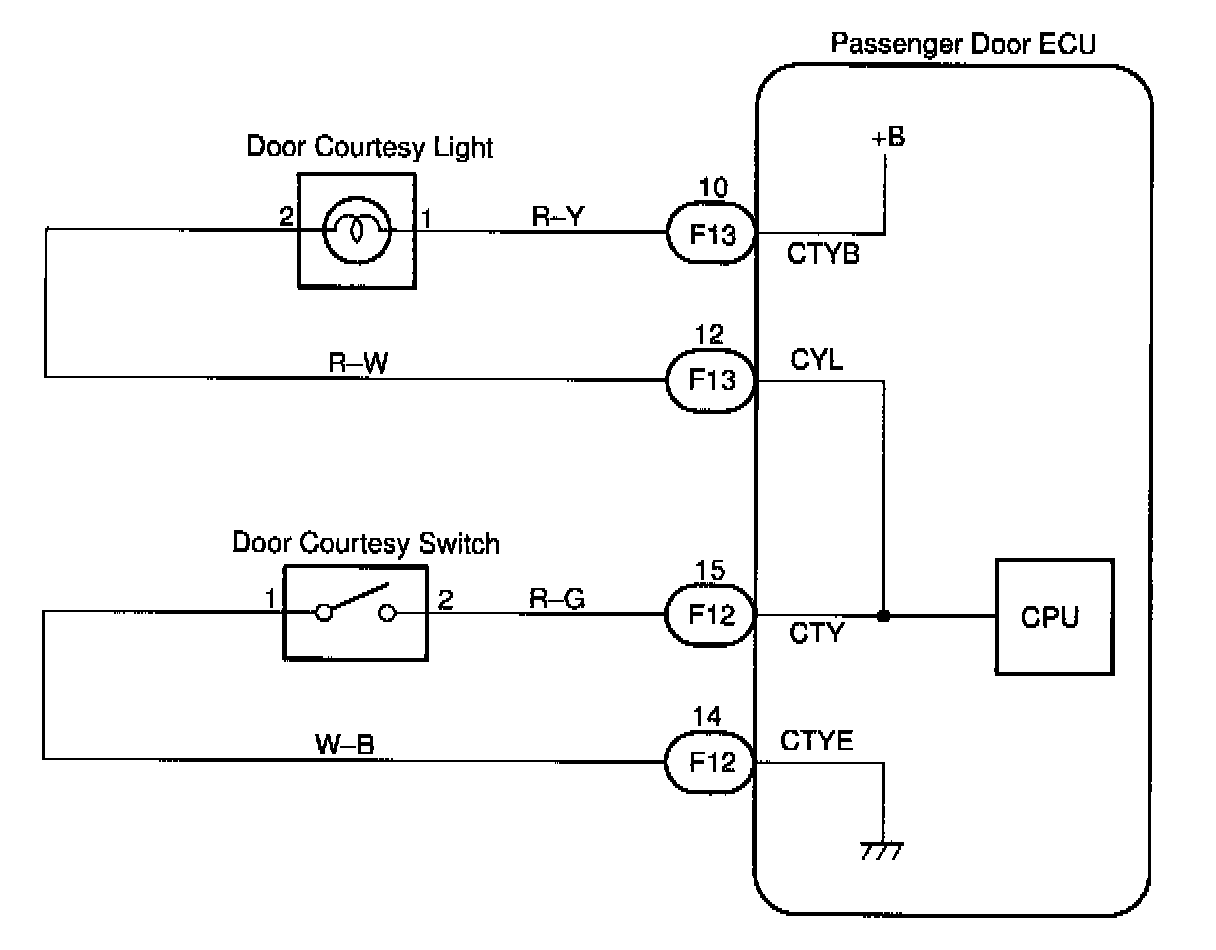

WIRING DIAGRAM

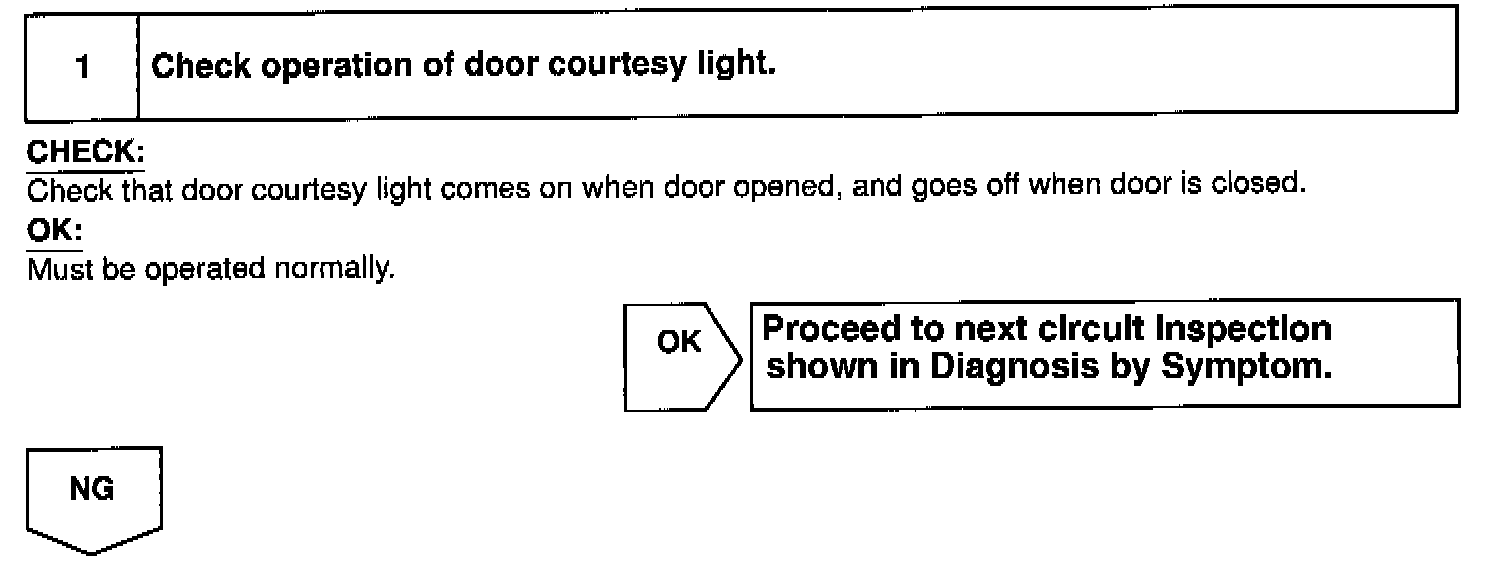

Step 1:

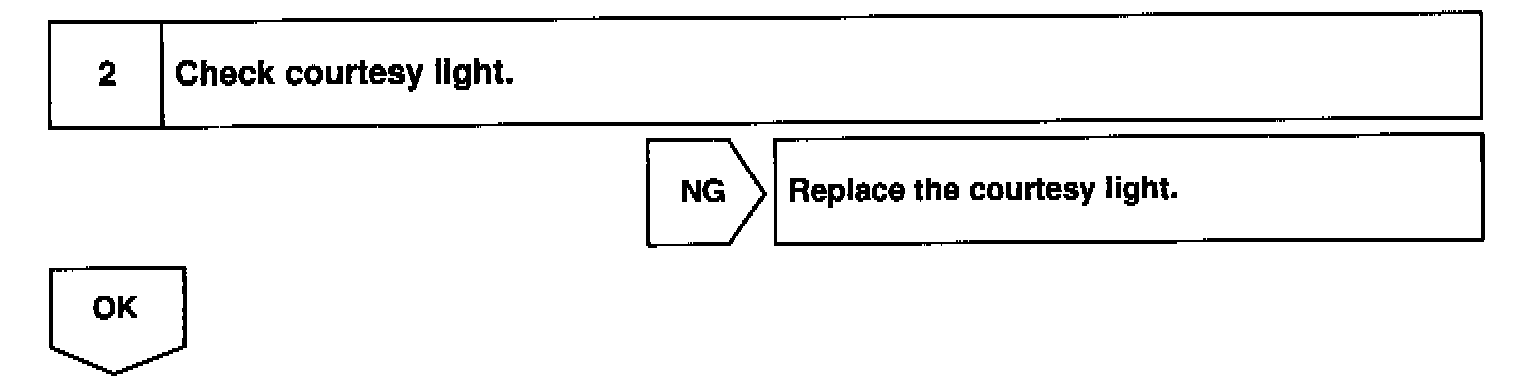

Step 2:

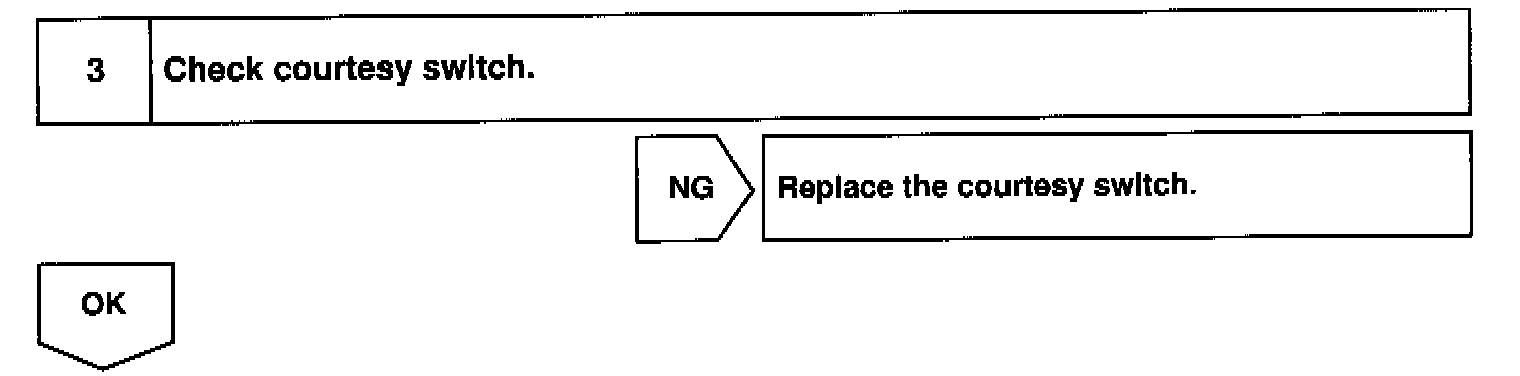

Step 3:

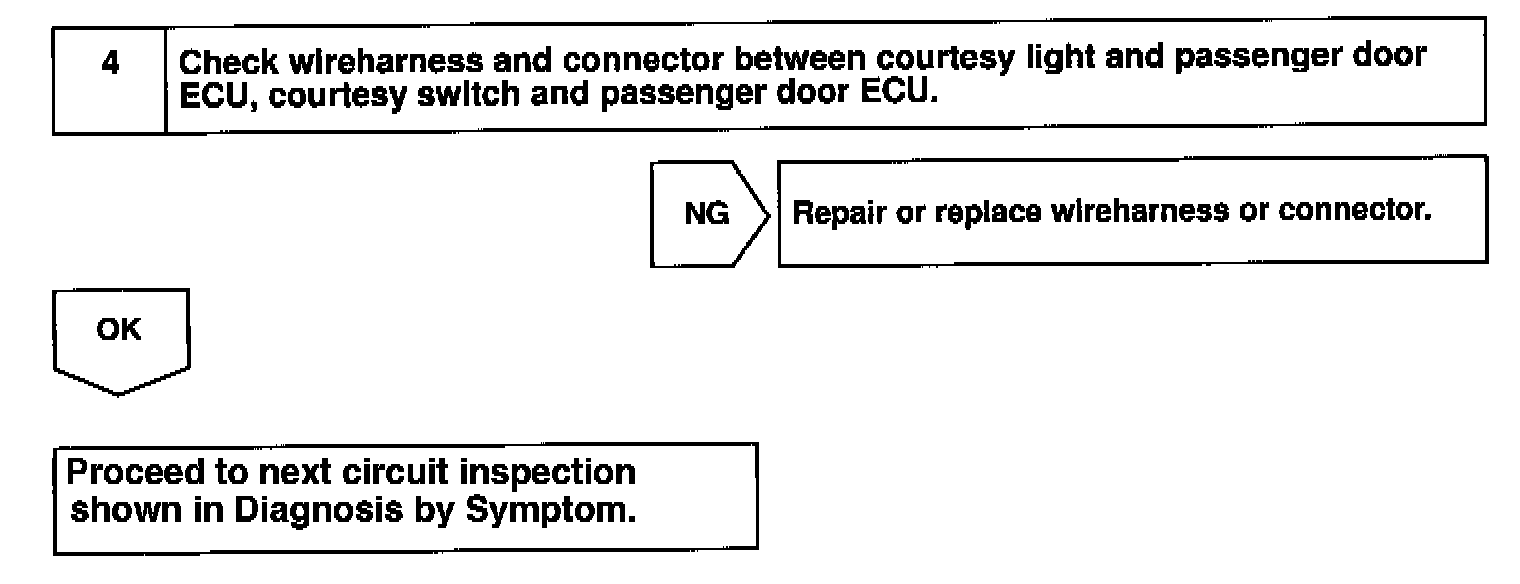

Step 4:

INSPECTION PROCEDURE
