Jam Protection Pulse Switch Circuit

CIRCUIT DIAGRAM
Jam Protection pulse switch is built-in the power window motor. Pulse switch outputs ON/OFF pulse when the motor rotates.

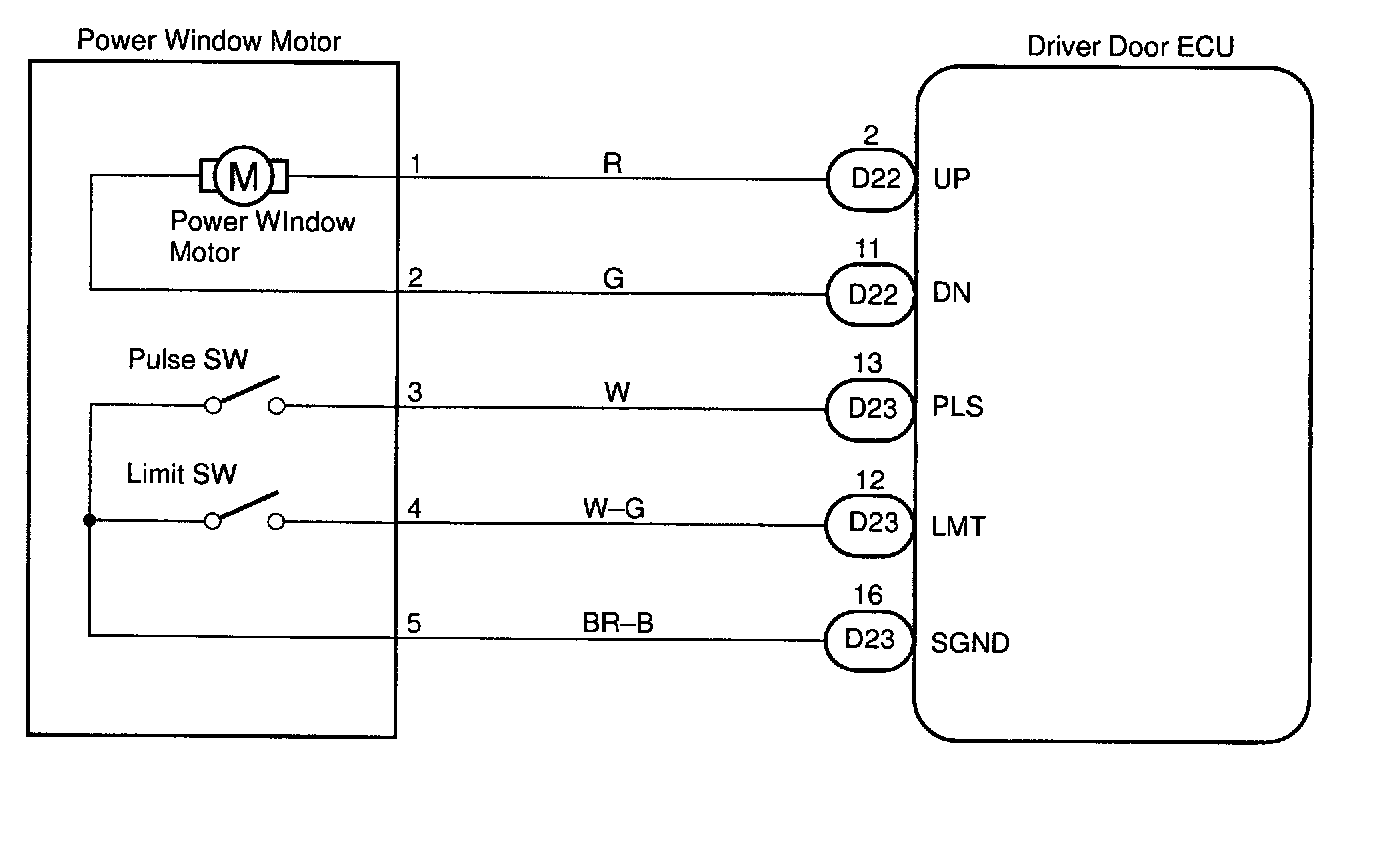

WIRING DIAGRAM

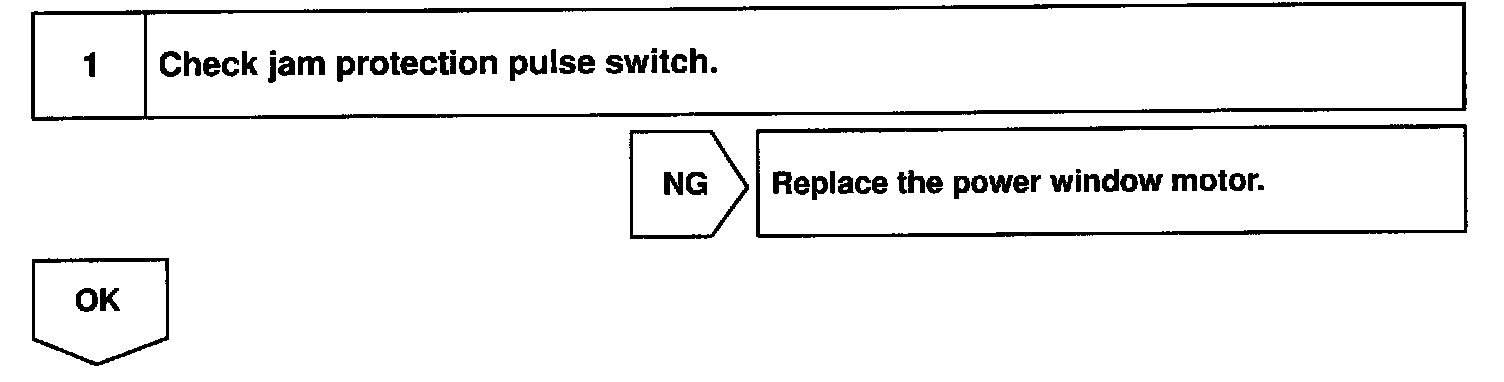

STEP 1:

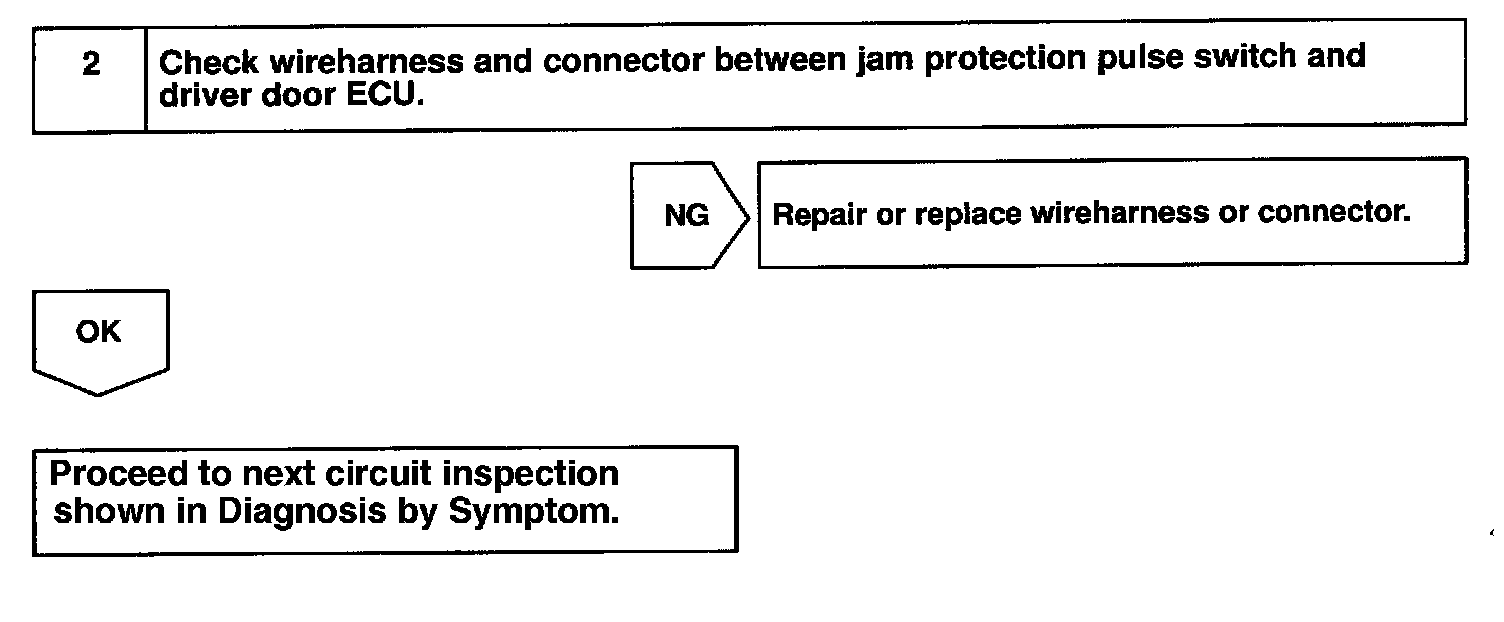

STEP 2:
