Trunk/Liftgate Sensor/Switch (For Alarm): Testing and Inspection

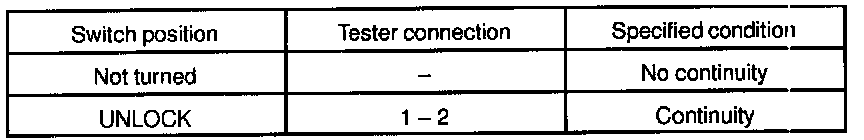

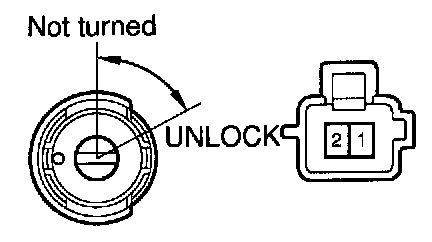

INSPECT LUGGAGE COMPARTMENT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
