Amplifier: Testing and Inspection

Except NAKAMICHI made:

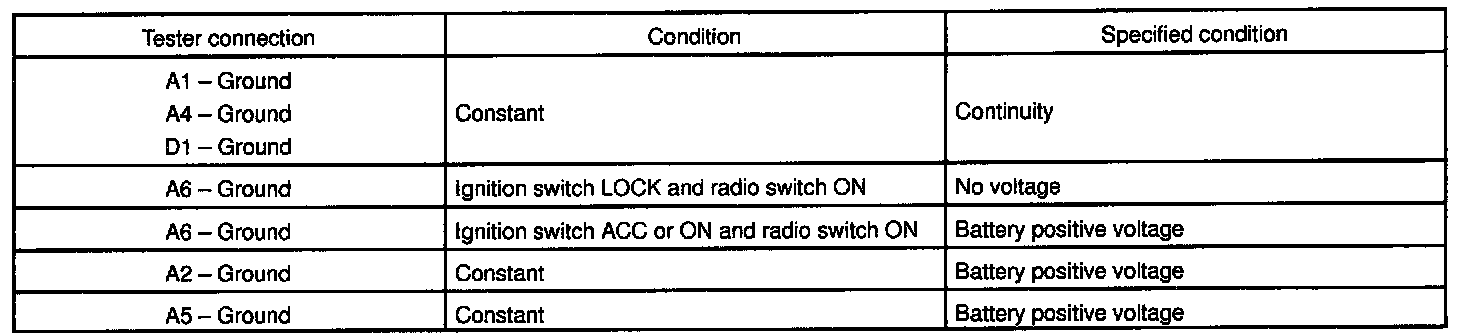

INSPECT POWER AMPLIFIER CIRCUIT

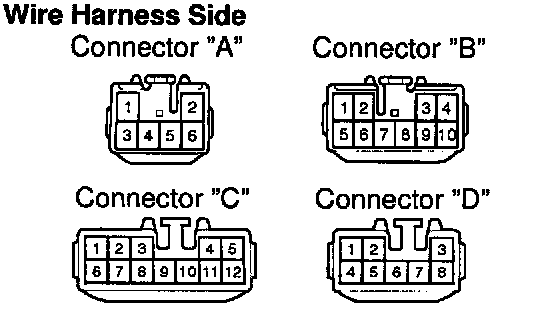

Disconnect the connector from power amplifier and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.

NAKAMICHI made:

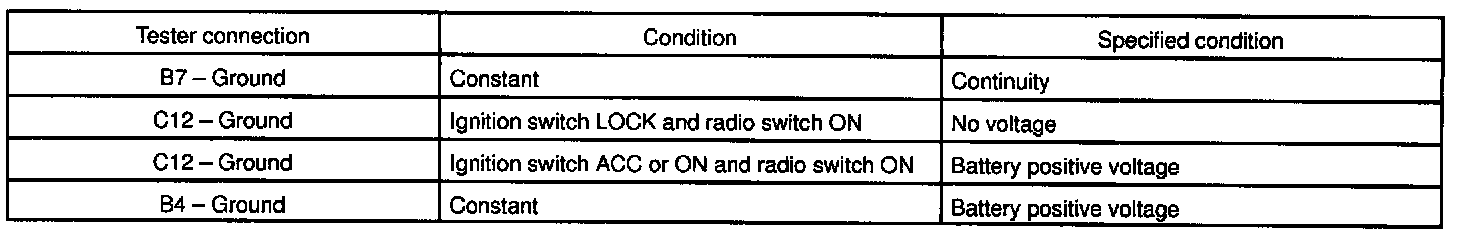

INSPECT POWER AMPLIFIER CIRCUIT







Disconnect the connector from power amplifier and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
