Pinout Values and Diagnostic Parameters

Part 1 Of 2:

Part 2 Of 2:

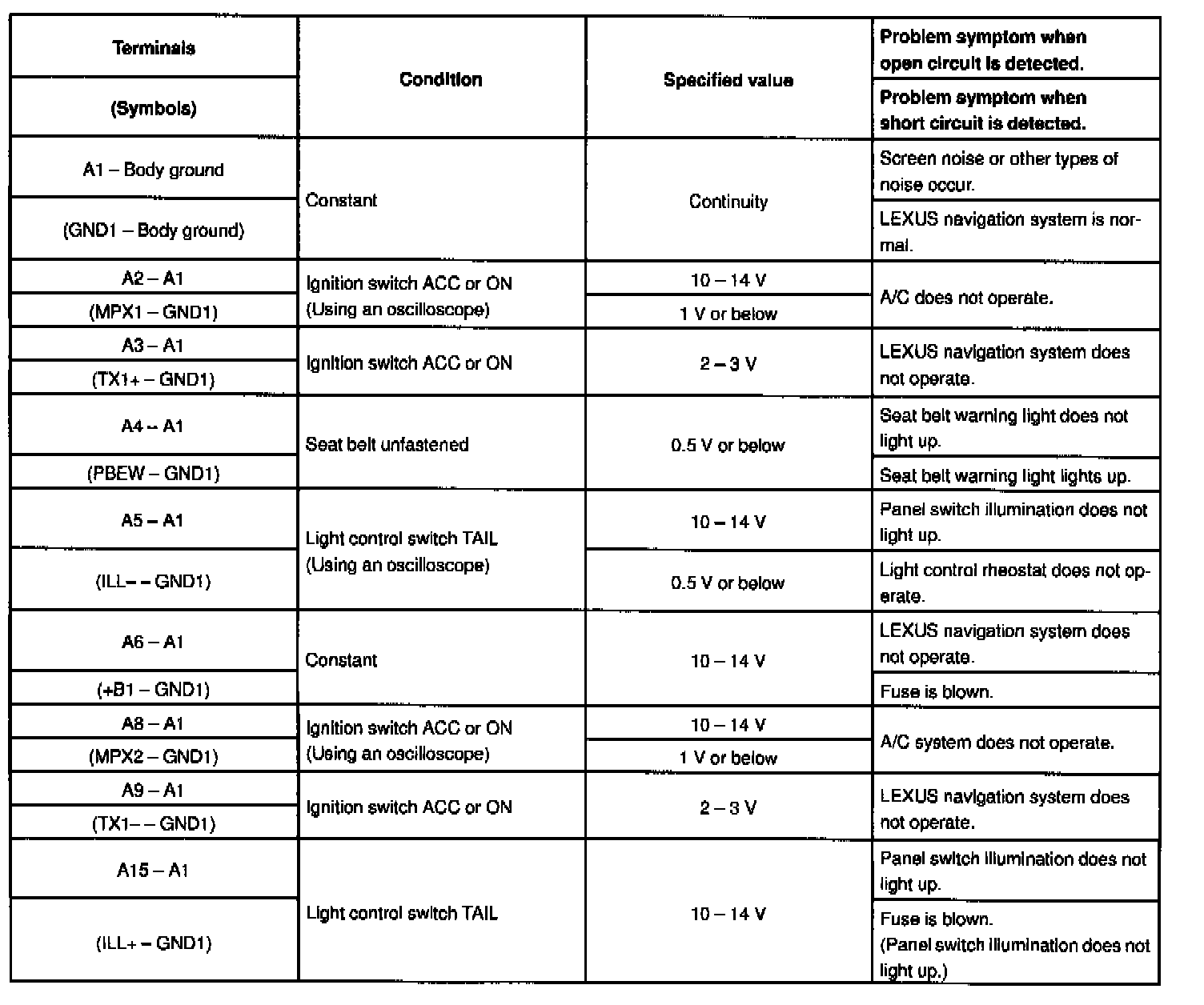

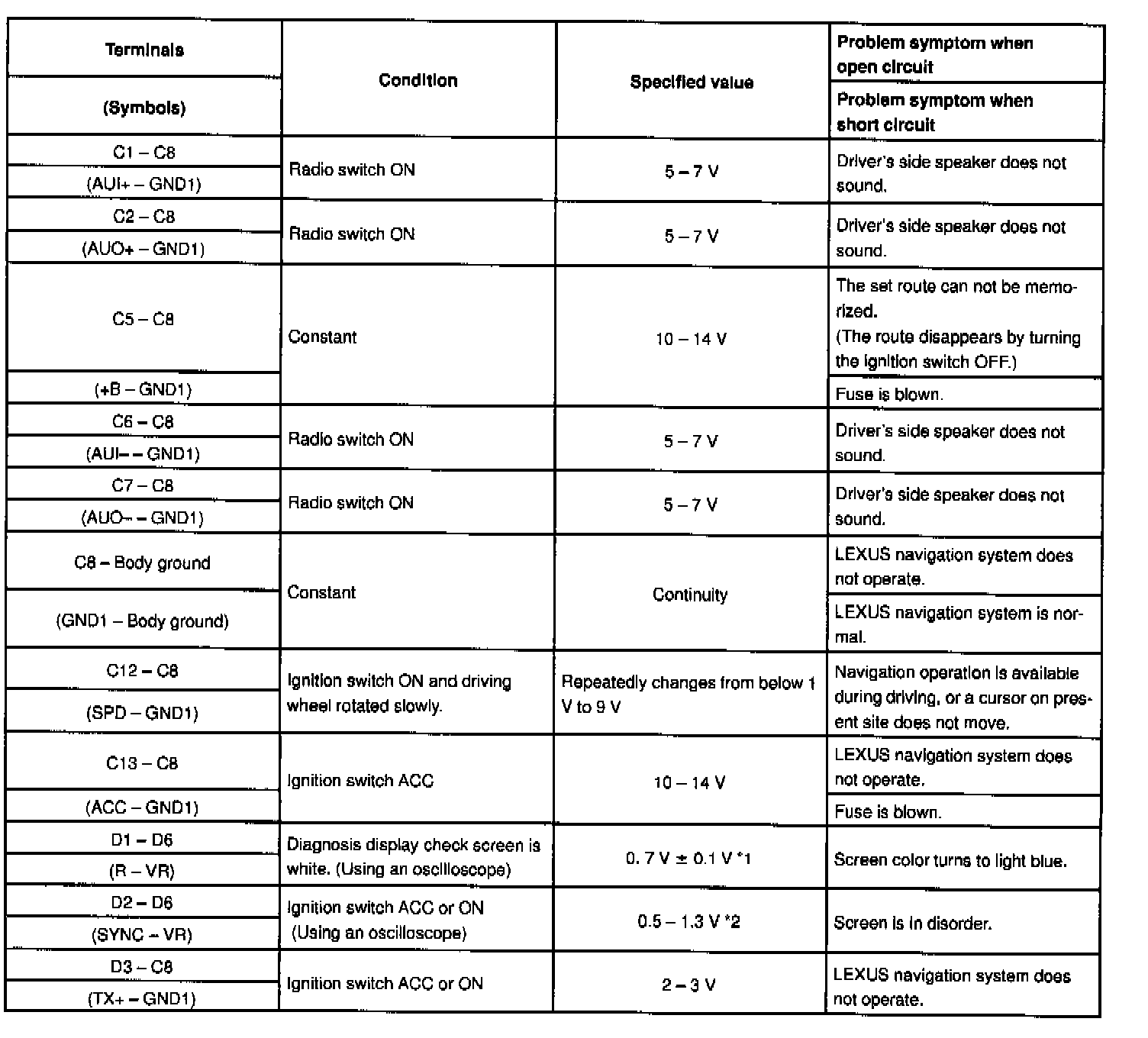

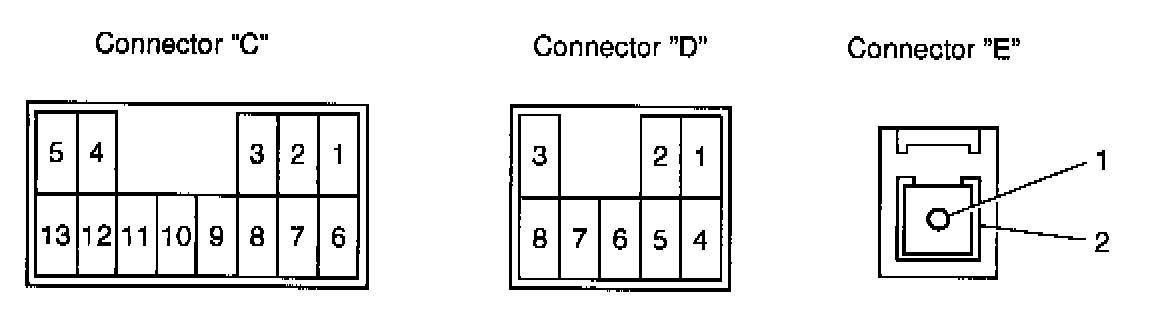

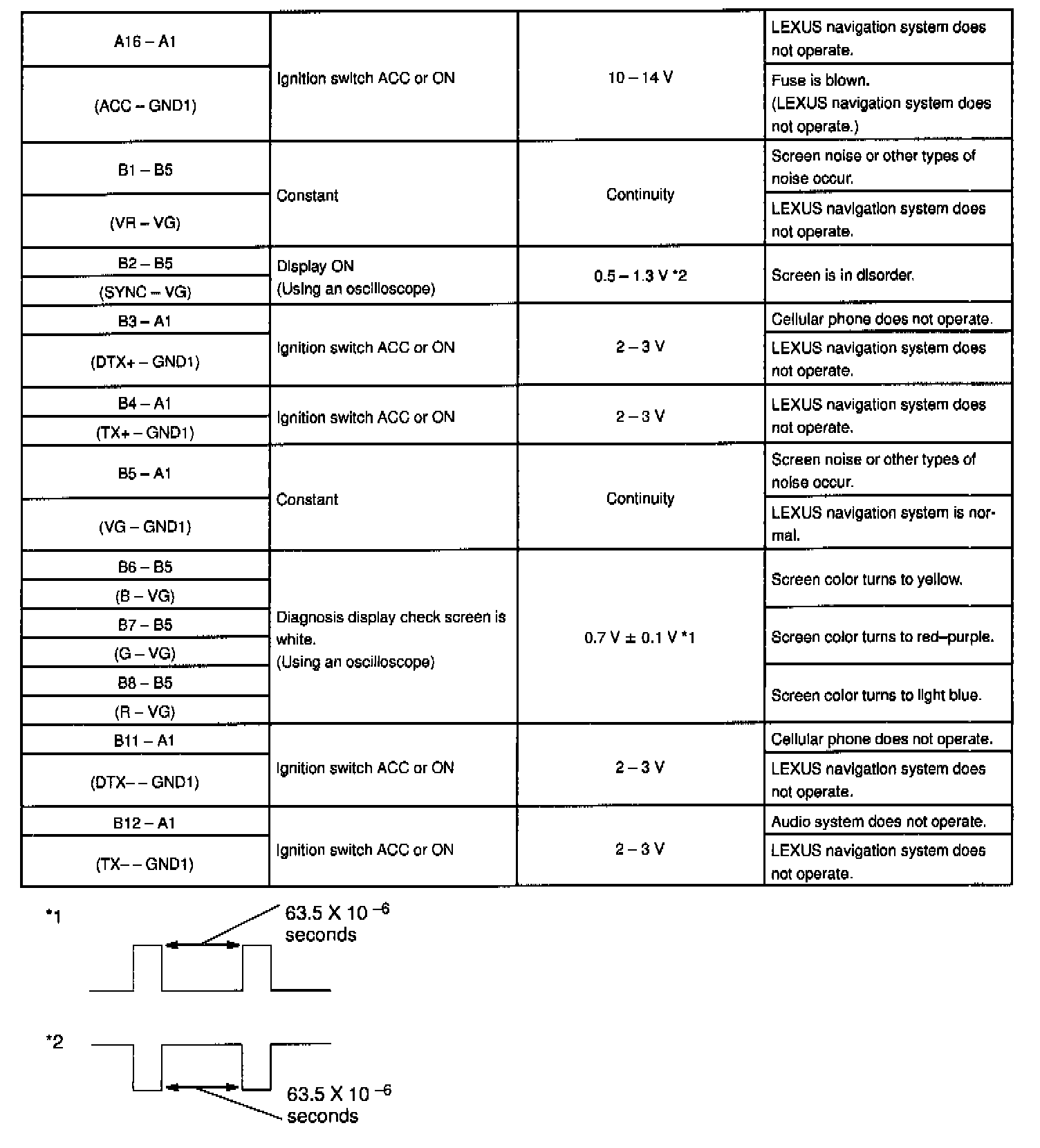

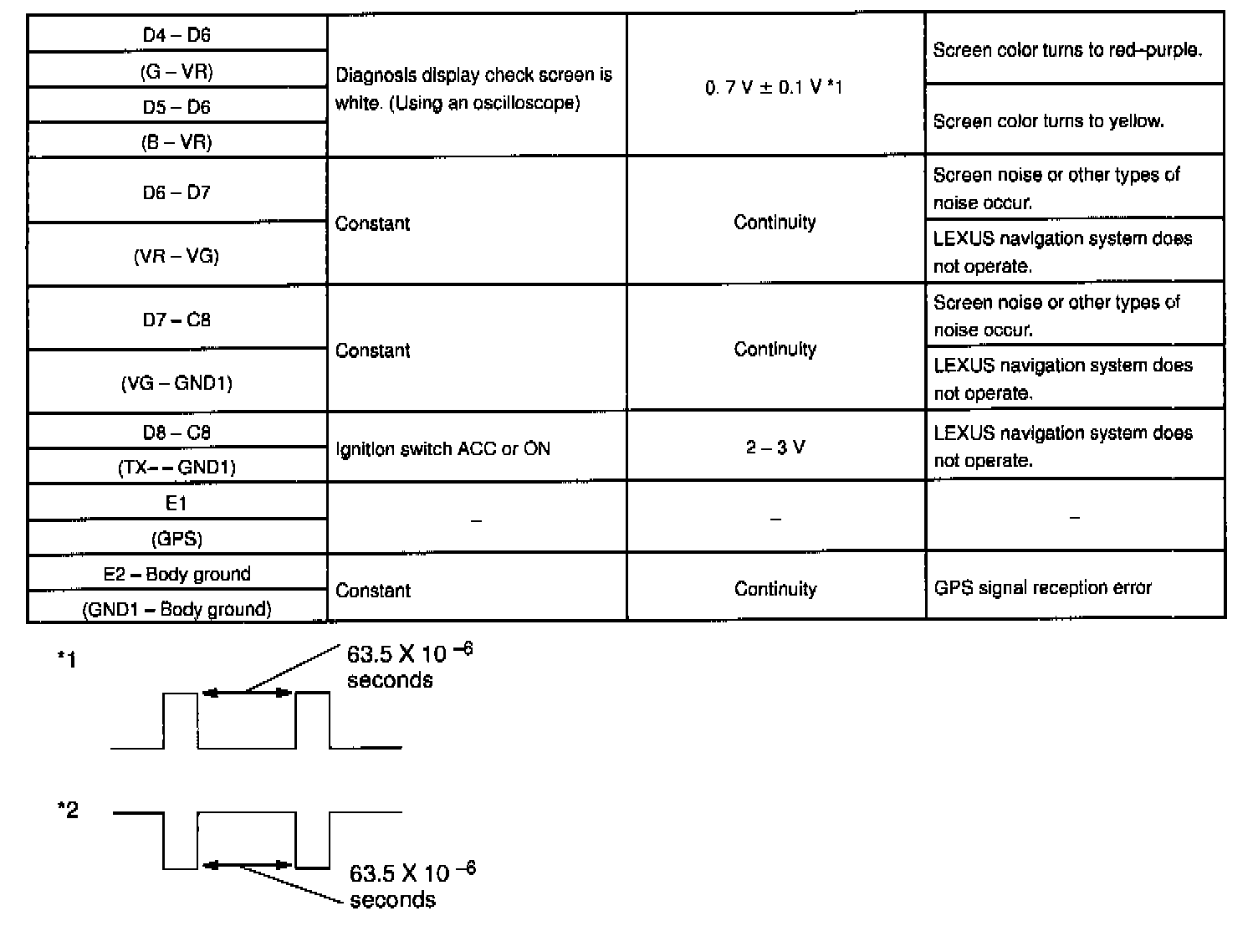

1. DISPLAY ECU

Part 1 Of 2:

Part 2 Of 2:

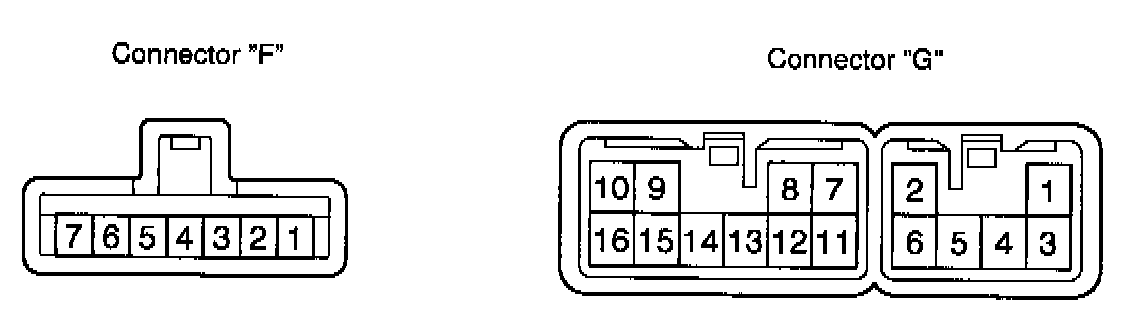

2. NAVIGATION ECU

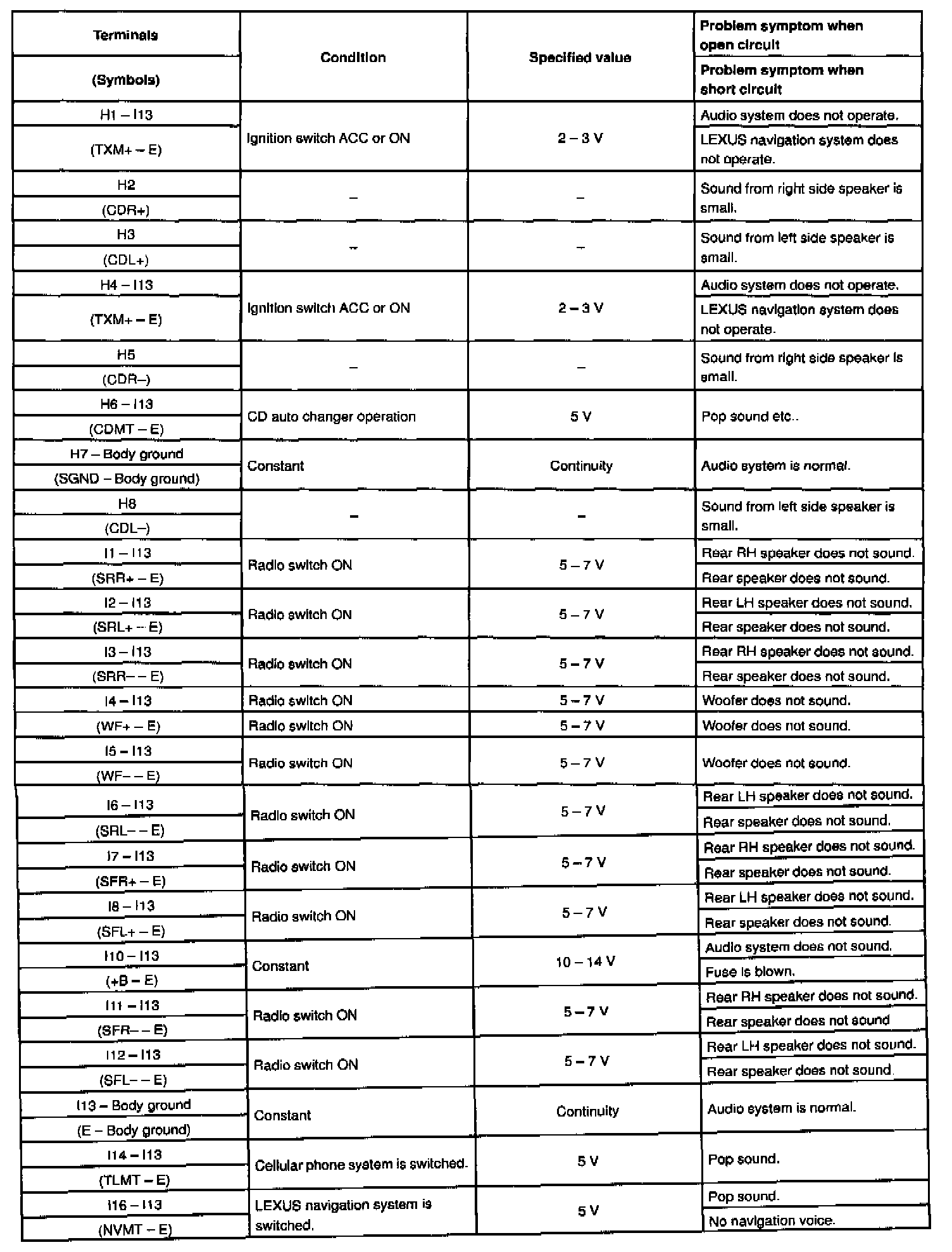

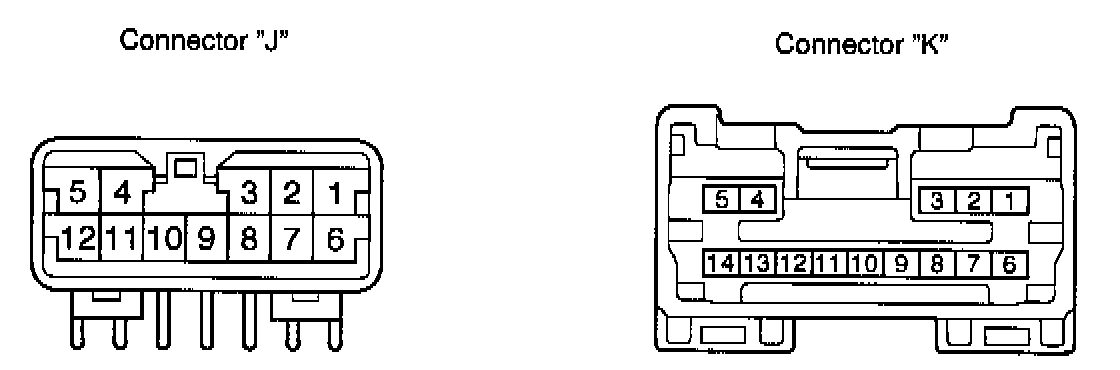

3. AUDIO HEAD UNIT

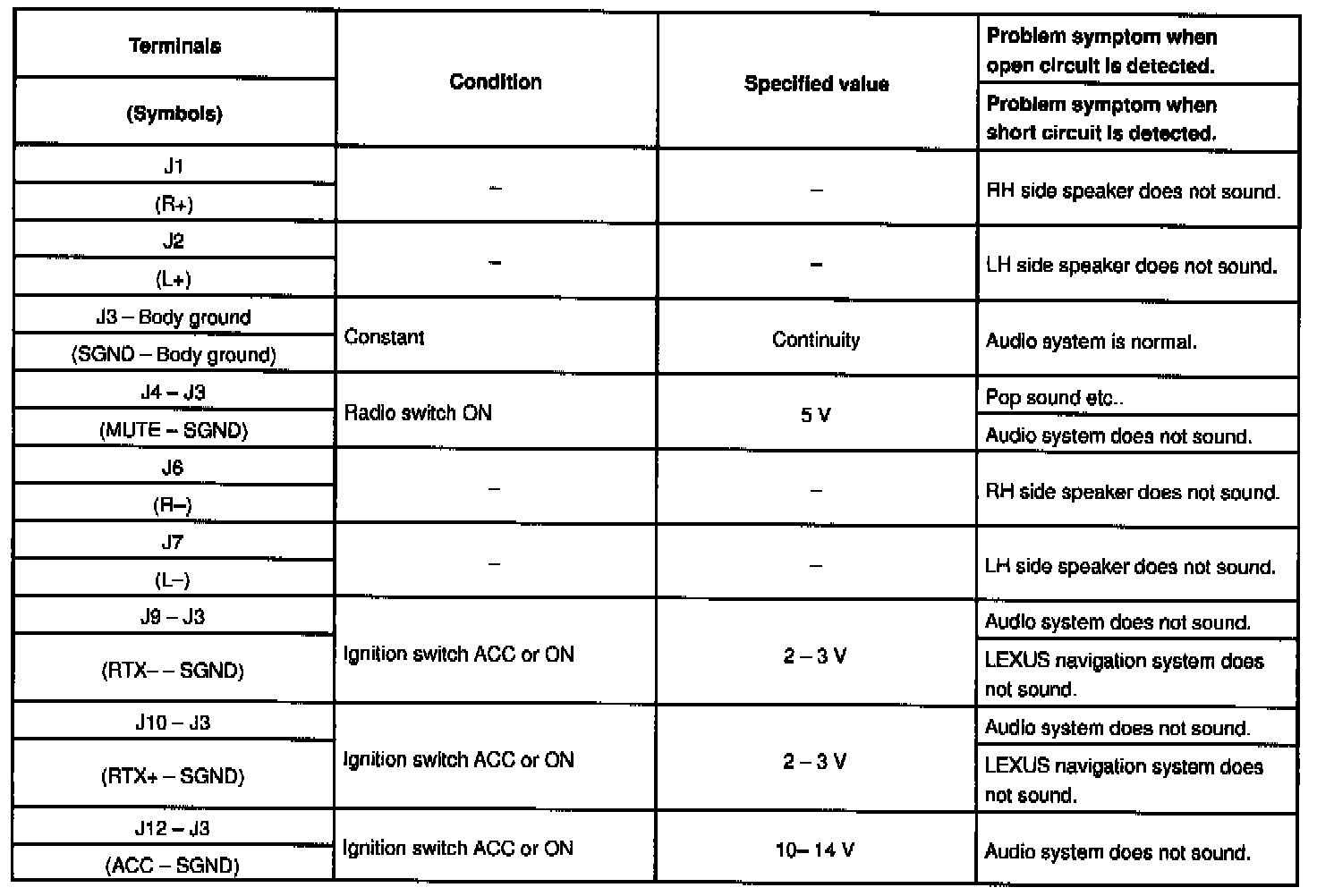

4. POWER AMPLIFIER -1

5. POWER AMPLIFIER -2

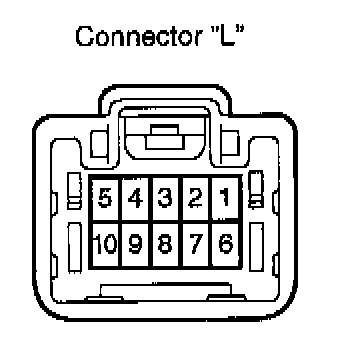

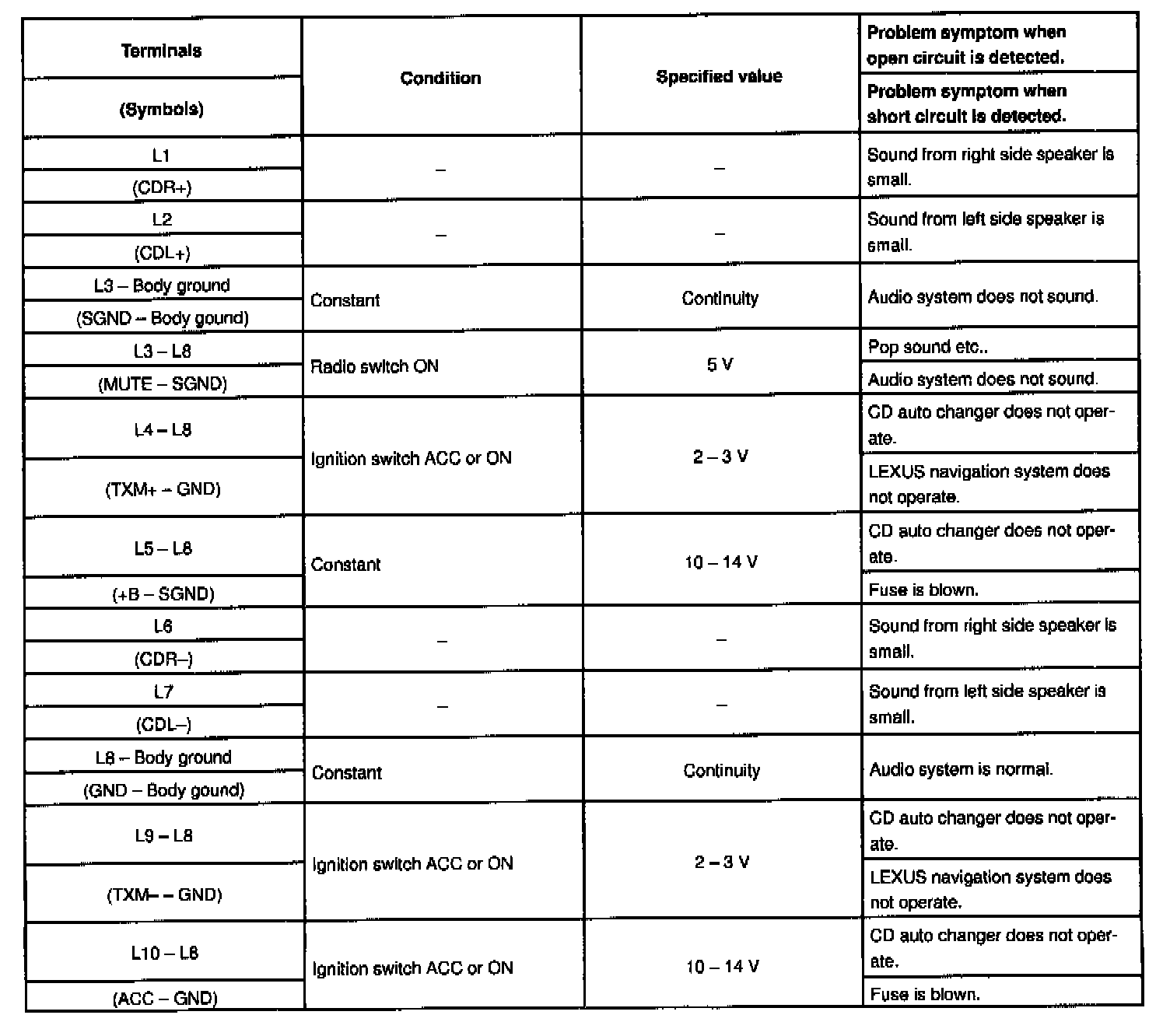

6. CD AUTO CHANGER
