Without Scan Tool

Check the DTC (Using diagnosis check wire)




1. Turn ignition switch ON.
2. Using SST connect between terminals 11 (TC) and 3 (E1) of DLC 1.
SST 09843-18040
3. Read the diagnostic trouble code from malfunction indicator lamp.

HINT:
- If a diagnostic trouble code is not output, check the TC terminal circuit.
- ECM controls the Immobilizer function on this vehicle, DTC is out put with engine data.

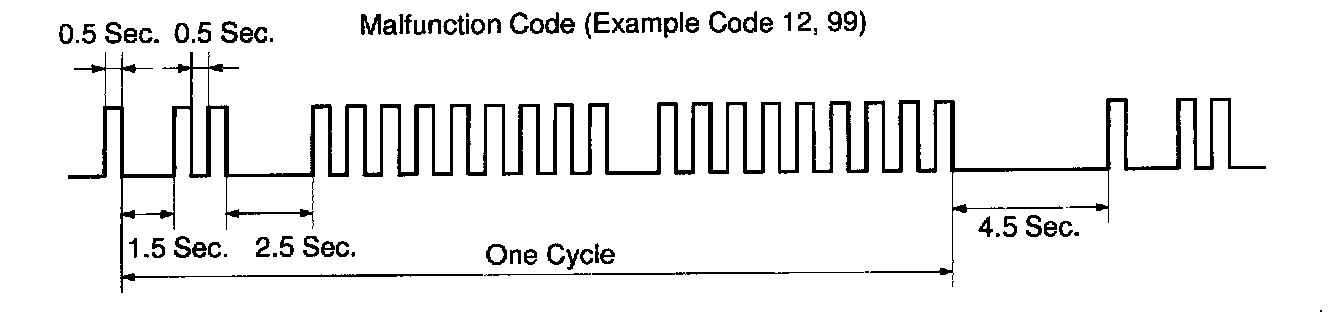

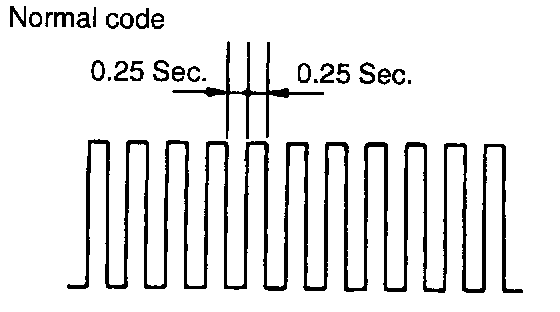

As an example, the blinking patterns for codes; normal, 12 and 99 are shown in the charts.

4. When DTC "99" is output, there is a trouble of Immobilizer. Start troubleshooting referring to PROBLEM SYMPTOMS TABLE[1][2]Engine Immobilizer System.
5. After completing the check, disconnect terminals 13 (TC) and 4 (CG) and turn off the display.

HINT: In the event of 2 or more malfunction codes, indication will begin from the smaller numbered code and continue in order to the larger.
