P1645

CIRCUIT DESCRIPTION
ECM receives the operating condition (ON/OFF) of A/C from A/C ECU and it also receives the electrical load information from the body ECU.
ECM uses these information to control the engine (idle up, etc.).

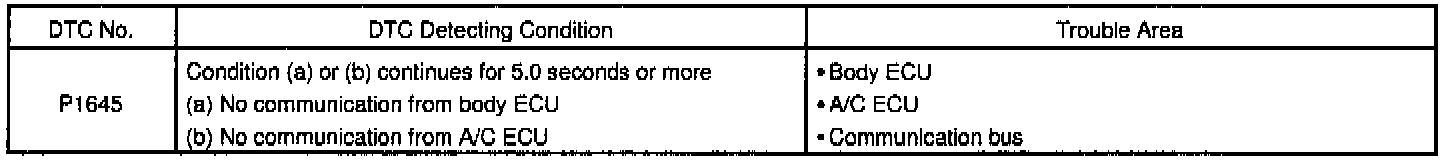

DETECTING CONDITIONS

INSPECTION PROCEDURE
Perform troubleshooting the Multiplex Communication System.
