DTC 55

CIRCUIT DESCRIPTION
This DTC is output when failure of P1 switch is detected.




DETECTING CONDITION

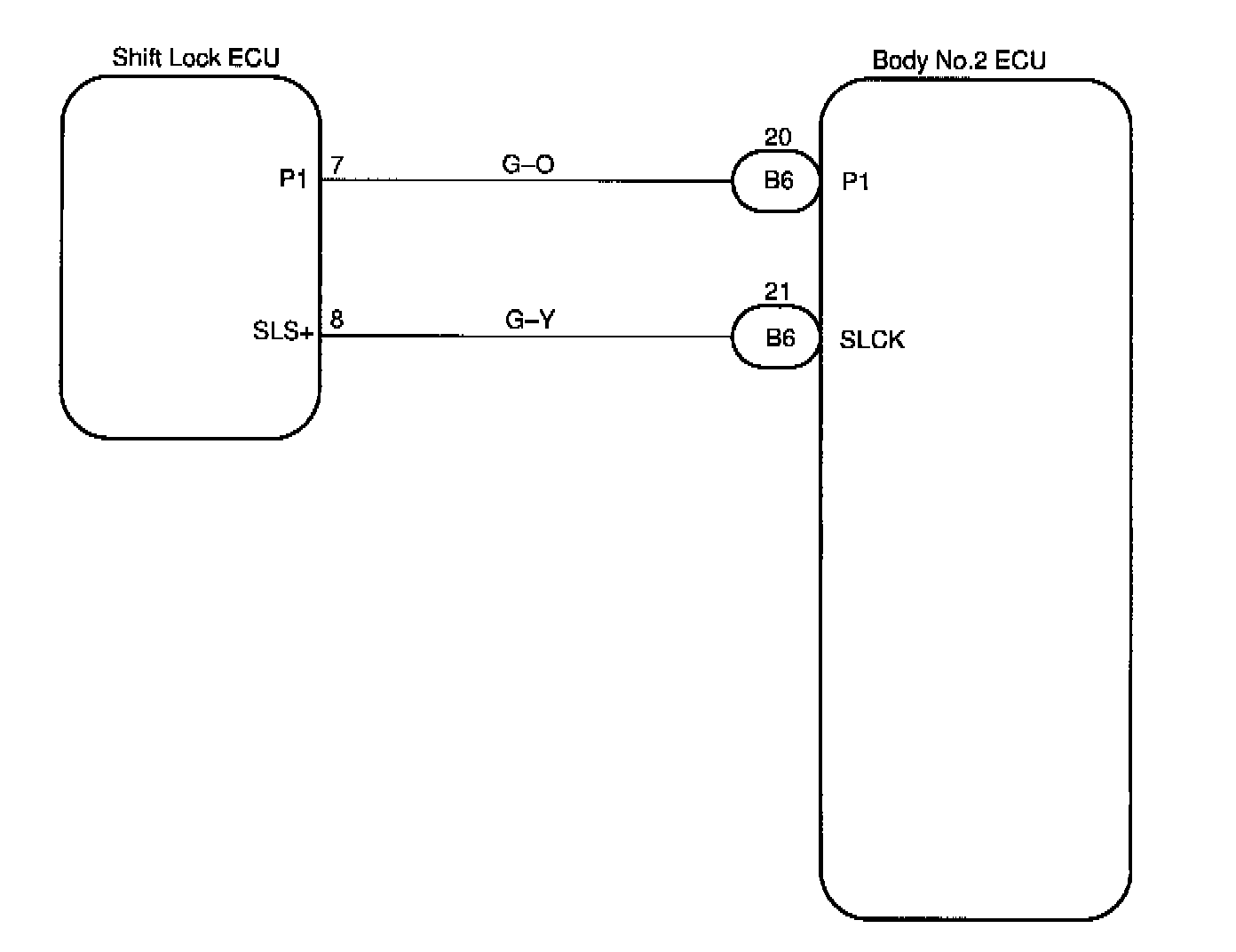

WIRING DIAGRAM

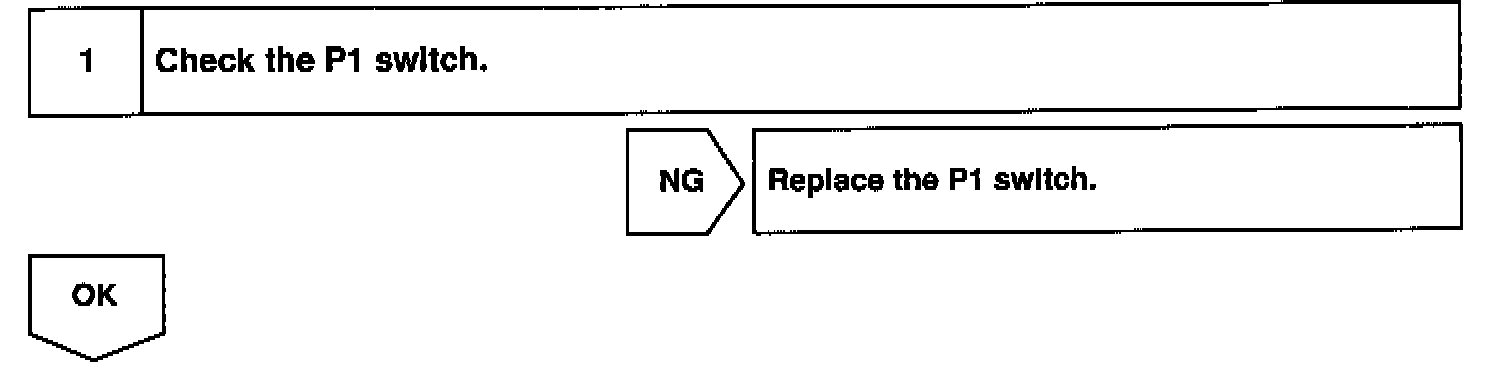

Step 1:

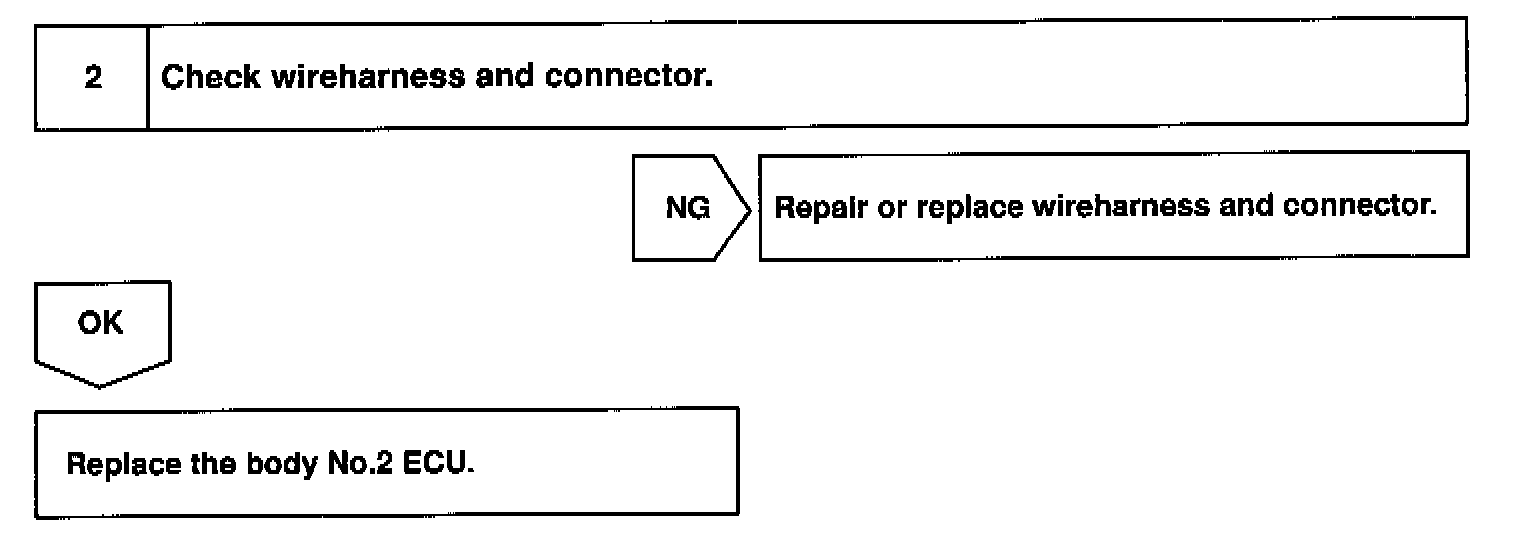

Step 2:




INSPECTION PROCEDURE
