DTC 16
CIRCUIT DESCRIPTIONThis DTC is output when communication stops between rear right door ECU and body No.1 ECU.

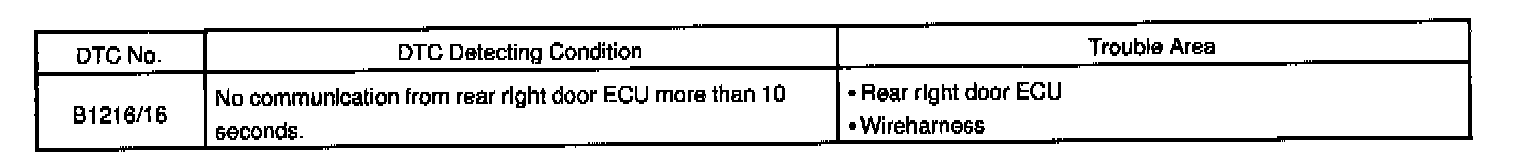

DETECTING CONDITION
WIRING DIAGRAM

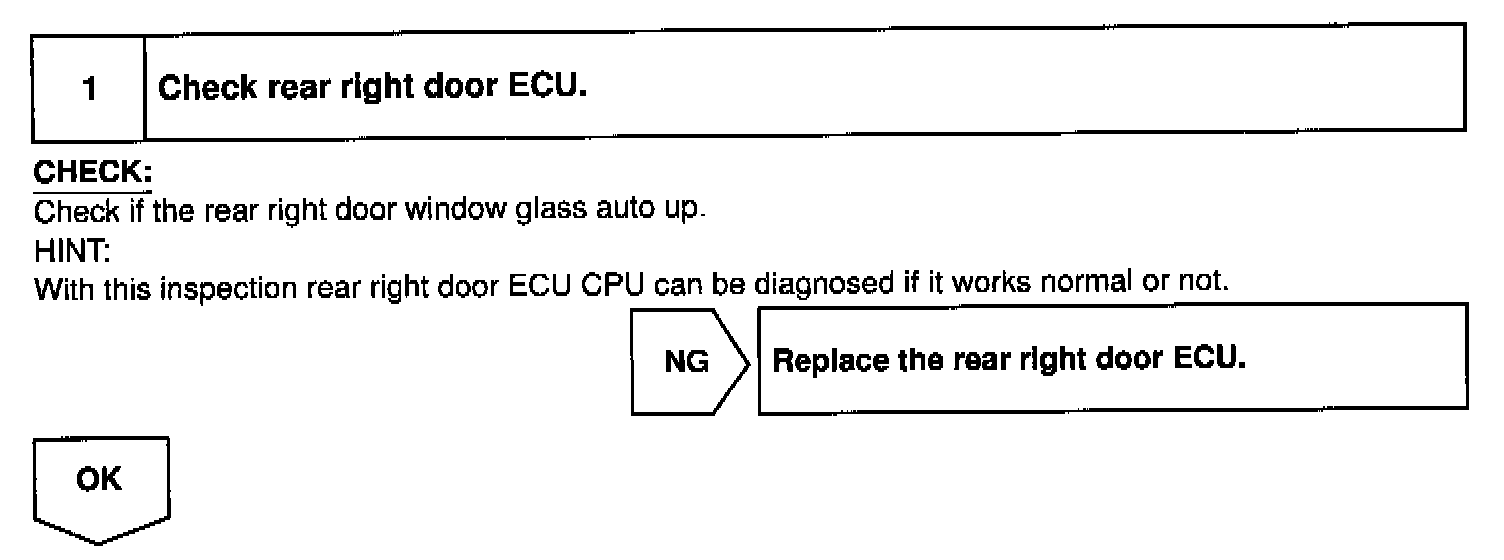

Step 1:

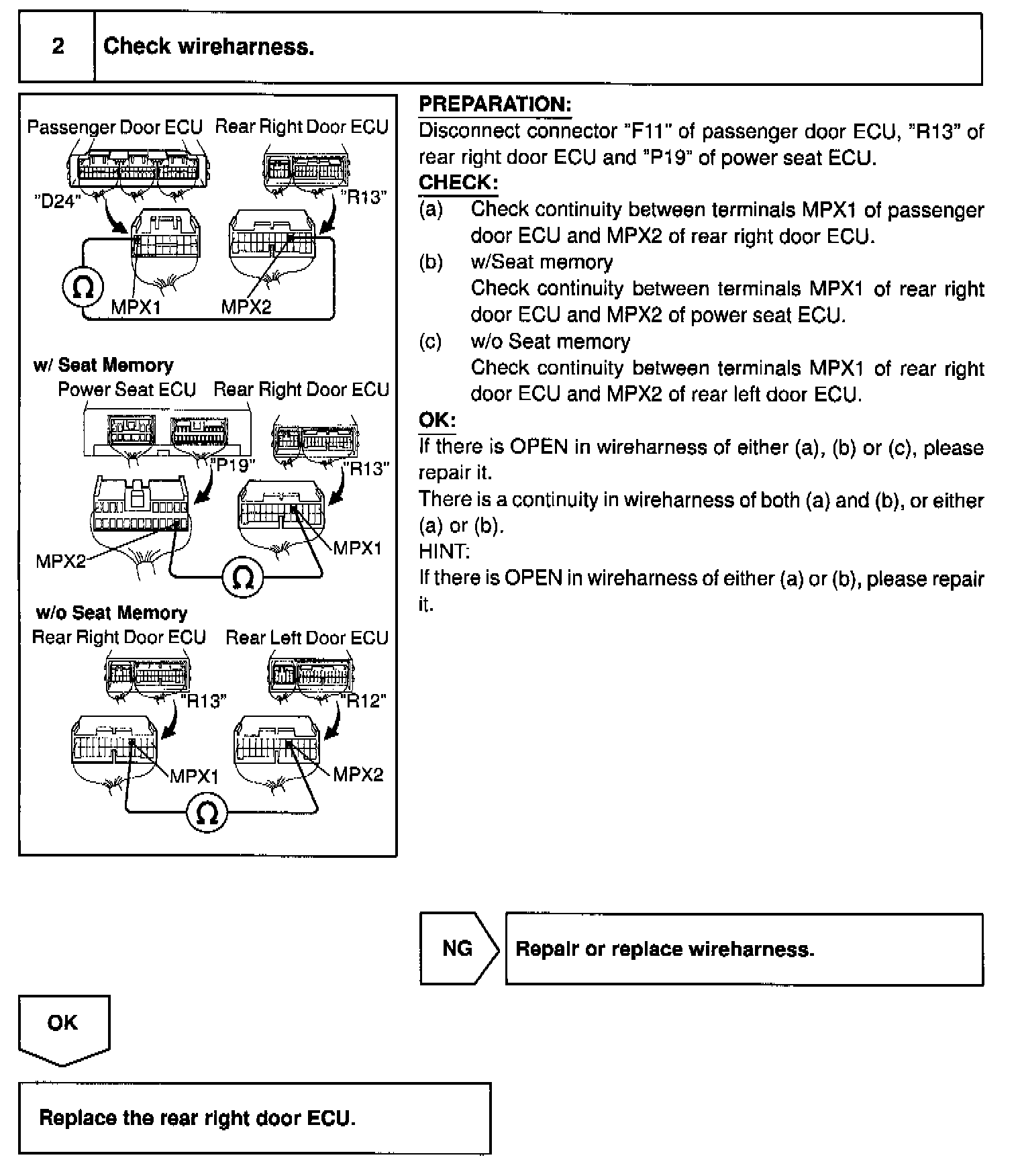

Step 2:
INSPECTION PROCEDURE
This DTC is output when communication stops between rear right door ECU and body No.1 ECU.
DETECTING CONDITION
WIRING DIAGRAM
INSPECTION PROCEDURE
