DTC 24

24 - Solar Sensor Circuit (Driver Side)






CIRCUIT DESCRIPTION
A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

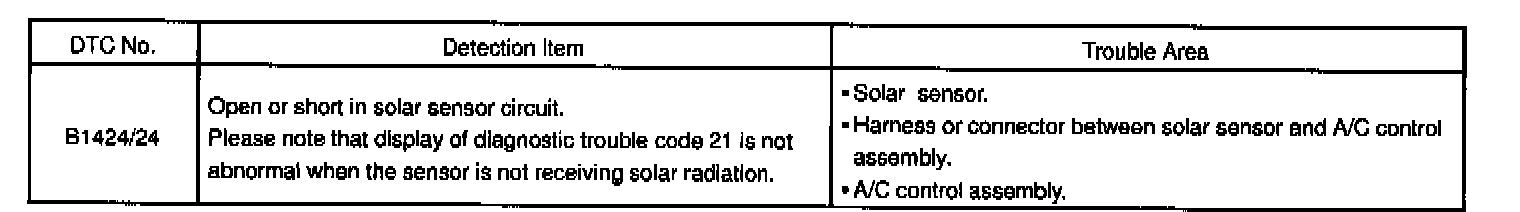

DETECTING CONDITION




WIRING DIAGRAM

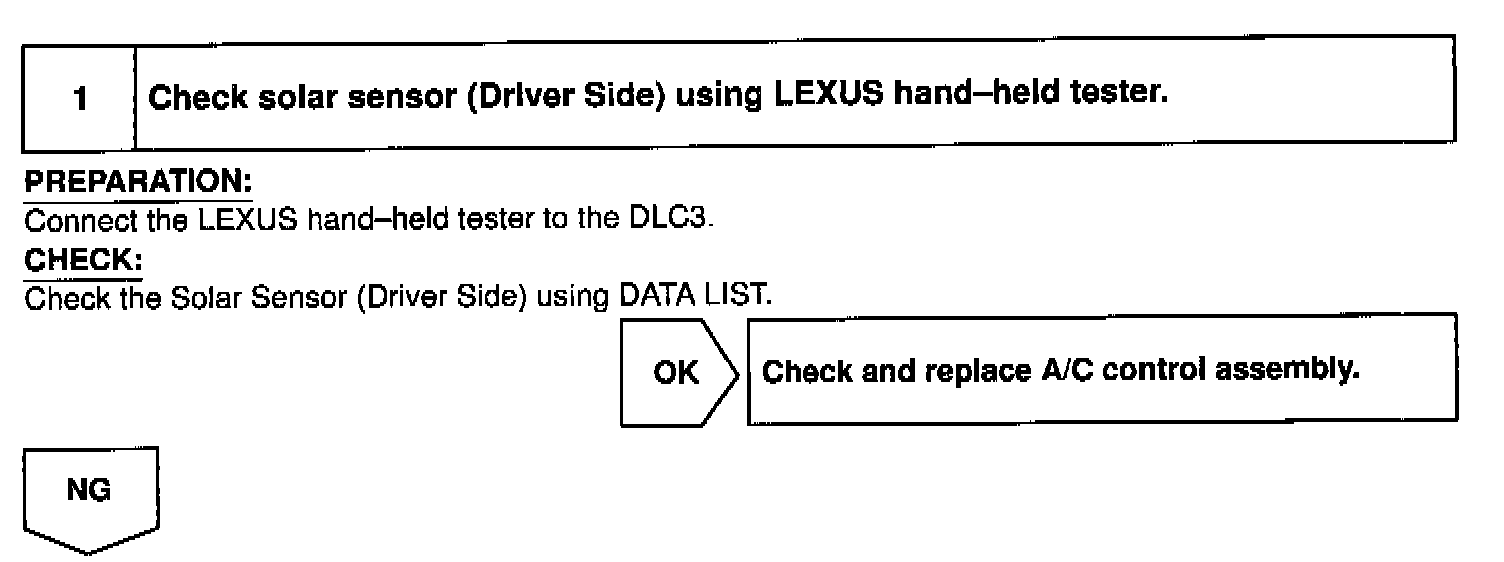

Step 1:

Step 2:

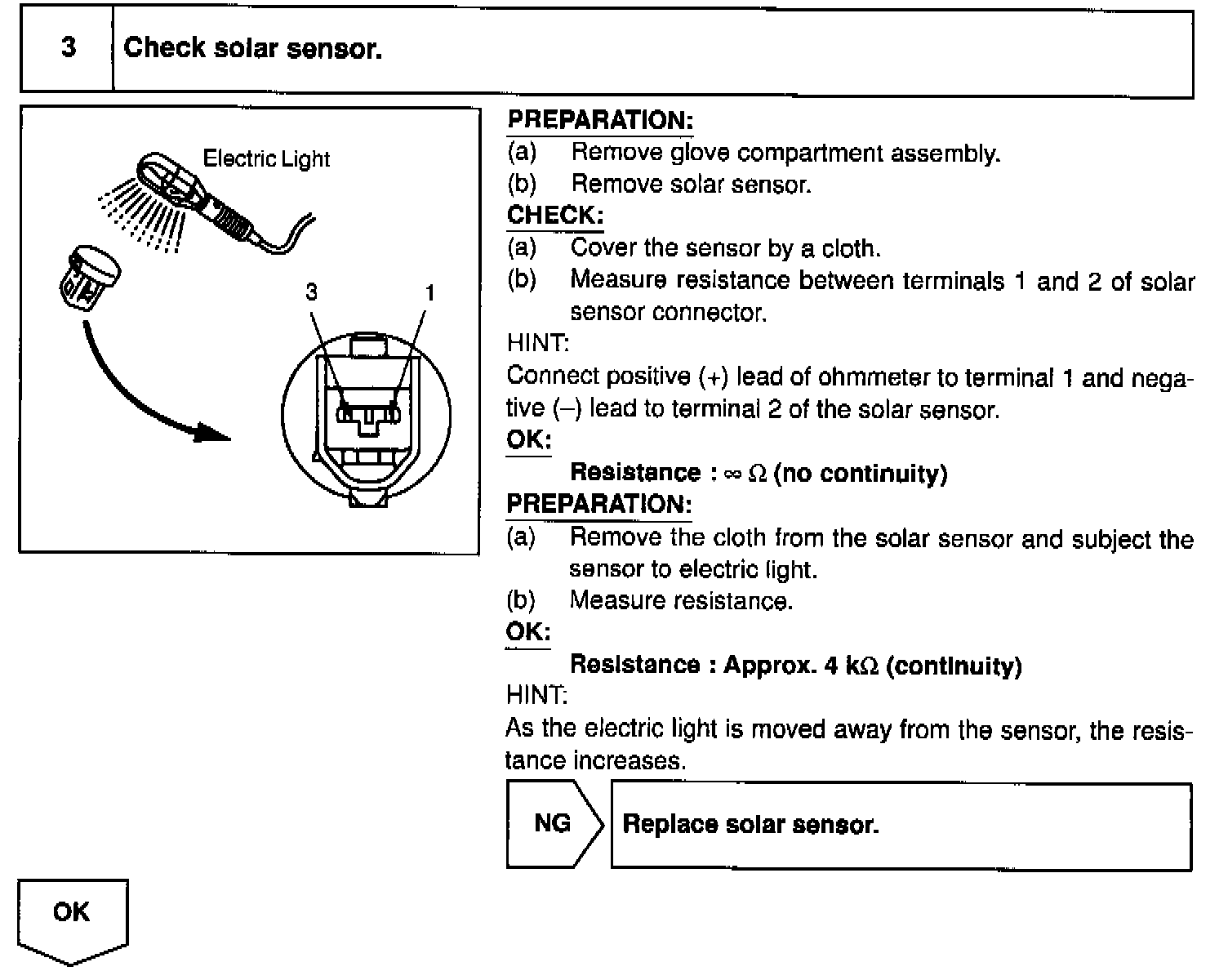

Step 3:

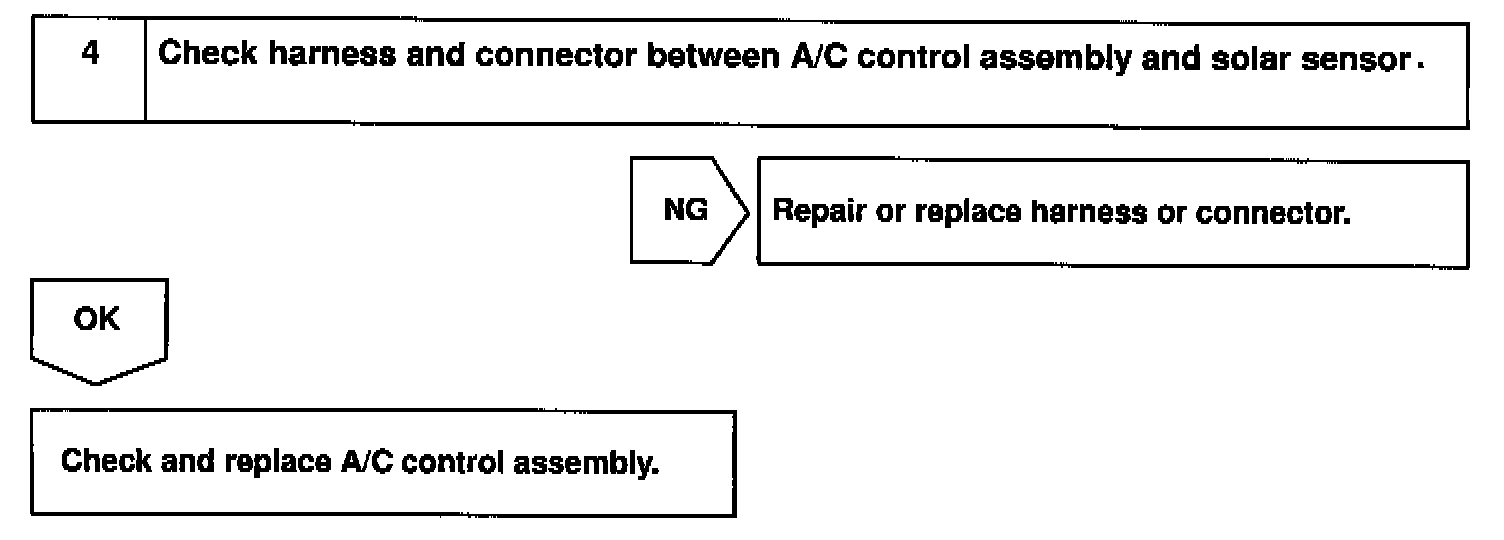

Step 4:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester start from step 2.
