DTC 13

CIRCUIT DESCRIPTION
This sensor detects the temperature inside the cooling unit and sends the appropriate signals to the A/C control assembly.

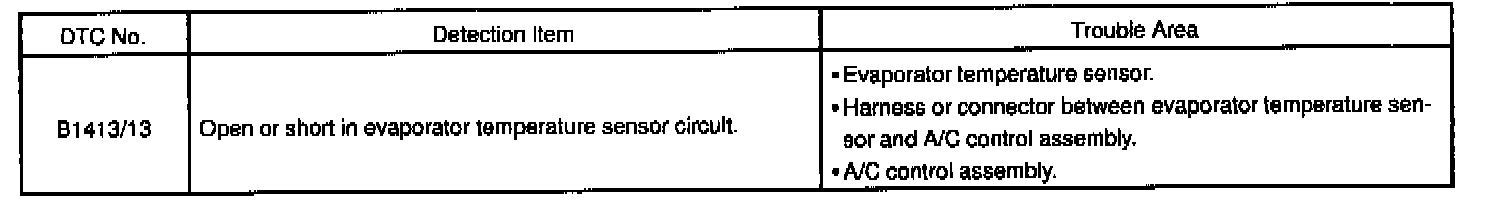

DETECTING CONDITION




WIRING DIAGRAM

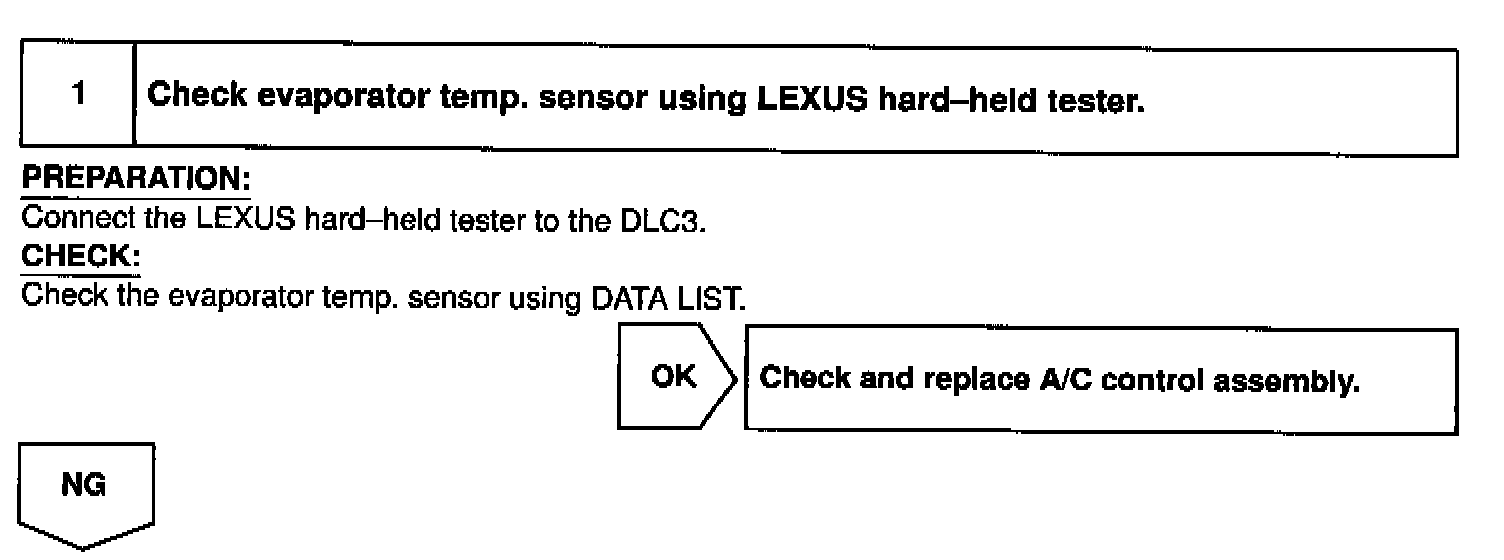

Step 1:

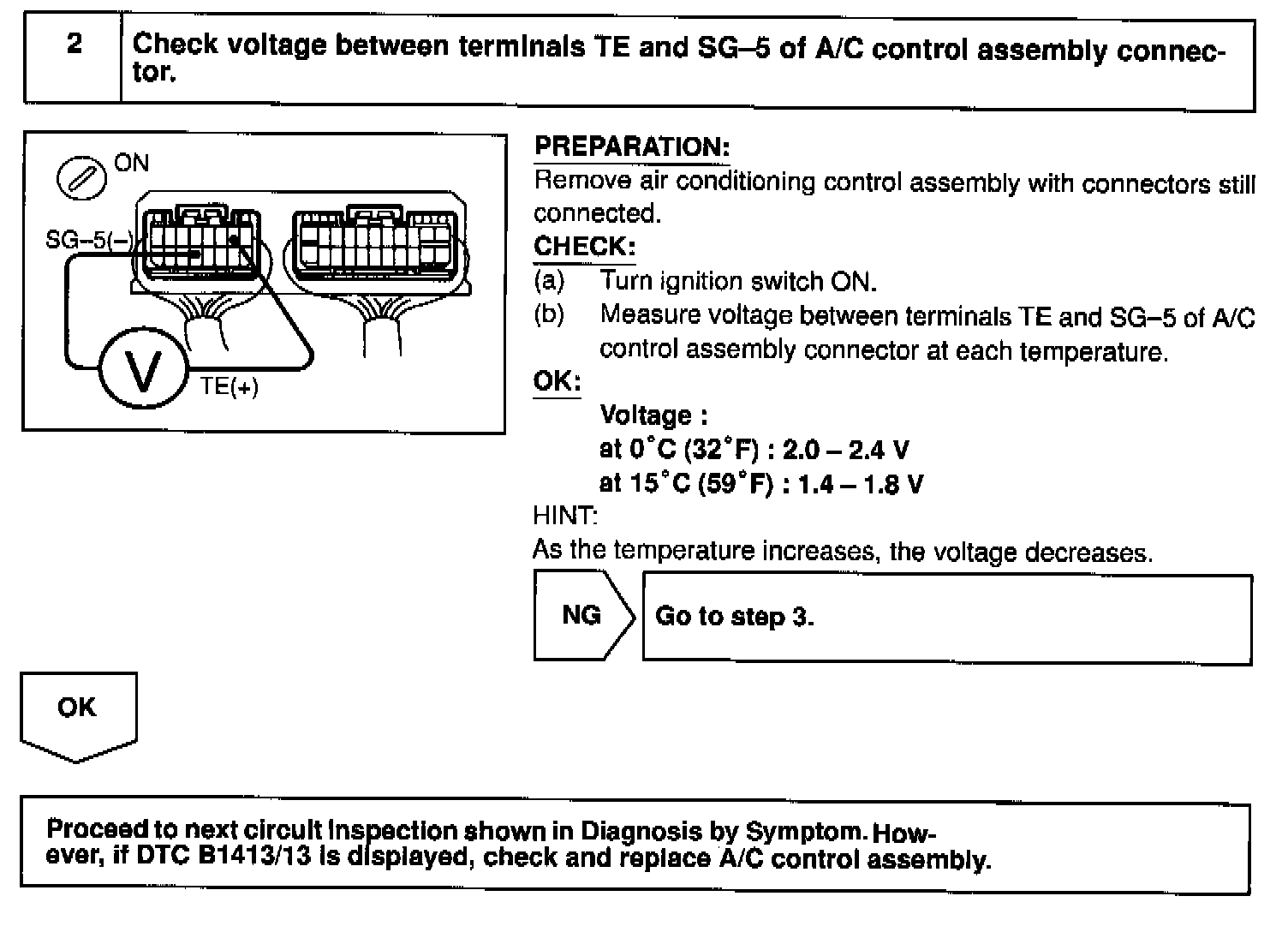

Step 2:

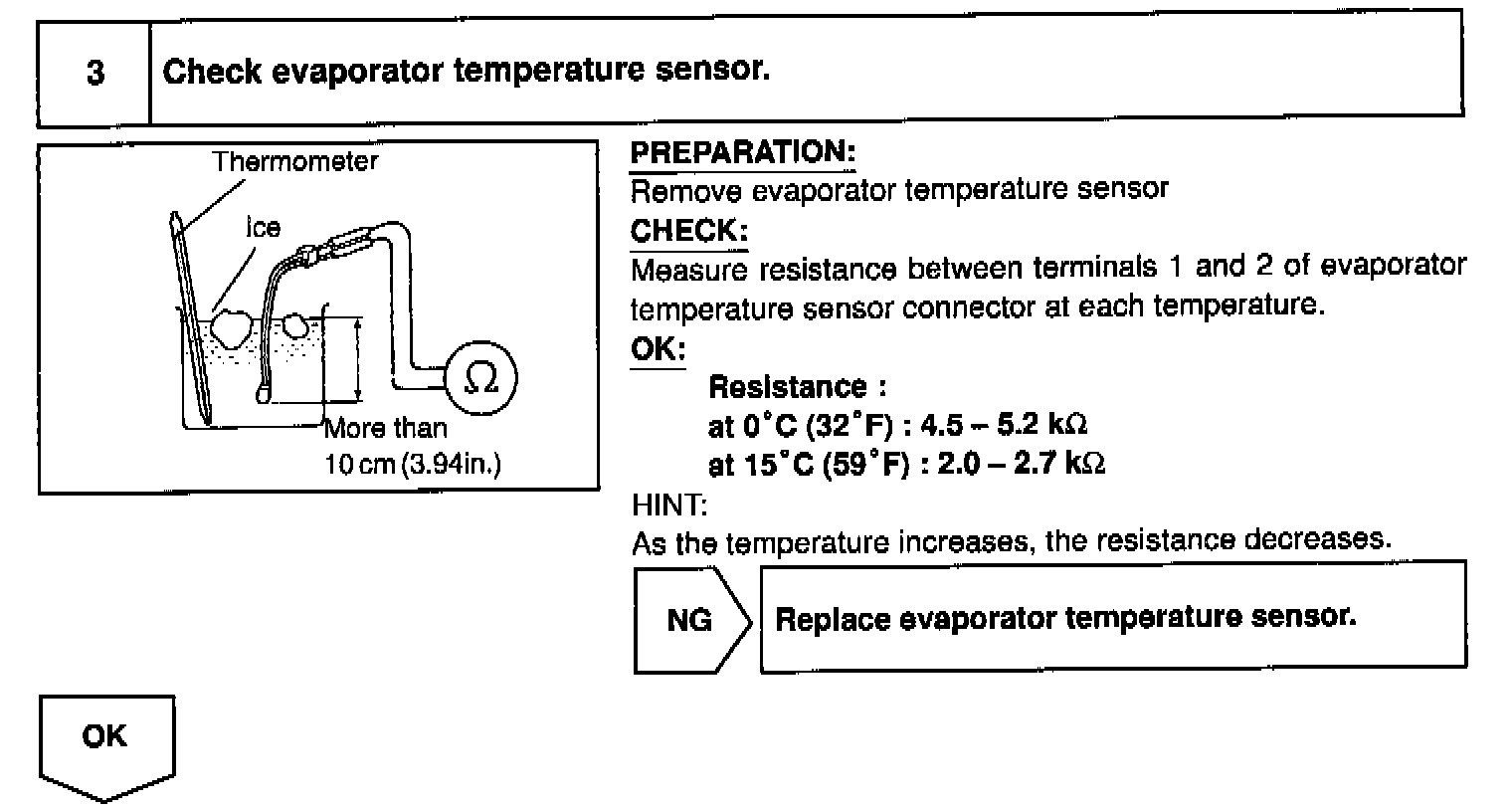

Step 3:

Step 4:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hard-held tester start the inspection step 1 and in case of not using the LEXUS hard-held tester, start form step 2.
