Communication Malfunction No. 1

CIRCUIT DESCRIPTION
This code is detected when although the communication has been performed normally, an error occurs.
(Example. Some noise is included in communication line.)

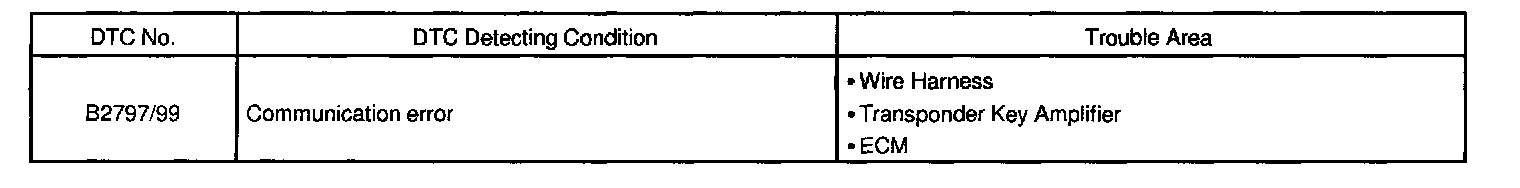

DETECTING CONDITIONS

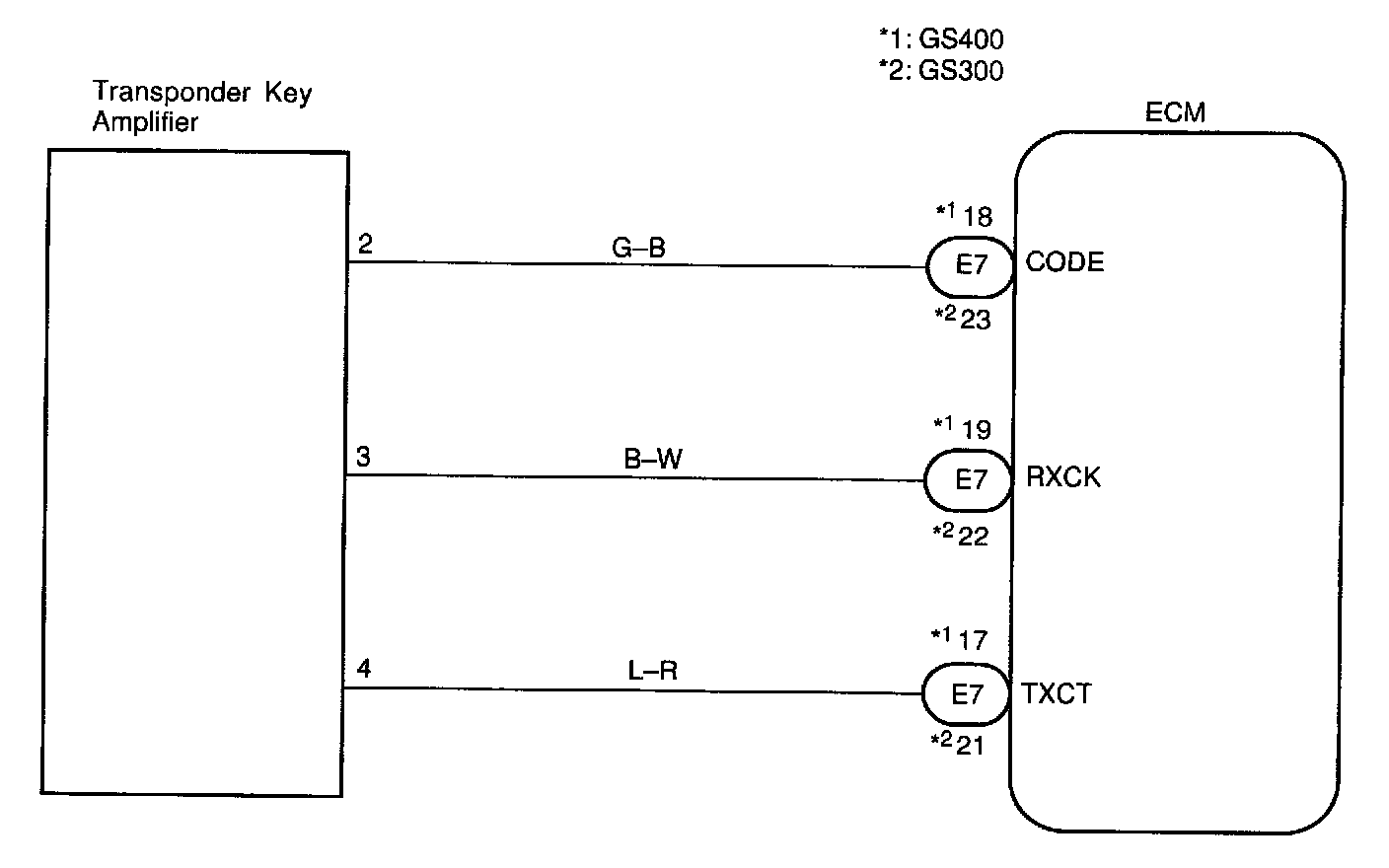

WIRING DIAGRAM

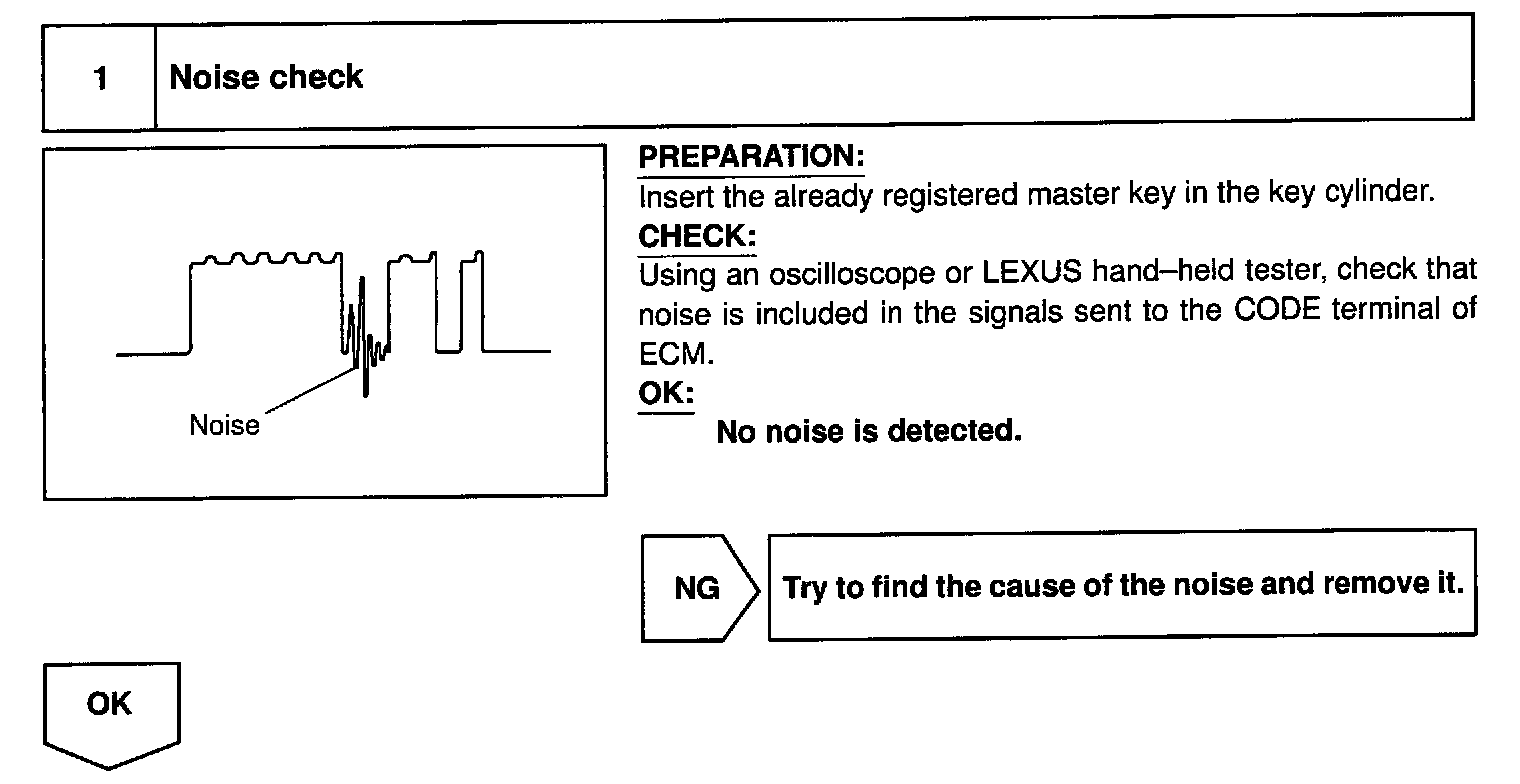

Step 1:

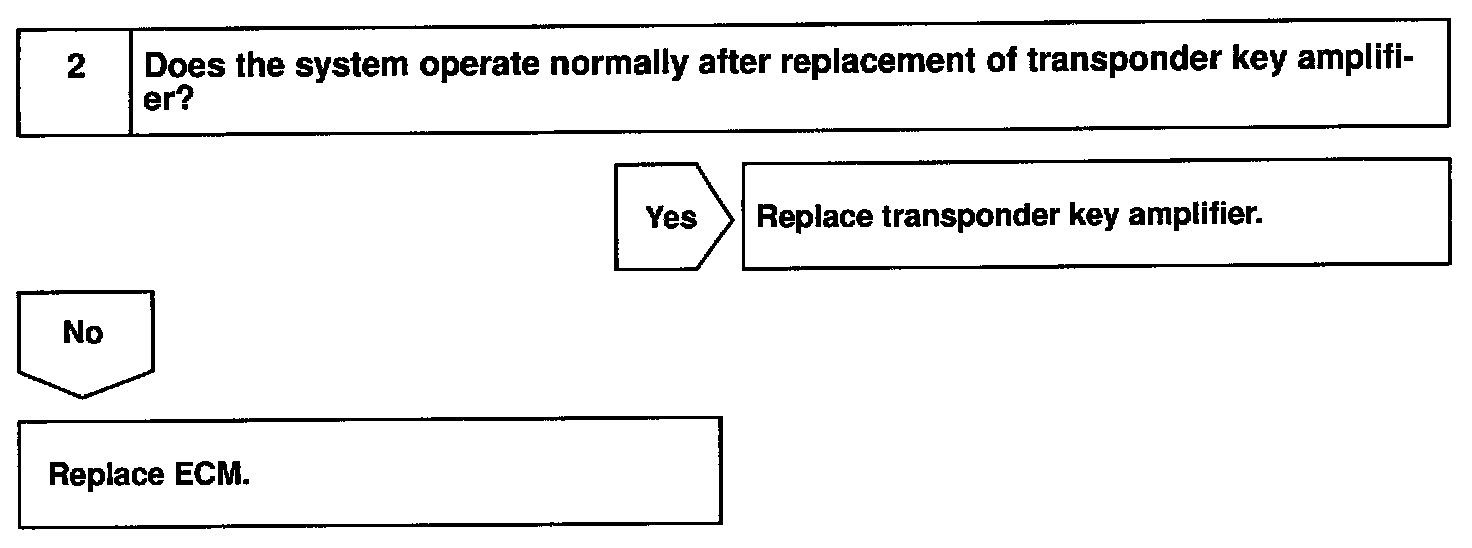

Step 2:

INSPECTION PROCEDURE
