DTC 16

CIRCUIT DESCRIPTION
The front airbag sensor assembly (LH) circuit consists of the airbag sensor assembly and front airbag sensor assembly (LH).
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.

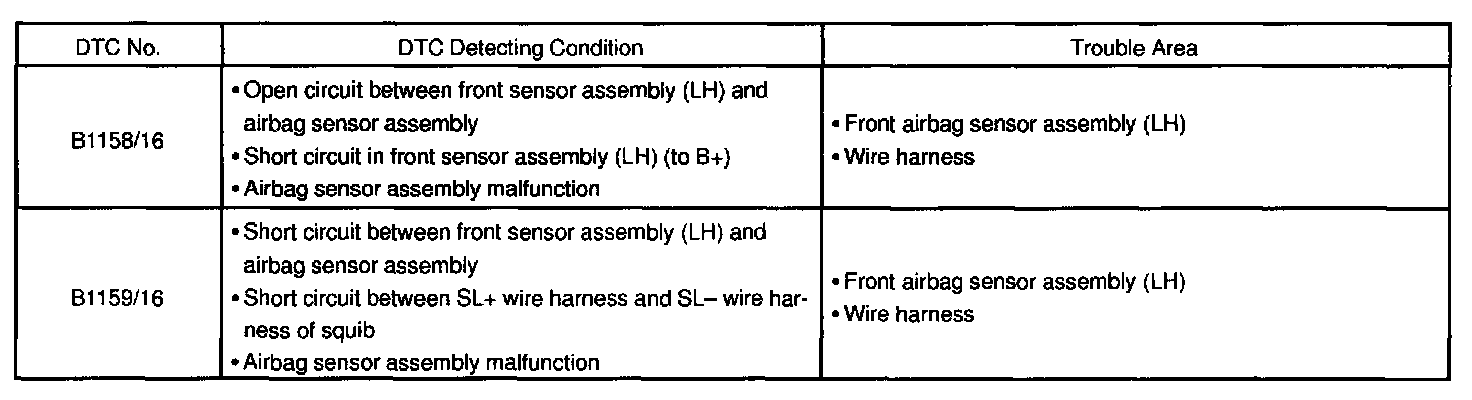

DTC B11158,B1159/16 is recorded when occurrence of a malfunction in the front airbag sensor assembly (LH) is detected.

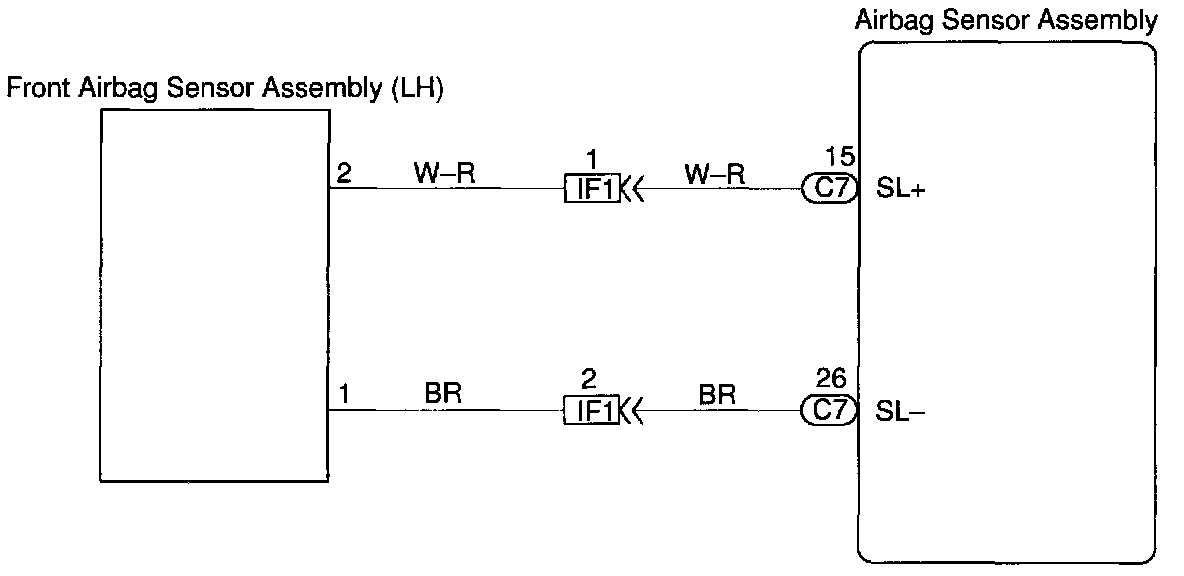

WIRING DIAGRAM

INSPECTION PROCEDURE

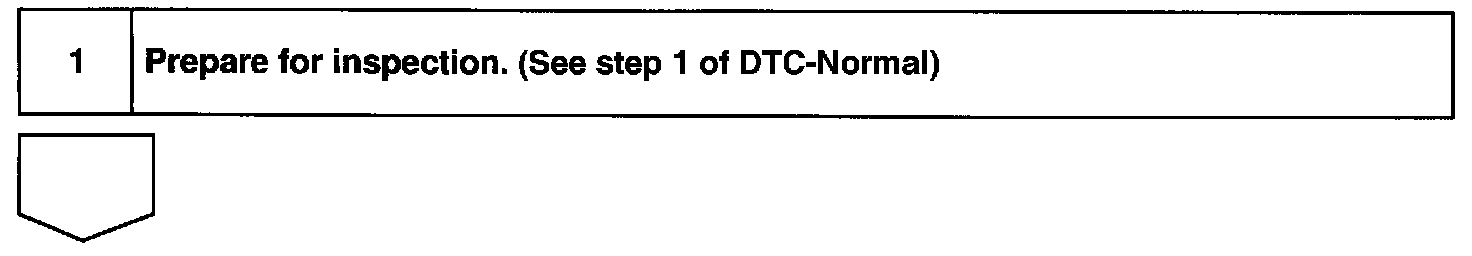

Step 1/Prepare for Inspection

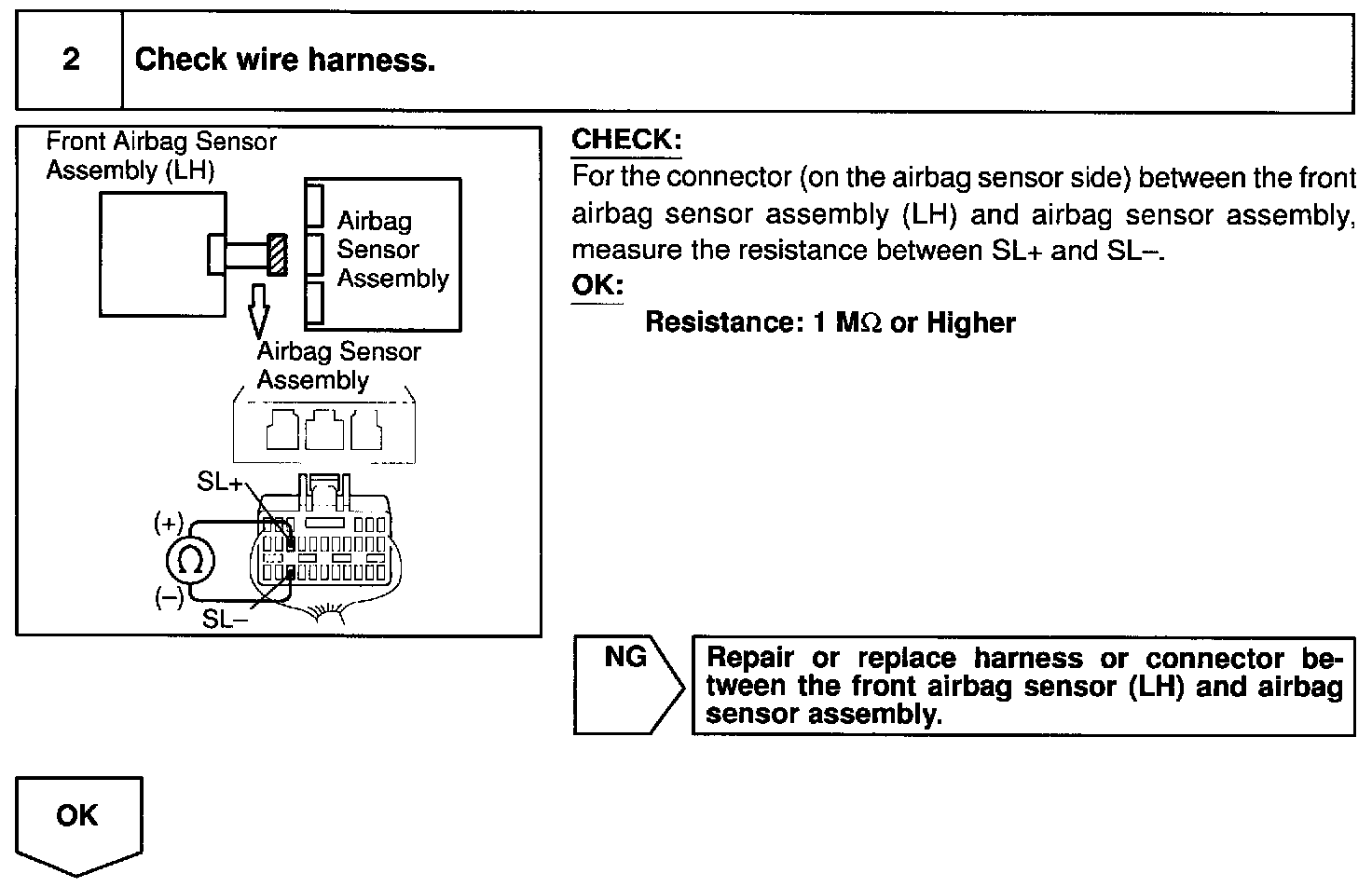

Step 2/Check wire harness

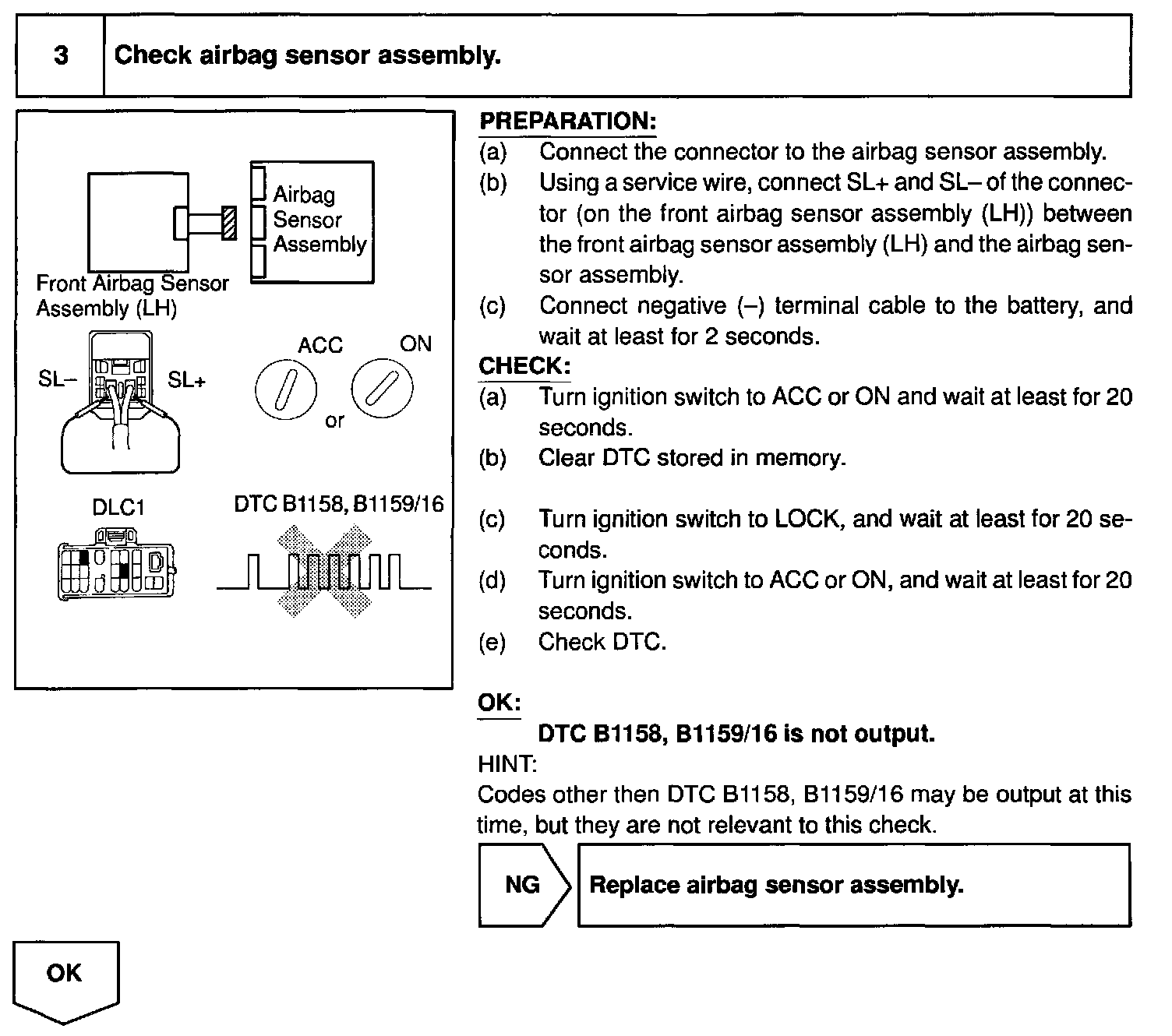

Step 3/Check airbag sensor assembly

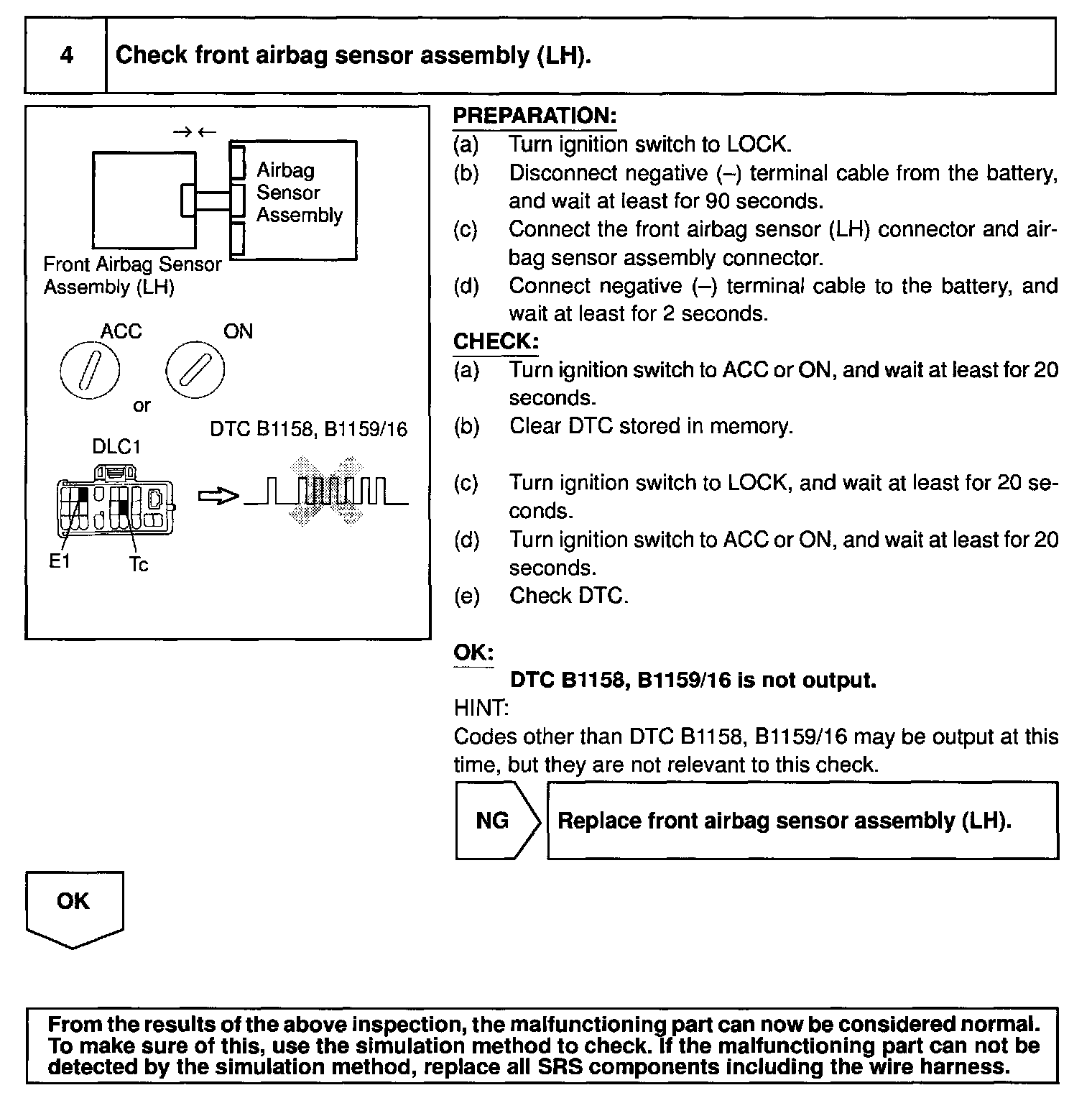

Step 4/Check front airbag sensor assembly (LH)




Step 5/Check front airbag sensor assembly (LH)

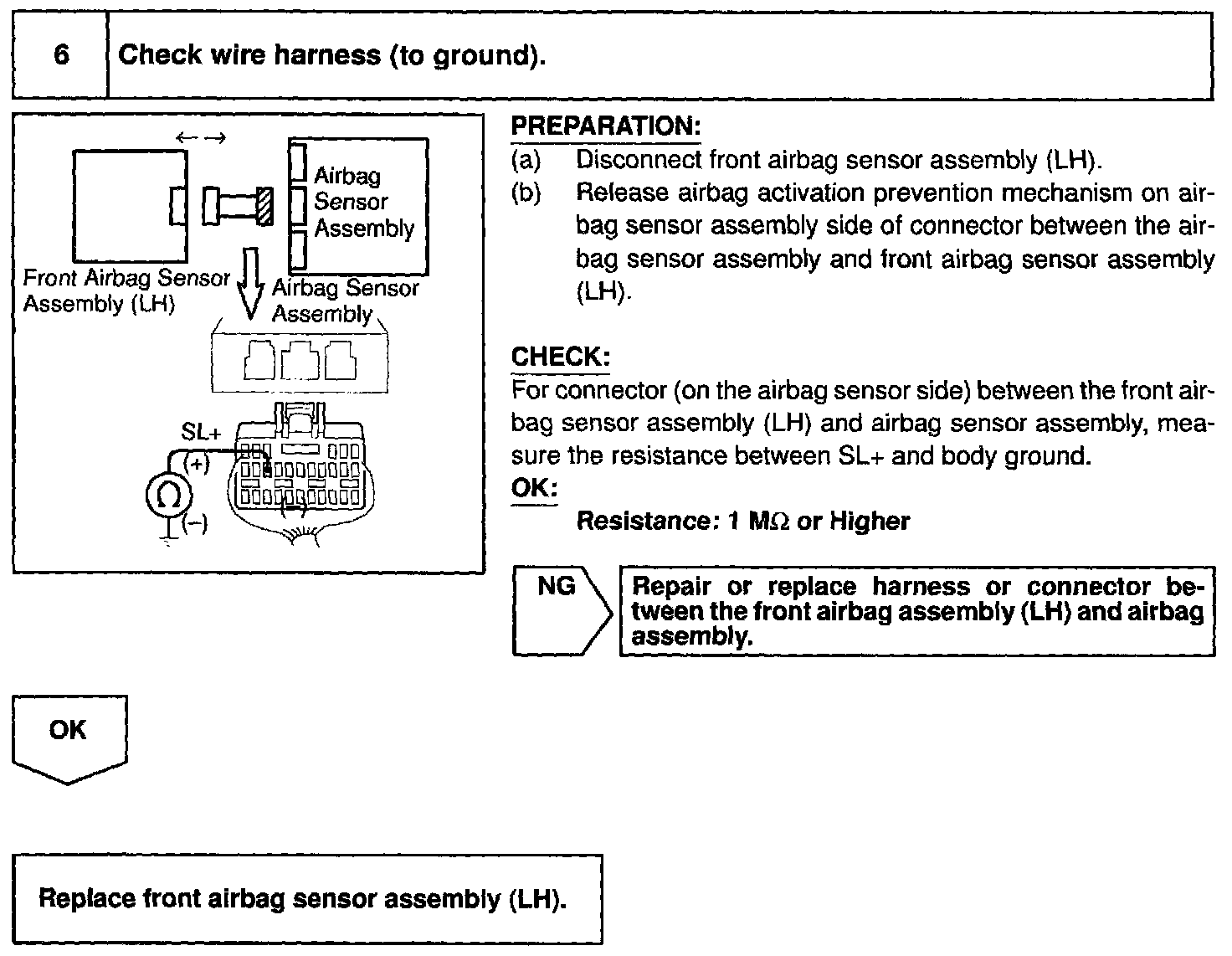

Step 6/Check wire harness (to ground)

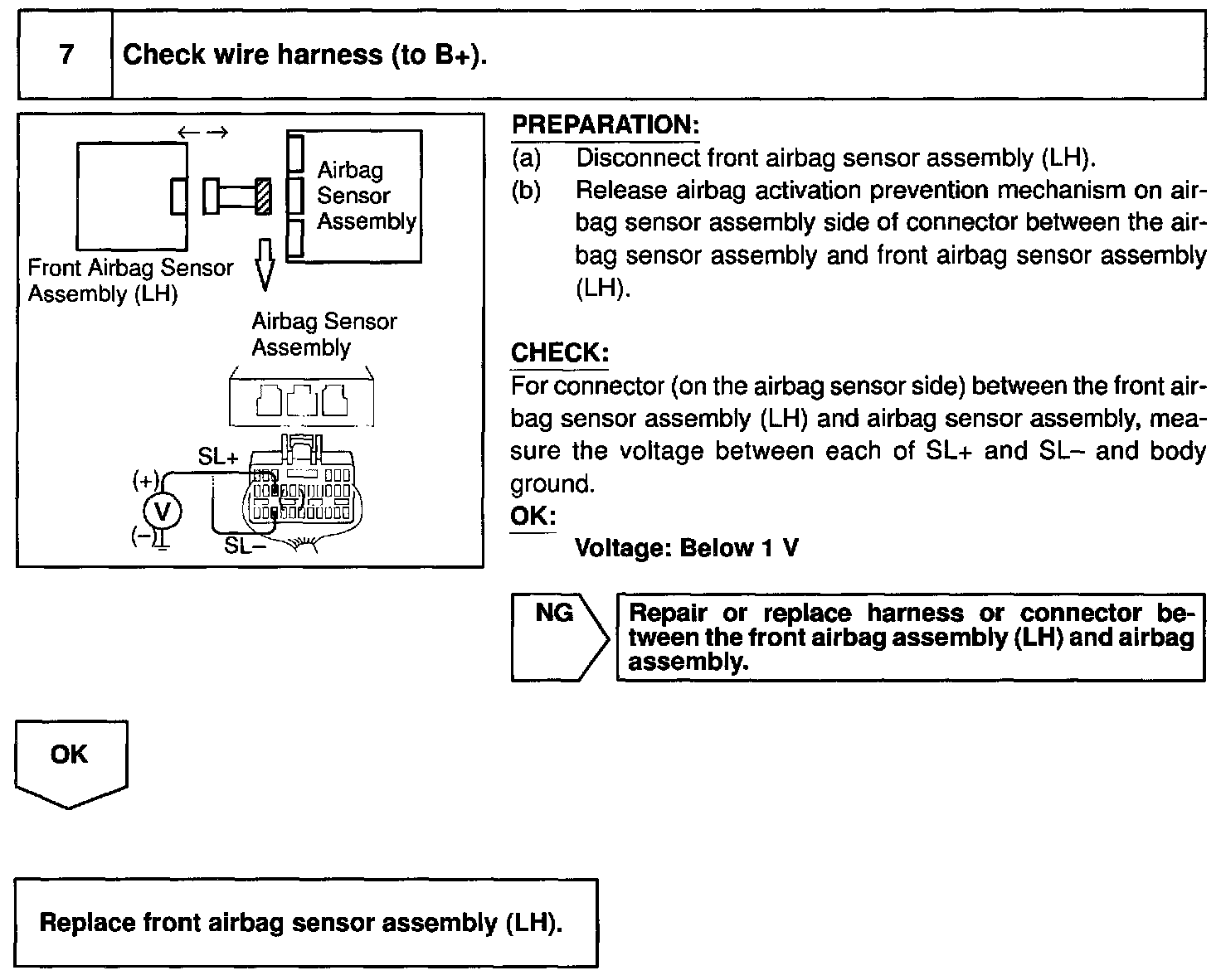

Step 7/Check wire harness (to B++)
