DTC 12

CIRCUIT DESCRIPTION

The D and P squib circuits consist of the airbag sensor assembly, spiral cable, steering wheel pad and front passenger airbag assembly.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.
DTC B0103/12 is recorded when B+ short is detected in the D and P squib circuits.

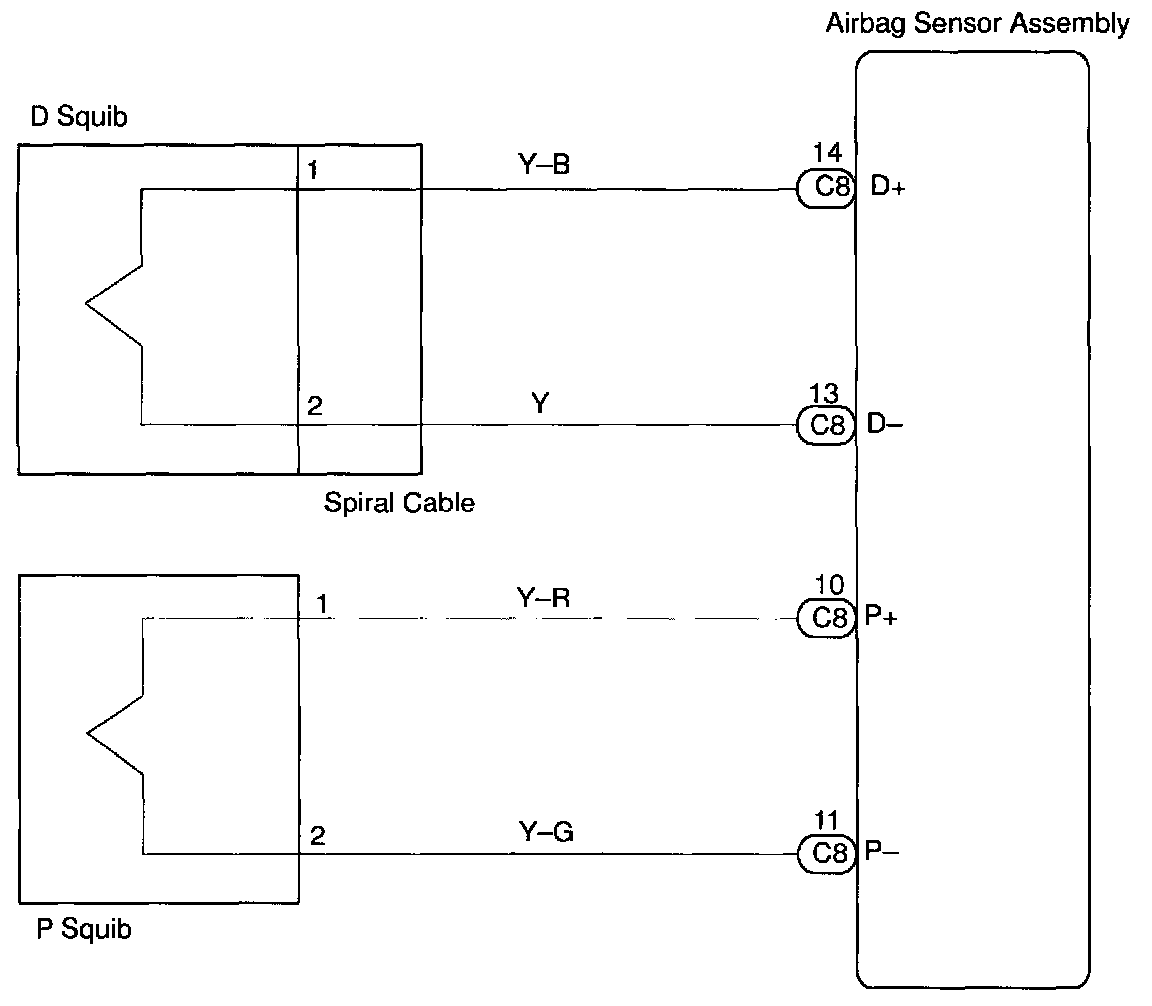

WIRING DIAGRAM

INSPECTION PROCEDURE

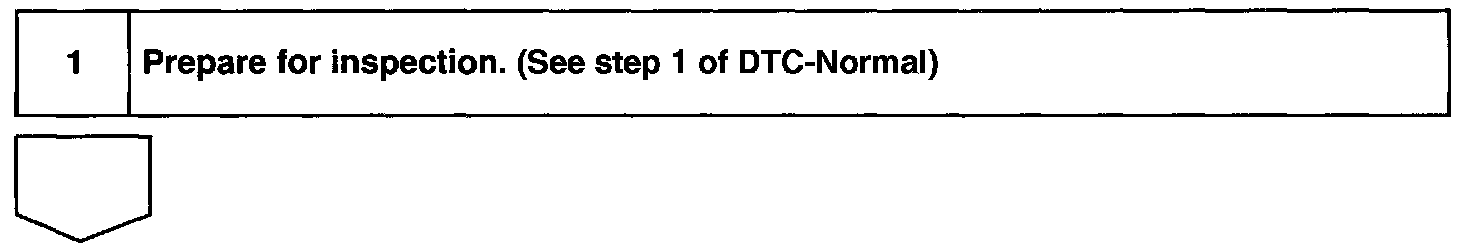

Step 1/Prepare for Inspection

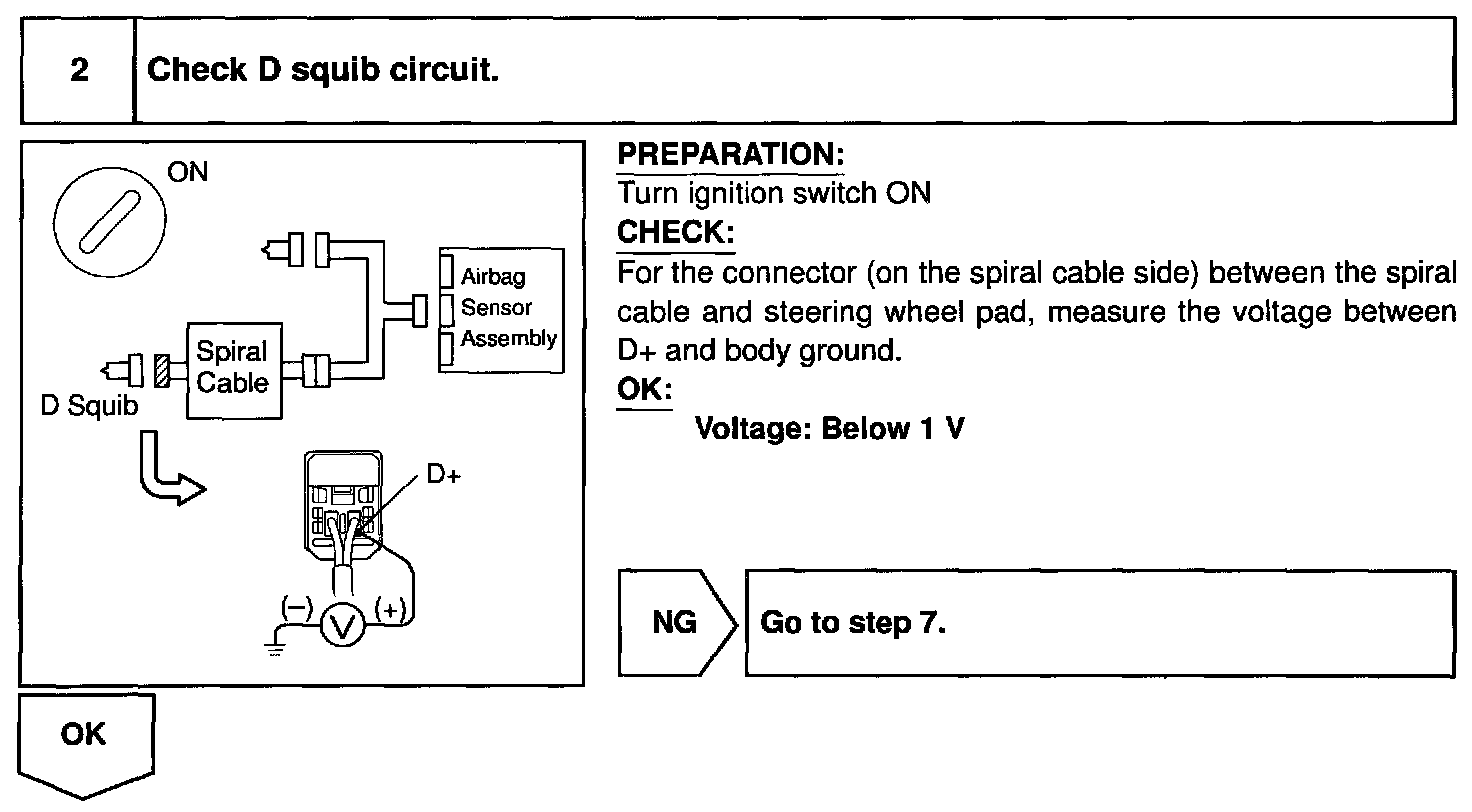

Step 2/Check D squib circuit

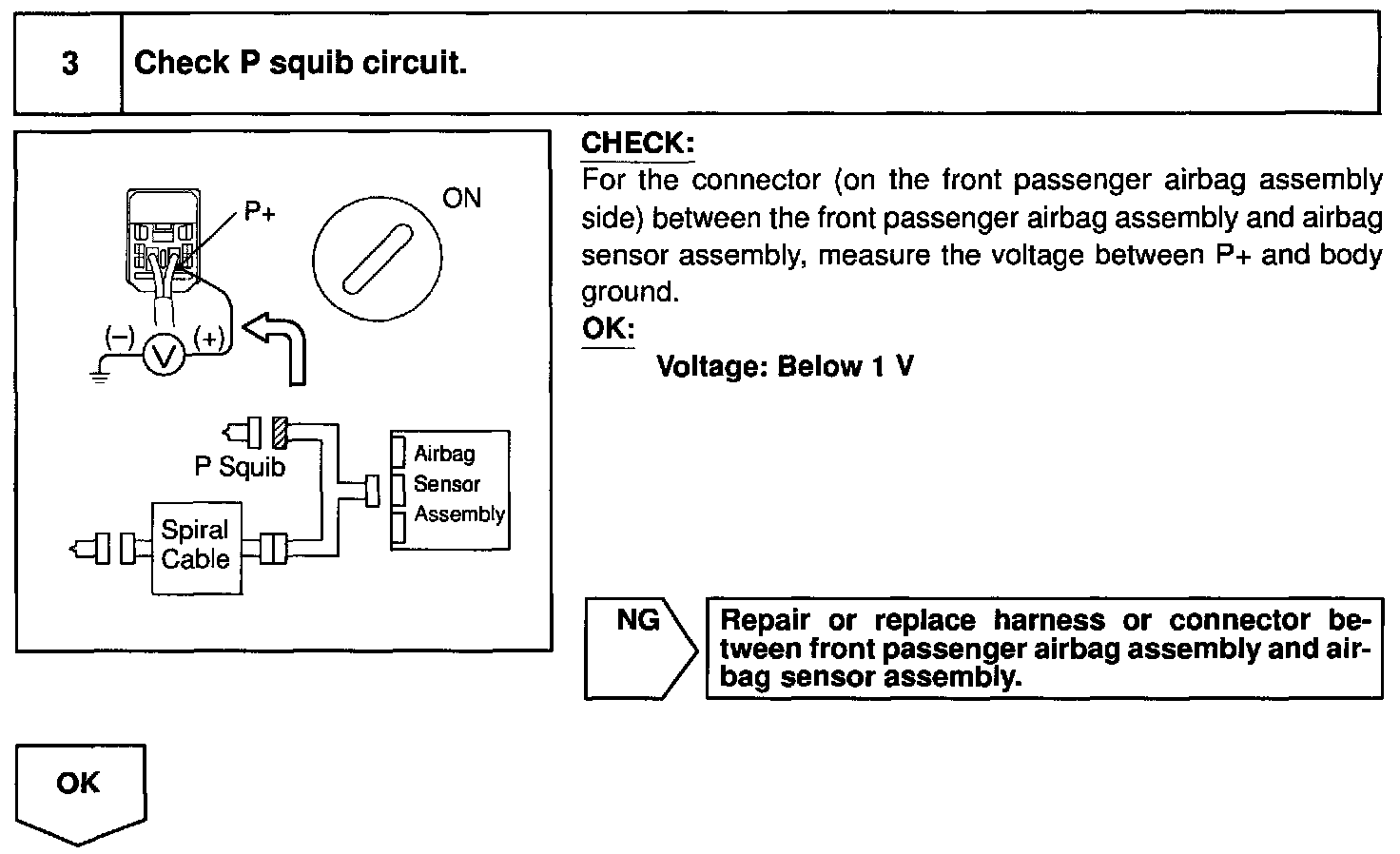

Step 3/Check P squib circuit

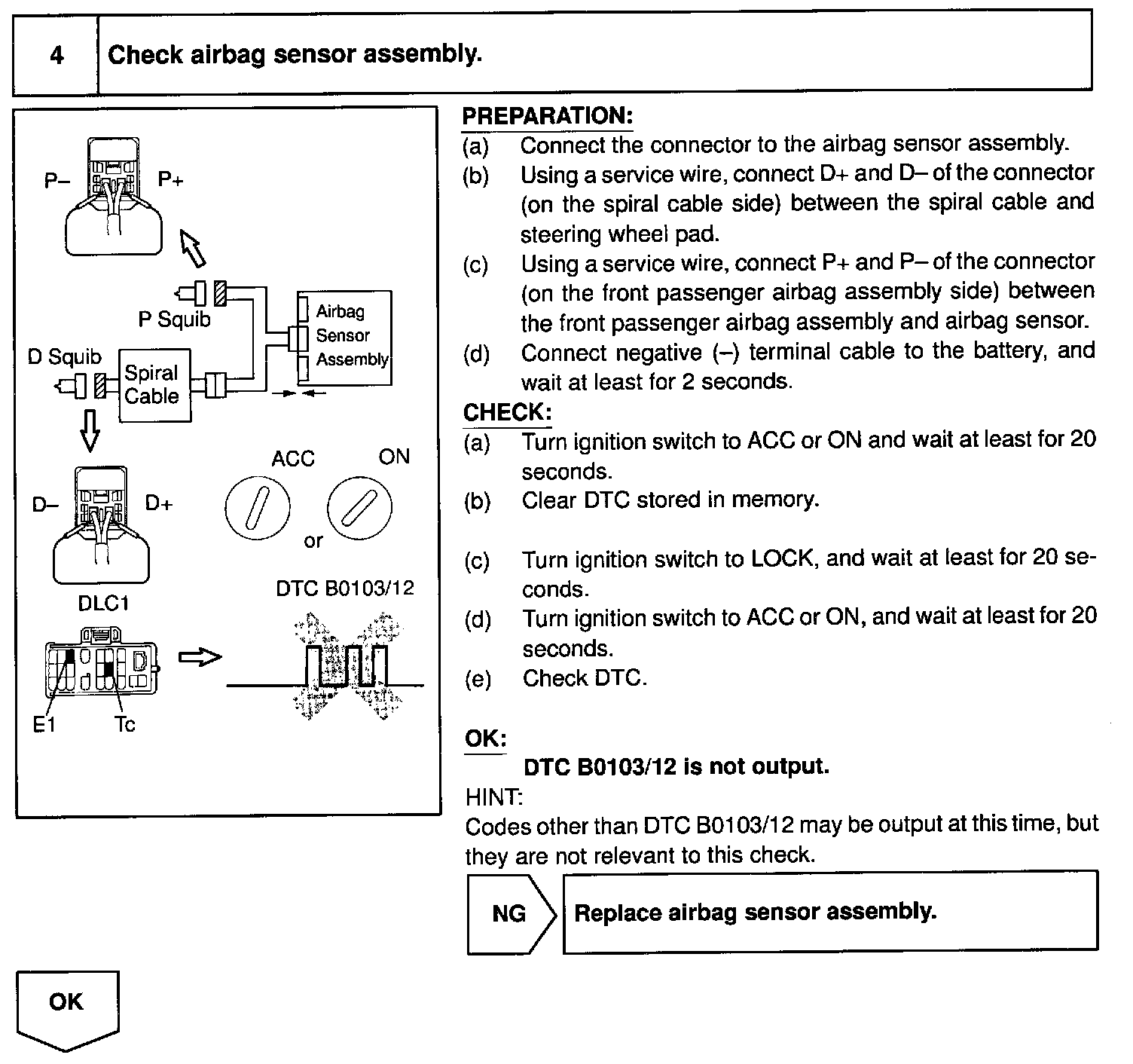

Step 4/Check airbag sensor assembly

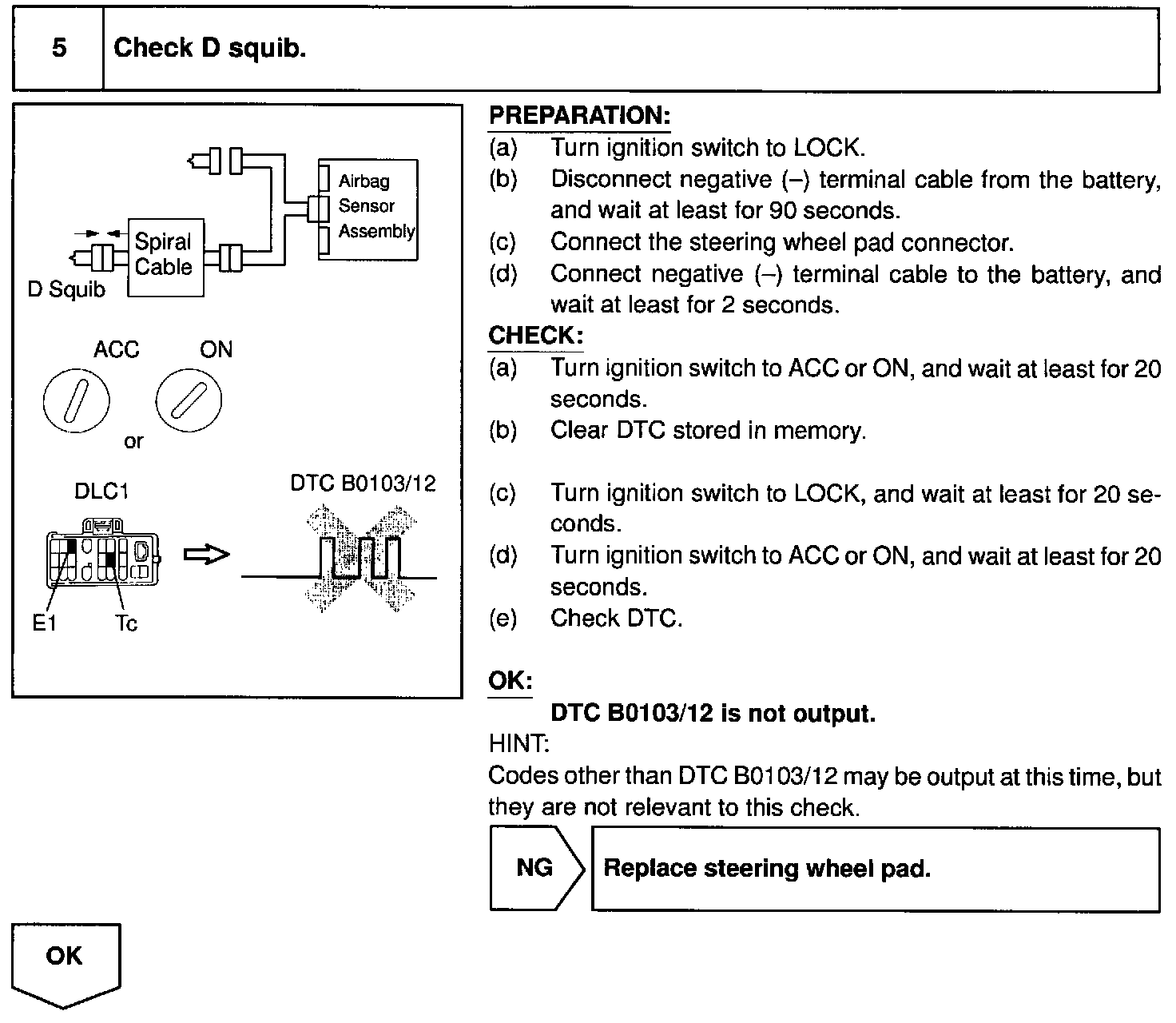

Step 5/Check D squib

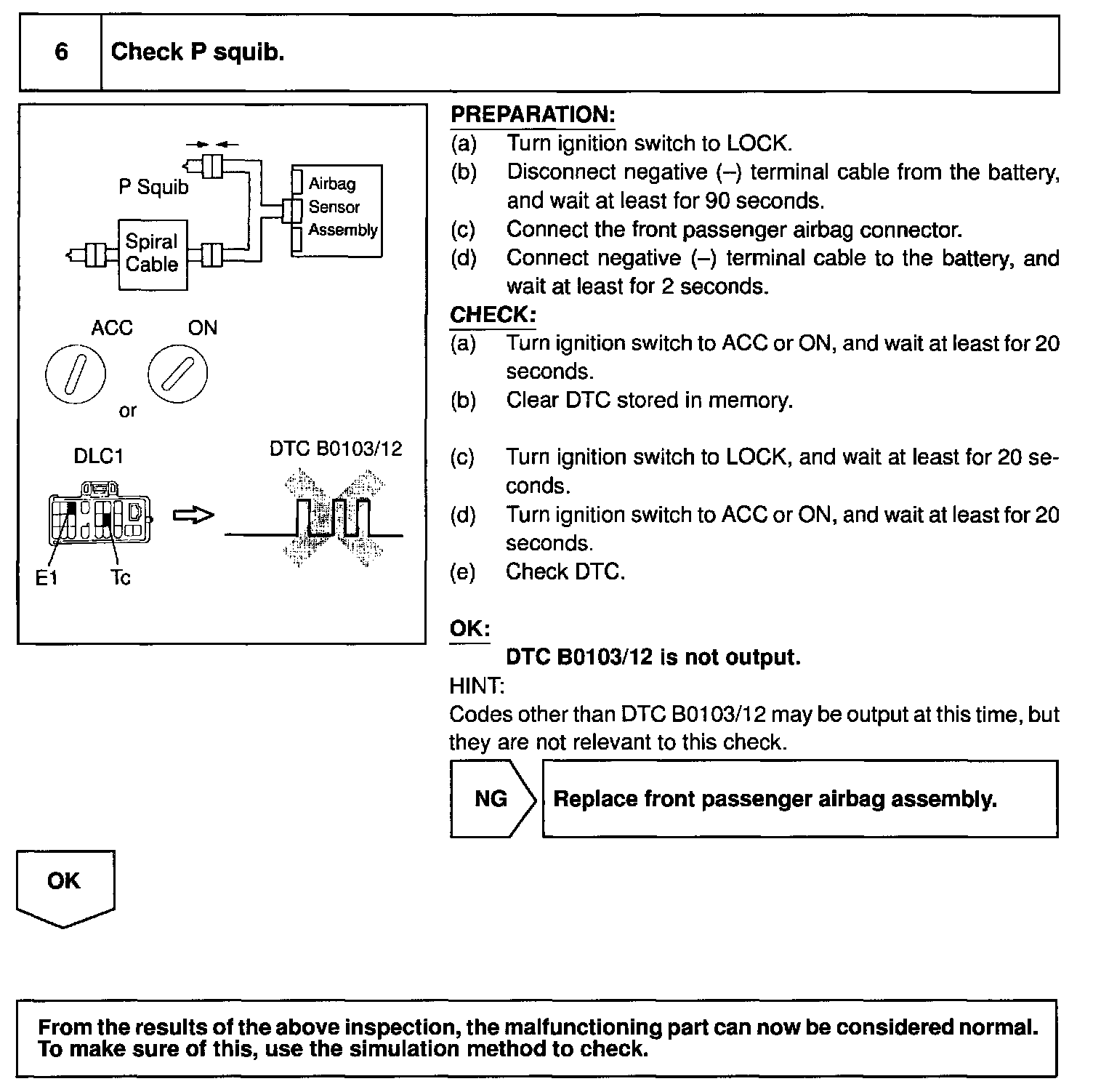

Step 6/Check P squib




Step 7/Check Spiral Cable
