DTC 33

CIRCUIT DESCRIPTION

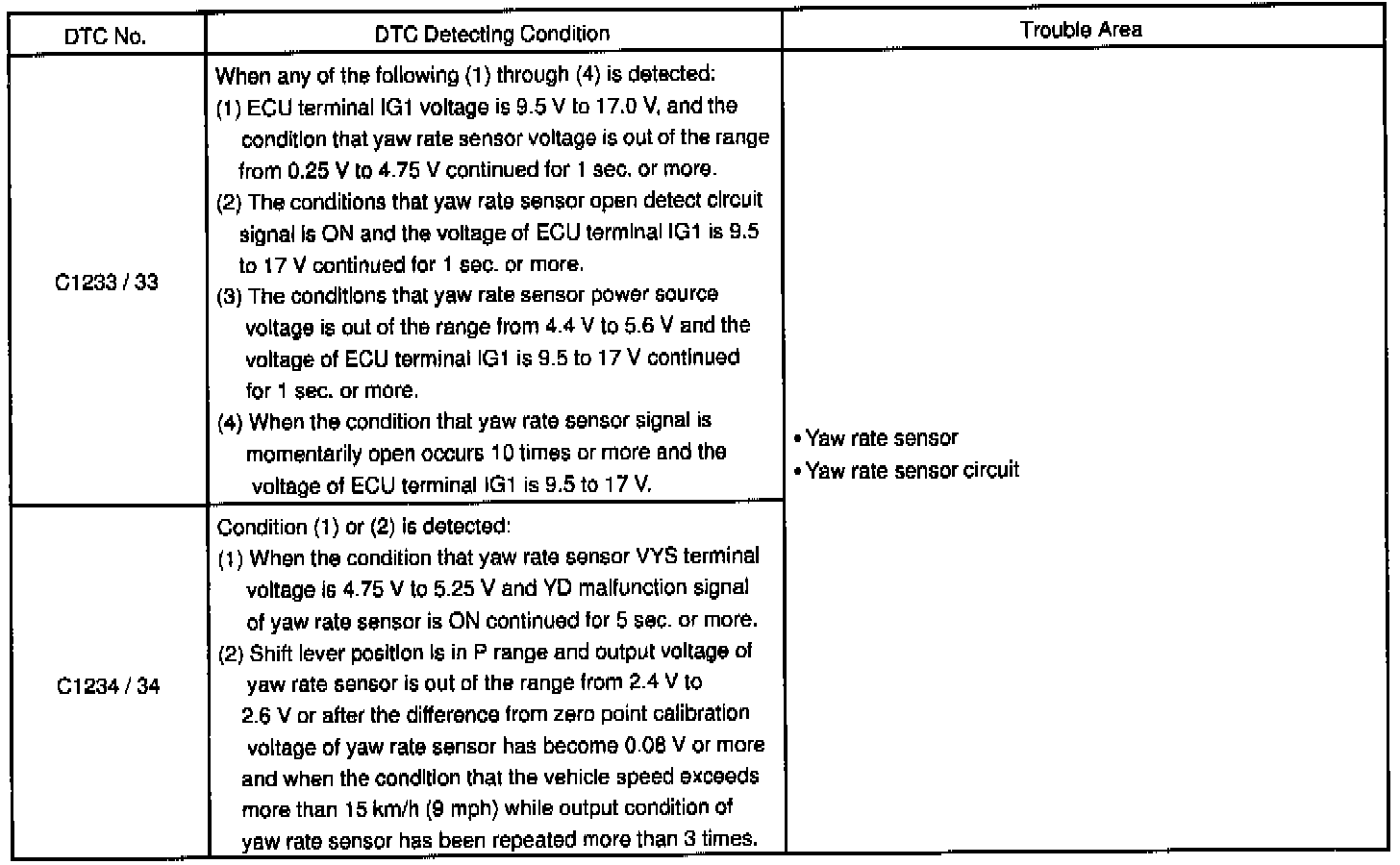

DETECTING CONDITIONS

Fail safe function:
If trouble occurs in the yaw rate sensor circuit, the ECU prohibits TRAC & VSC controls.




WIRING DIAGRAM

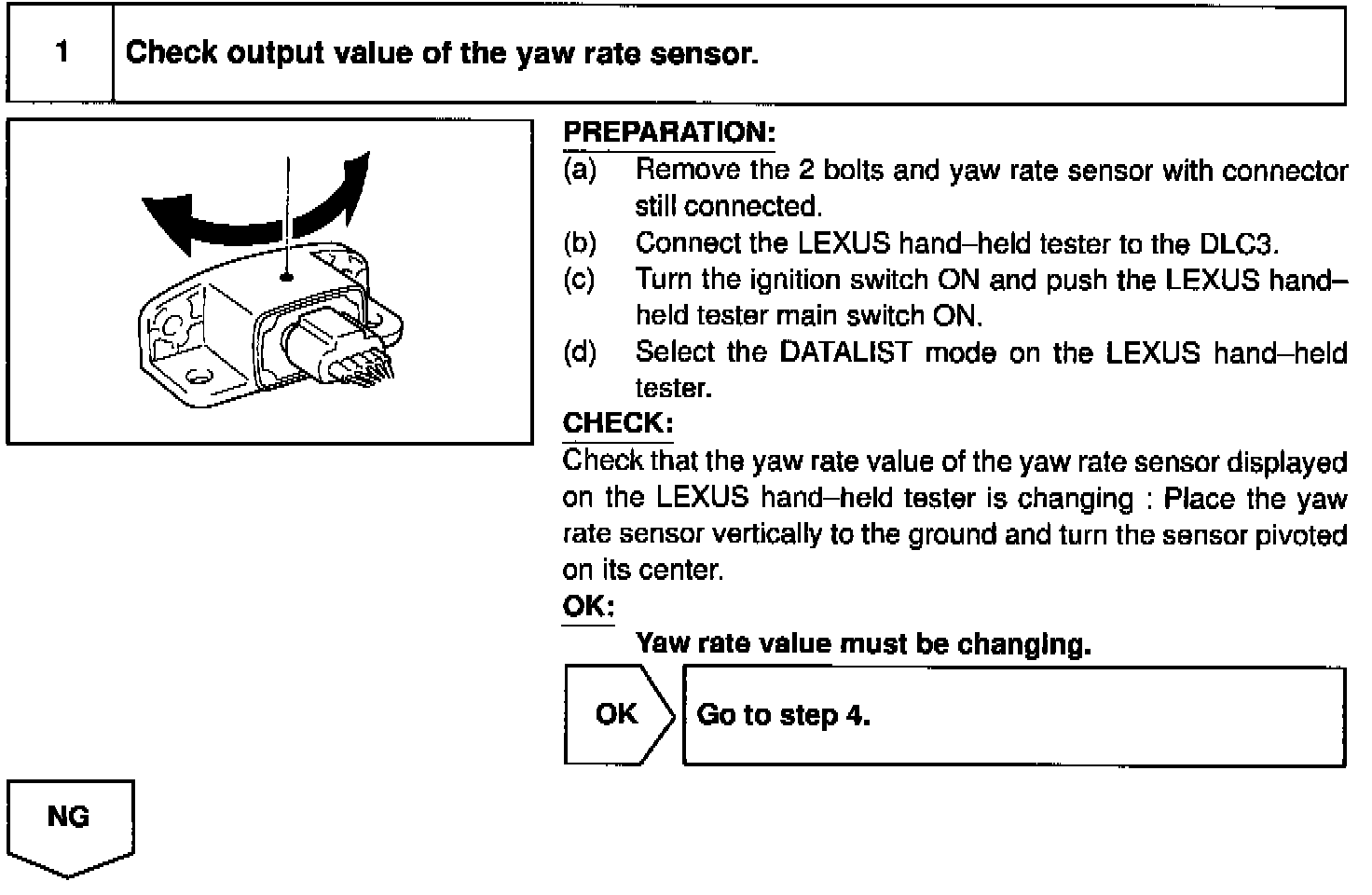

Step 1:

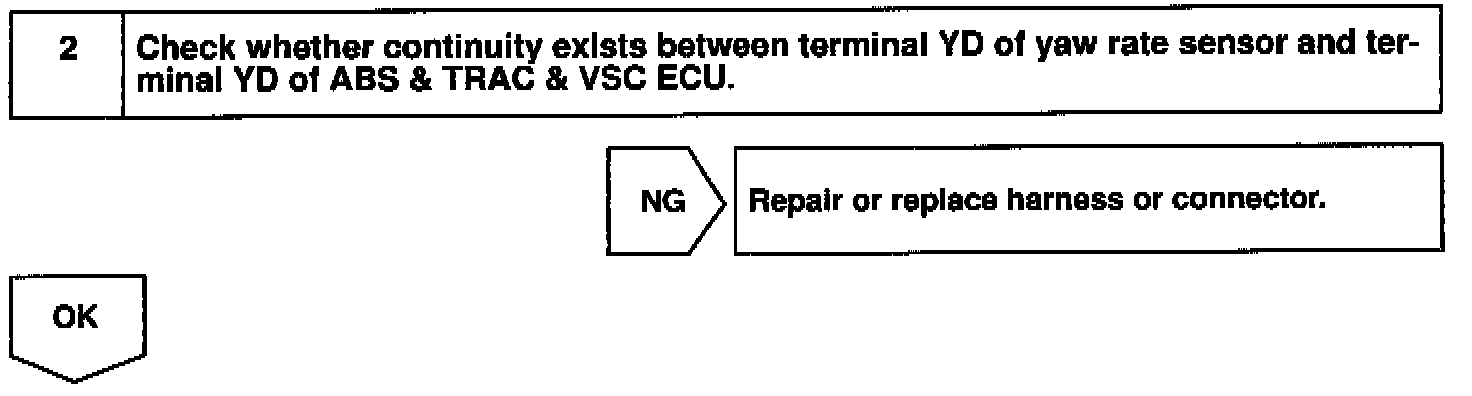

Step 2:

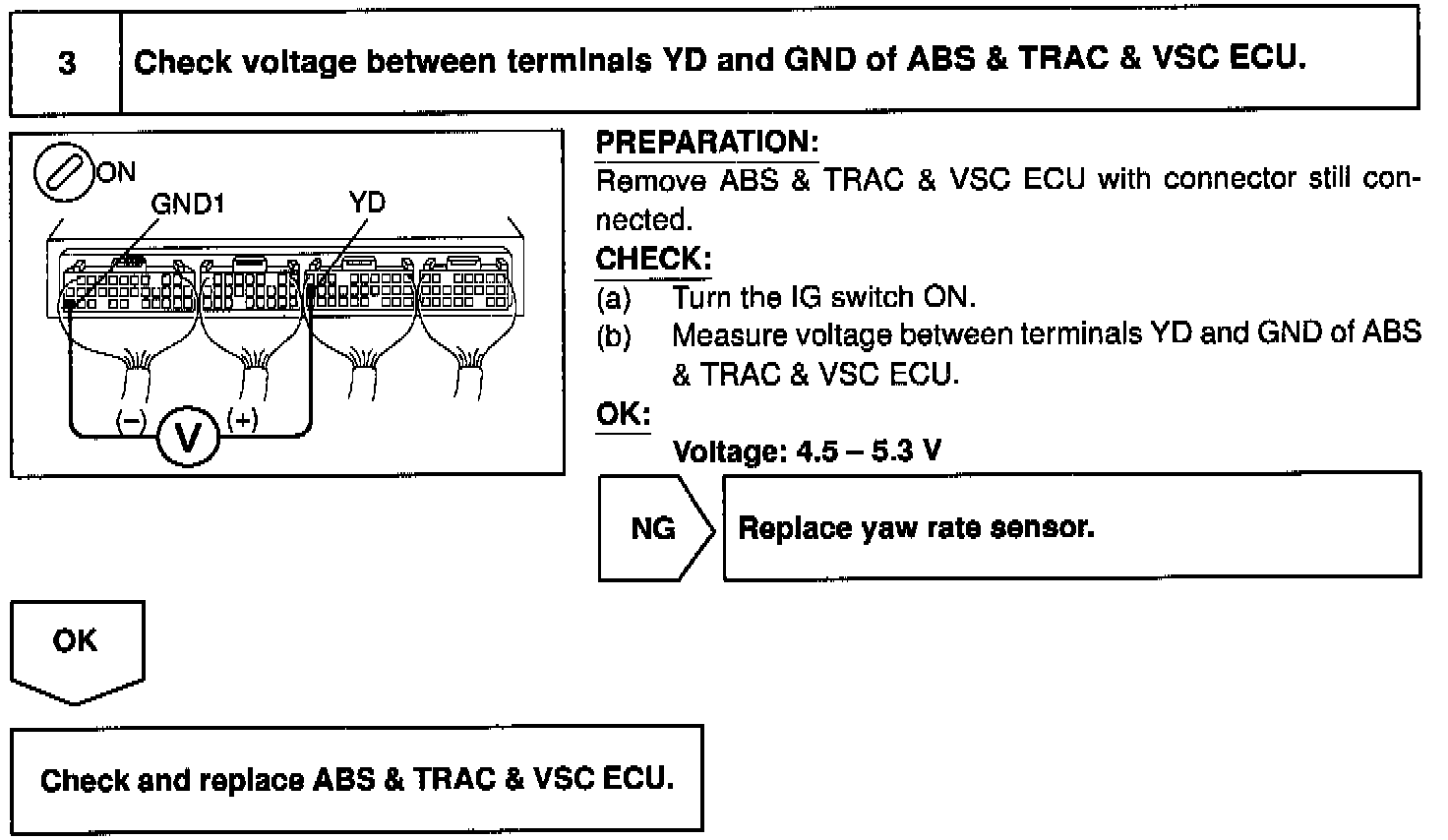

Step 3:

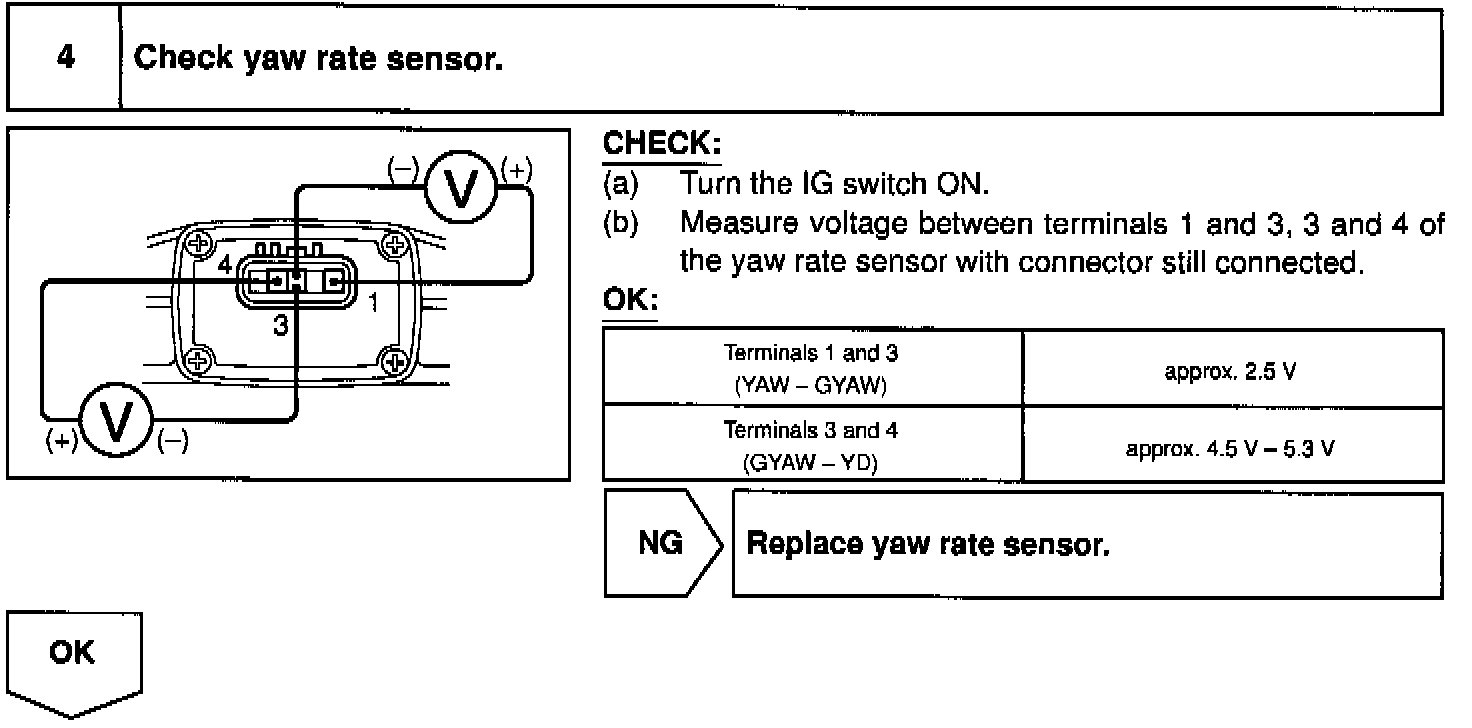

Step 4:

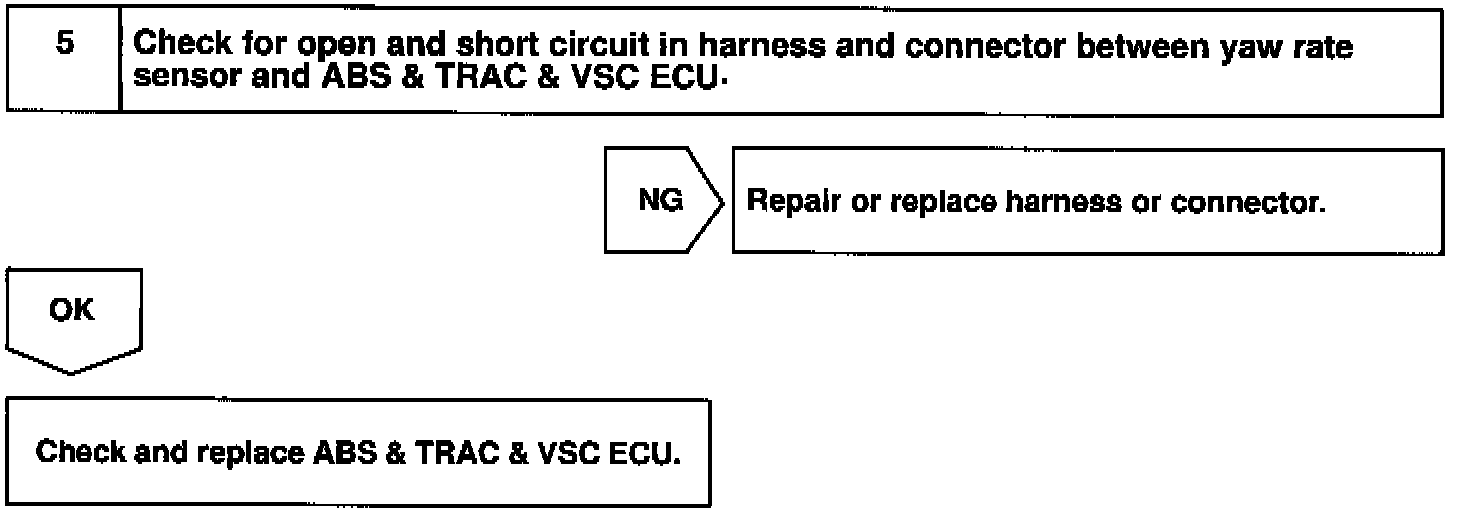

Step 5:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 3 in case of not using the LEXUS hand-held tester.
