Manufacturer Controlled Trouble Codes

Part 1 Of 2:

** For B0000 diagnostic trouble codes refer to Antitheft and Alarm Systems.



HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

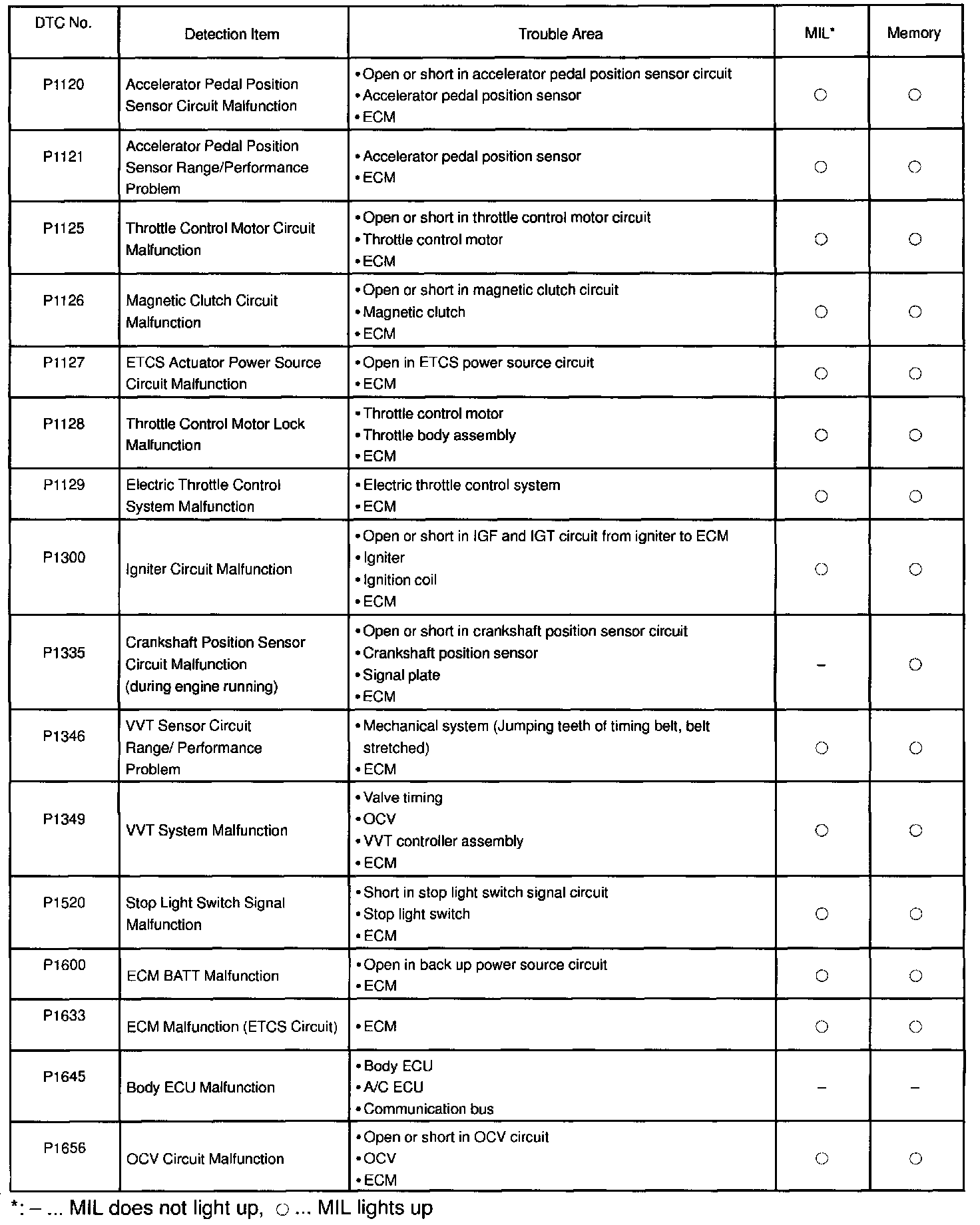

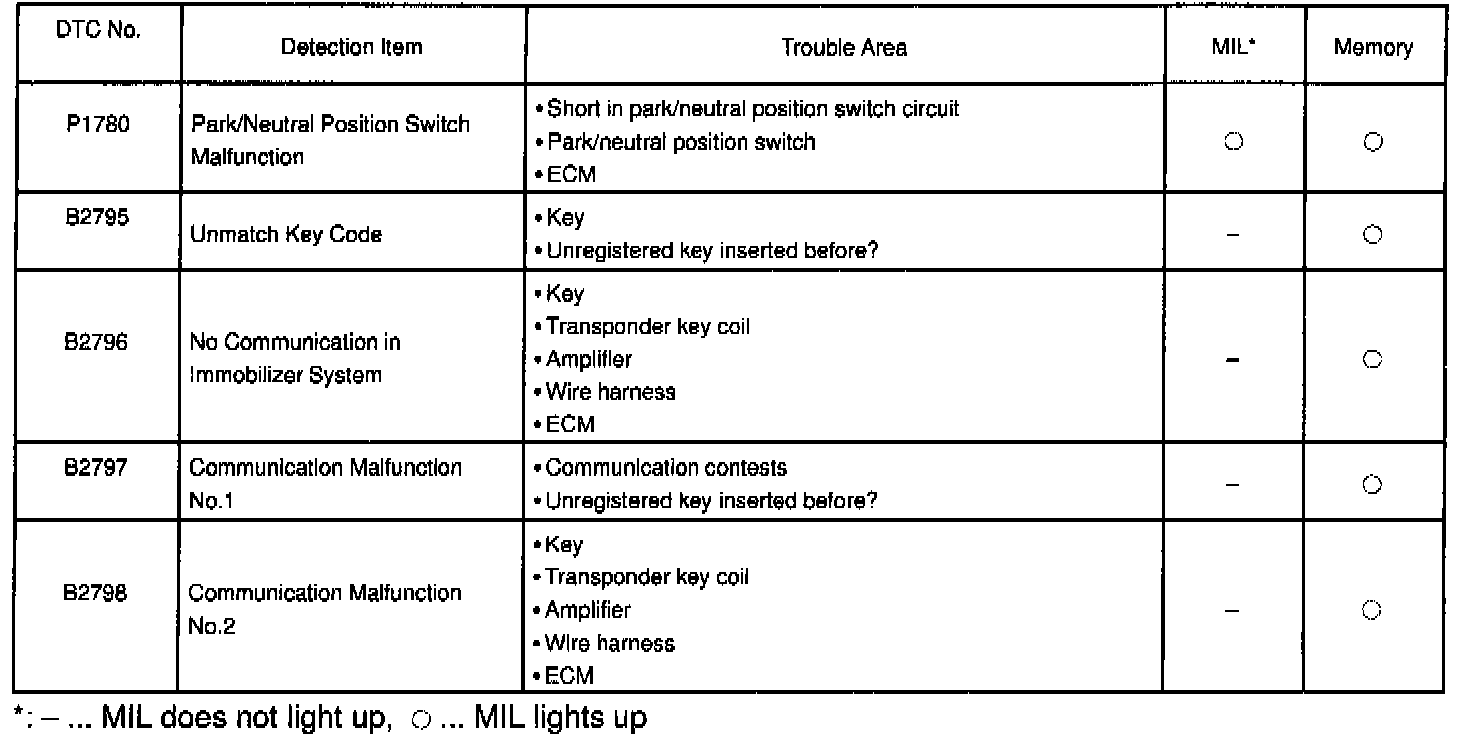

If a malfunction code is displayed during the DTC check in check mode, check the circuit for that code listed in the table.
