ABS (Antilock Brake System)

CIRCUIT DESCRIPTION
The ABS and TRAC motor relay supplies power to the hydraulic brake booster pump motor. While the ABS & TRAC & VSC are activated, the ECU switches the motor relay ON and operates the hydraulic brake booster pump motor.

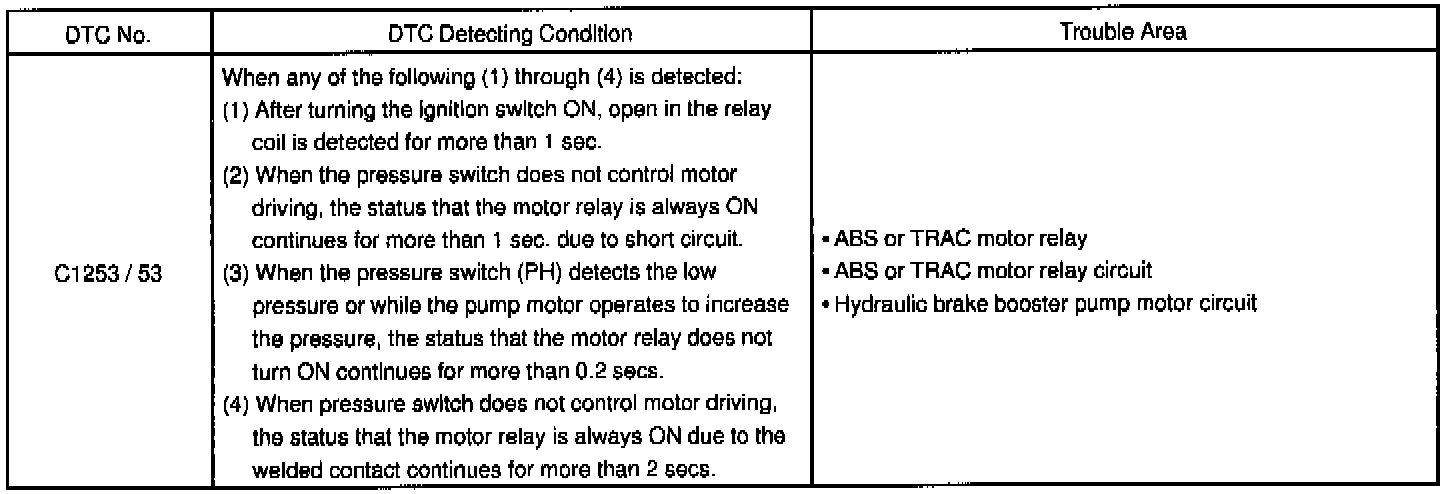

DETECTING CONDITIONS

Fail safe function:
If trouble occurs in the ABS and TRAC motor relay circuit, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & TRAC & VSC controls and the brake system becomes normal.

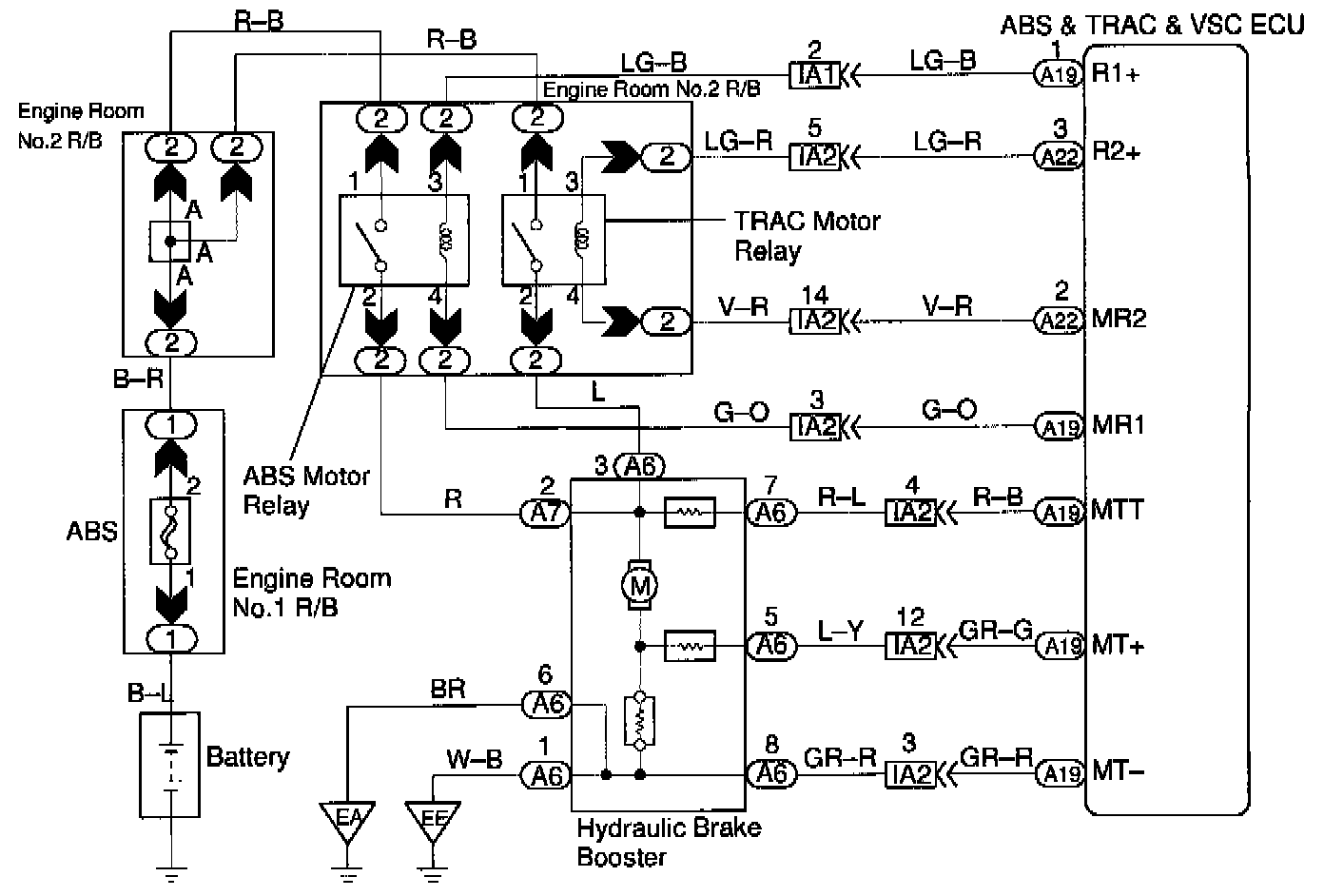

WIRING DIAGRAM

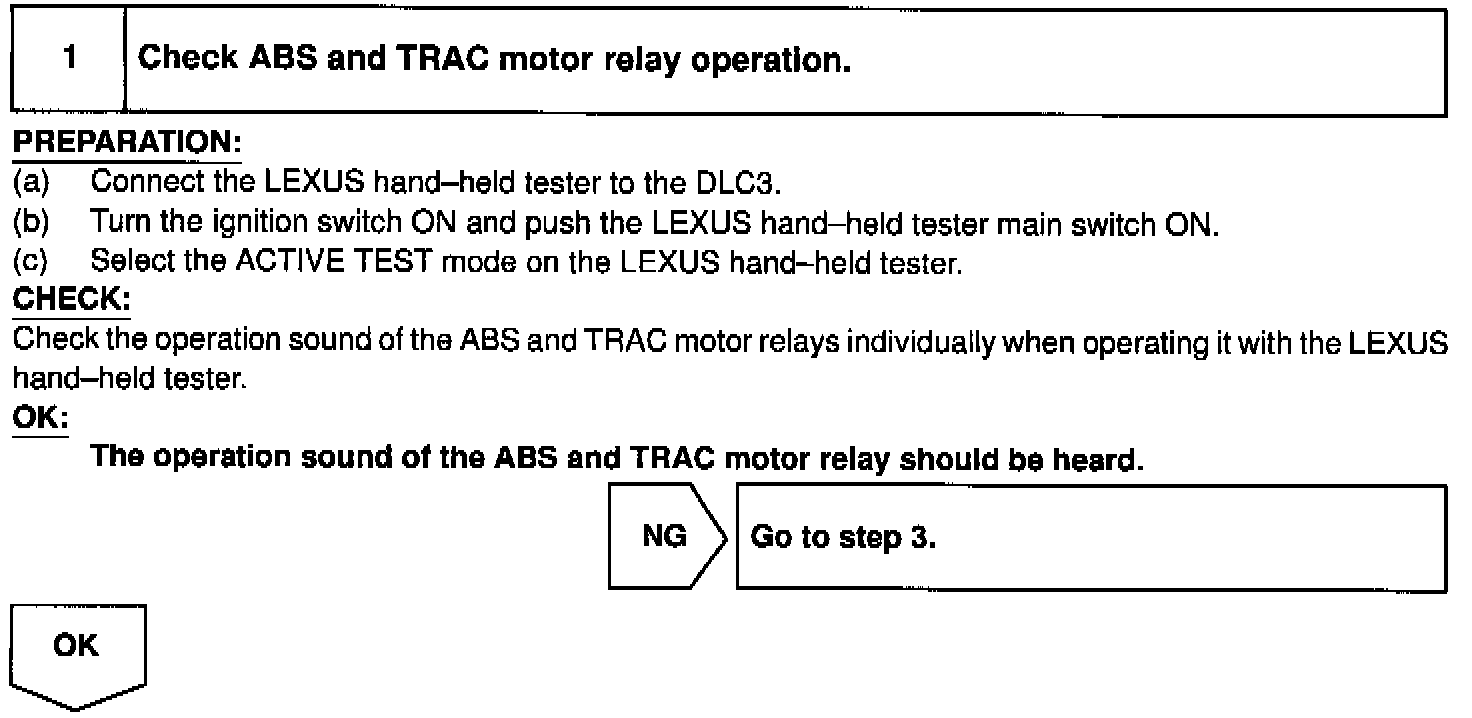

Step 1:

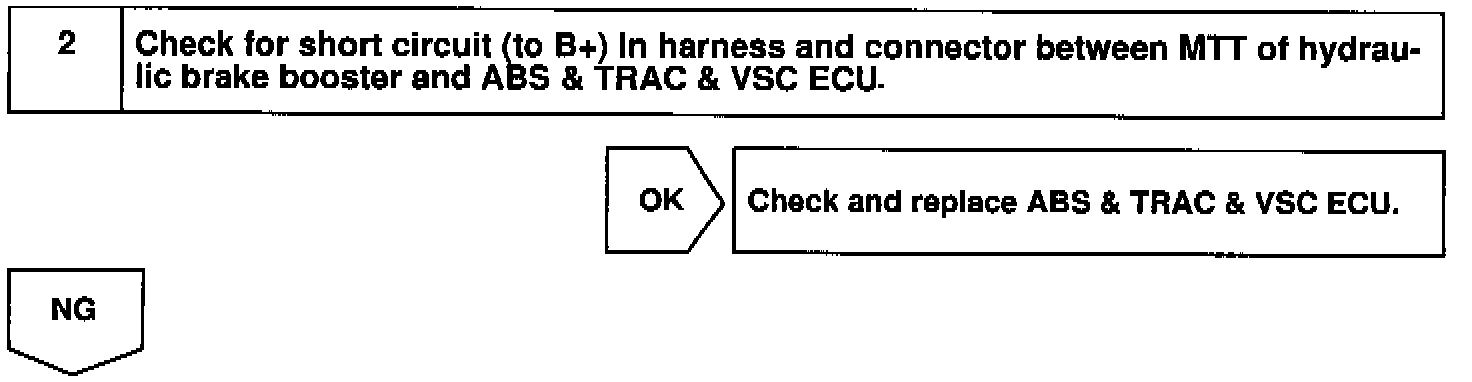

Step 2:

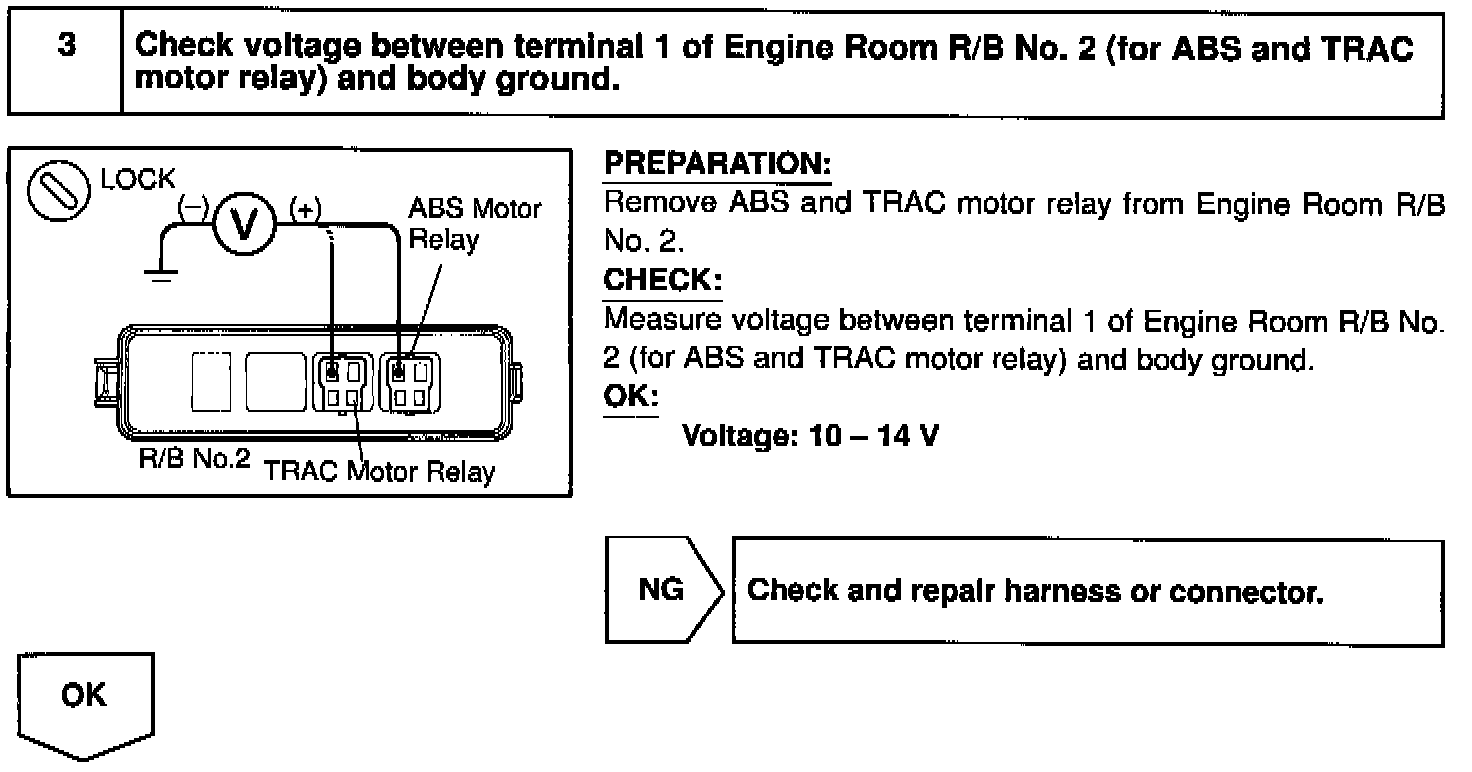

Step 3:

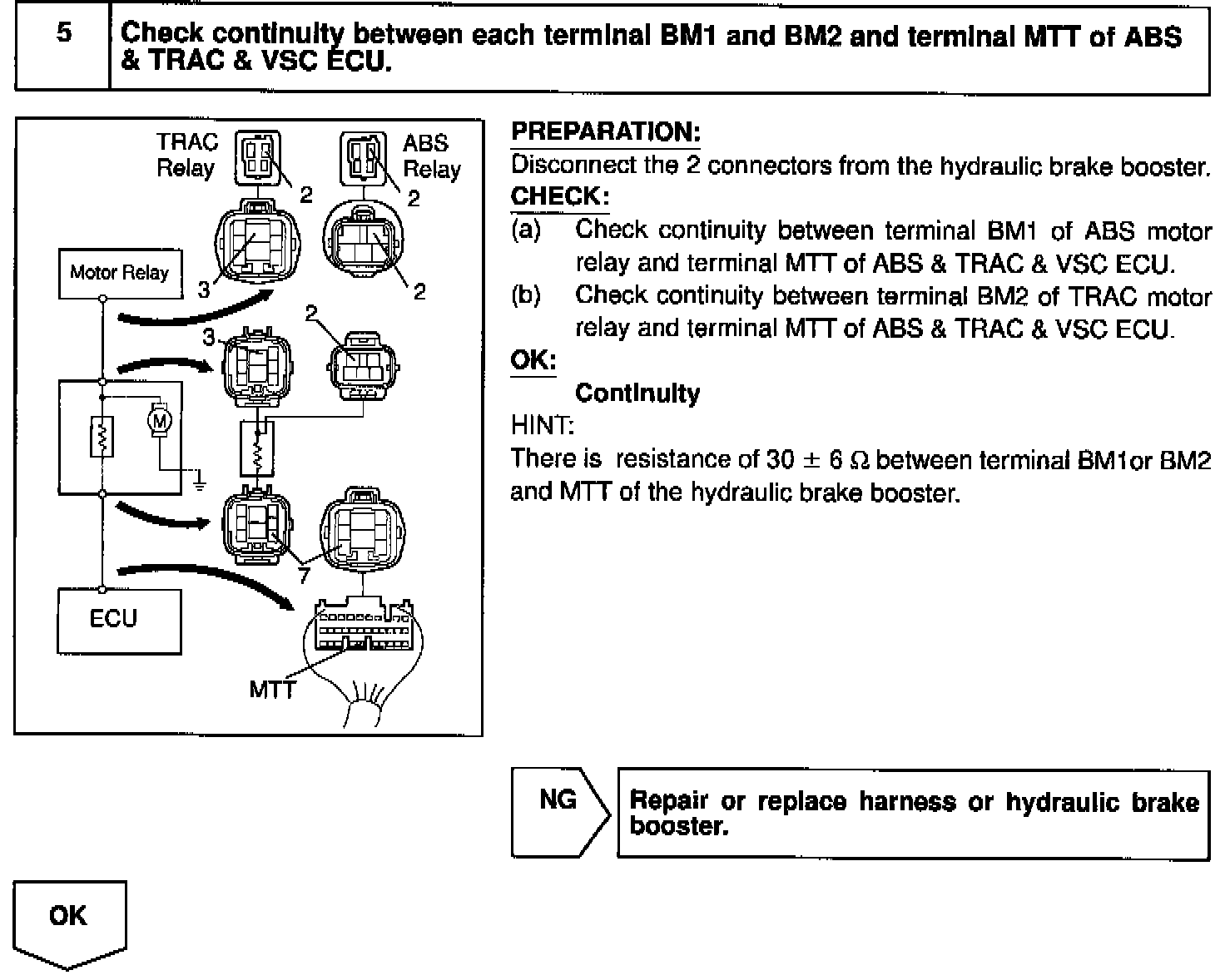

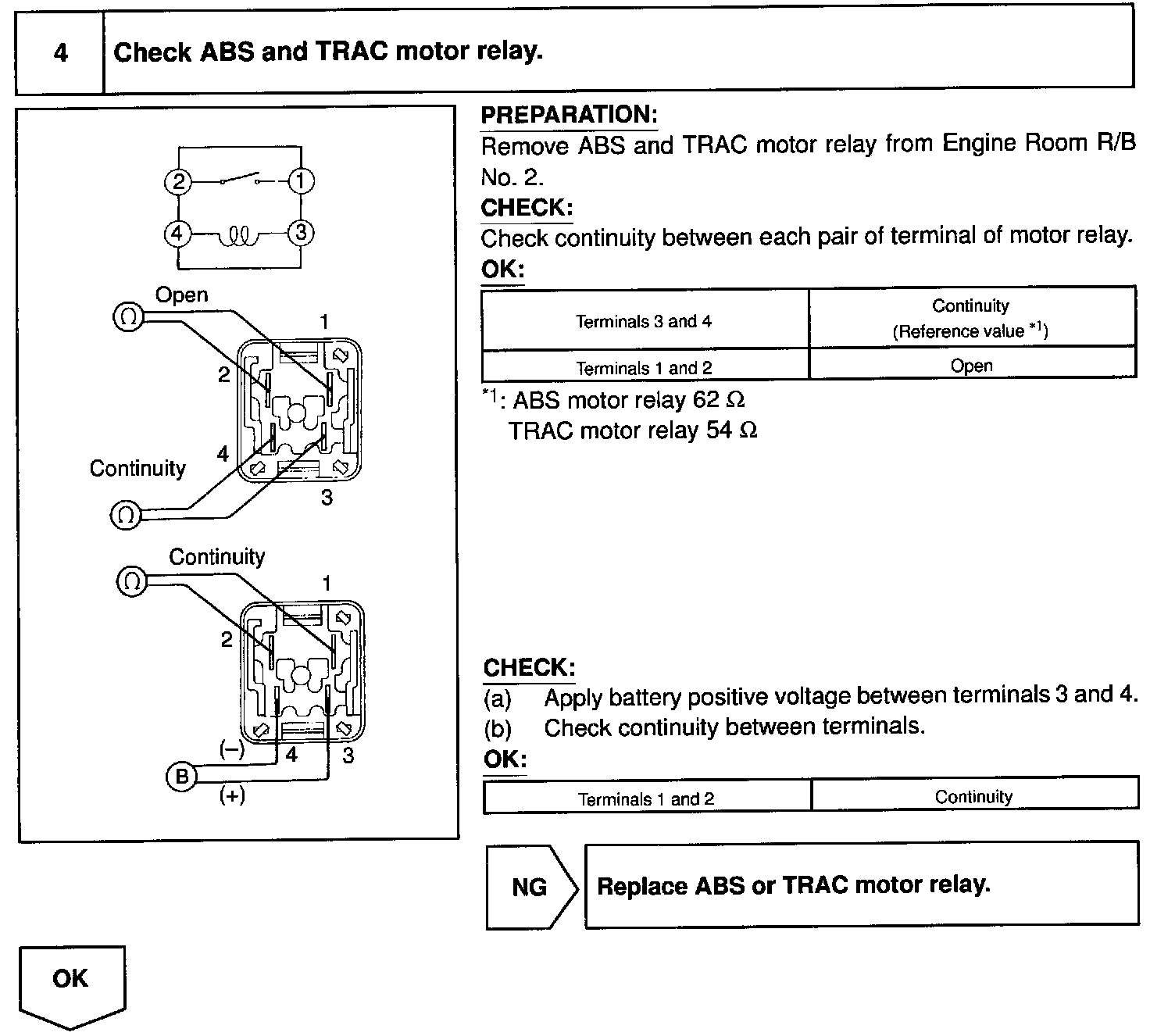

Step 5:

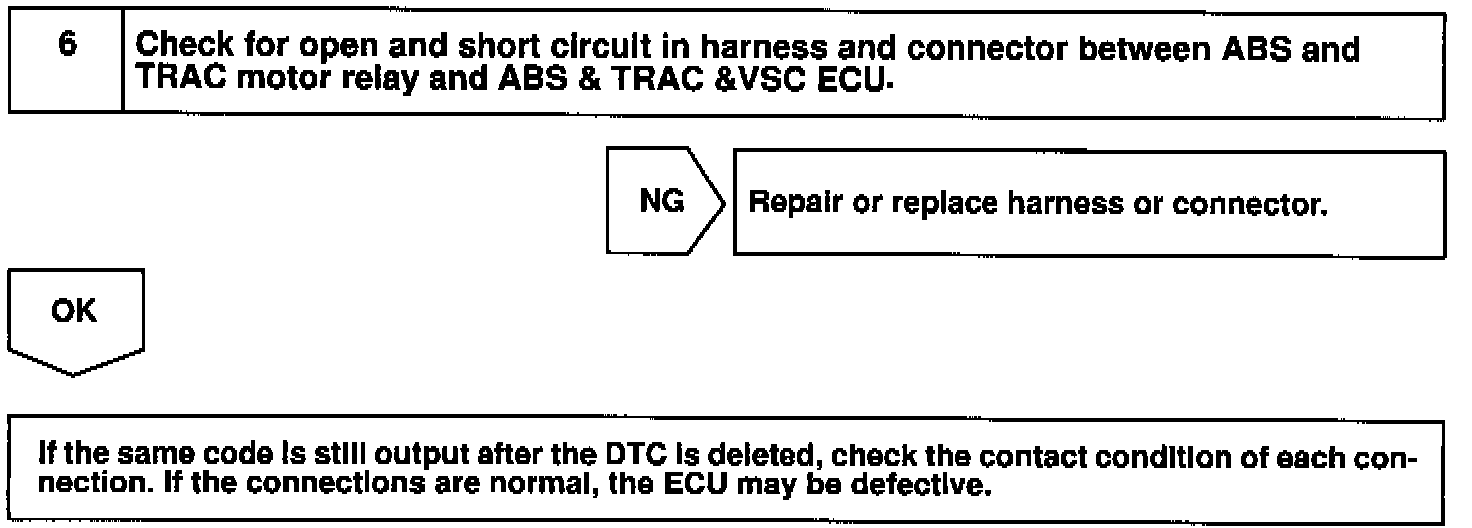

Step 6:

INSPECTION PROCEDURE
Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 3, in case of not using LEXUS hand-held tester.
