ABS W/Hydraulic Brake Booster Power Supply System

CIRCUIT DESCRIPTION

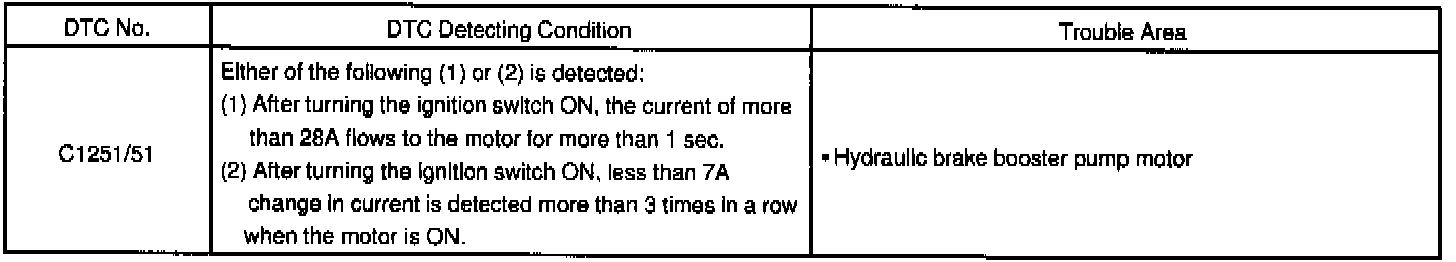

DETECTING CONDITIONS

Fail safe function:
If trouble occurs in the pump motor, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & TRAC & VSC controls and the brake system becomes normal.

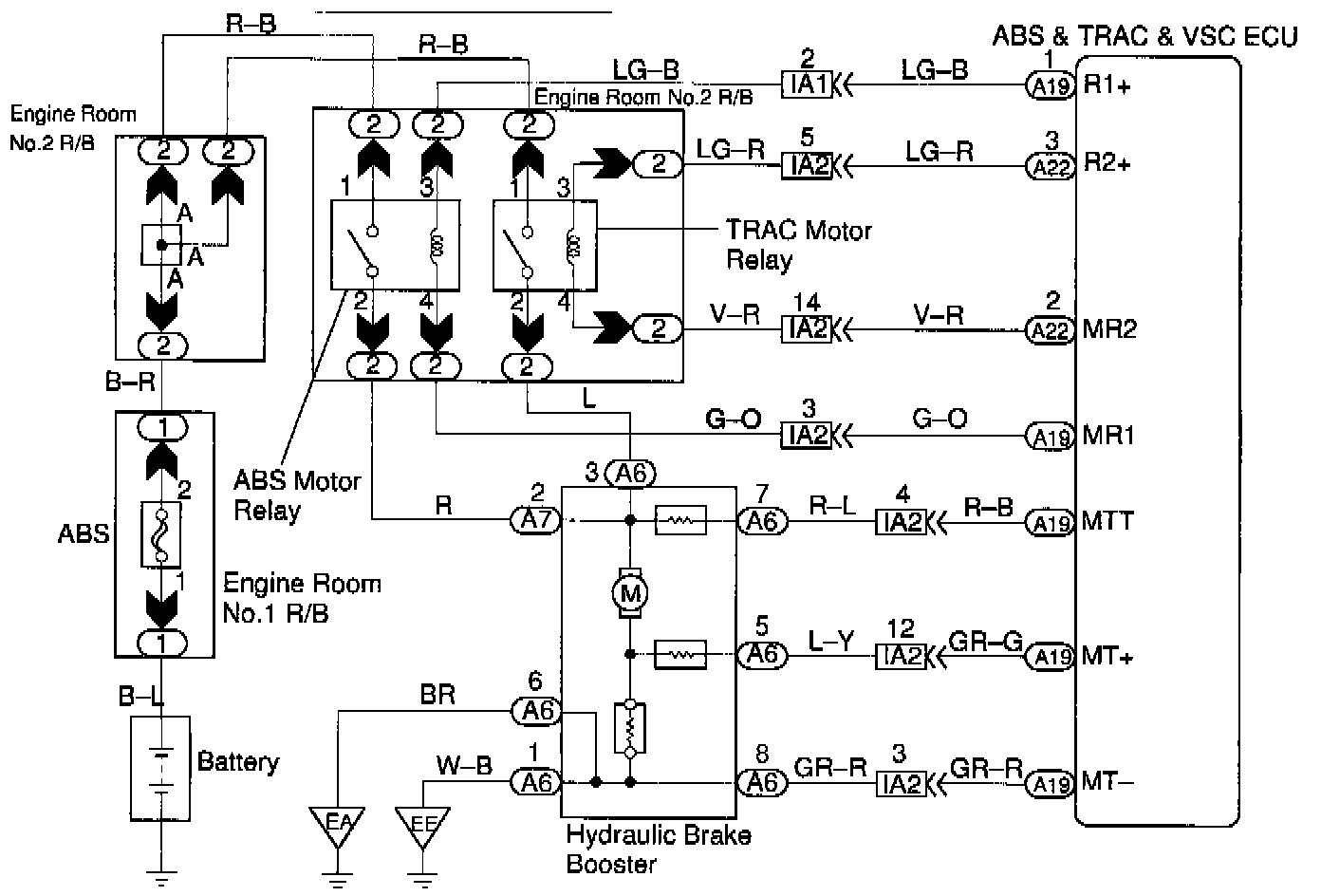

WIRING DIAGRAM

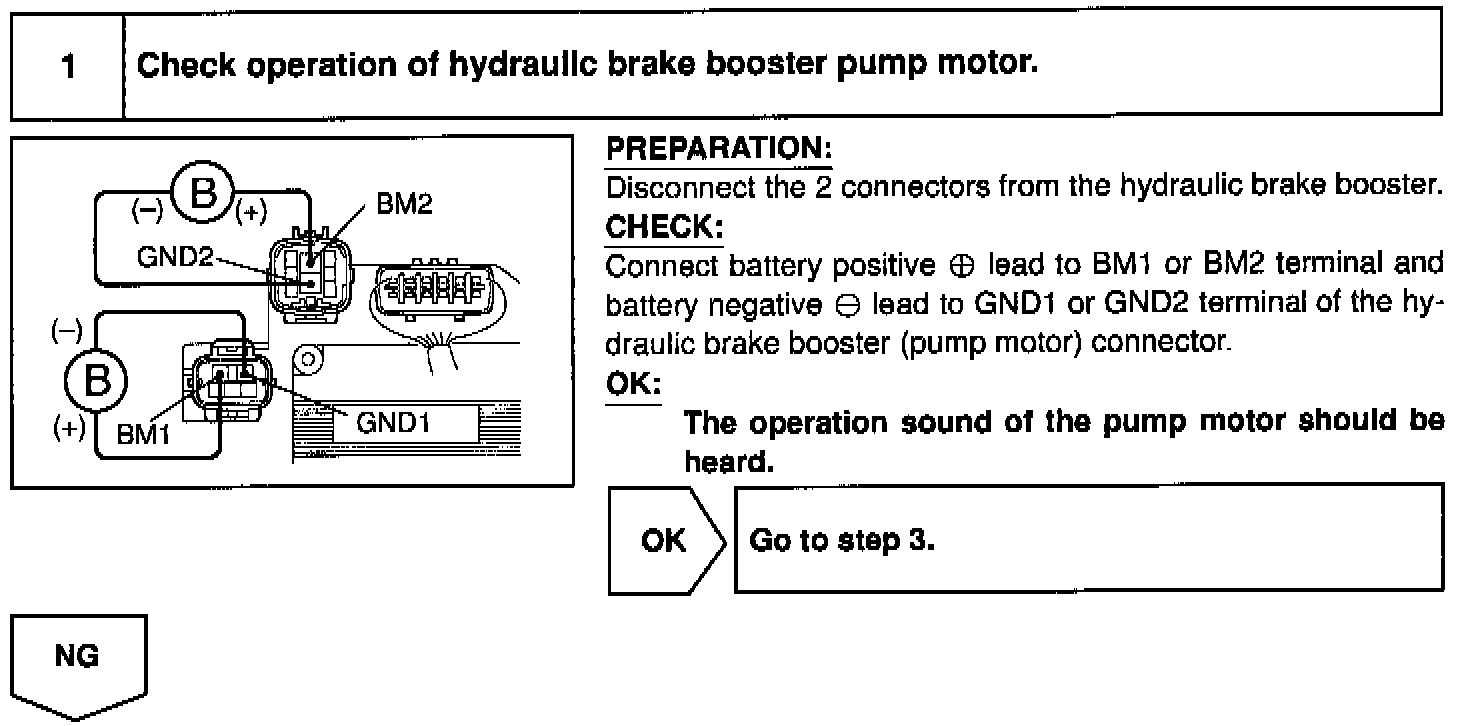

Step 1:

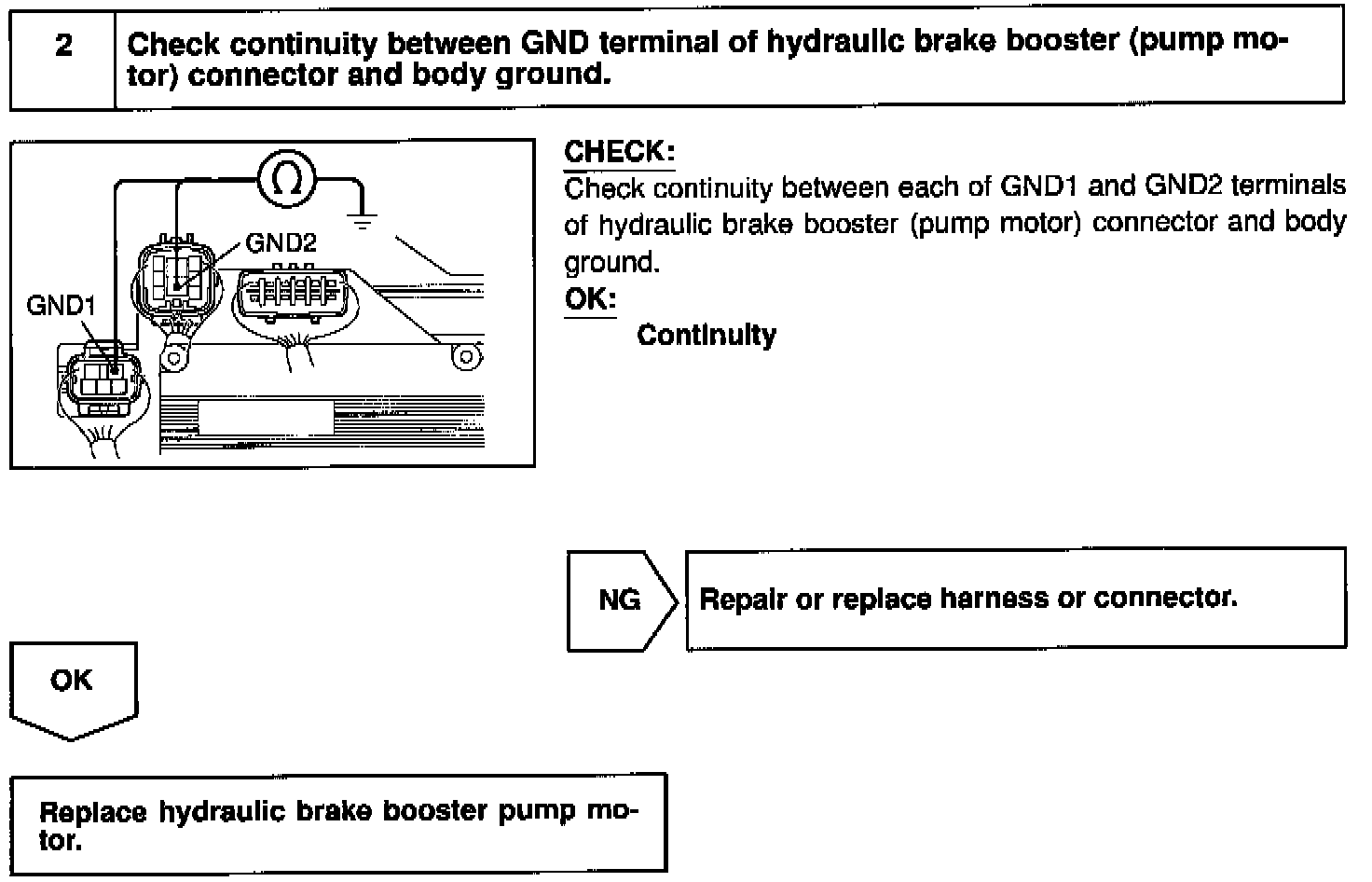

Step 2:

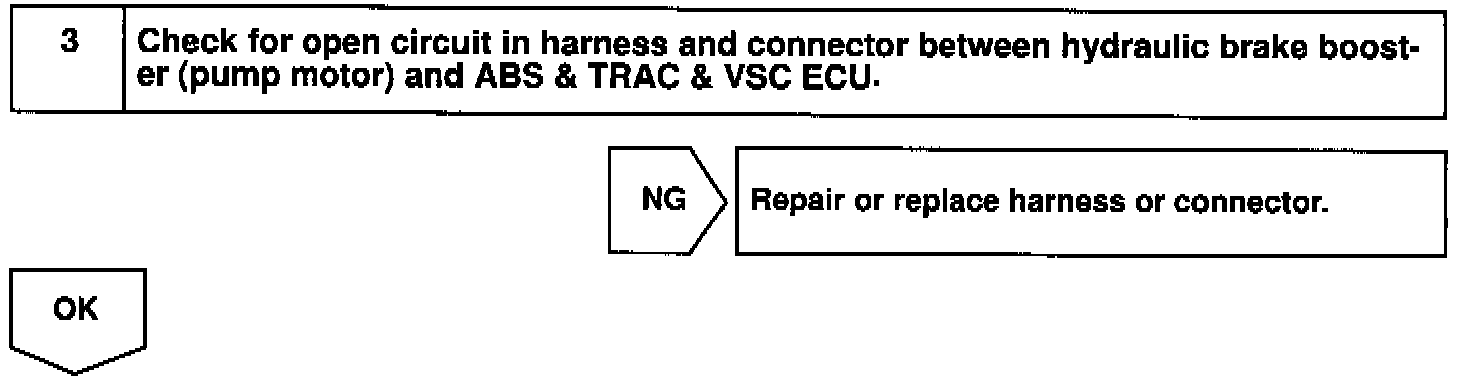

Step 3:

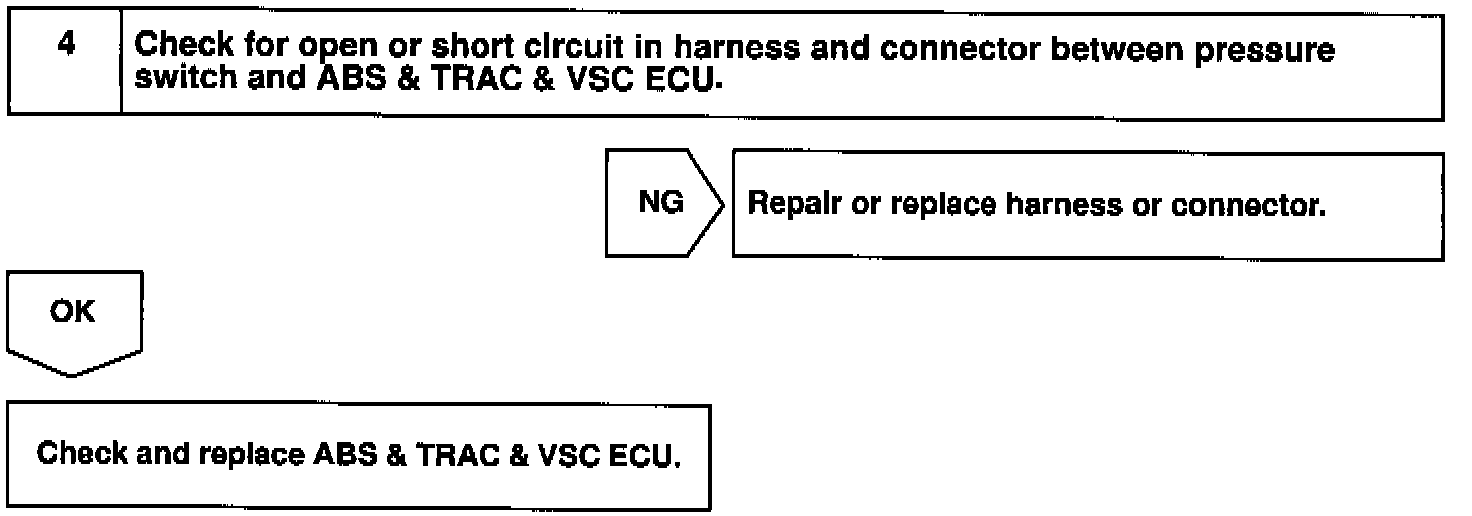

Step 4:

INSPECTION PROCEDURE
