B1418

CIRCUIT DESCRIPTION
This sensor detects the exhaust gas outside the vehicle and sends signal to the A/C control assembly.

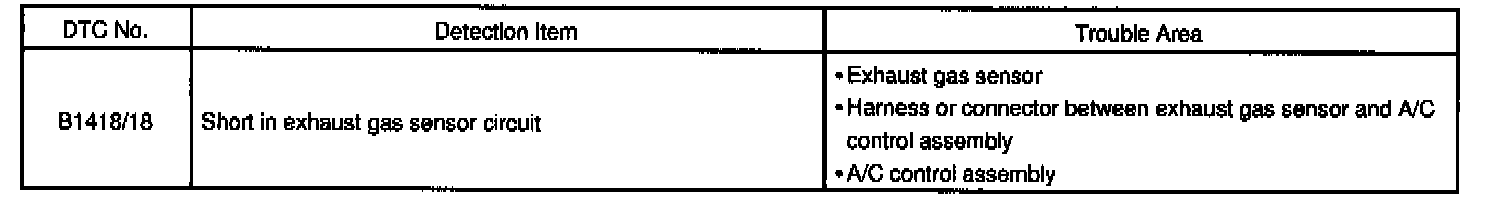

DETECTING CONDITION

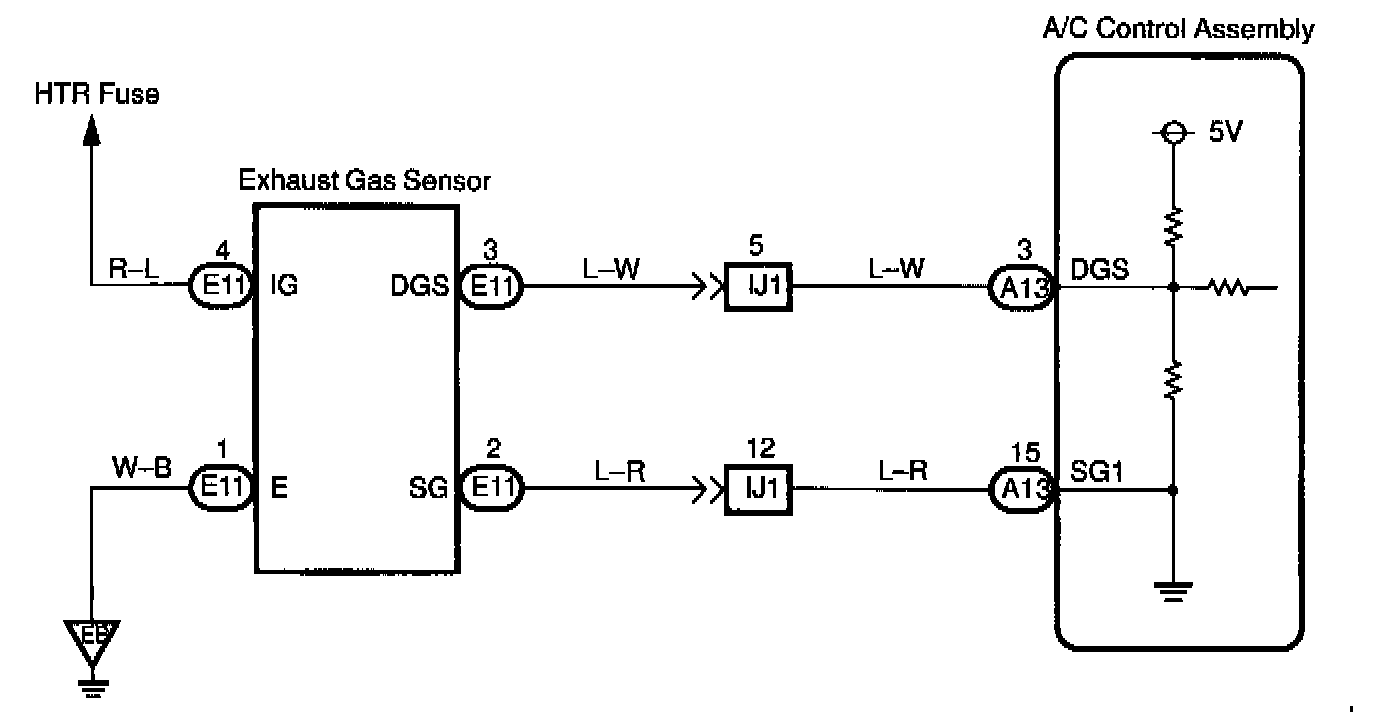

WIRING DIAGRAM

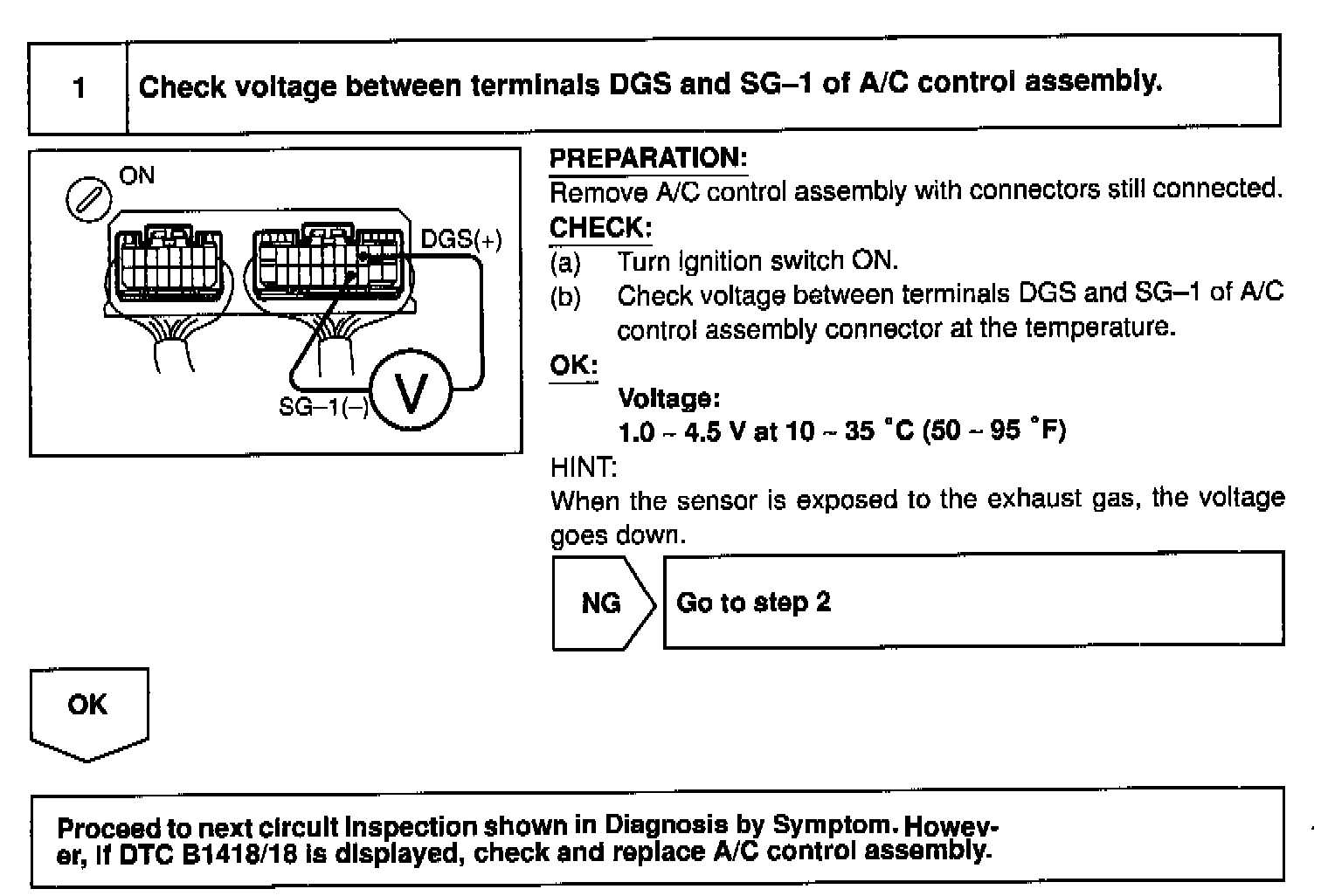

Step 1:

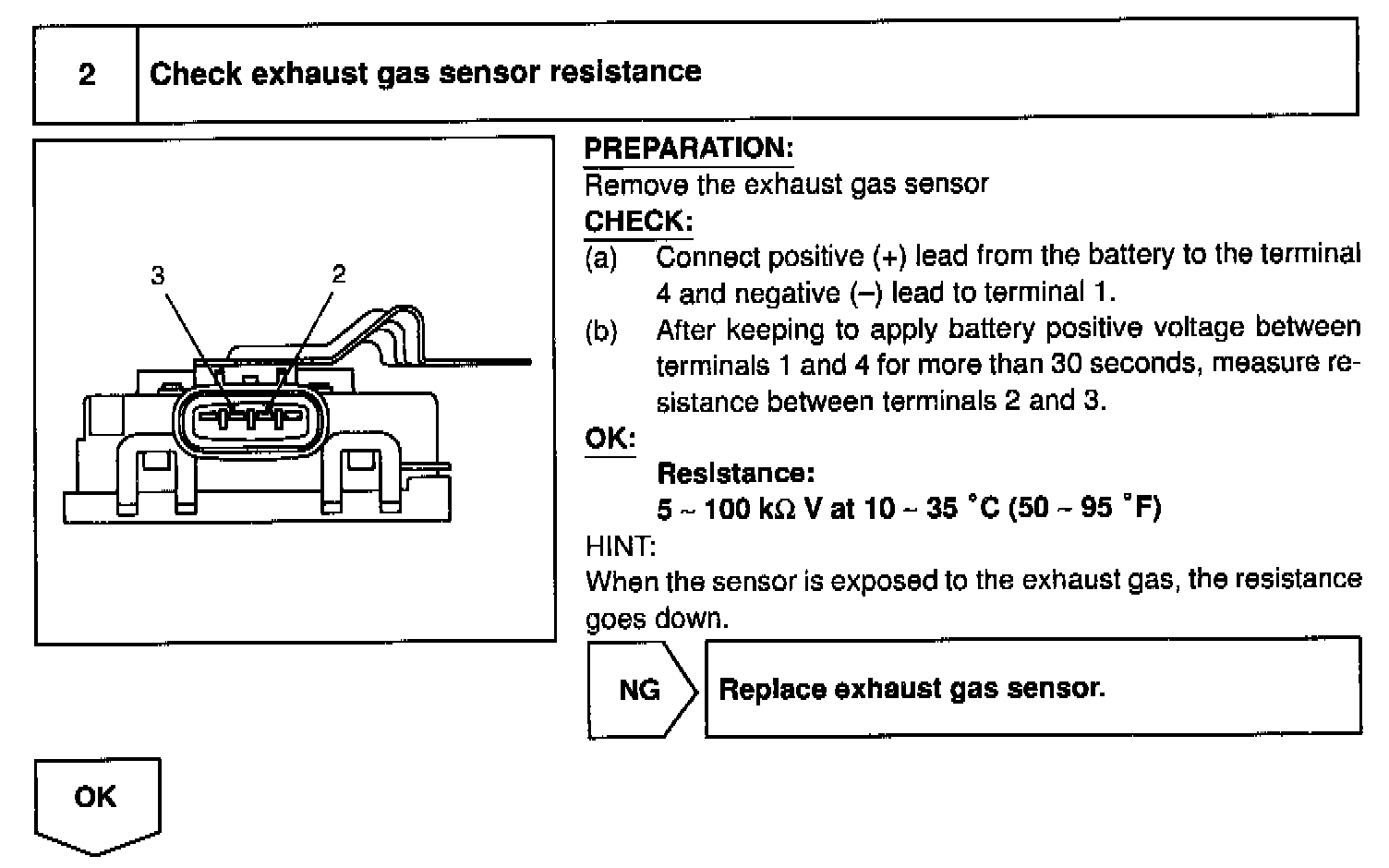

Step 2:

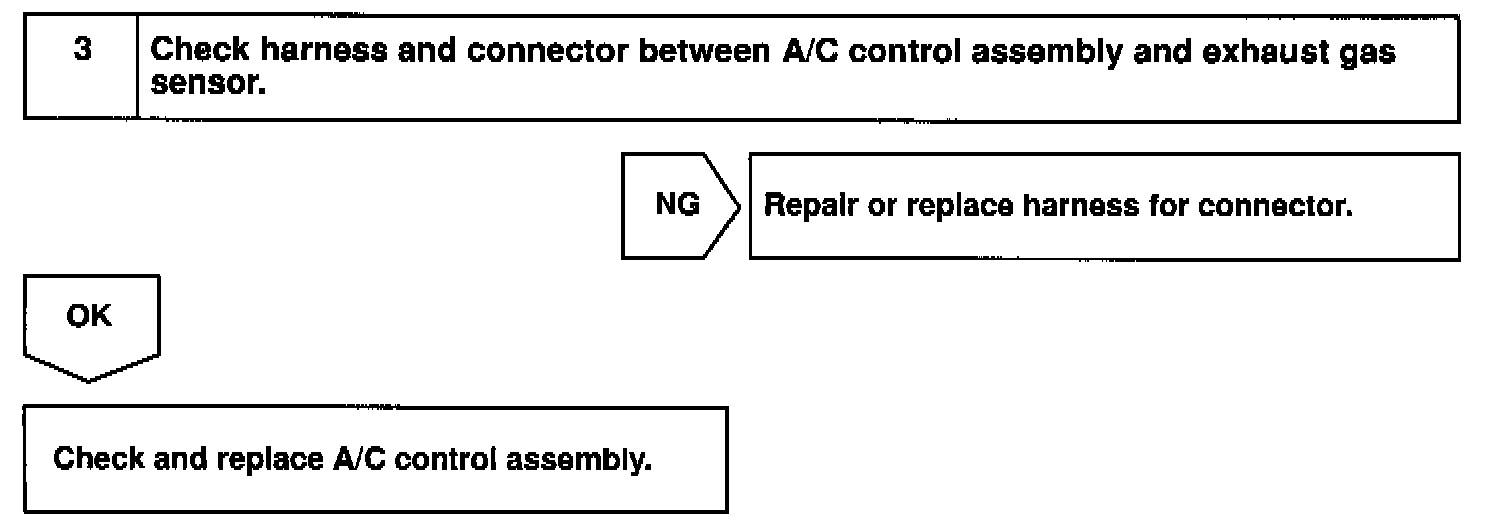

Step 3:

INSPECTION PROCEDURE
