B0130

CIRCUIT DESCRIPTION

The P/T squib (RH) circuit consists of the airbag sensor assembly and side airbag assembly (RH).
It causes the pretensioner to activate when the pretensioner activation conditions are satisfied.
For details of the function of each component, see OPERATION.

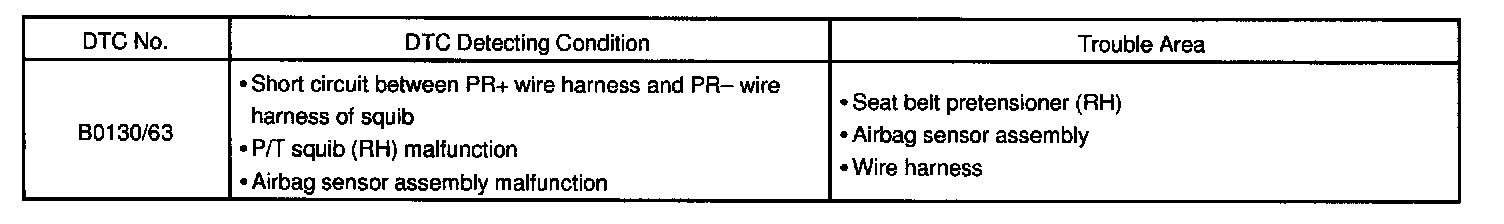

DTC B0130/63 is recorded when a short is detected in the P/T squib (RH) circuit.




WIRING DIAGRAM

INSPECTION PROCEDURE

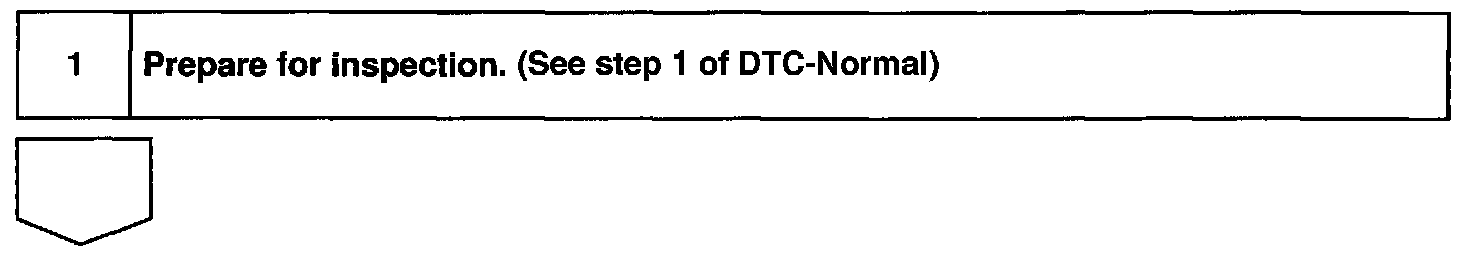

Step 1/Prepare for Inspection

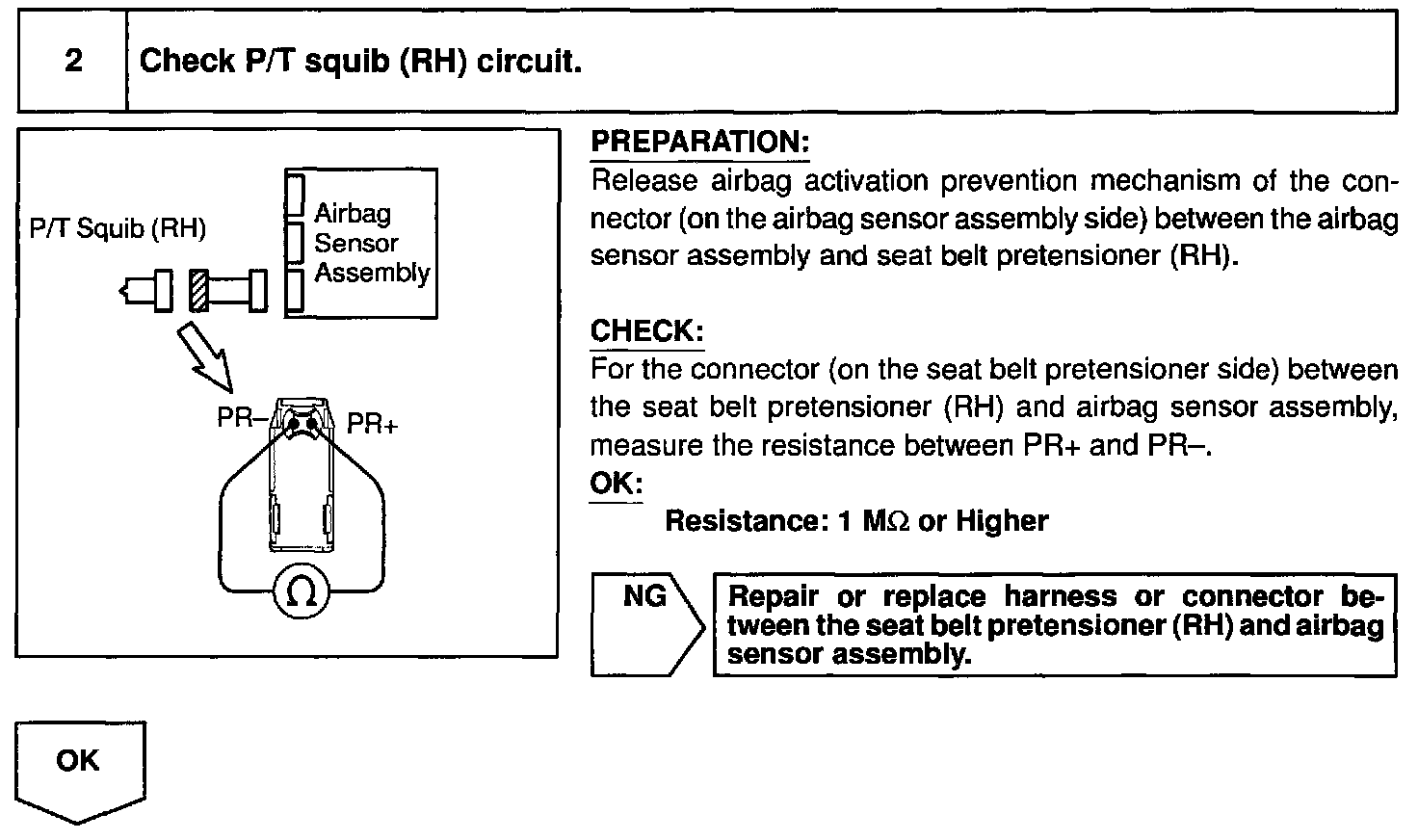

Step 2/Check P/T squib (RH) circuit

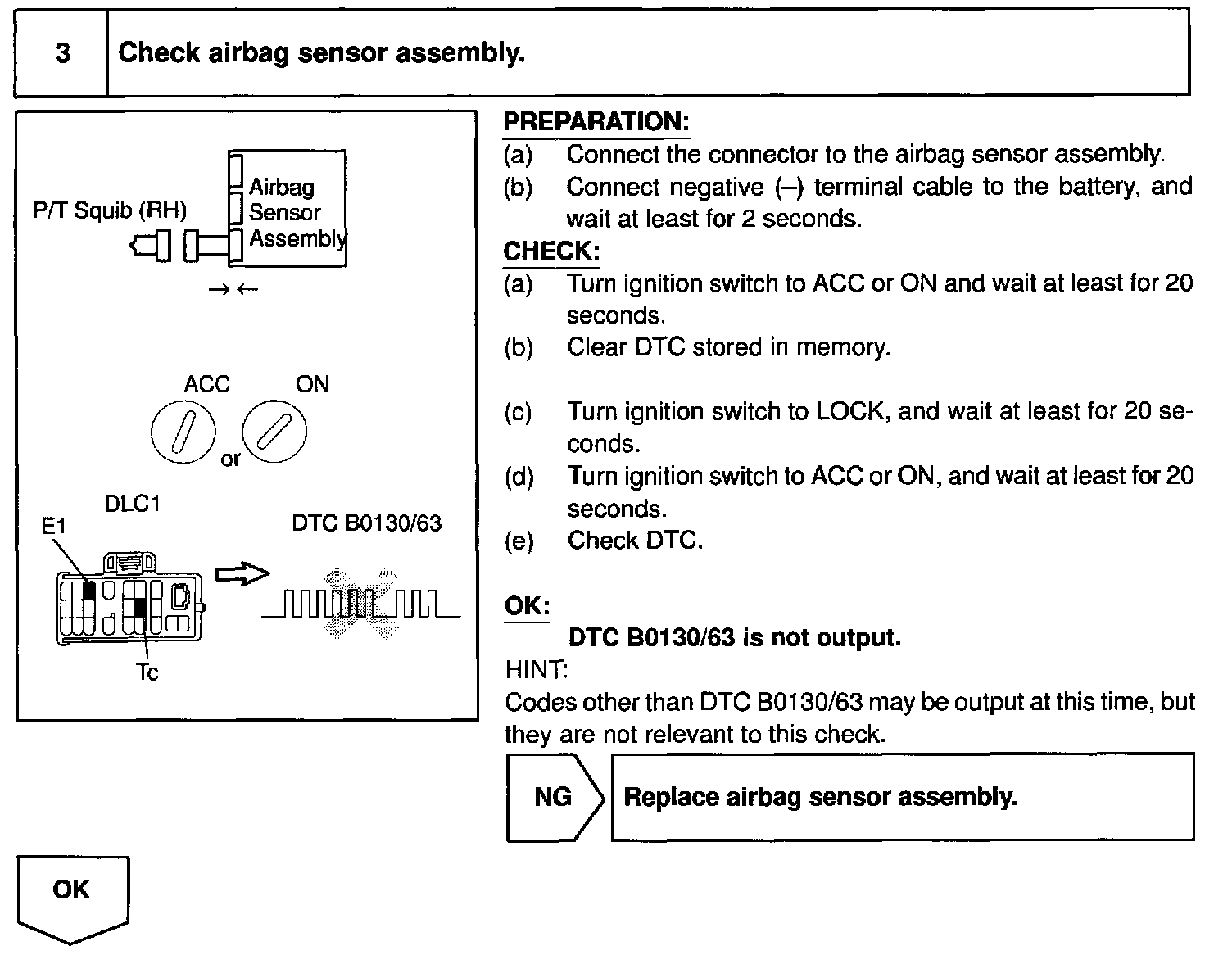

Step 3/Check airbag sensor assembly

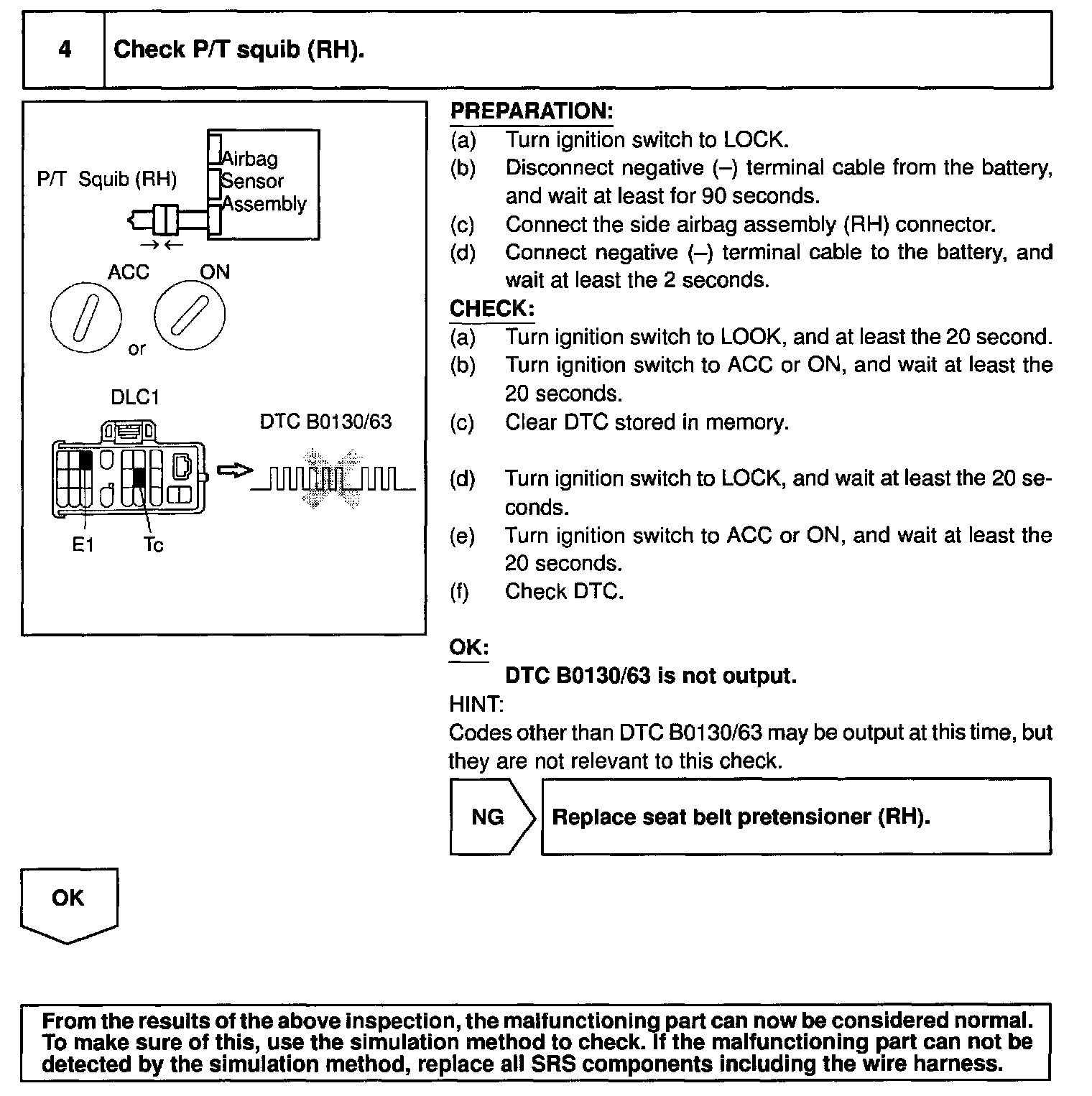

Step 4/Check P/T squib (RH)
