Power Window Motor: Testing and Inspection

Rear left side door

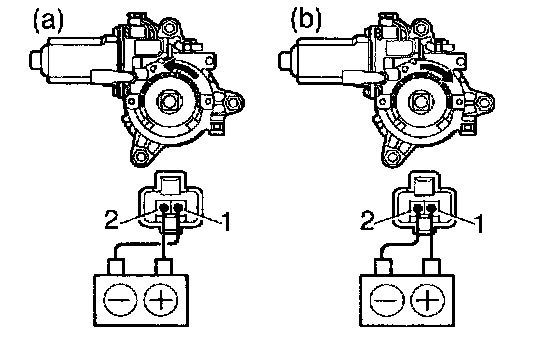

INSPECT POWER WINDOW MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns counterclockwise.
b. Reverse the polarity, check that the motor turns clockwise.
If operation is not as specified, replace the motor.




Rear right side door

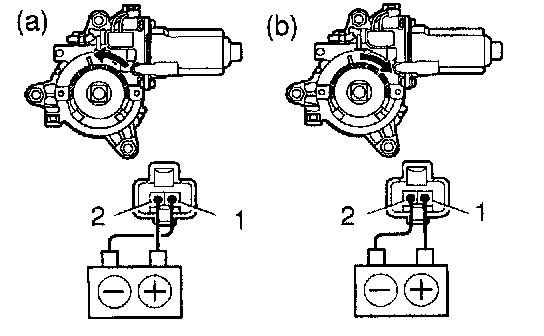

INSPECT POWER WINDOW MOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the motor turns counterclockwise.
b. Reverse the polarity, check that the motor turns clockwise.
If operation is not as specified, replace the motor.

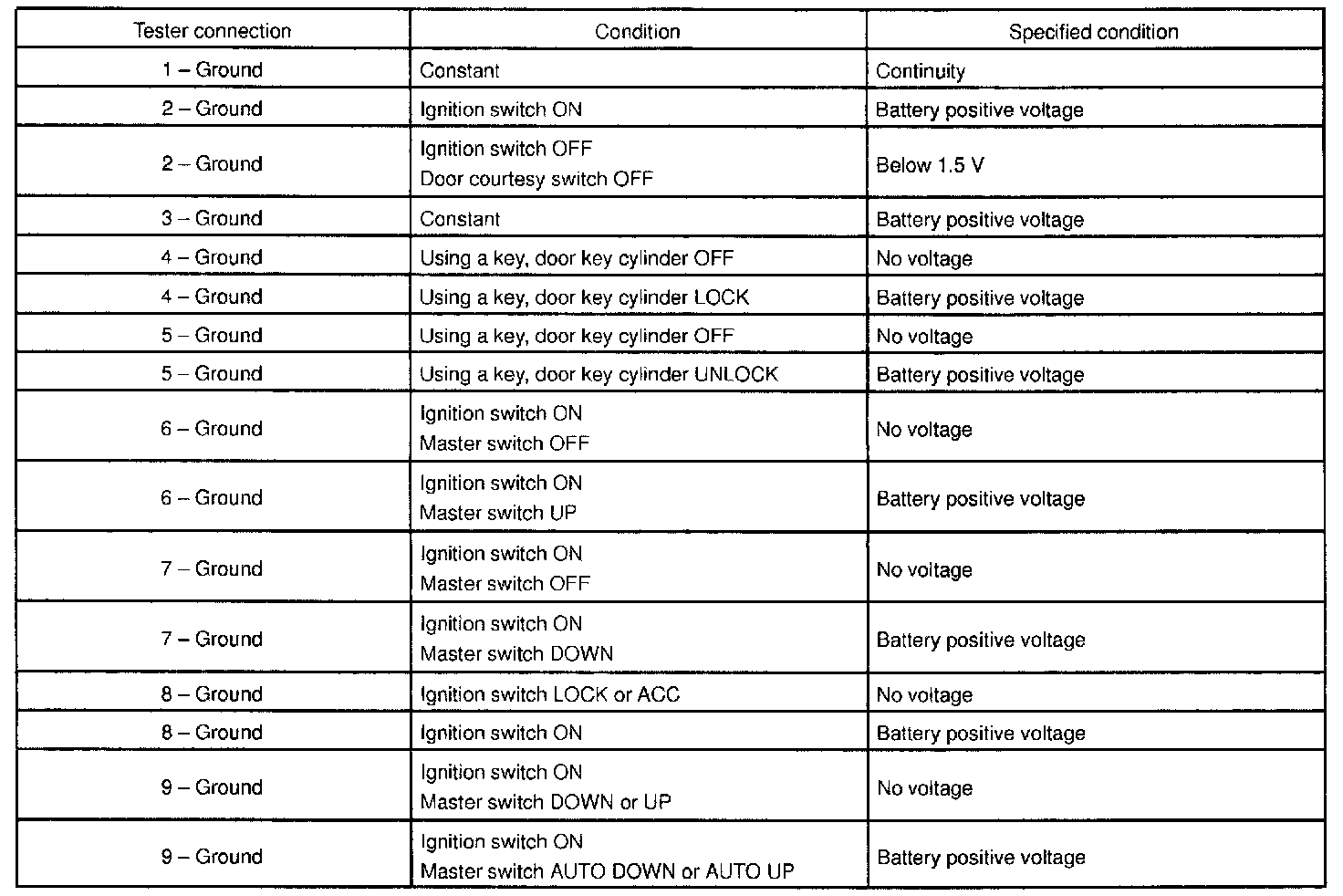

INSPECT POWER WINDOW ECU (MOTOR) CIRCUIT

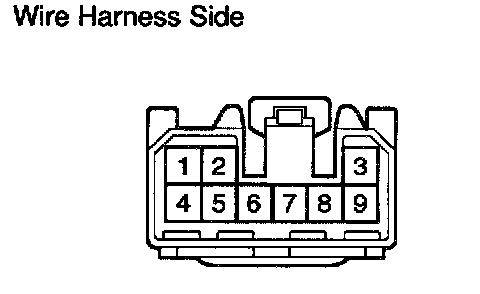

Disconnect the connector from the ECU and inspect the connector on the wire harness side.

HINT: The power window ECU does not operate even if battery voltage is applied to the connector on the driver's door power window ECU directly.
Do not apply the battery voltage directly because this will cause the controller to be damaged.




Each regulator does not have stop function. Operate manually and never operate to the highest position.
If the circuit is as specified, replace the ECU.
If the circuit is not as specified, inspect the circuits connected to other parts.
