Seals and Gaskets: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE DRAIN PLUG AND DRAIN ATF
2. REMOVE LH AND RH DRIVE SHAFTS





3. REMOVE LH AND RH SIDE OIL SEAL

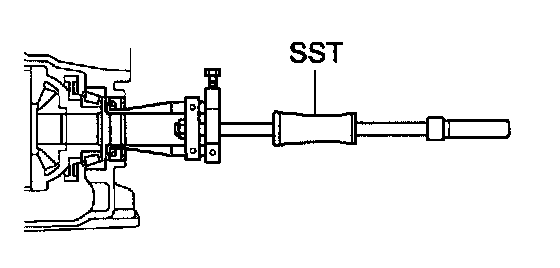

Using SST, remove both the side oil seals.
SST 09308-00010





4. INSTALL LH SIDE OIL SEAL

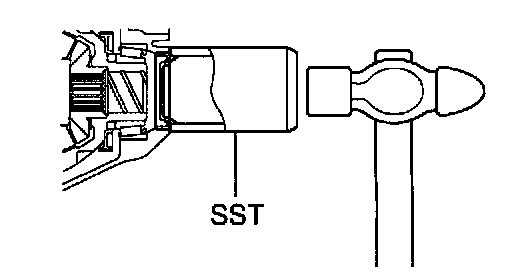

a. Using SST and a hammer, drive in a new oil seal.
SST 09350-32014 (09351-32111, 09351-32130)
Oil seal drive in depth: 0 ± 0.5 mm (0 ± 0.020 inch)
b. Coat the oil seal lip with MP grease.





5. INSTALL RH SIDE OIL SEAL

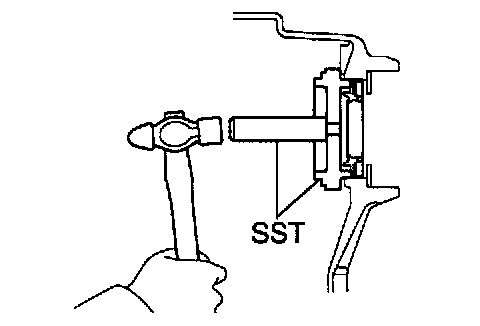

a. Using SST and a hammer, drive in a new oil seal.
SST 09223-00010
Oil seal drive in depth: 0 ± 0.5 mm (0 ± 0.020 inch)
b. Coat the oil seal lip with MP grease.
6. INSTALL LH AND RH DRIVE SHAFTS
7. FILL ATF AND CHECK ATF LEVEL
