TEM Terminal Circuit

CIRCUIT DESCRIPTION
By connecting LED to the between terminals TEM and E1 of DLC2, a TEM output check can be performed.

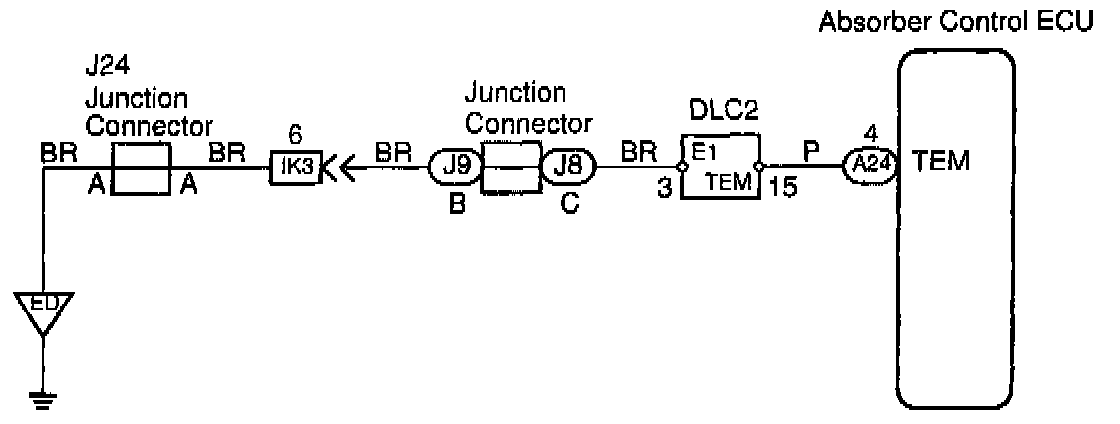

WIRING DIAGRAM

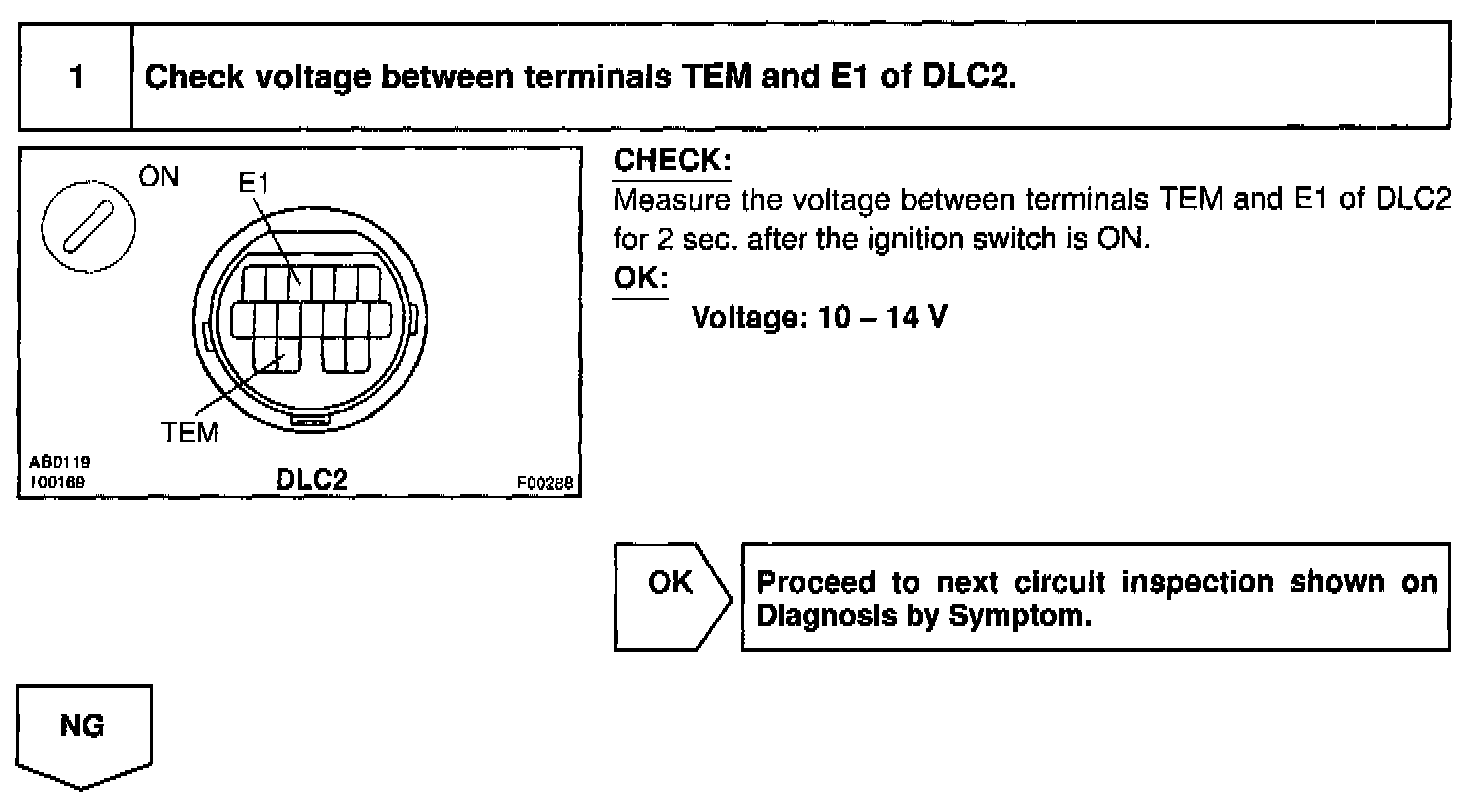

Step 1:

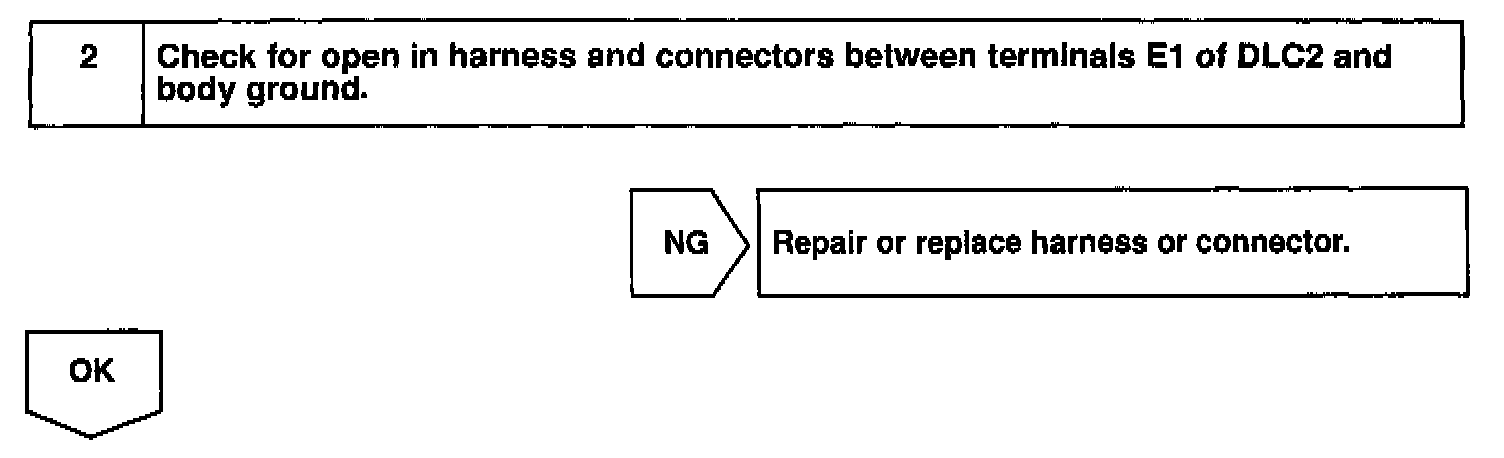

Step 2:

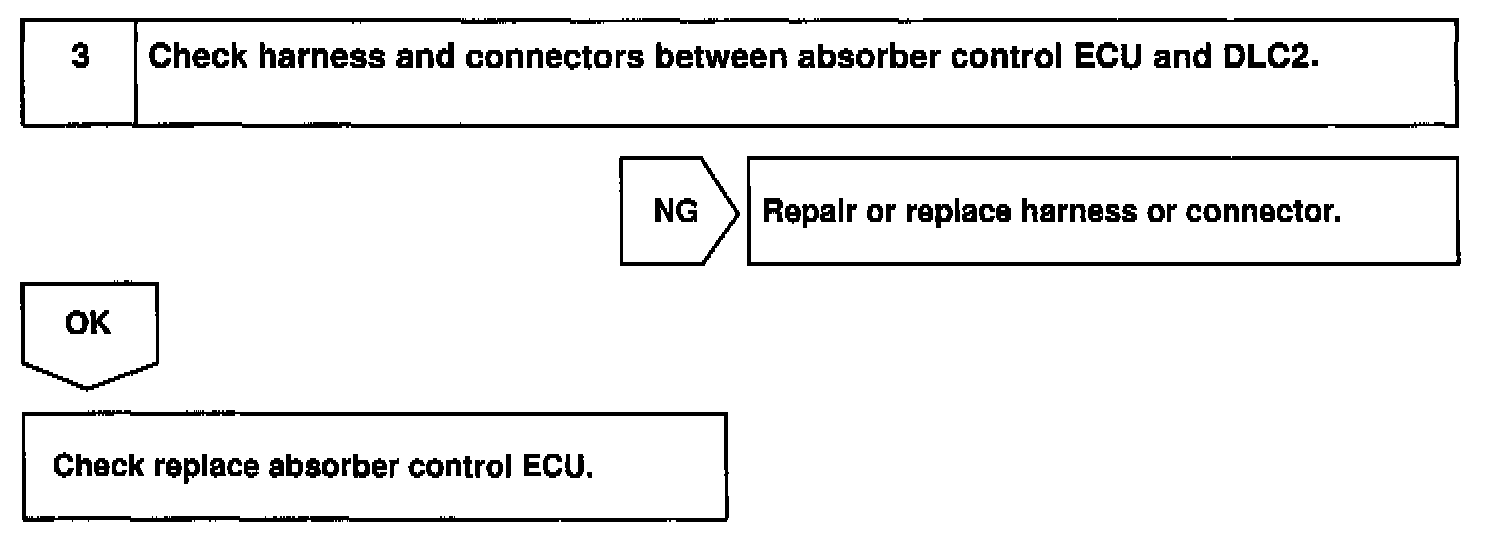

Step 3:

INSPECTION PROCEDURE
