Power Source Circuit

CIRCUIT DESCRIPTION
This is the power source for the absorber control ECU, hence the absorber control actuator.

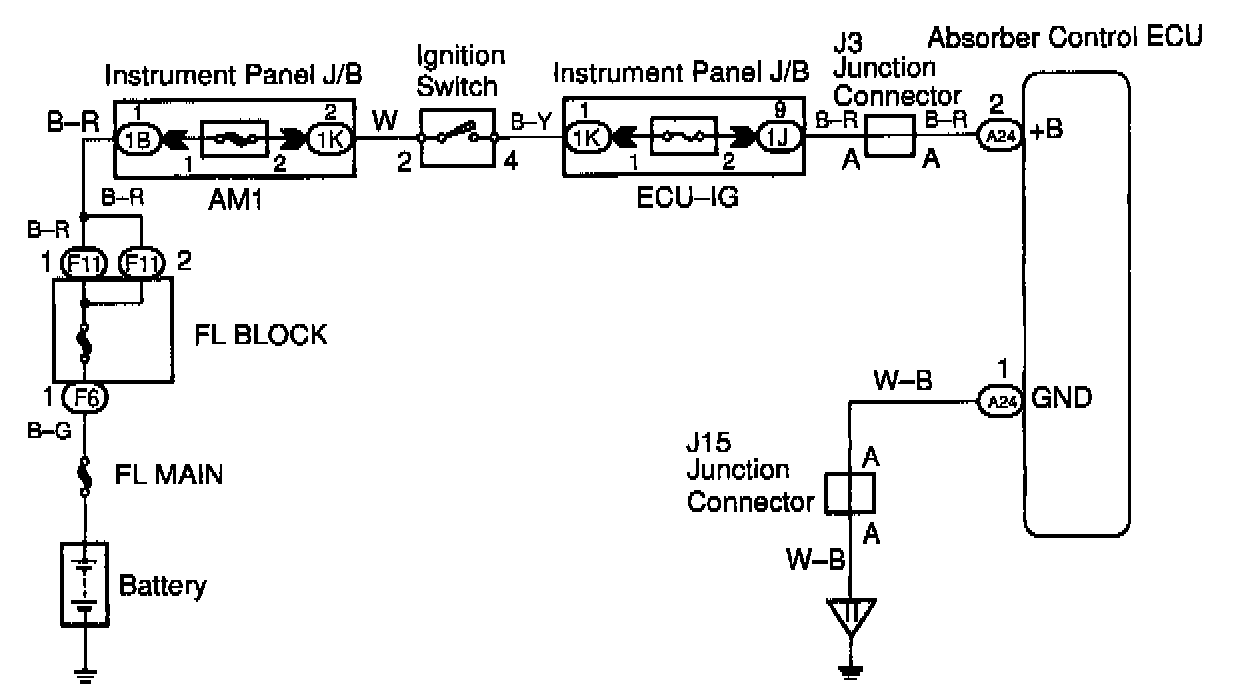

WIRING DIAGRAM

Step 1:

Step 2:

Step 3:

Step 4:

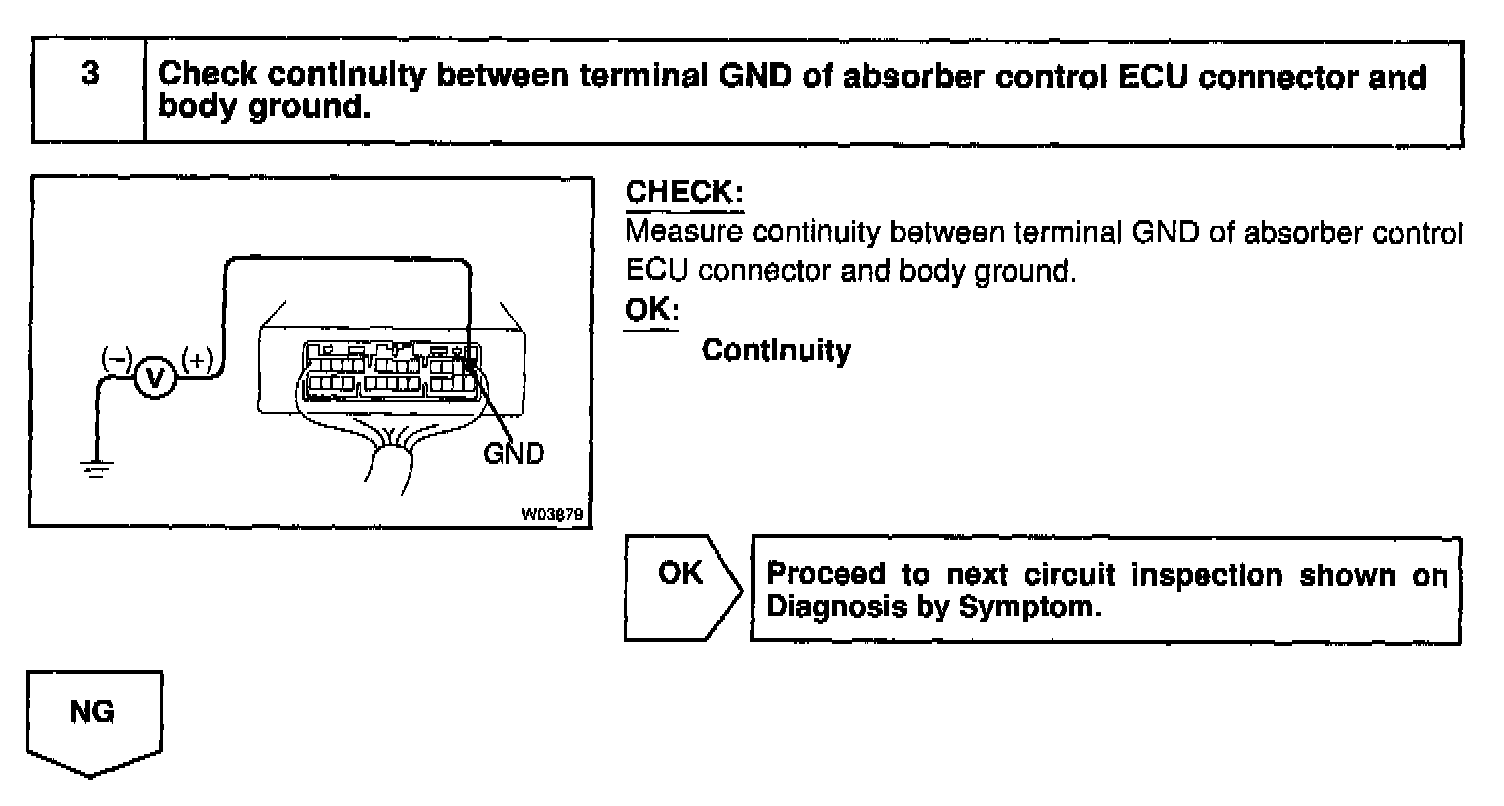

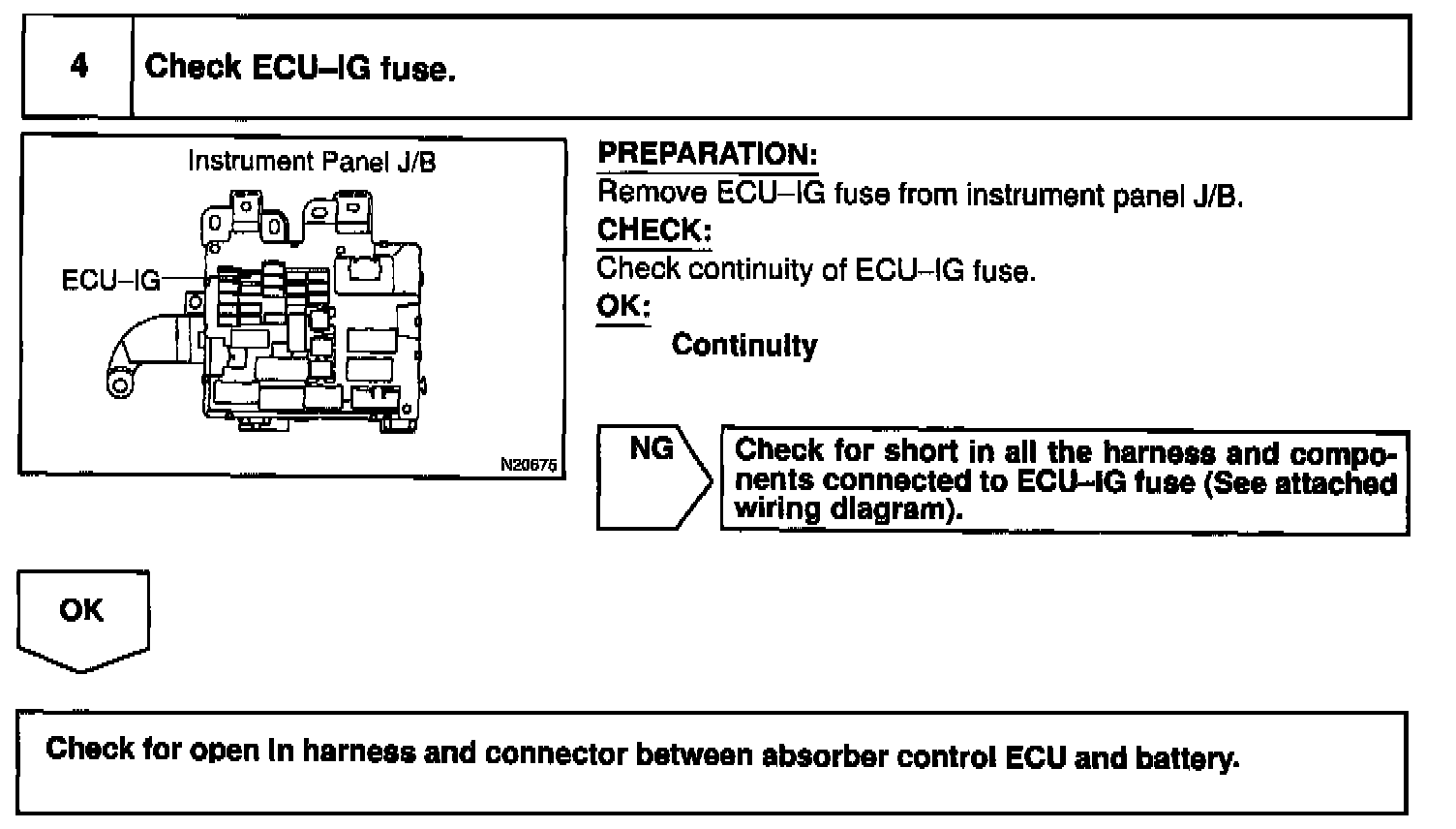

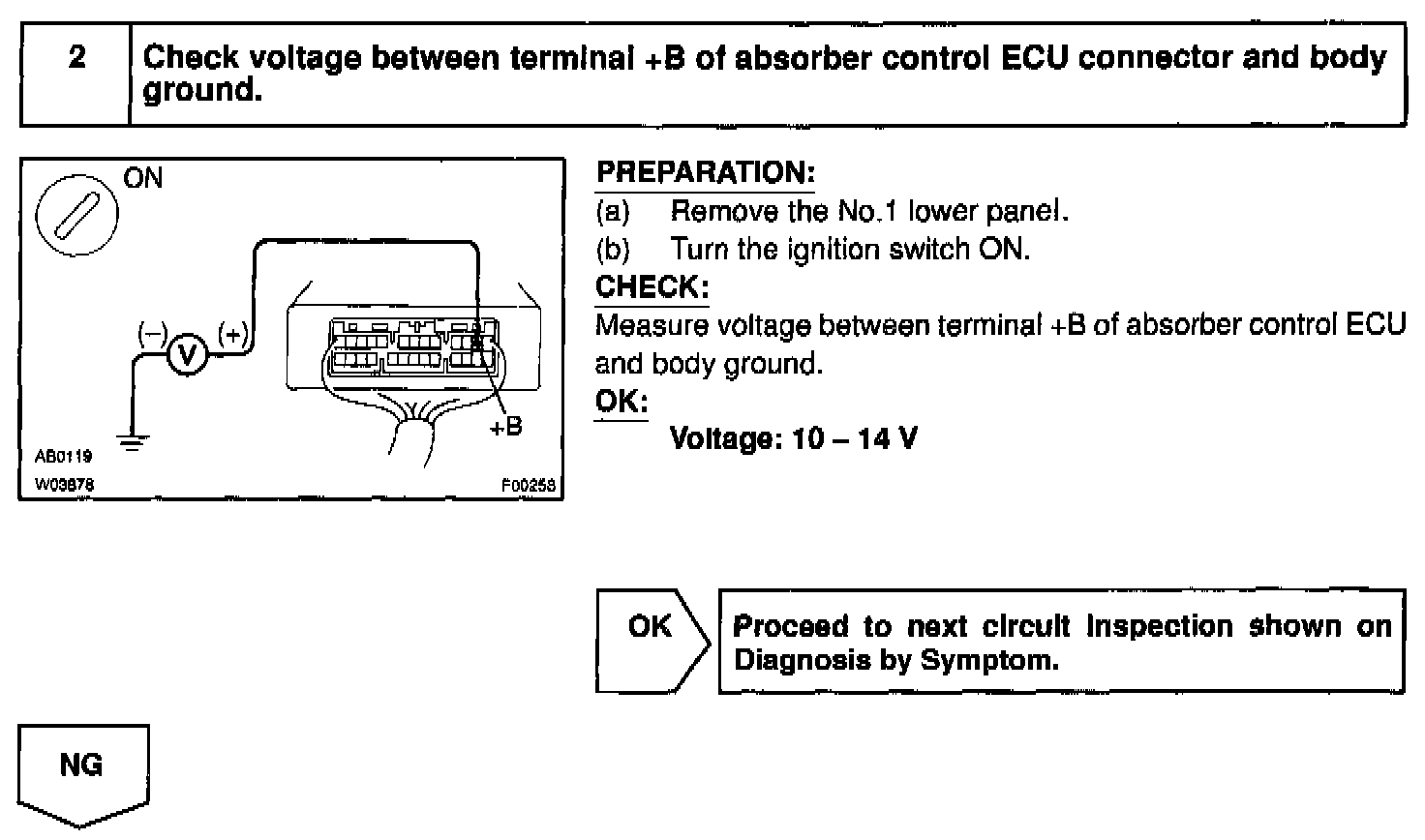

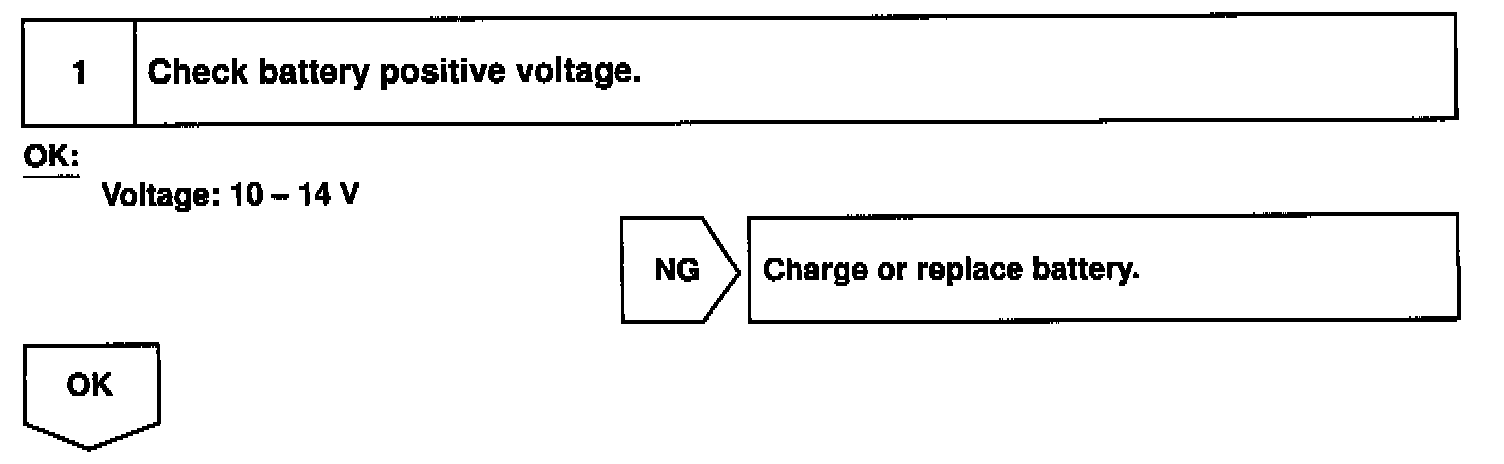

INSPECTION PROCEDURE
