Fog/Driving Lamp Switch: Testing and Inspection

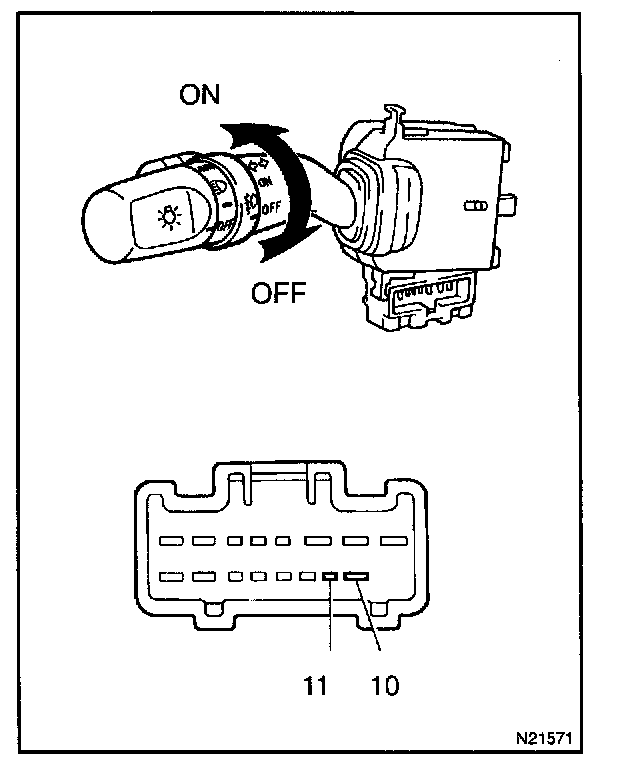

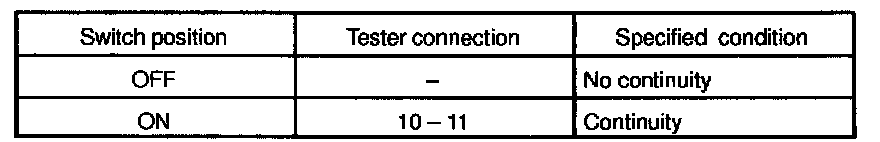

INSPECT FOG LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

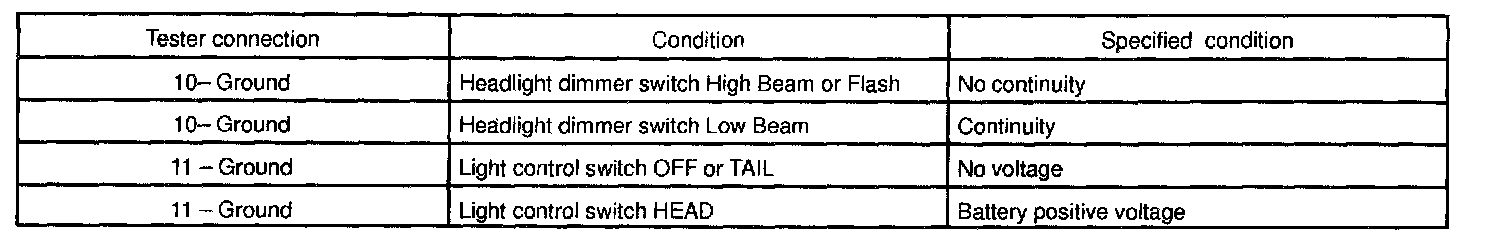

INSPECT COMBINATION SWITCH CIRCUIT







Connect the wire harness side connector to the combination switch and inspect wire harness side connector from the back side.
If the circuit is not as specified, inspect the circuit connected to other parts.
