Power Mirror Switch: Testing and Inspection

Master switch left side

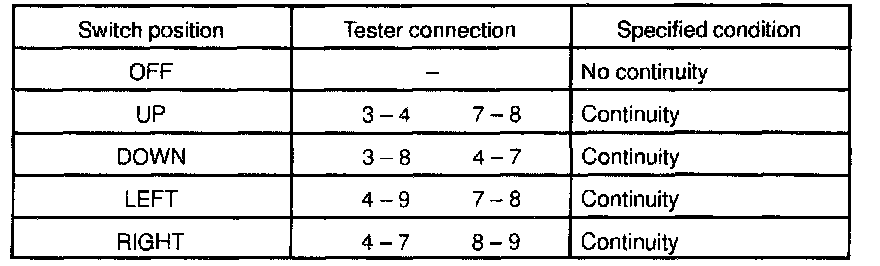

INSPECT MIRROR SWITCH CONTINUITY

Master switch right side







INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch. If continuity is as specified inspect the switch circuit.







INSPECT MIRROR SWITCH CIRCUIT

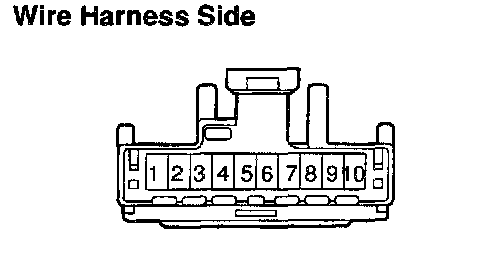

Disconnect the connector from the switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.

INSPECT INDICATOR LIGHT OPERATION

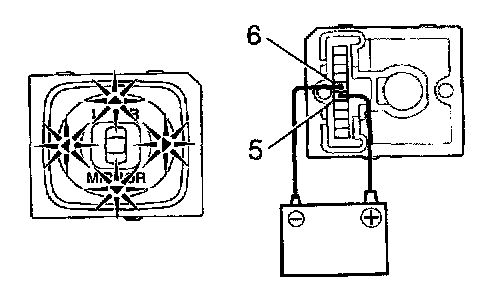

Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the indicator light does not light up, replace the switch.
