Installation

NOTE:
If the wiring connector of the SRS is disconnected and the ignition switch is at ON or ACC position, DTCs will be recorded.
Never use the airbag parts from another vehicle. When replacing parts, replace with new parts.

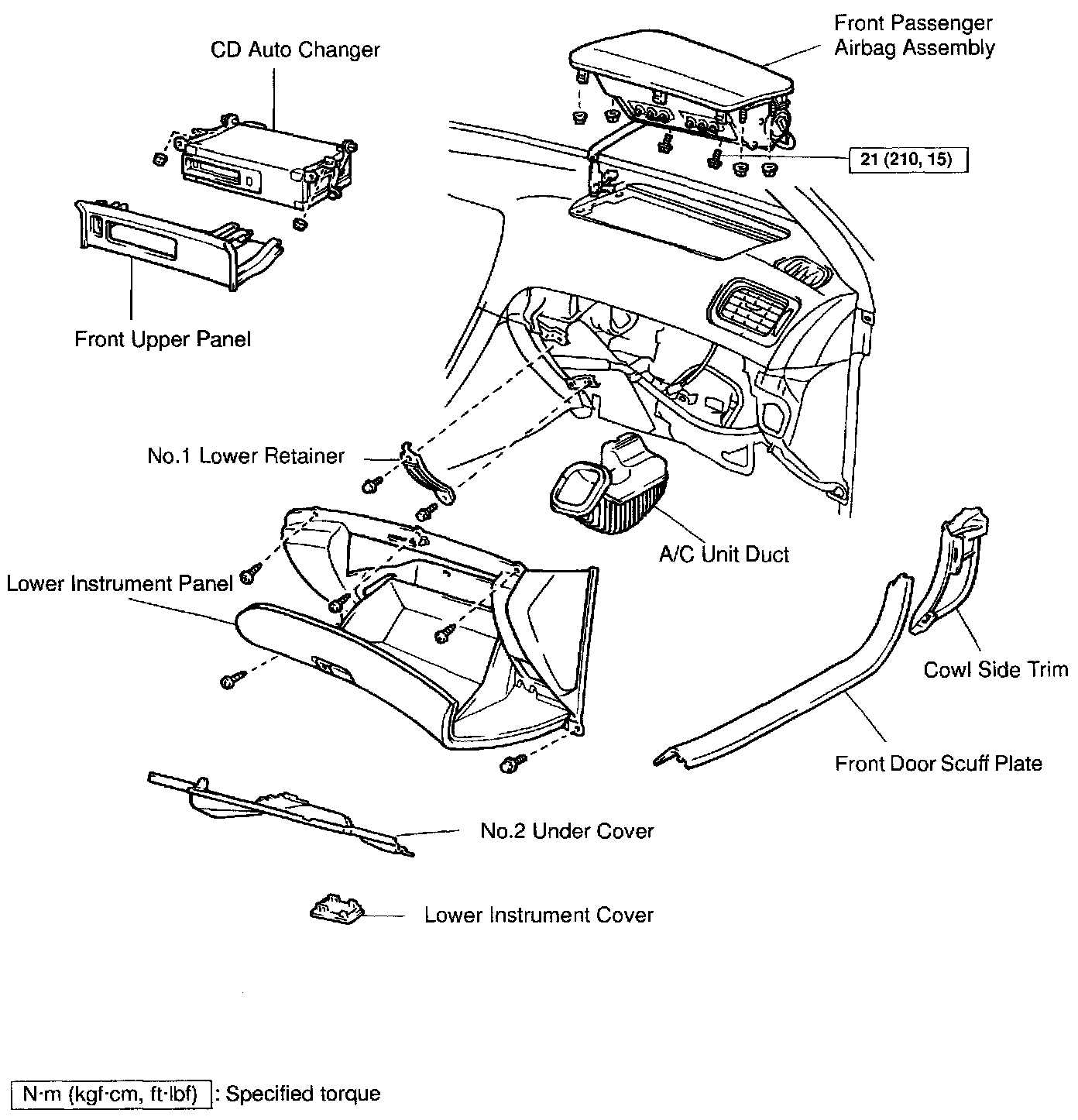

1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
Install the front passenger airbag assembly to the instrument panel.

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

CAUTION:
- Make sure that no foreign objects are trapped between the airbag bag, and within the module.
- Do not damage the strap when installing the module.

NOTE: If the front passenger airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front passenger airbag assembly with a new one.






2. CONNECT AIRBAG CONNECTOR
a. Connect the airbag connector.
b. Install the airbag connector to the No.2 under cover.
c. Install the No.2 under cover.
