Fuel Pressure Regulator: Service and Repair

REMOVAL

1. REMOVE FUEL PUMP ASSEMBLY FROM FUEL TANK





2. REMOVE FUEL FILTER

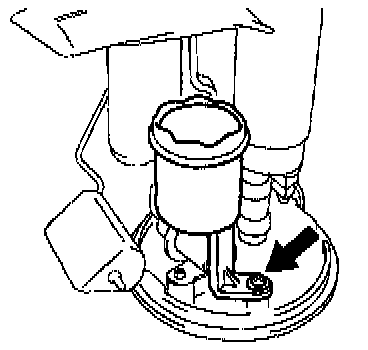

a. Remove the screw, and pull out the fuel filter.

Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)

b. Remove the O-ring from the fuel filter.

HINT: At the time of installation, please refer to the following items. Apply a light coat of gasoline to a new O-ring, and install it to the fuel filter.





3. REMOVE FUEL PRESSURE REGULATOR
a. Remove the screw, and pull out the pressure regulator.

Torque: 2.0 N.m (20 kgf.cm, 17 in.lbf)

b. Remove the O-ring from the pressure regulator.

HINT: At the time of installation, please refer to the following items. Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

INSTALLATION
Installation is in the reverse order of removal.
