Center Mounted Brake Lamp: Testing and Inspection

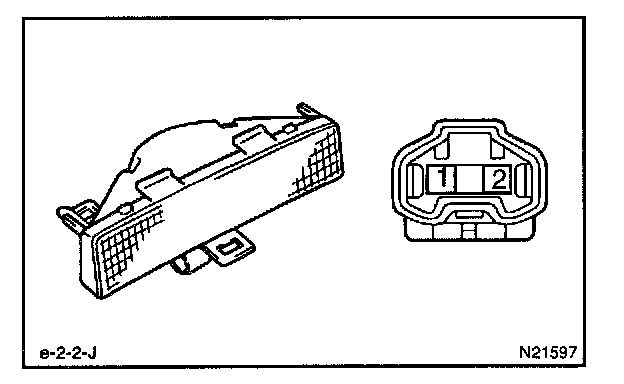

1. INSPECT HIGH-MOUNTED STOP LIGHT ASSEMBLY CONTINUITY
Using the ohmmeter, check that continuity exists between terminals.
If continuity is not as specified, replace the bulb or light assembly.







2. INSPECT HIGH-MOUNTED STOP LIGHT ASSEMBLY CIRCUIT

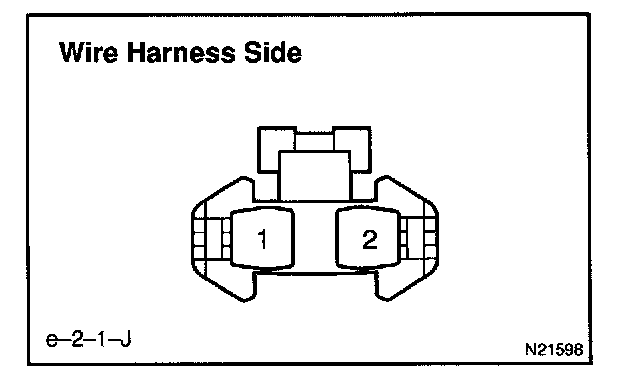

Disconnect the connector from the switch and inspect the connector on the wire harness side.
If circuit is not as specified, inspect the power source or wire harness.
