Instrument Cluster / Carrier: Testing and Inspection

INSPECT COMBINATION METER WIRING CIRCUIT

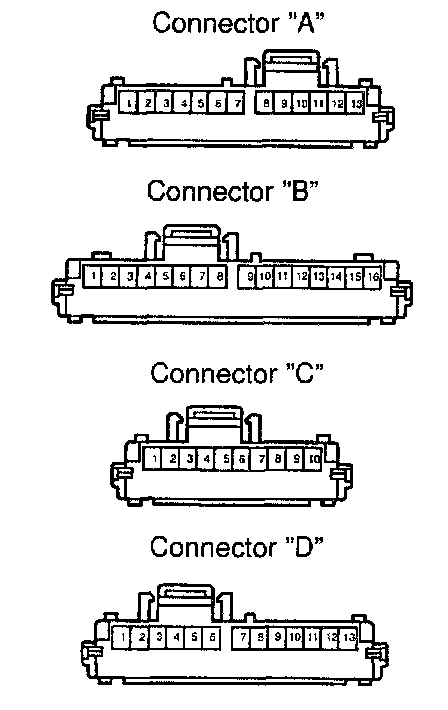

Disconnect the connector "A", connector "B", connector "C" and connector "D" from the combination meter and inspect the connectors on the wire harness side.

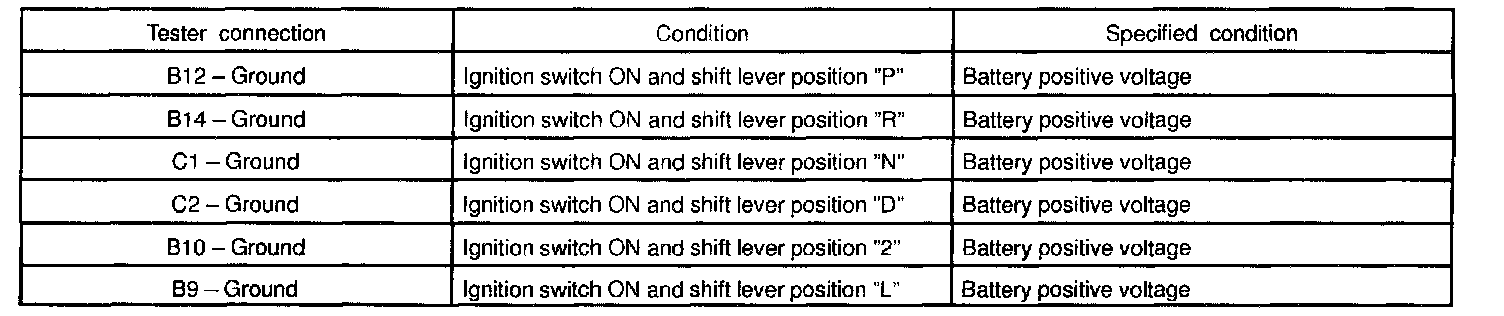

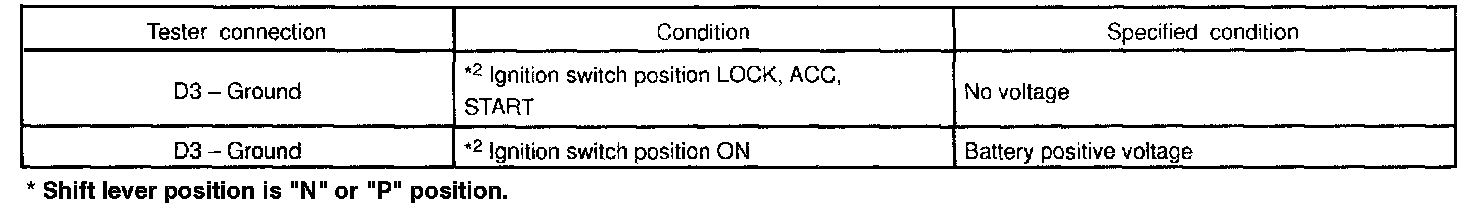

Park/Neutral Position Switch

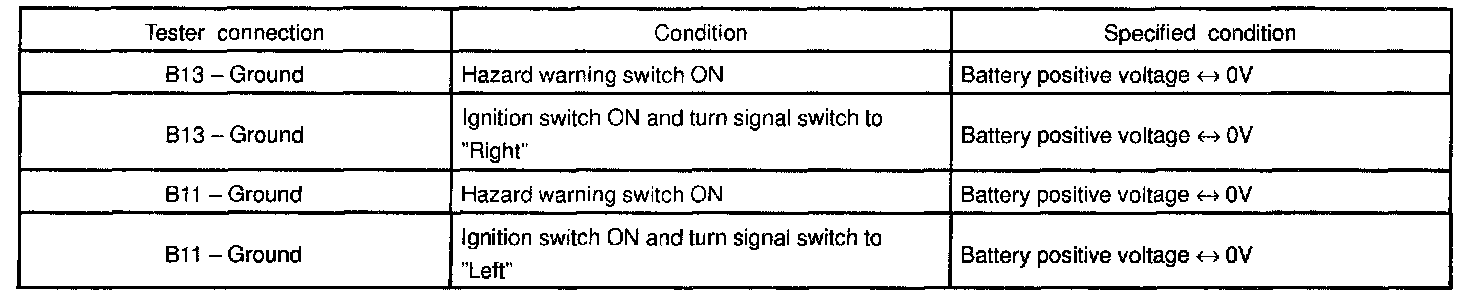

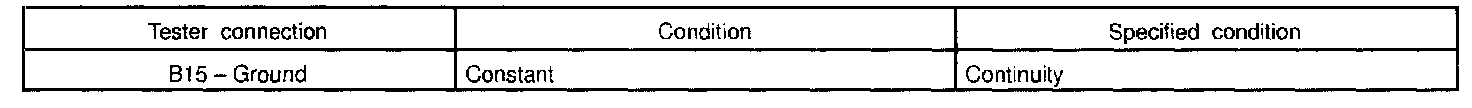

Turn Signal Switch and Hazard Warning Switch

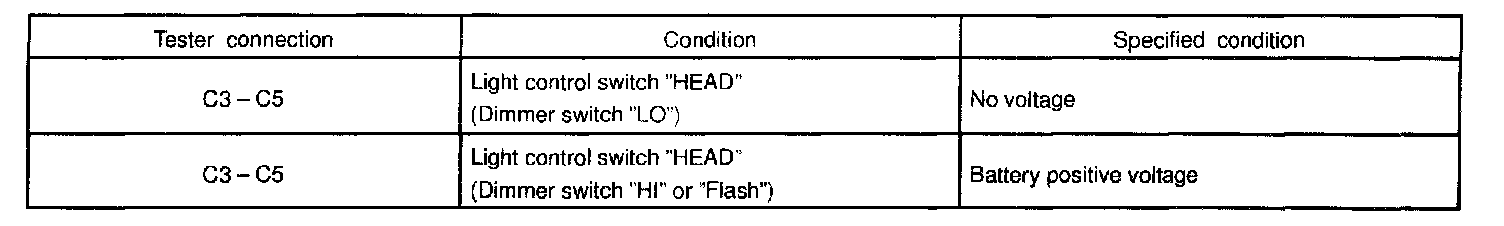

Headlight

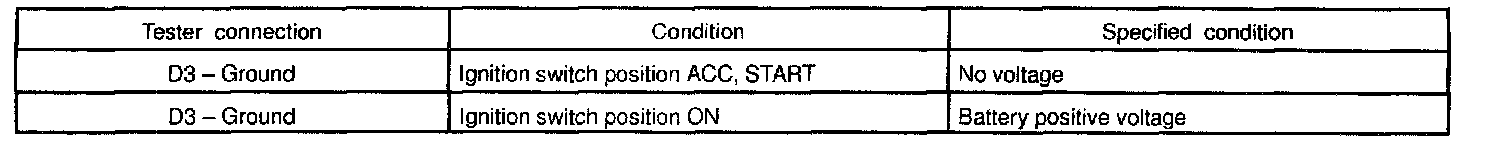

GAUGE Fuse




IGN Fuse

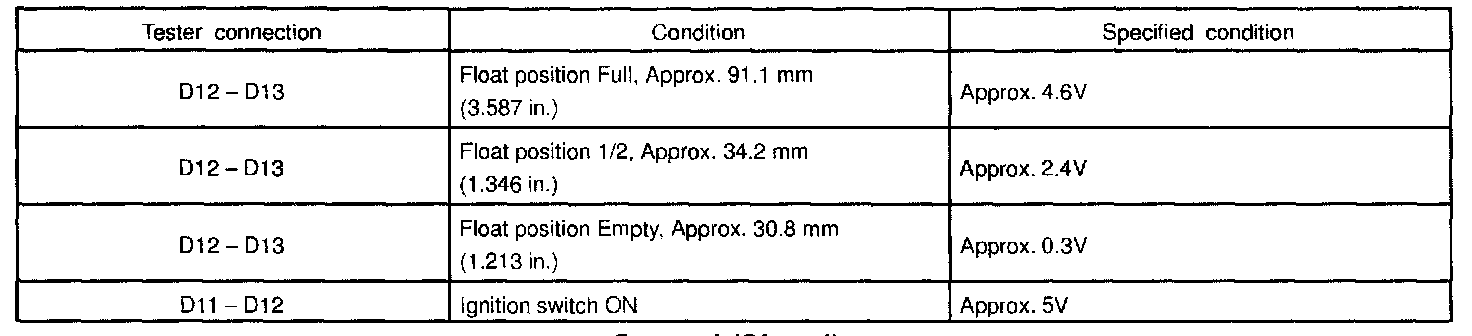

Fuel Sender Gauge

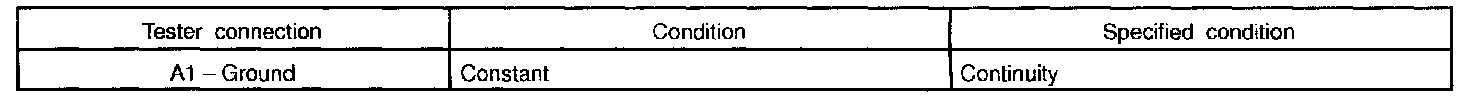

Ground (Signal)




Ground (Engine)




Ground (Power)

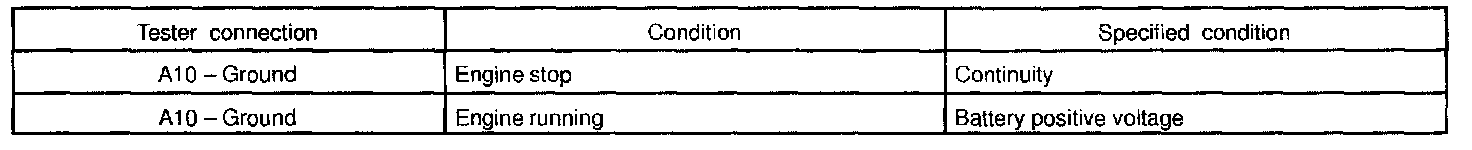

Generator "L" Terminal




Engine Oil Level Warning Switch




DOME fuse

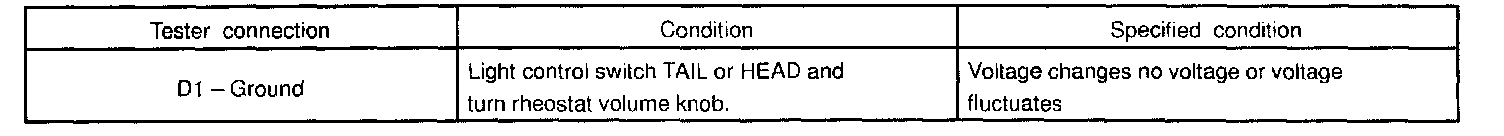

Rheostat Light Control

If Circuit is not as specified, see wiring diagram and inspect the circuit connected to other parts.
