Component Tests and General Diagnostics

INSPECT FUEL RECEIVER GAUGE OPERATION




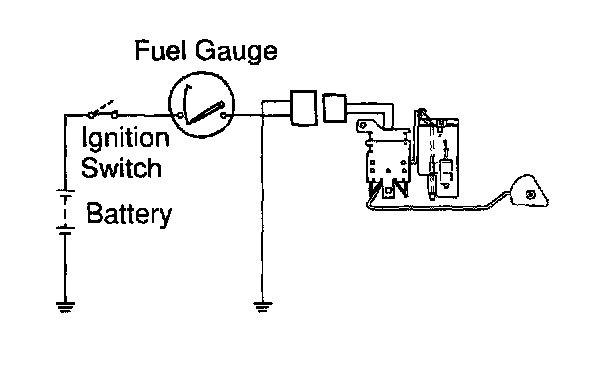

a. Disconnect the connector from the sender gauge.
b. Turn the ignition switch ON, check that the receiver gauge needle indicates EMPTY.




c. Connect terminals 2 and 3 on the wire harness side connector through a 3.4-W test bulb.
d. Turn the ignition switch ON, check that the bulb lights up and the receiver gauge needle moves toward "E" side.

HINT: Because of the silicon oil in the gauge, it will take a short time for needle to stabilize.
If operation is not as specified, inspect the receiver gauge resistance.

INSPECT FUEL RECEIVER GAUGE RESISTANCE

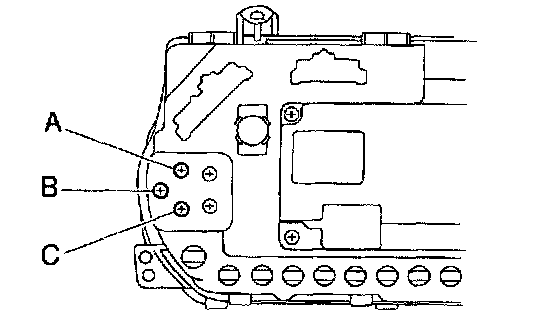

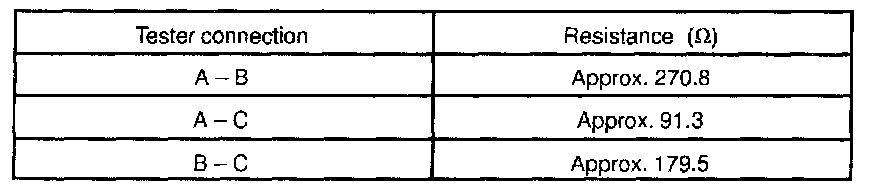

Measure the resistance between terminals.
If resistance value is not as specified, replace the receiver gauge.
