Air Outlet Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION
This circuit turns the servomotor and changes each mode damper position by signals from the A/C control assembly. When the AUTO switch is ON, the A/C control assembly changes the mode automatically between FACE, BI-LEVEL and FOOT according to the temperature setting.

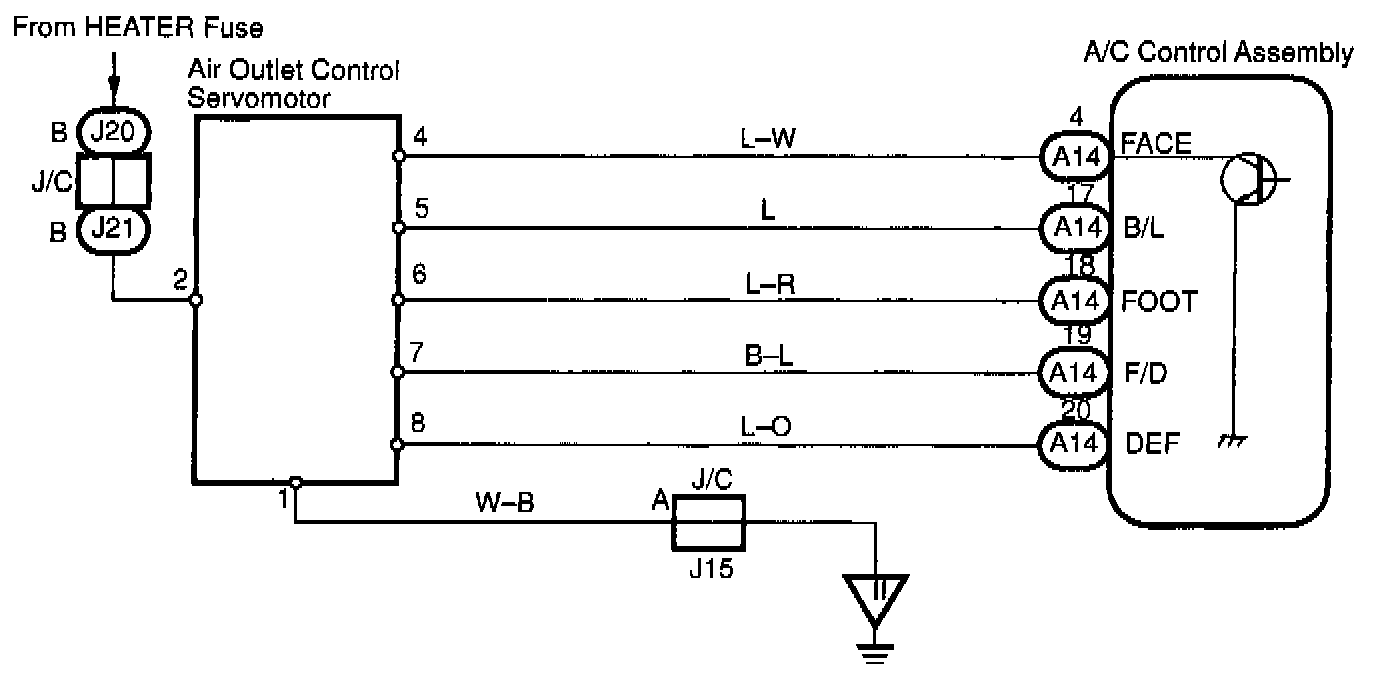

WIRING DIAGRAM

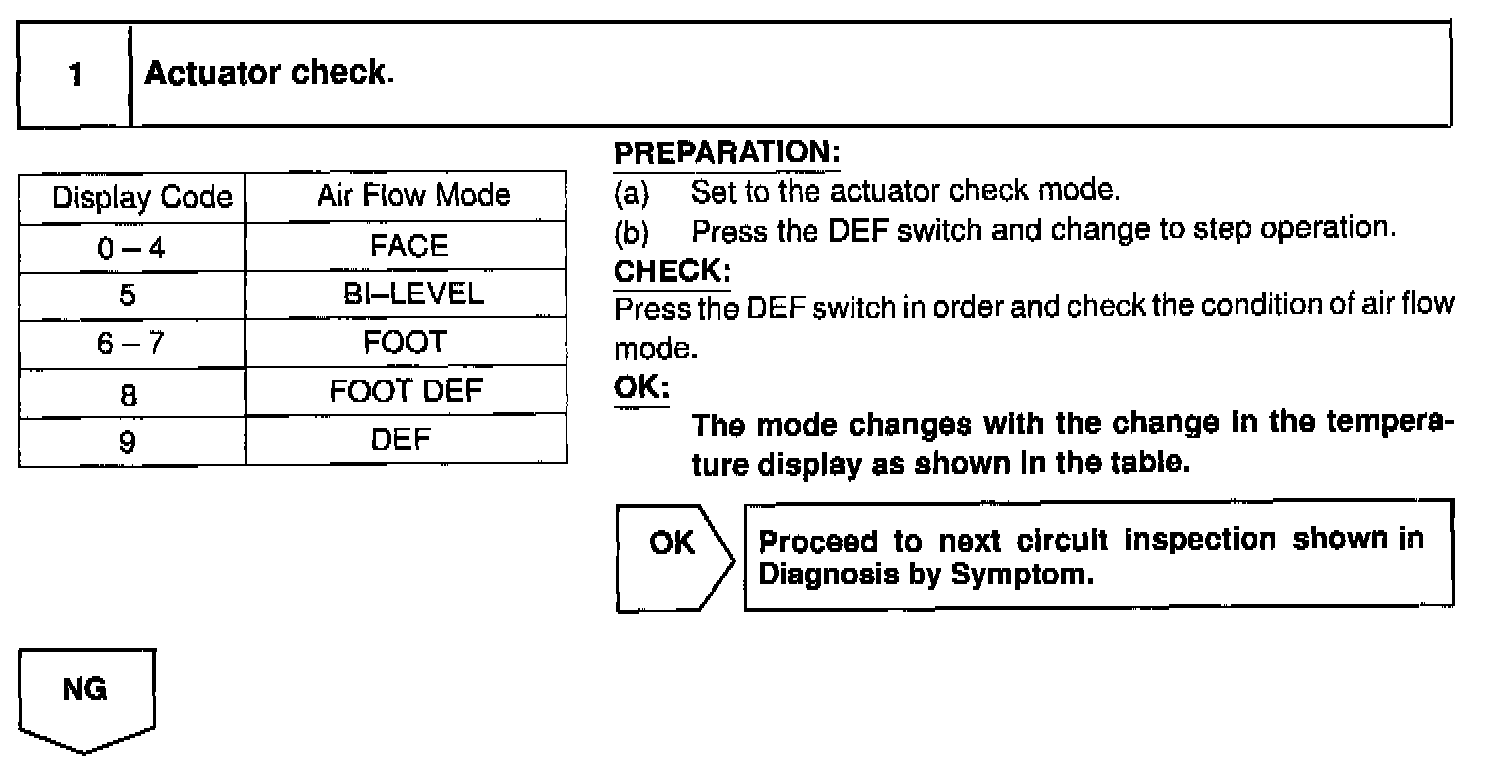

Step 1:

Step 2:

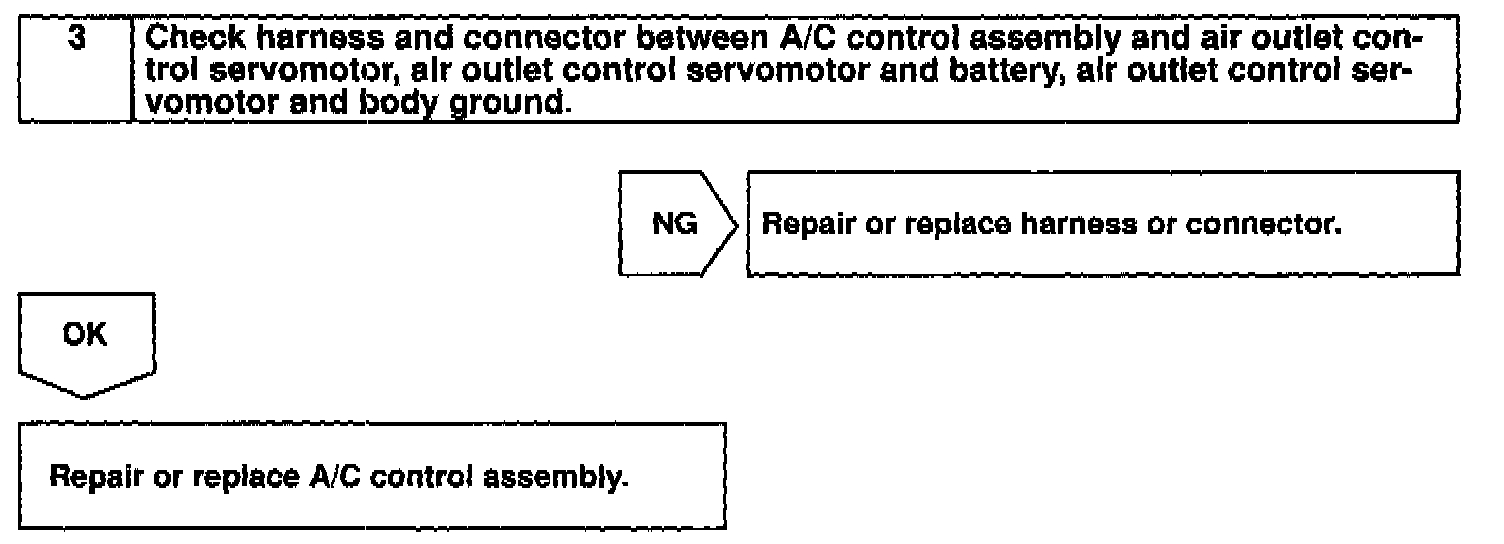

Step 3:

INSPECTION PROCEDURE
