Removal and Installation

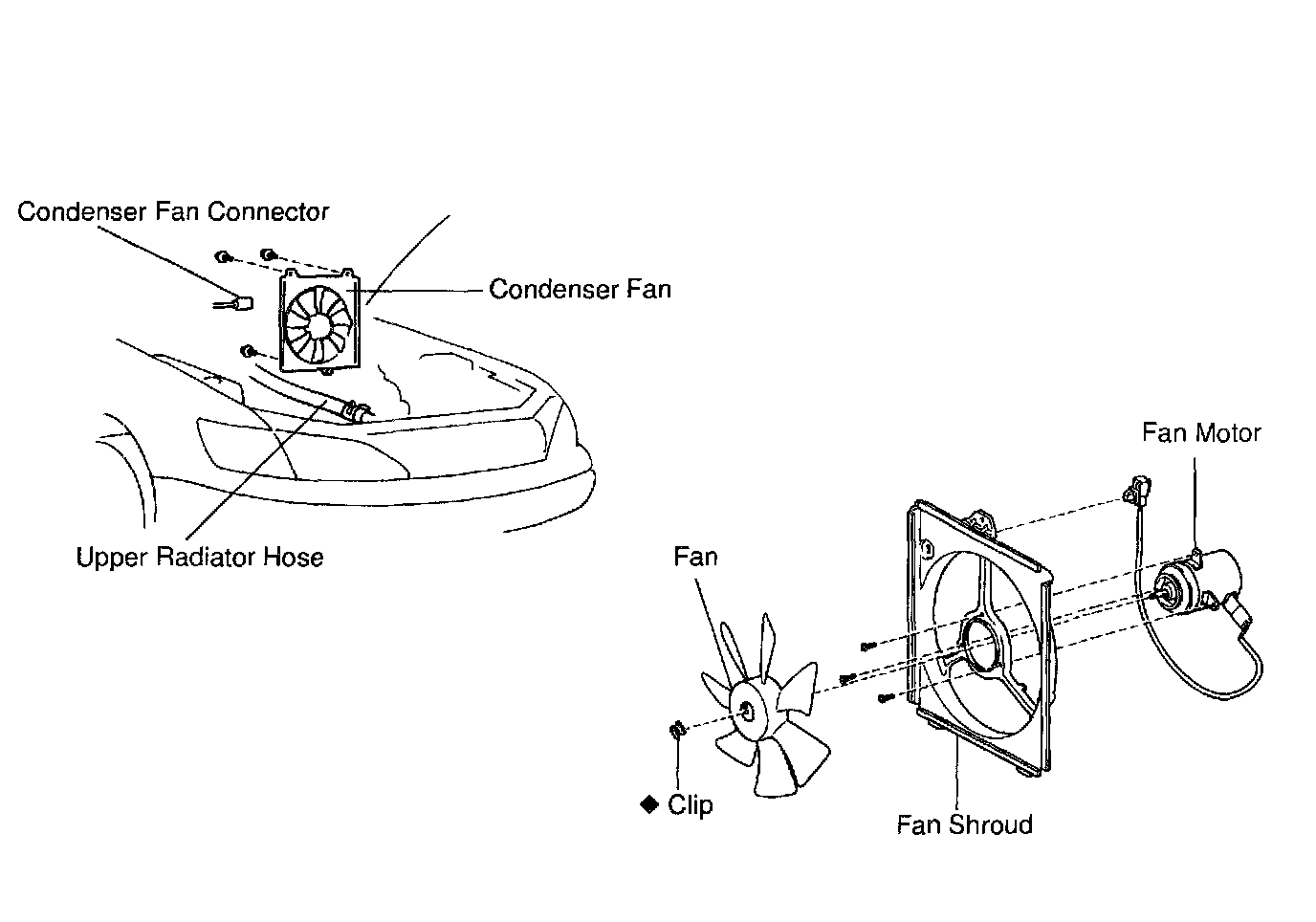

COMPONENTS

REMOVAL
1. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant

2. DISCONNECT UPPER RADIATOR HOSE FROM RADIATOR

3. REMOVE CONDENSER FAN
a. Disconnect the connector.
b. Remove the 3 bolts and fan.

INSTALLATION
Installation is in the reverse order of removal.
