Variable Valve Timing Actuator: Service and Repair

Camshaft Timing Oil Control Valve

REMOVAL

1. REMOVE V-BANK COVER

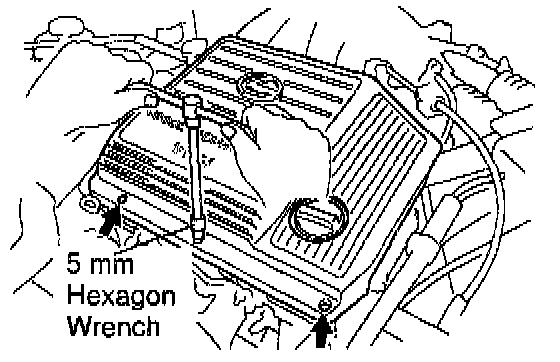

a. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
b. Loosen the V-bank cover fastener counterclockwise.

HINT: At the time of installation, please refer to the following items. Press down the V-bank cover fastener.

c. Remove the V-bank cover.

2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVES





a. Disconnect the 2 camshaft oil control valve connectors.

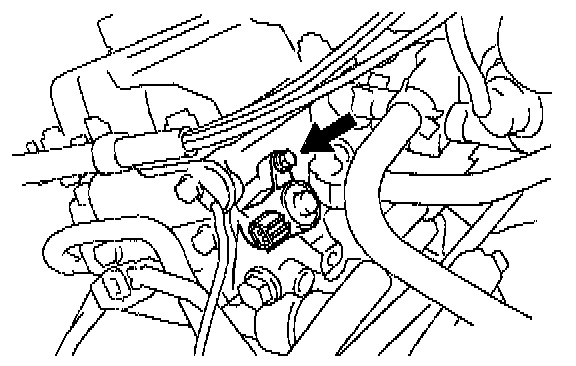

b. Remove the bolt, camshaft oil control valve and O-ring. Remove the 2 camshaft oil control valves.

Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

c. Remove the O-ring from the each camshaft oil control valve.

HINT: At the time of installation, please refer to the following items. Use a new O-ring.

INSTALLATION
Installation is in the reverse order of removal.
