Radiator Cooling Fan Motor: Service and Repair

REMOVAL





1. REMOVE NO.1 COOLING FAN
a. Canada:
Disconnect the relay block (for daytime running light system) from the battery hold-down clamp.
b. Disconnect the cooling fan connector.
c. Disconnect the No.1 ECT switch wire connector.
d. Disconnect the No.1 ECT switch wire clamps.
e. Remove the 2 bolts and cooling fan.
Torque: 5.0 Nm (50 kgf-cm, 44 inch lbs.)





2. REMOVE NO.2 COOLING FAN
a. Drain the engine coolant.
b. Disconnect the upper radiator hose from the radiator.
c. Disconnect the cooling fan connector.

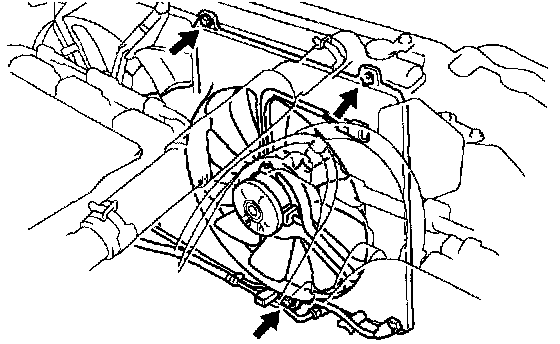

d. Remove the 3 bolts and cooling fan.
Torque: 5.0 Nm (50 kgf-cm, 44 inch lbs.)

DISASSEMBLY
1. REMOVE NO.1 COOLING FAN





a. Remove the nut and fan.

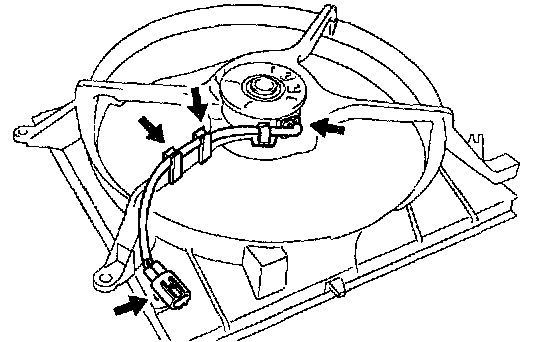

b. Disconnect the lead wire from the fan shroud.

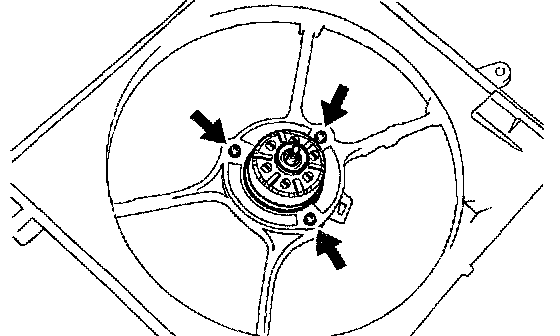

c. Remove the 3 screws and fan motor.
2. REMOVE NO.2 COOLING FAN





a. Remove the nut and fan.

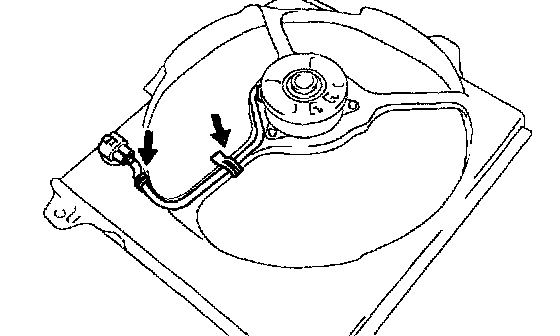

b. Disconnect the lead wire from the fan shroud.

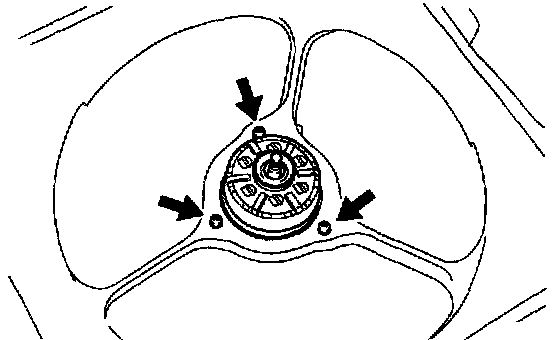

c. Remove the 3 screws and fan motor.

REASSEMBLY
Reassembly is in the reverse order of disassembly.

INSTALLATION
Installation is in the reverse order of removal.
