Without Scan Tool

OUTPUT OF DTC USING DIAGNOSIS CHECK WIRE
1. Turn the ignition switch ON.

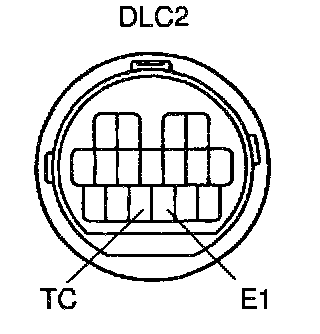

2.5GUsing SST, connect terminals Tc and E1 of DLC2.
SST 09843-18020

3. Read the DTC on the CRUISE MAIN indicator light.

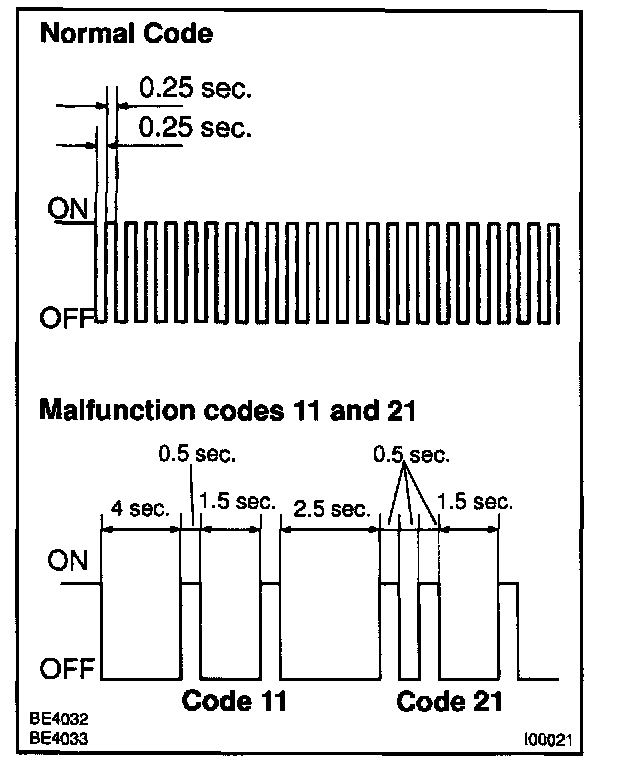

HINT: If the DTC is not output, inspect the diagnosis circuit. As an example, the blinking patterns for codes; normal, 11 and 21 are shown in the illustration.
