Problem Symptom Confirmation (Road Test)

PROBLEM SYMPTOM CONFIRMATION (ROAD TEST)

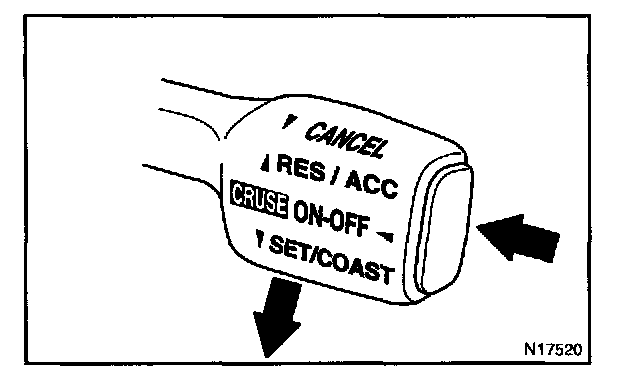

a. SET INSPECTION
1. Push the main switch ON.
2. Drive at a desired speed (40 kph (25 mph) or higher).
3. Press the control switch to the SET/COAST
4. After releasing the switch, check that the vehicle cruises at the desired speed.





b. ACCEL INSPECTION
1. Push the main switch ON.
2. Drive at a desired speed (40 kph (25 mph) or higher).

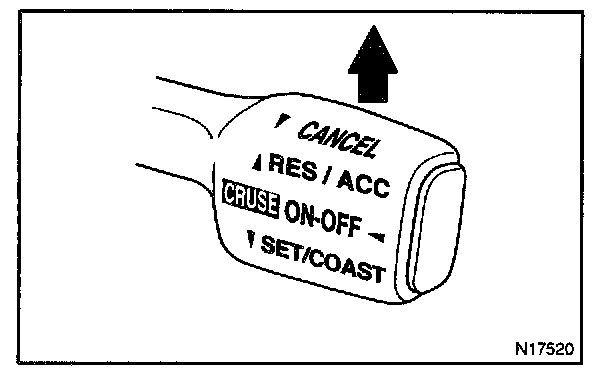

3. Check that the vehicle speed is increases while the control switch is turned to RES/ACC, and that the vehicle cruises at the set speed when the switch is released.
4. Momentarily press the control switch upward in the RES/ACC and then immediately release it. Check that the vehicle speed increases by about 1.5 kph (Tap-up function).





c. COAST INSPECTION
1. Push the main switch ON.
2. Drive at a desired speed (40 kph (25 mph) or higher).

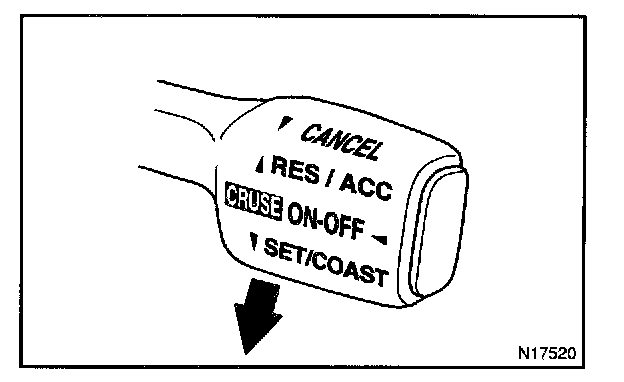

3. Check that the vehicle speed is decreases while the control switch is turned to SET/COAST, and the vehicle cruises at the set speed when the switch is released.
4. Momentarily press the control switch is turned to SET/COAST, and then immediately release it.
Check that the vehicle speed decreases by about 1.5 kph (Tap-down function).





d. CANCEL INSPECTION
1. Push the main switch ON.
2. Drive at a desired speed (40 kph (25 mph) or higher).
3. When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
^ Depress the brake pedal
^ Shift to except D position
^ Push the main switch OFF

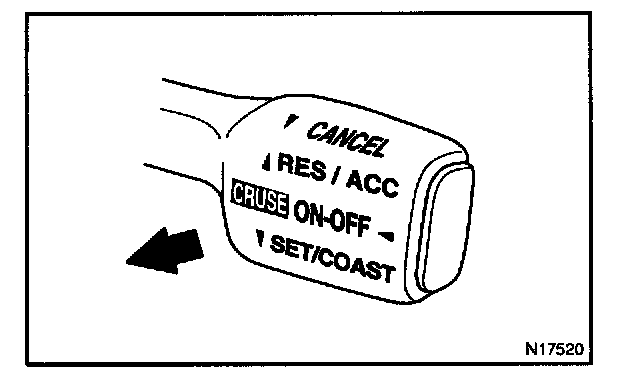

^ Pull the cruise control switch to CANCEL





e. RESUME INSPECTION
1. Push the main switch ON.
2. Drive at a desired speed (40 kph (25 mph) or higher).
3. When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.
^ Depress the brake pedal
^ Shift to except D position
^ Push the main switch OFF
^ Pull the cruise control switch to CANCEL
4. After the control switch is turned to RES/ACC at the driving speed of more than 40 kph (25 mph), check that the vehicle restores the speed prior to the cancellation.
