ABS W/Traction Control (TRAC)
ABS W/Traction Control (TRAC)

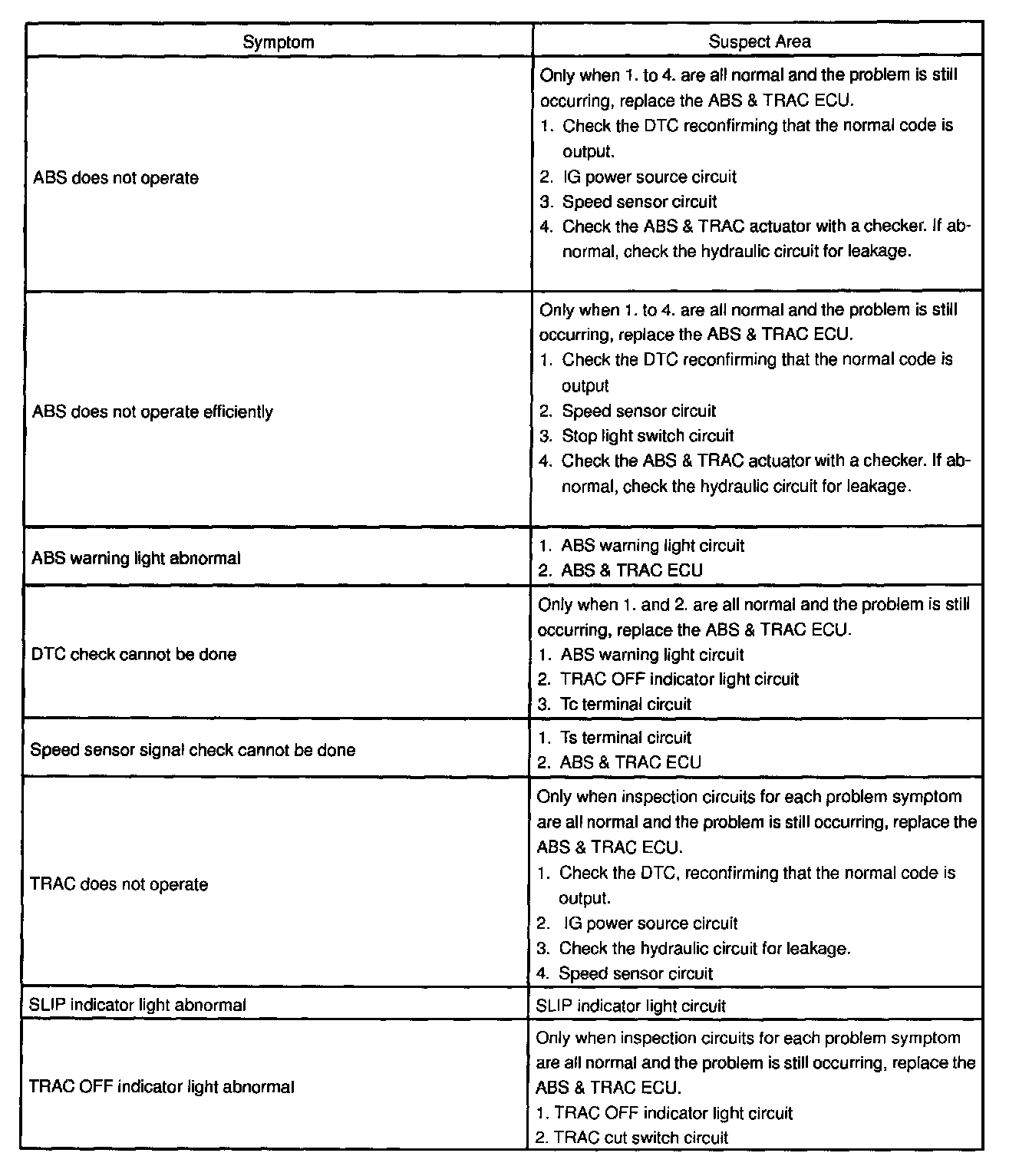

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
