Always On - Malfunction In ECU

CIRCUIT DESCRIPTION

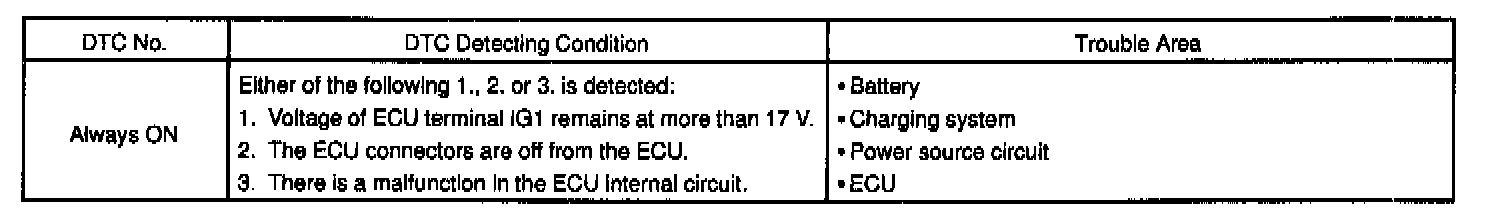

DETECTING CONDITIONS

HINT: There is a case that LEXUS hand-held tester cannot be used when ECU is abnormal.

Fail safe function:
If any trouble occurs in the ECU, the ECU cuts off current to the ABS solenoid relay and prohibits ABS & TRAC & VSC controls and the brake system becomes normal.





WIRING DIAGRAM

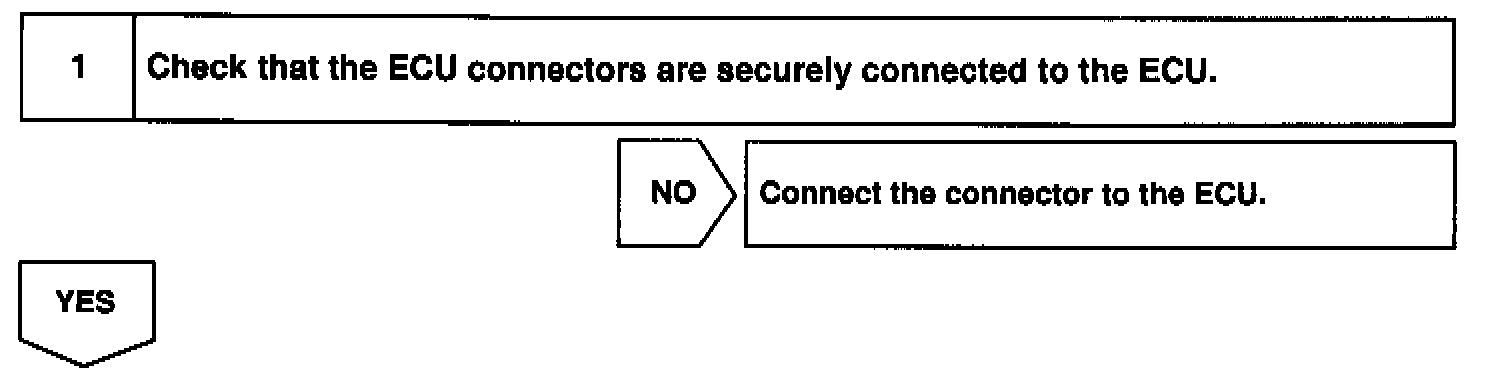

Step 1:

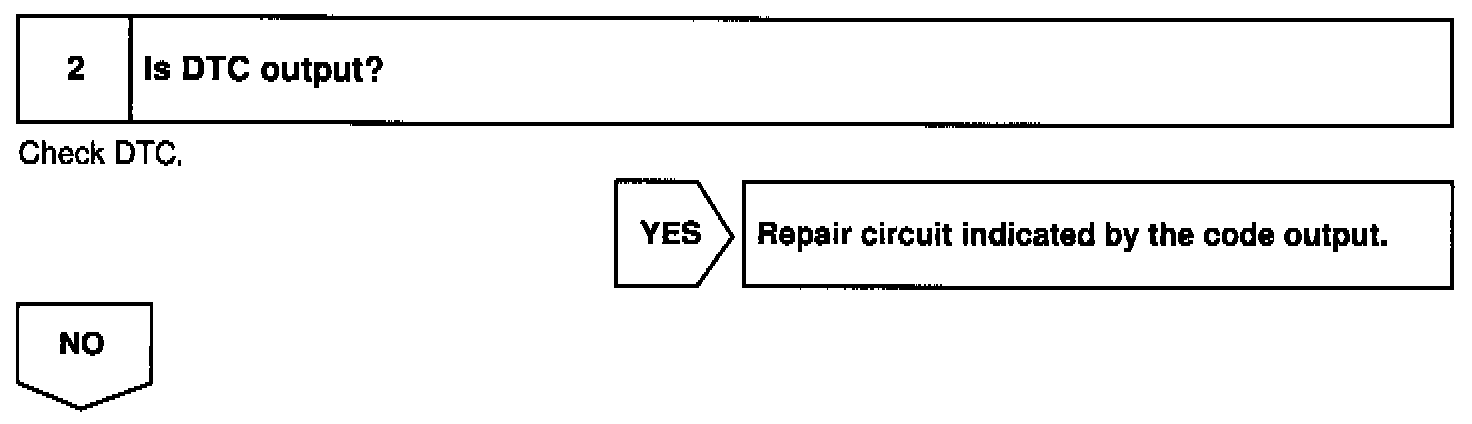

Step 2:

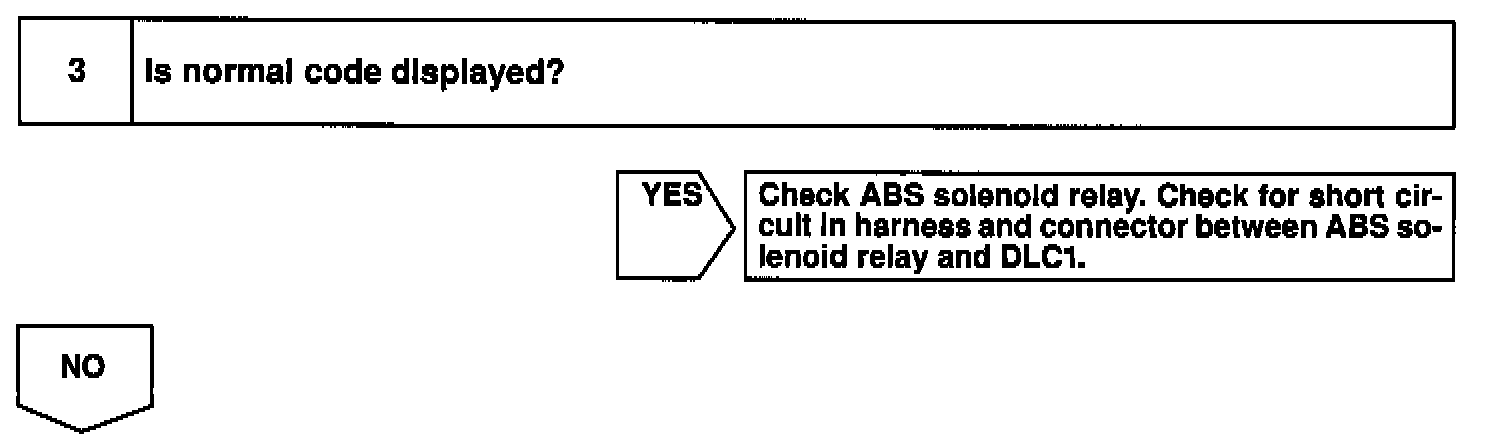

Step 3:

Step 4:

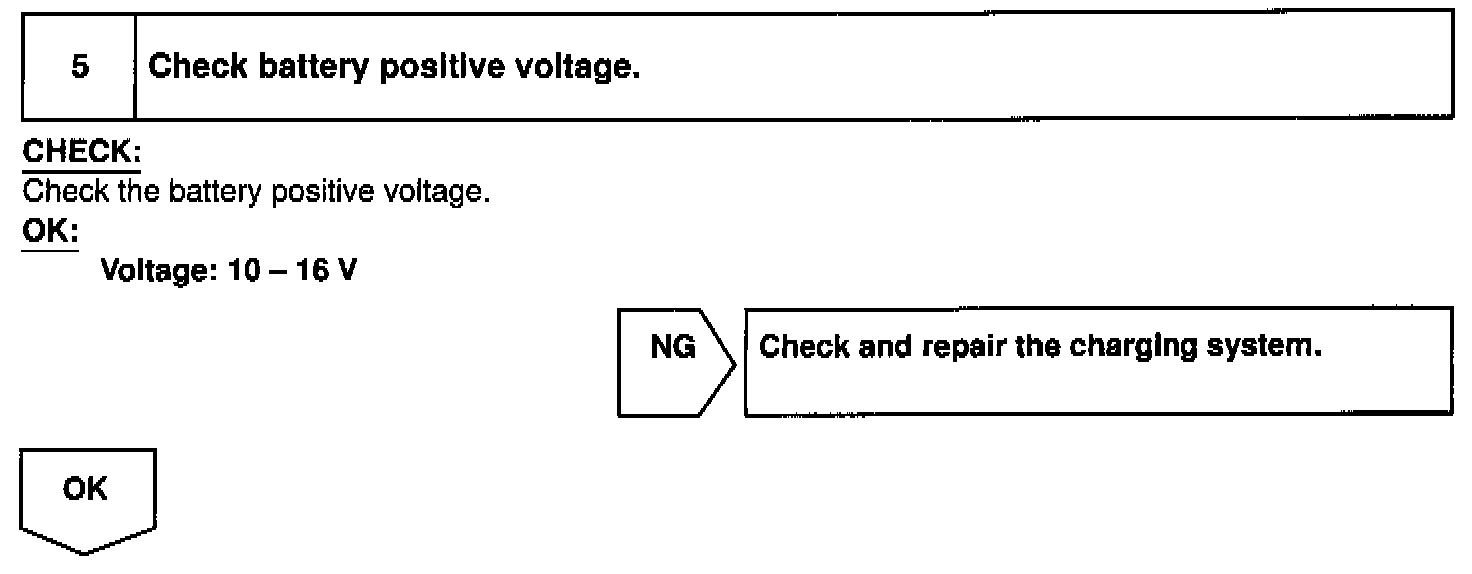

Step 5:

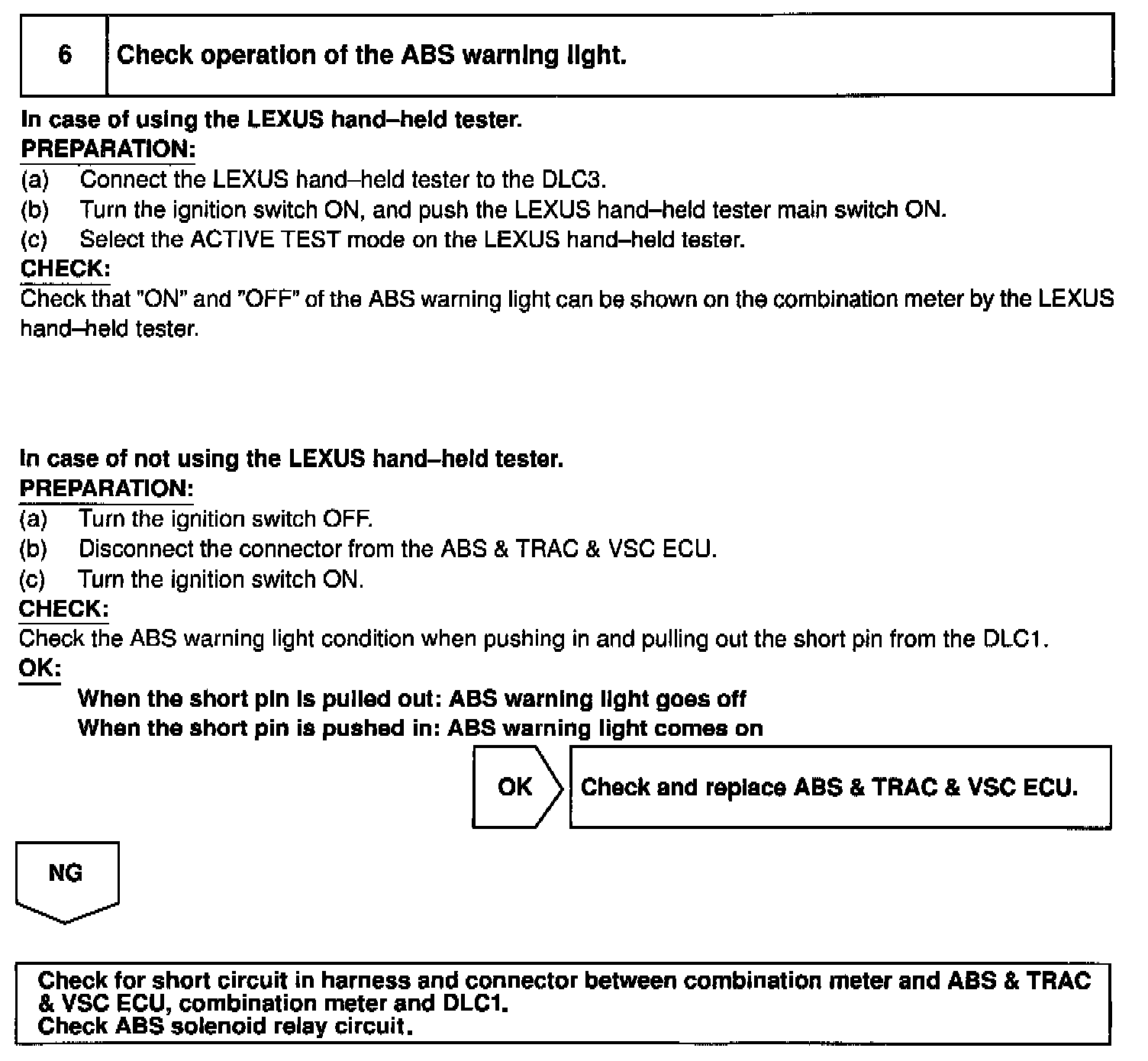

Step 6:

INSPECTION PROCEDURE
