With Manufacturer Scan Tool

DIAGNOSIS SYSTEM





a. Check the indicator.
When the ignition switch is turned ON, check that the ABS warning light, TRAC OFF indicator light and SLIP indicator light go on for 3 seconds.

HINT: If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit, TRAC OFF indicator light circuit and SLIP indicator light circuit.

b. Using LEXUS hand-held tester, check the DTC.

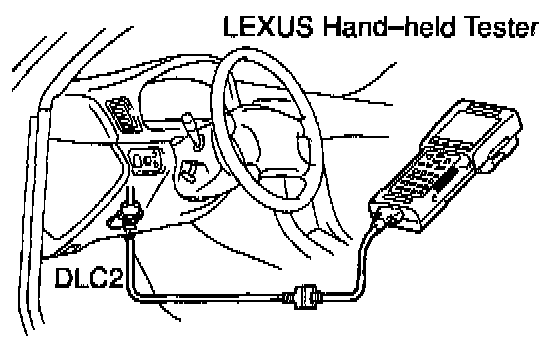

1. Hook up the LEXUS hand-held tester to the DLC2.
2. Turn the ignition switch ON.
3. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the LEXUS hand-held tester operator's manual for further details.
