Without Scan Tool

DTC CLEARANCE

Clear the DTC.

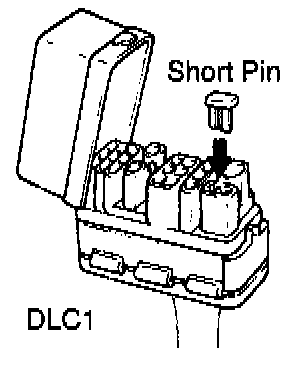

1. Using SST, connect terminals Tc and E1 of DLC1 and remove the short pin from DLC1.
SST 09843-18020
2. Turn the ignition switch ON.





3. Clear the DTC stored in ECU by depressing the brake pedal 8 or more times within 5 seconds.
4. Check that the warning light shows the normal code.

5. Remove the SST from the terminals of DLC1.
SST 09843-18020





6. Connect the short pin to DLC1.

HINT: The DTC stored in the ECU will be not erased when the battery terminal is disconnected for the troubleshooting.
