Ts Terminal Circuit

CIRCUIT DESCRIPTION
In the sensor check mode, a malfunction of the speed sensor that cam not be judged when the vehicle is stopped is judged while driving.
Transition to the sensor check mode can be performed by connecting terminals Ts and E1 of the DLC1 and turning the ignition switch from OFF to ON

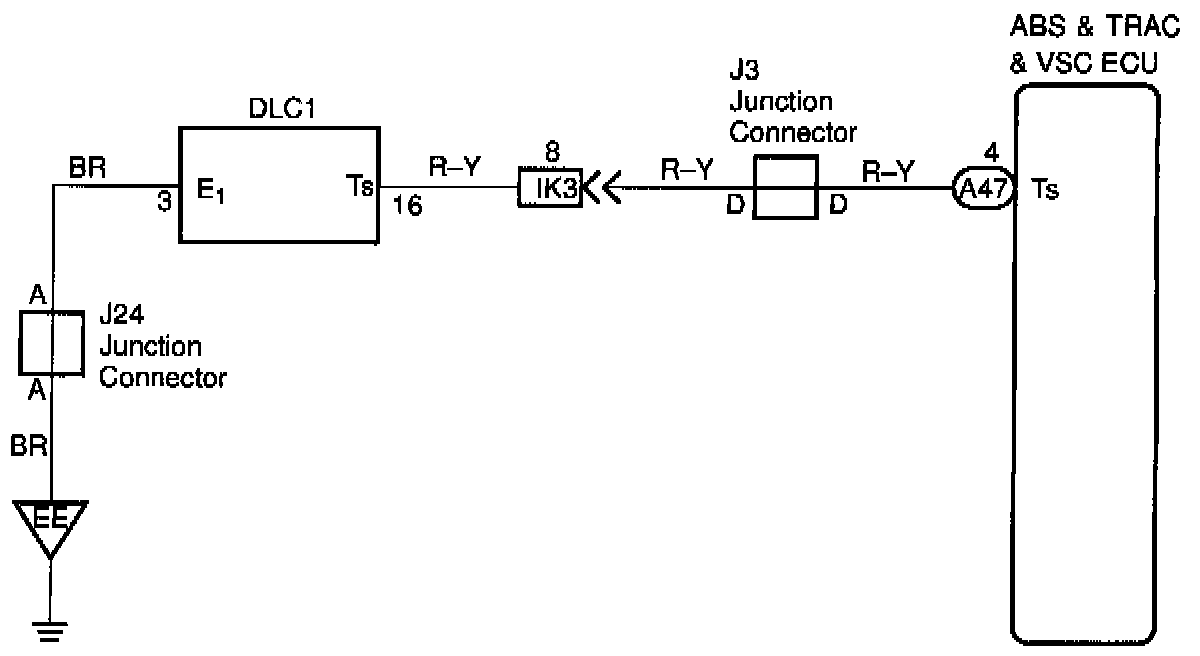

WIRING DIAGRAM

Step 1:

Step 2:

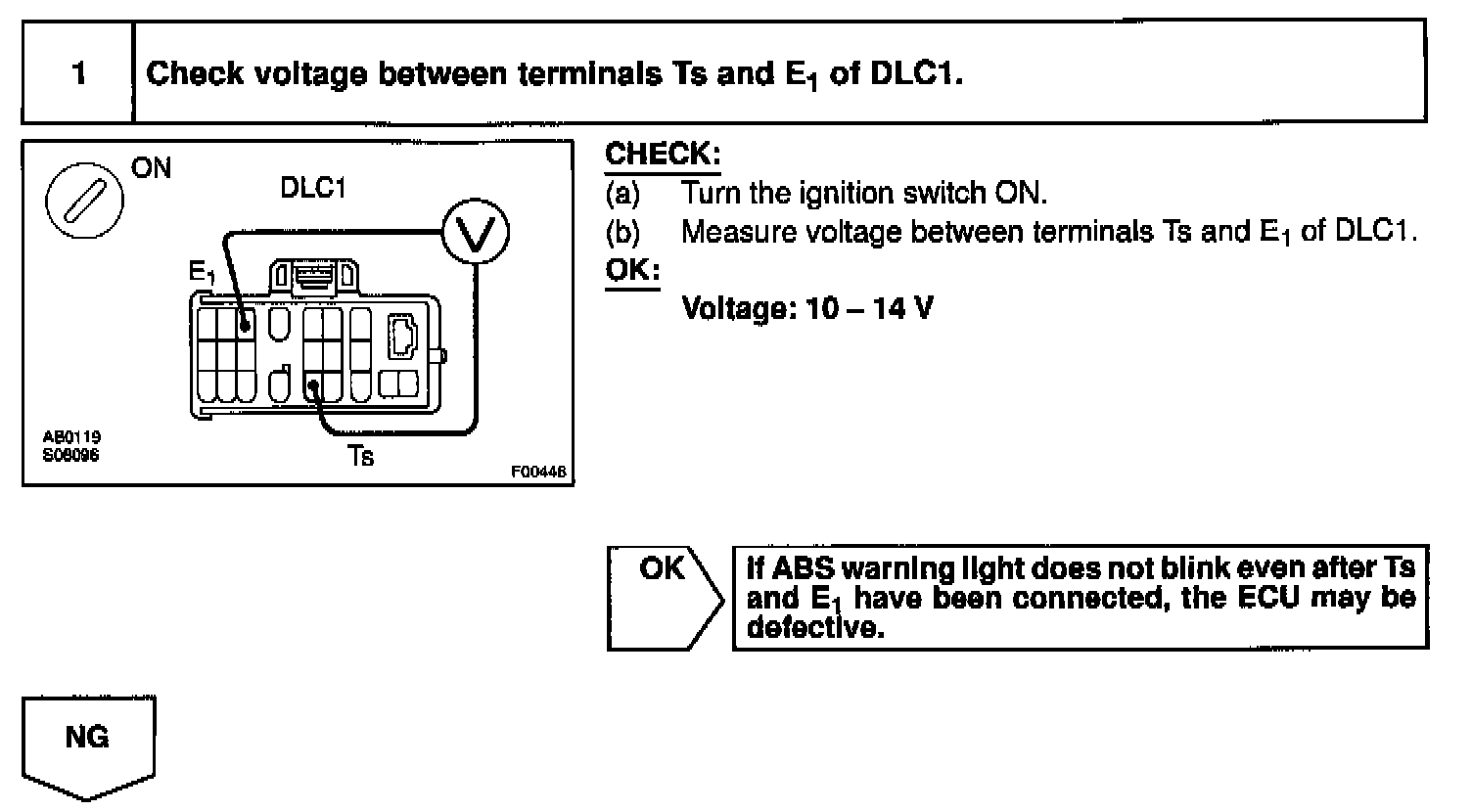

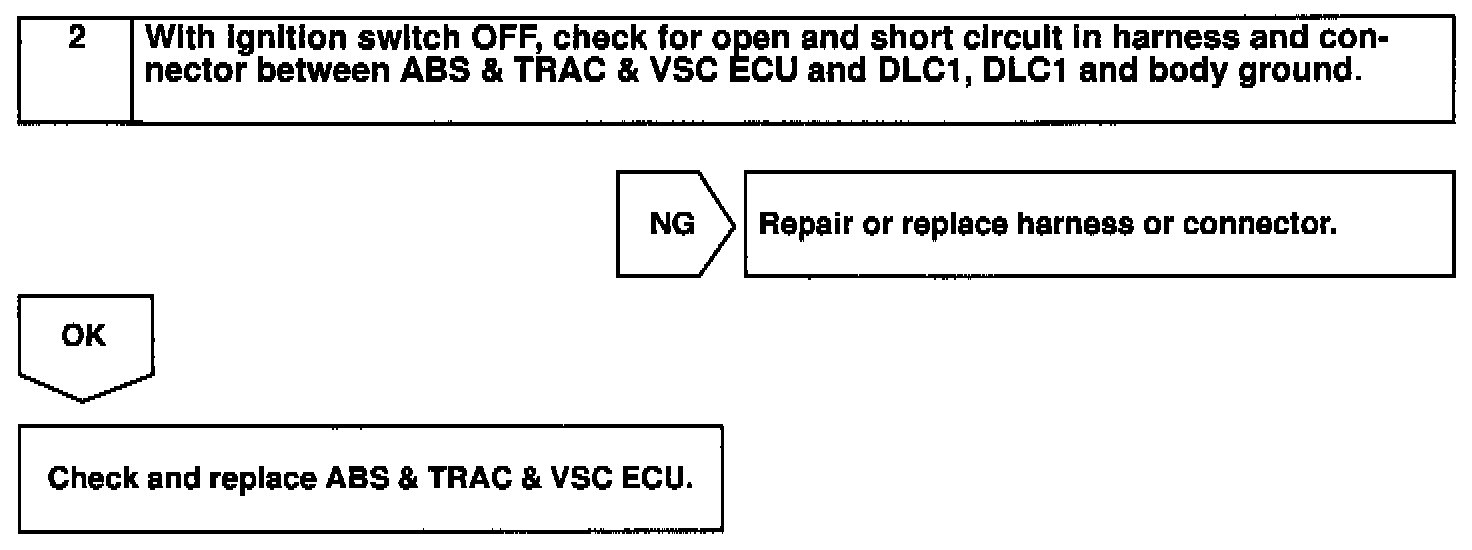

INSPECTION PROCEDURE
