ABS and VSC Actuator

REMOVAL
1. REMOVE RIGHT FRONT FENDER LINER
2. REMOVE A/C TUBE CLAMP BRACKET BOLT





3. DISCONNECT BRAKE LINE

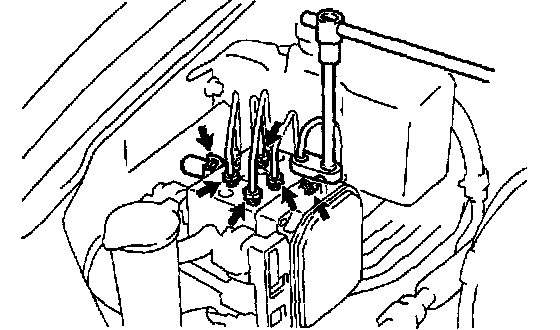

a. Using SST, disconnect the 6 brake lines from the brake actuator.
SST 09023 - 00100

Torque: 15 Nm (155 kgf.cm, 11 ft. lbs.)

b. Disconnect the brake hose from the brake actuator.
4. REMOVE BRAKE ACTUATOR ASSEMBLY

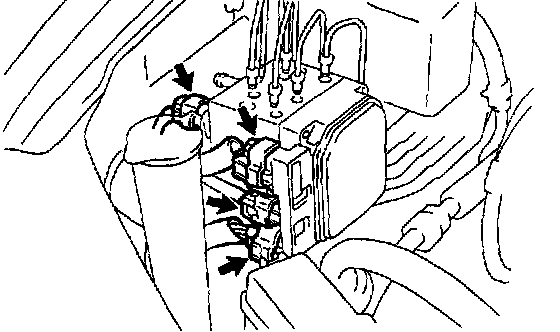

a. Disconnect the 4 connectors from the brake actuator.
b. Remove the 2 bolts, 2 nuts and brake actuator assembly.

Torque: 19 Nm (195 kgf.cm, 14 ft. lbs.)

5. REMOVE BRAKE ACTUATOR
a. Remove the 2 nuts and actuator from the actuator bracket.

Torque: 5.4 Nm (55 kgf.cm, 48 ft. lbs.)

b. Remove the 2 holders and 3 cushions from the brake actuator.

INSTALLATION
Installation is in the reverse order of removal.

HINT:
^ After installation, fill brake reservoir with brake fluid and breed the brake system.
^ Check for fluid leaks.
