Radio/Stereo: Testing and Inspection

INSPECT RADIO RECEIVER ASSEMBLY CIRCUIT

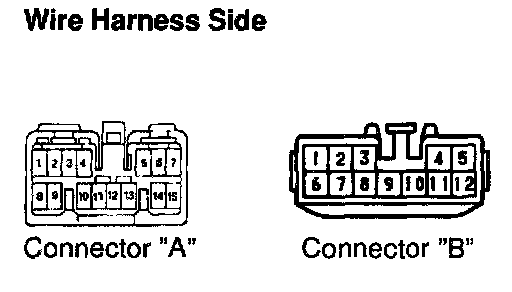

Disconnect the connectors from the radio receiver assemble and inspect the connector on the wire harness side.

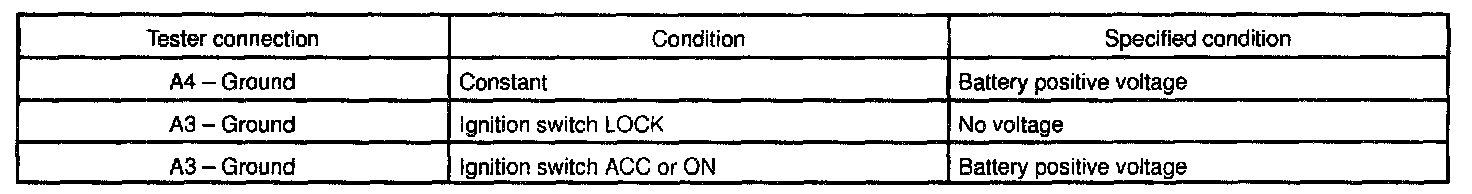

If the circuit is not as specified, inspect the circuits connected to other parts.

HINT:
Check the wire harness between radio receiver assembly and the CD auto changer, between radio receiver assembly and power amplifier.
