Trunk - Wireless Operation Improvement

Bulletin:
EL001-00

Group:
Electrical

Date:
February 4, 2000

Title:
Wireless Operation Improvement

Models:
97 - 99 ES 300

Introduction:

The antenna matching in the Door Control Receiver has been changed to improve the operating range of the wireless trunk opener function on 1997-1999 ES 300 vehicles.

Applicable Vehicles:

^ 1997 - 1999 ES 300 vehicles produced before the VIN's listed below.

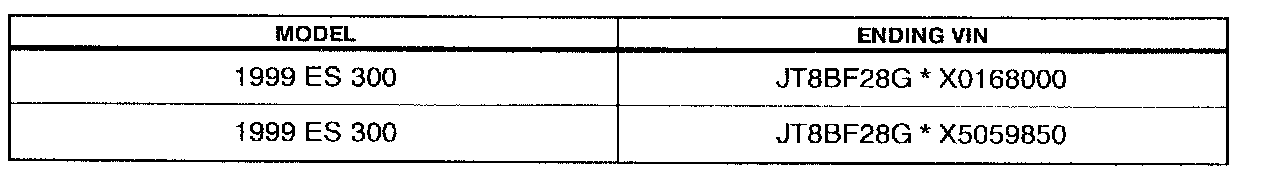

Production Change Information:

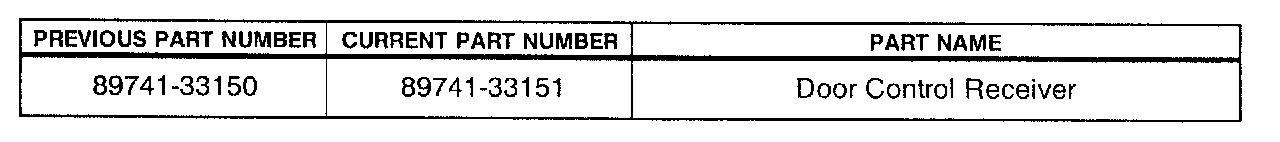

Parts Information:

Repair Procedure:

1. Replace the Door Control Receiver using the part number specified.

2. Route the wire harness away from the ECU to assure the best performance.





Warranty Information:


Applicable Warranty*:

This repair is covered under the Lexus Basic Warranty. This warranty is in effect for 48 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
