P1730

CIRCUIT DESCRIPTION
This sensor detects the rotation speed of the counter gear. By comparing the counter gear speed signal (NC) and the input turbine speed sensor signal (NT), the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure in response to various conditions, thus performing smooth gear shifting.

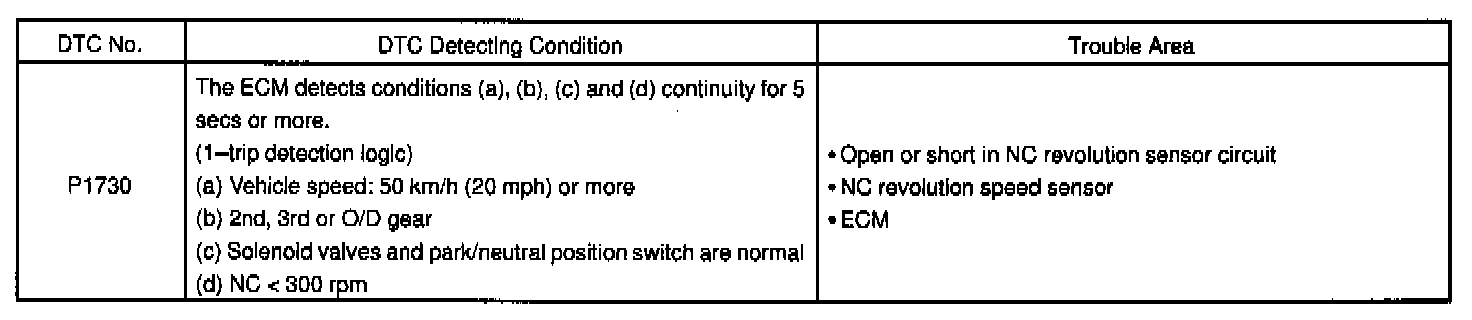

DETECTING CONDITIONS

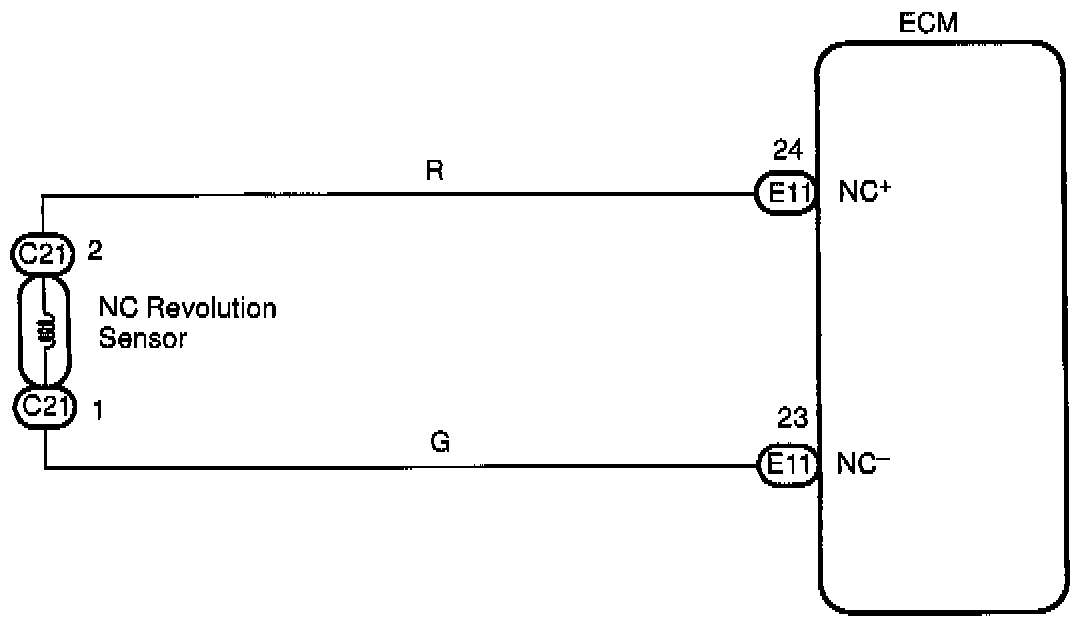

WIRING DIAGRAM

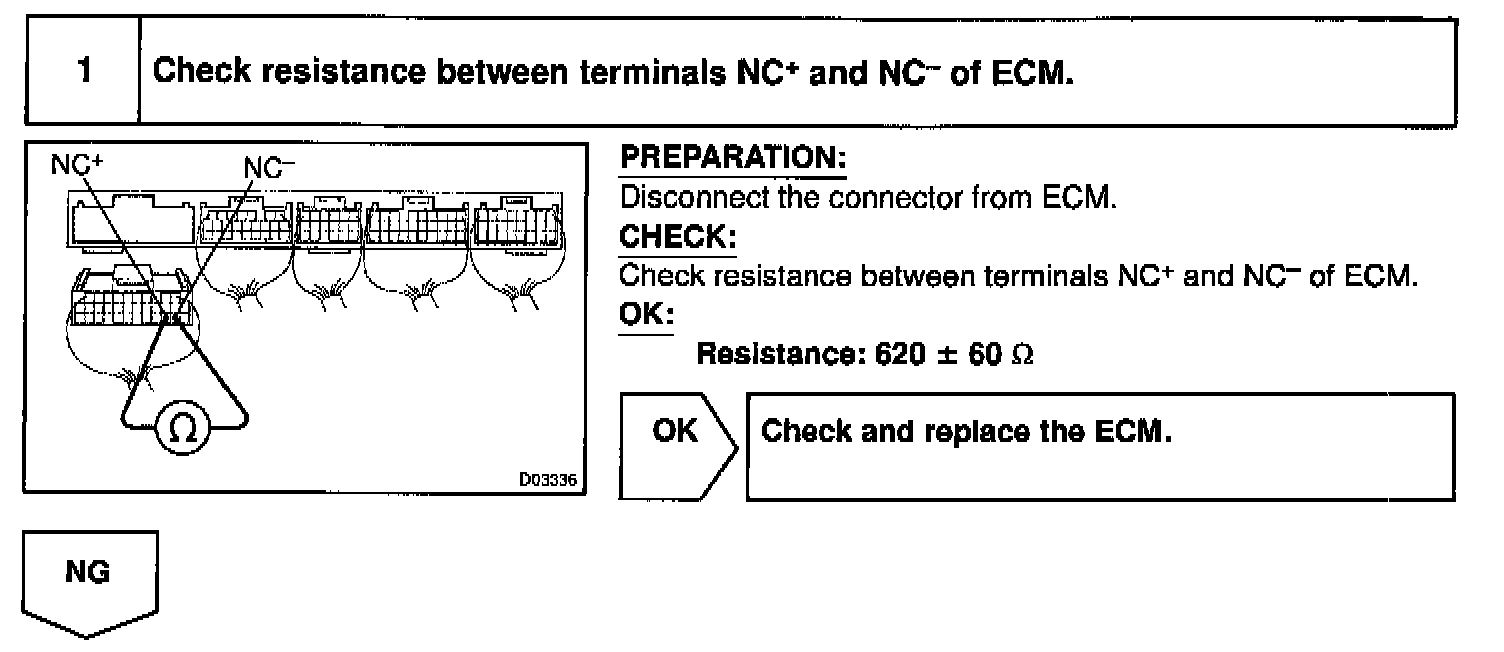

Step 1:

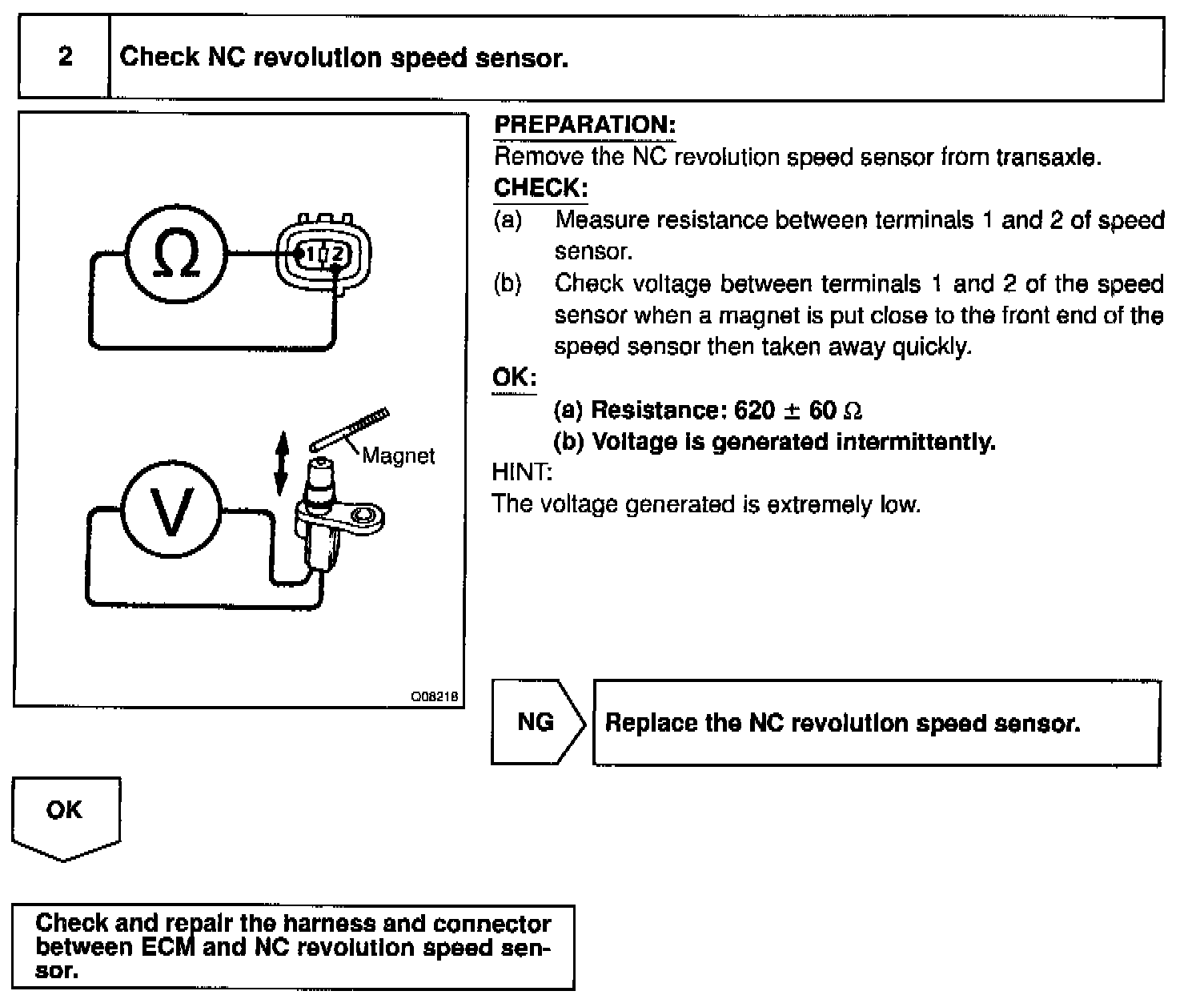

Step 2:

INSPECTION PROCEDURE
