Air Inlet Control Servomotor Circuit

CIRCUIT DESCRIPTION
The air inlet control servomotor is controlled by the A/C control assembly and moves the air inlet damper to the desired position.

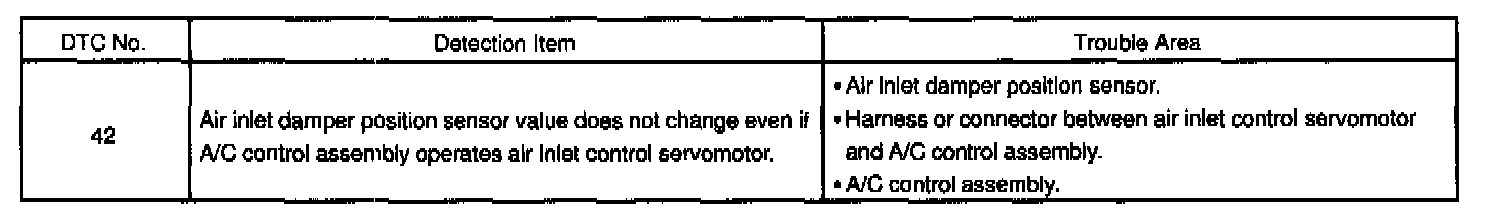

DETECTING CONDITIONS

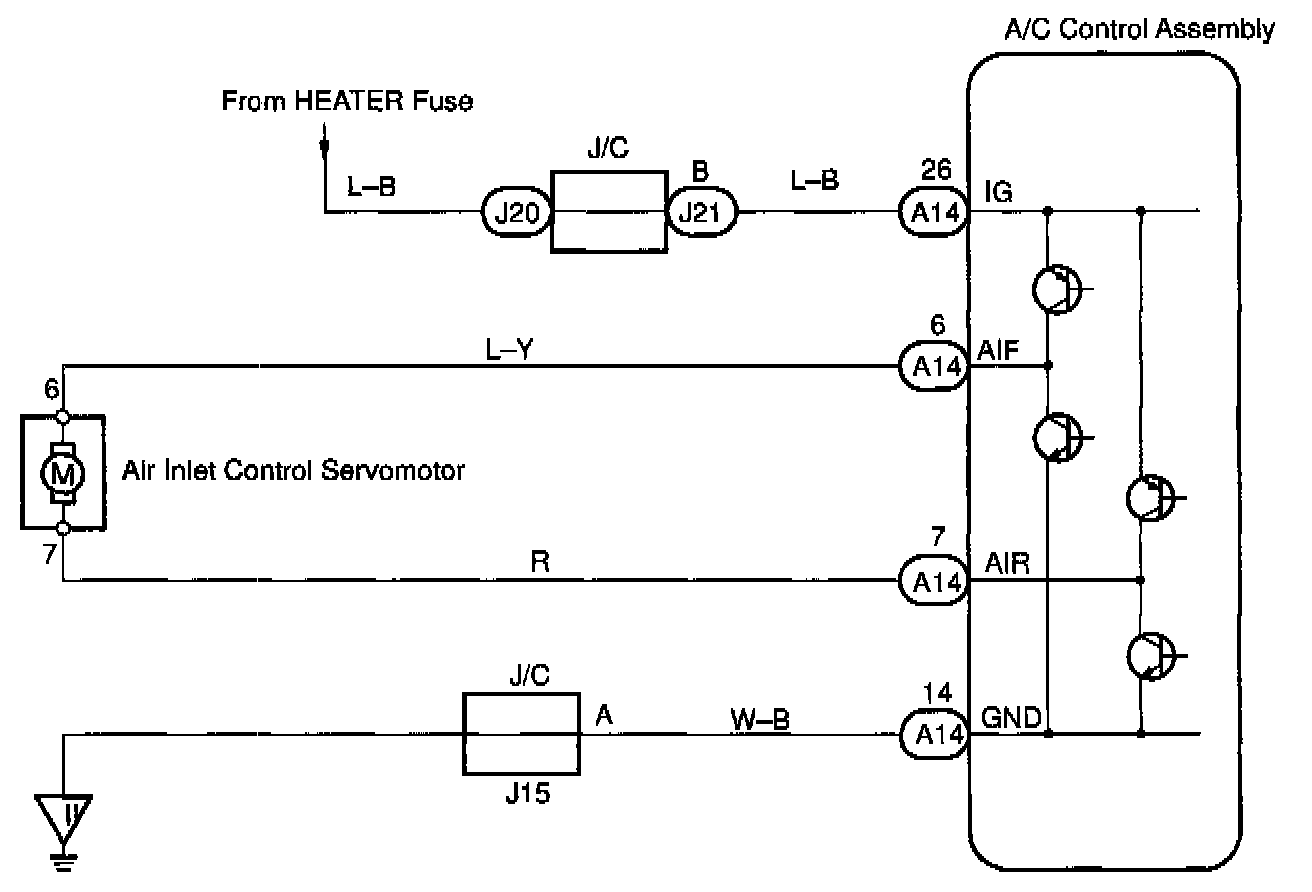

WIRING DIAGRAM

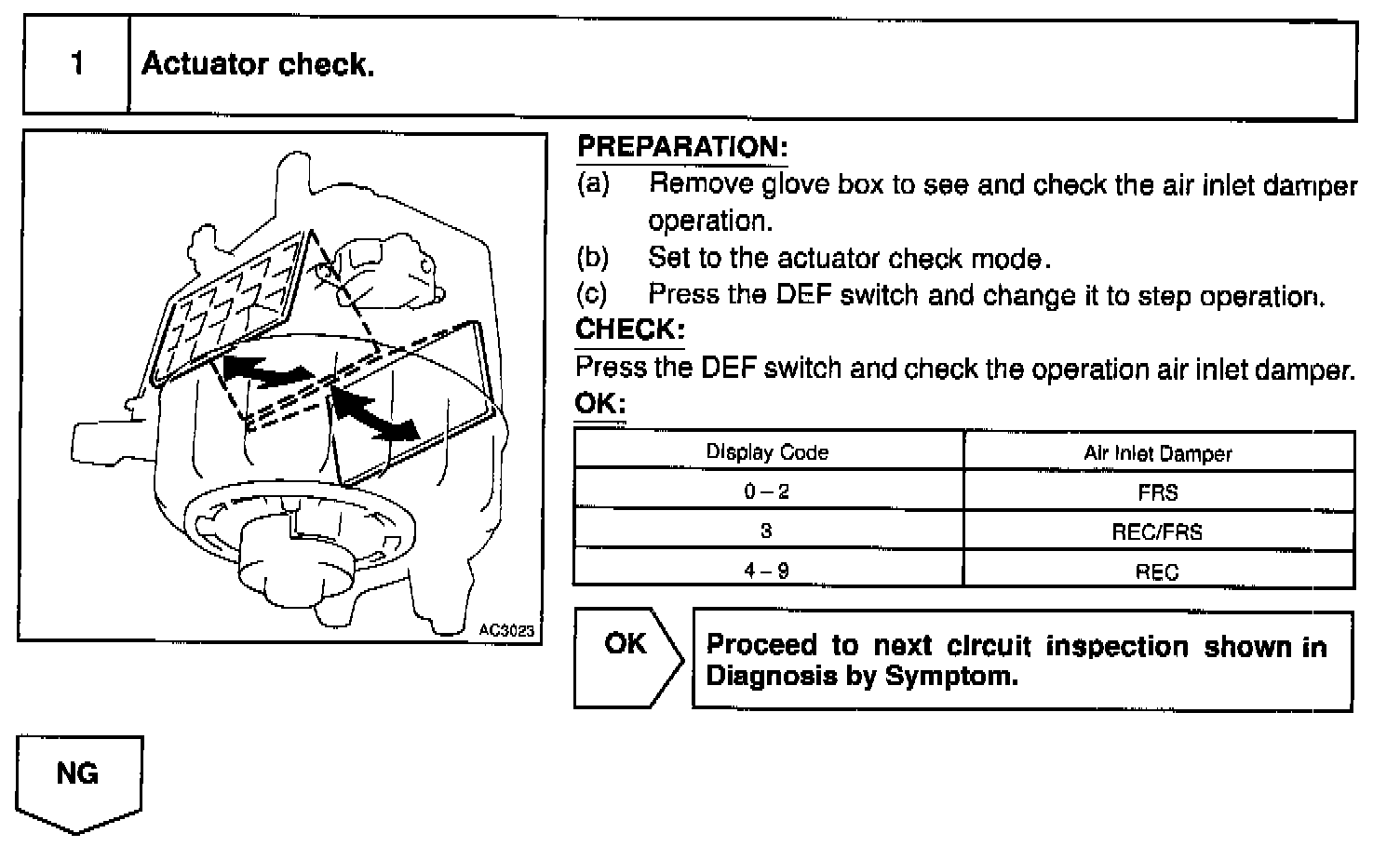

Step 1:

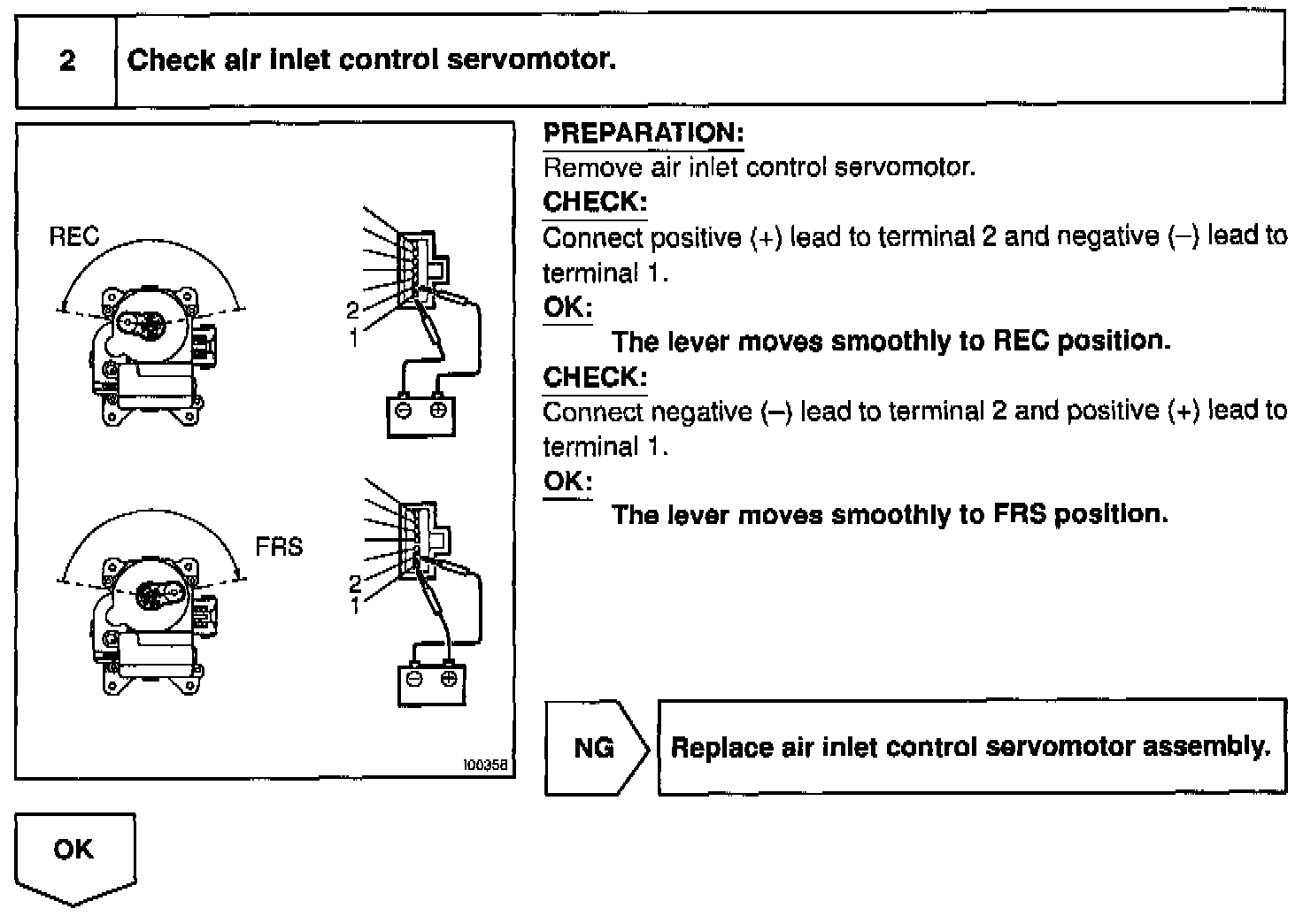

Step 2:

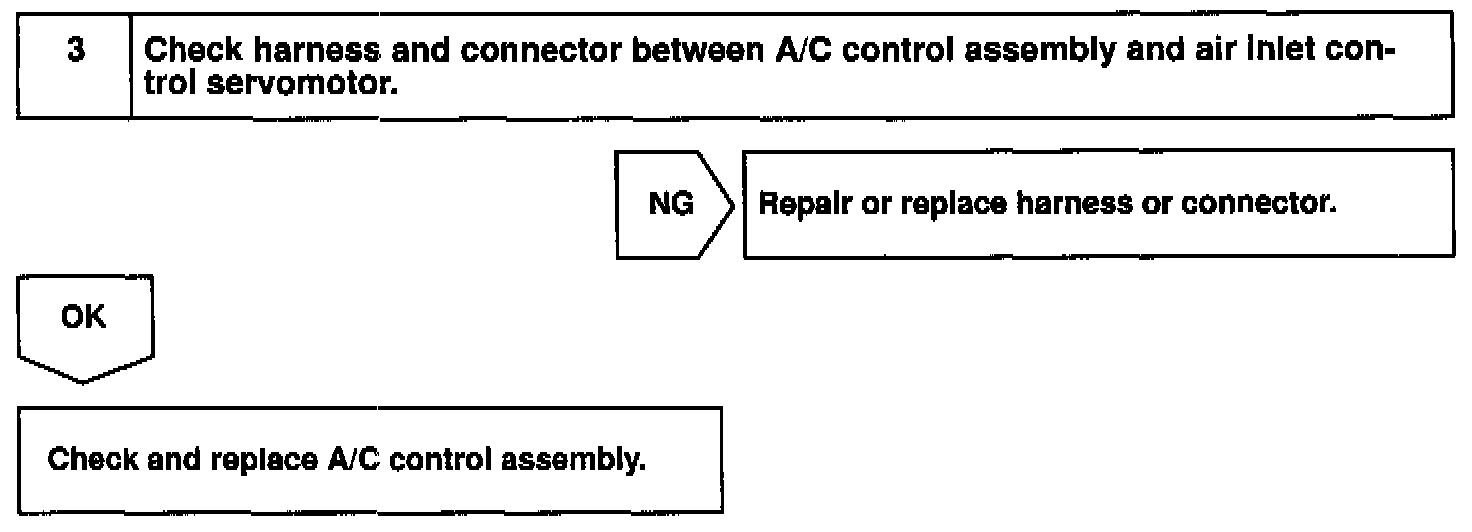

Step 3:

INSPECTION PROCEDURE
