Air Mix Control Servomotor Circuit

CIRCUIT DESCRIPTION
This air mix control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.





DETECTING CONDITIONS

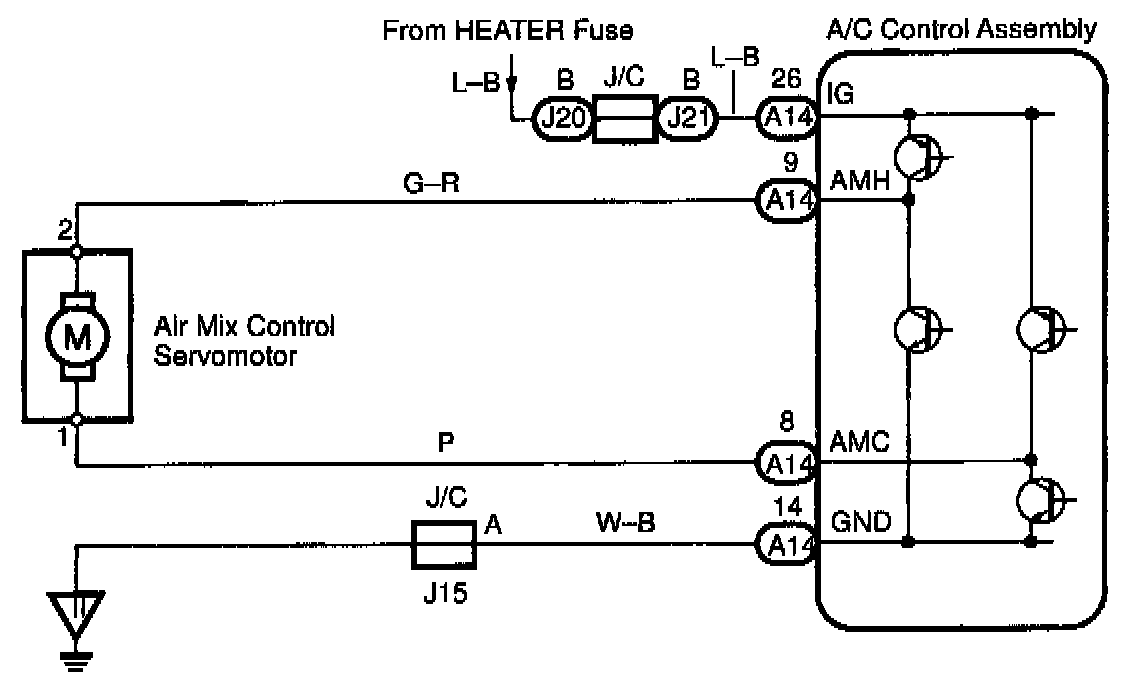

WIRING DIAGRAM

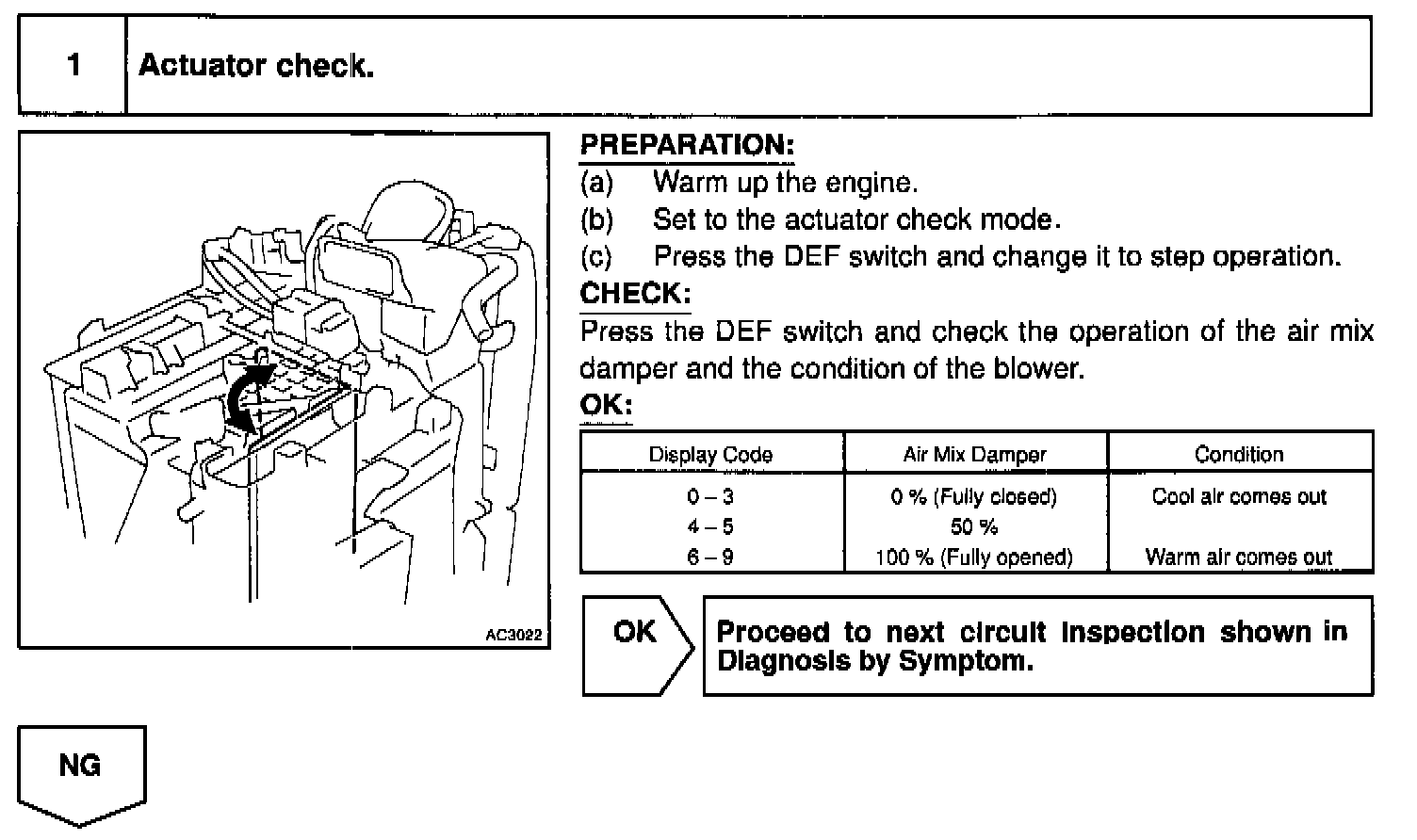

Step 1:

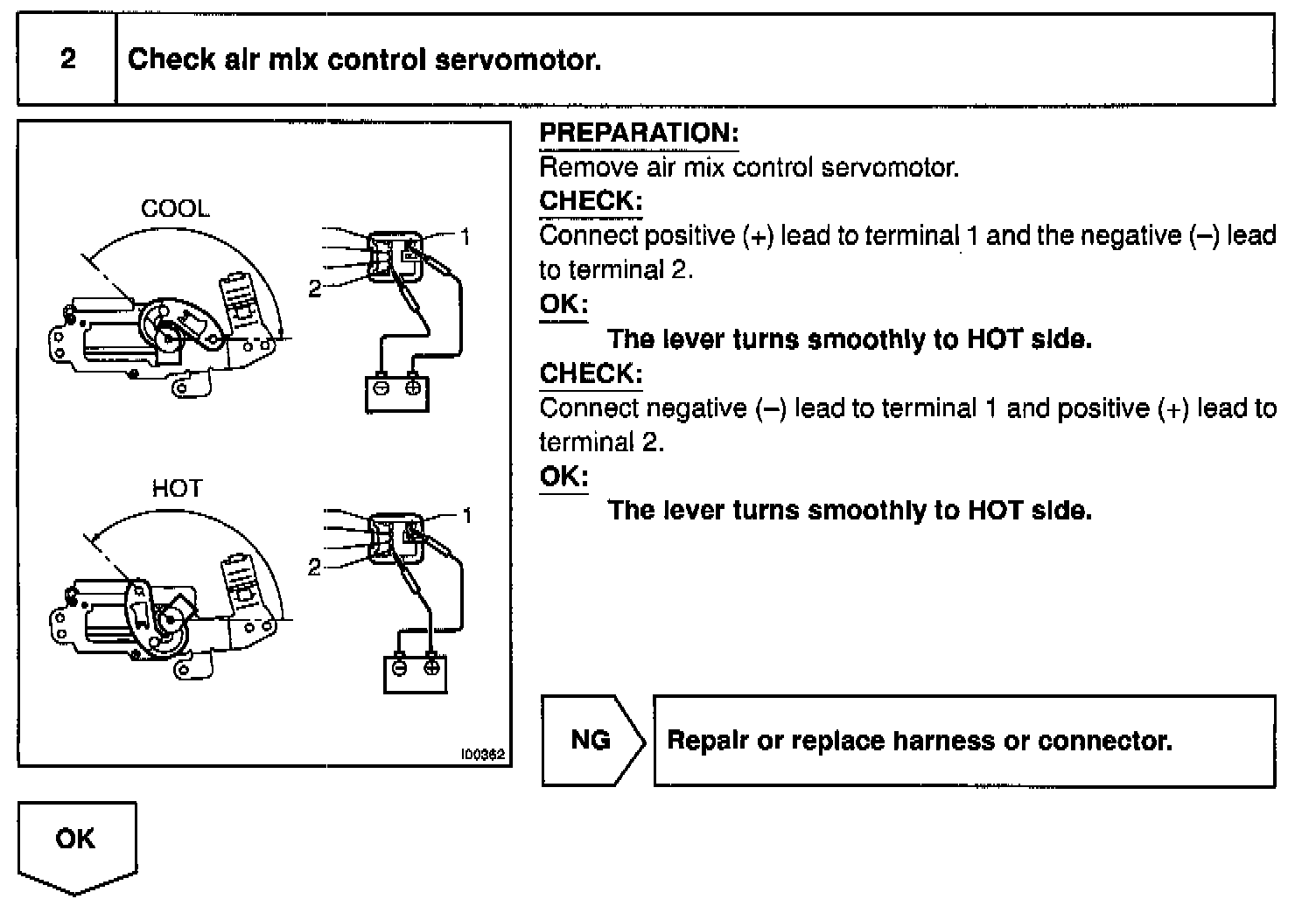

Step 2:

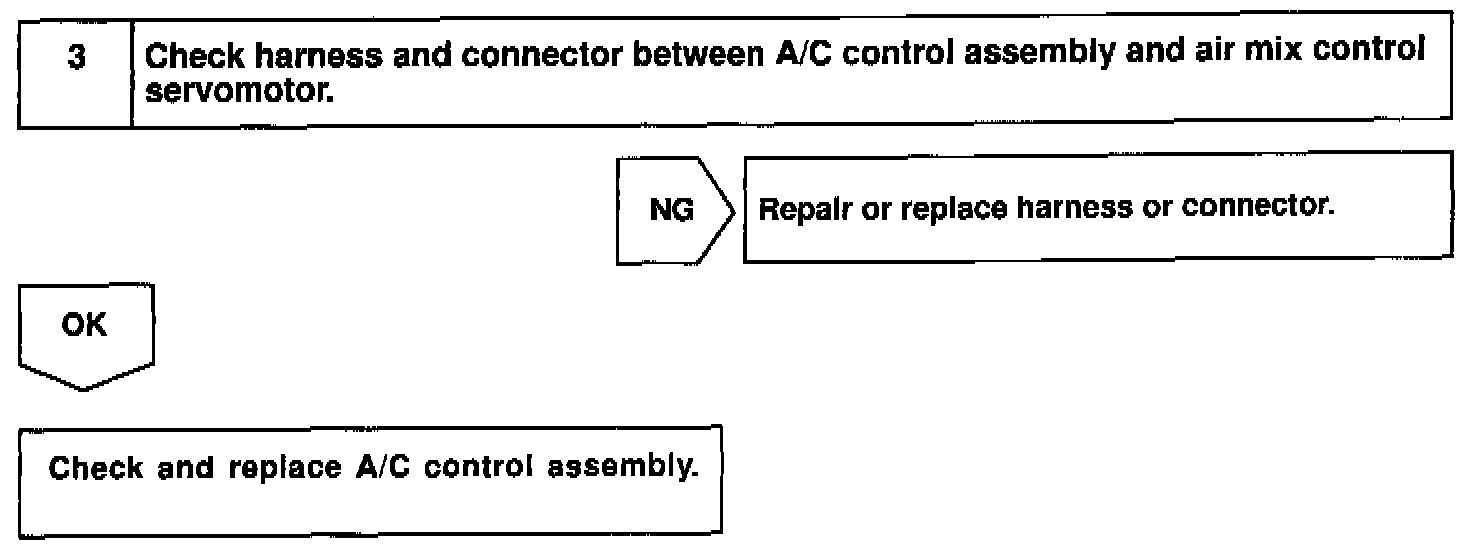

Step 3:

INSPECTION PROCEDURE
