DTC 41

CIRCUIT DESCRIPTION
This is the power source for the ECU, hence the actuators.

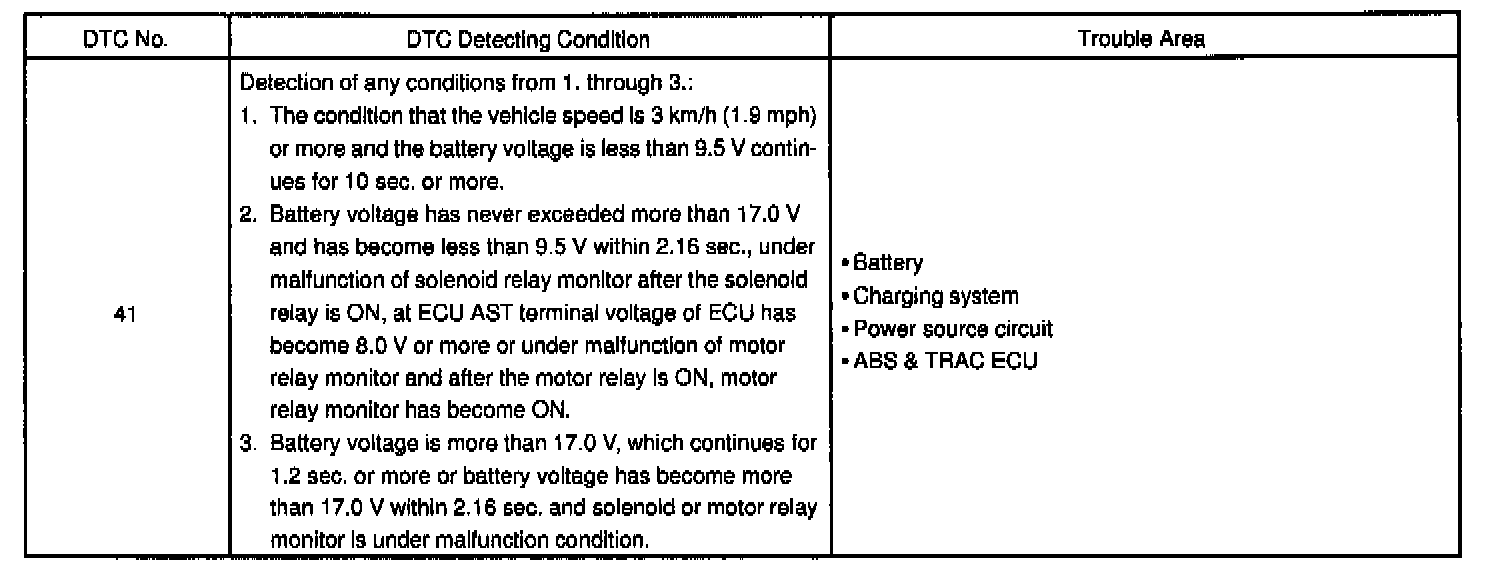

DETECTING CONDITIONS

Fail safe function:
If any trouble occurs in the power source circuit, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.

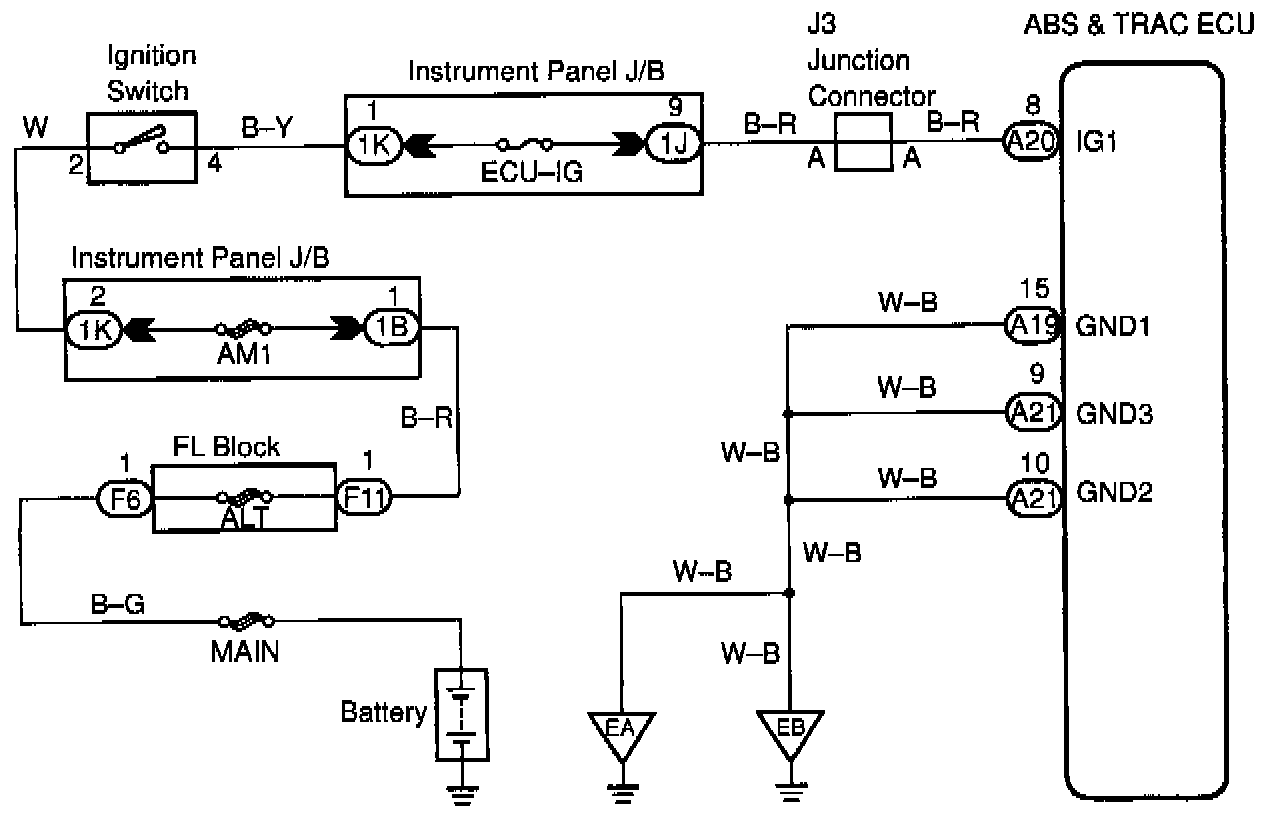

WIRING DIAGRAM

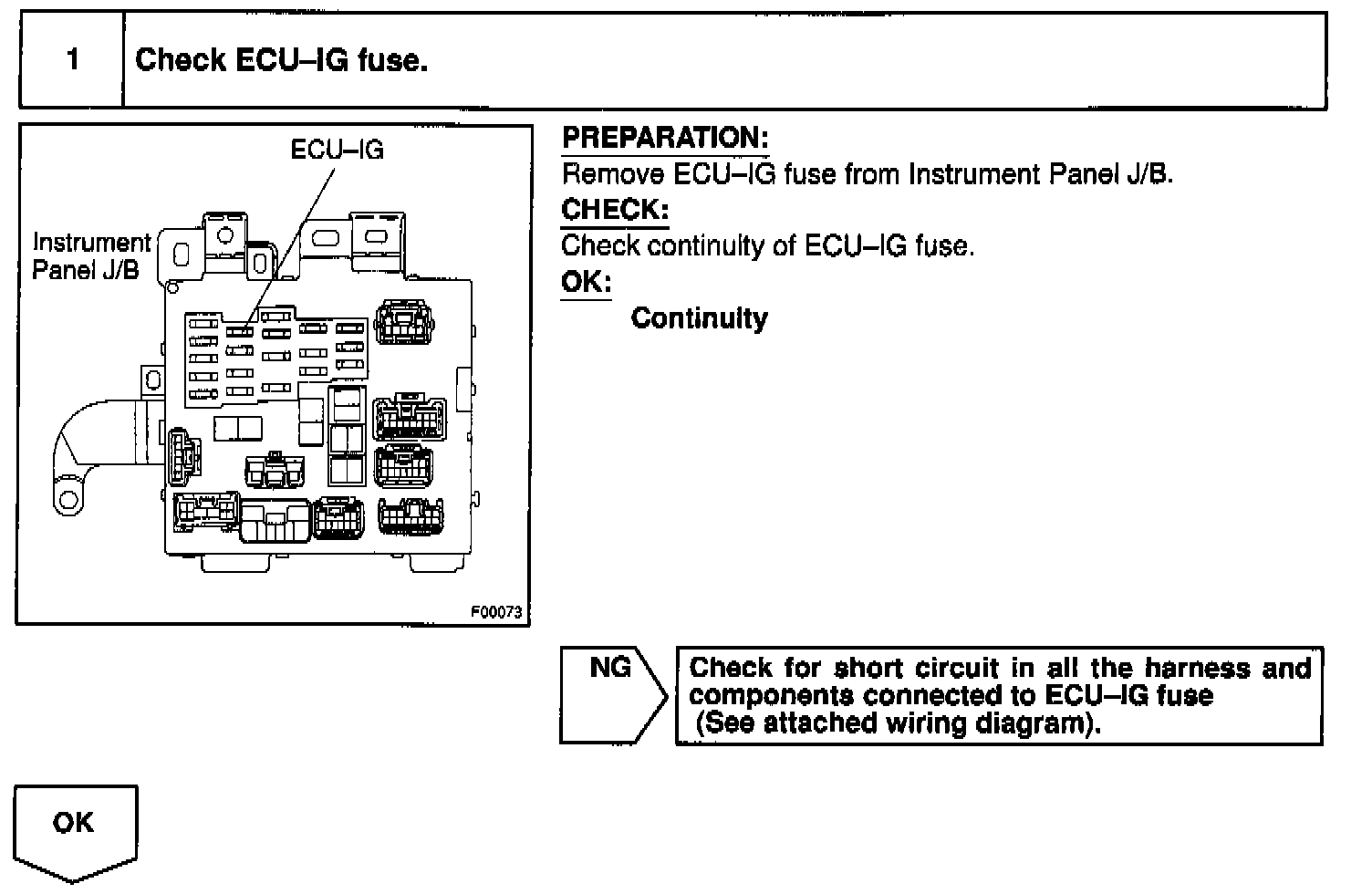

Step 1:

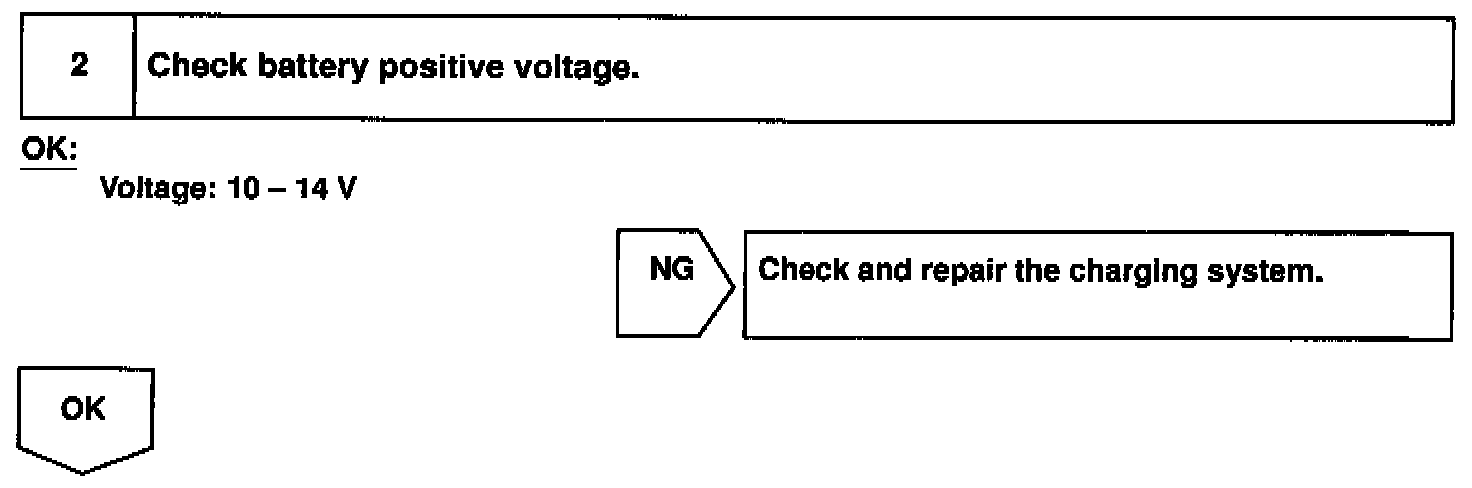

Step 2:

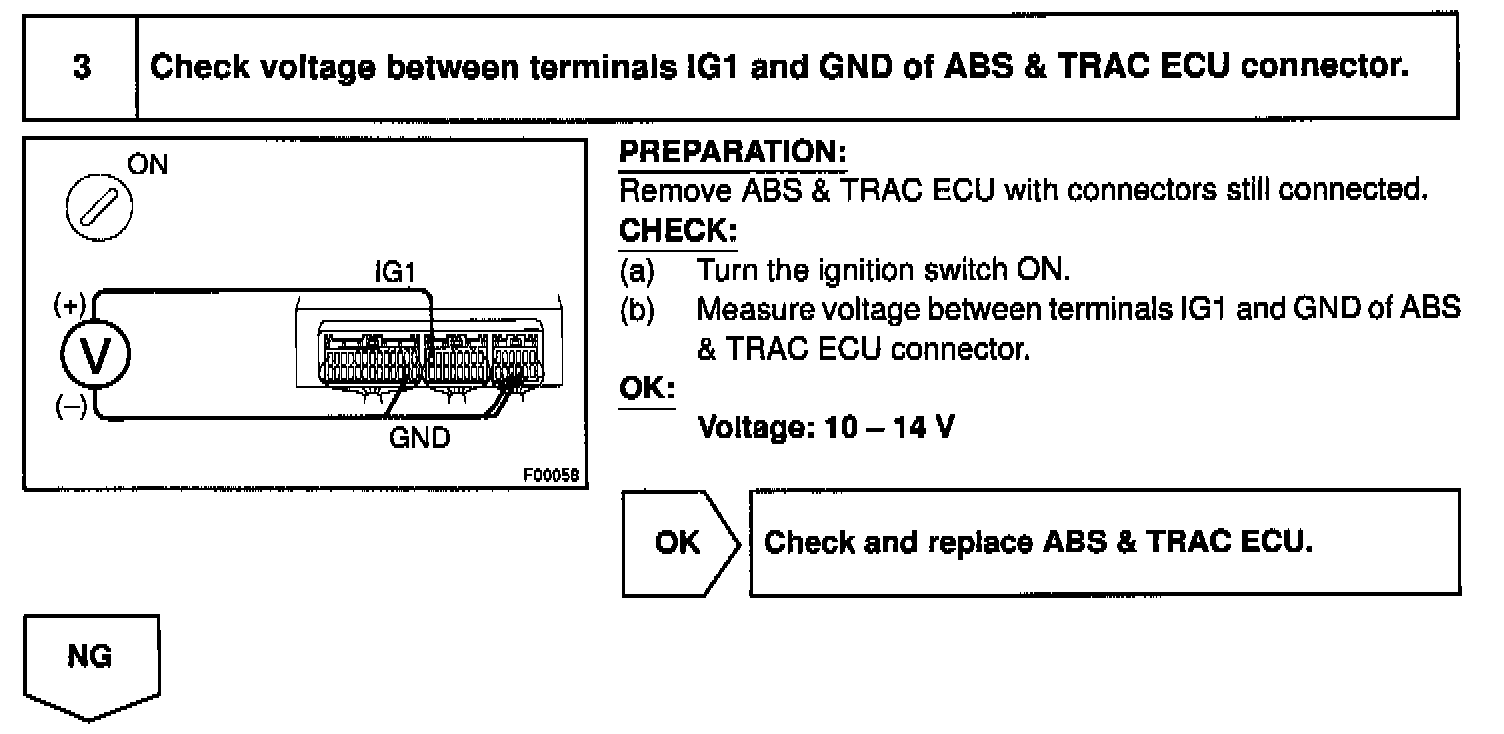

Step 3:

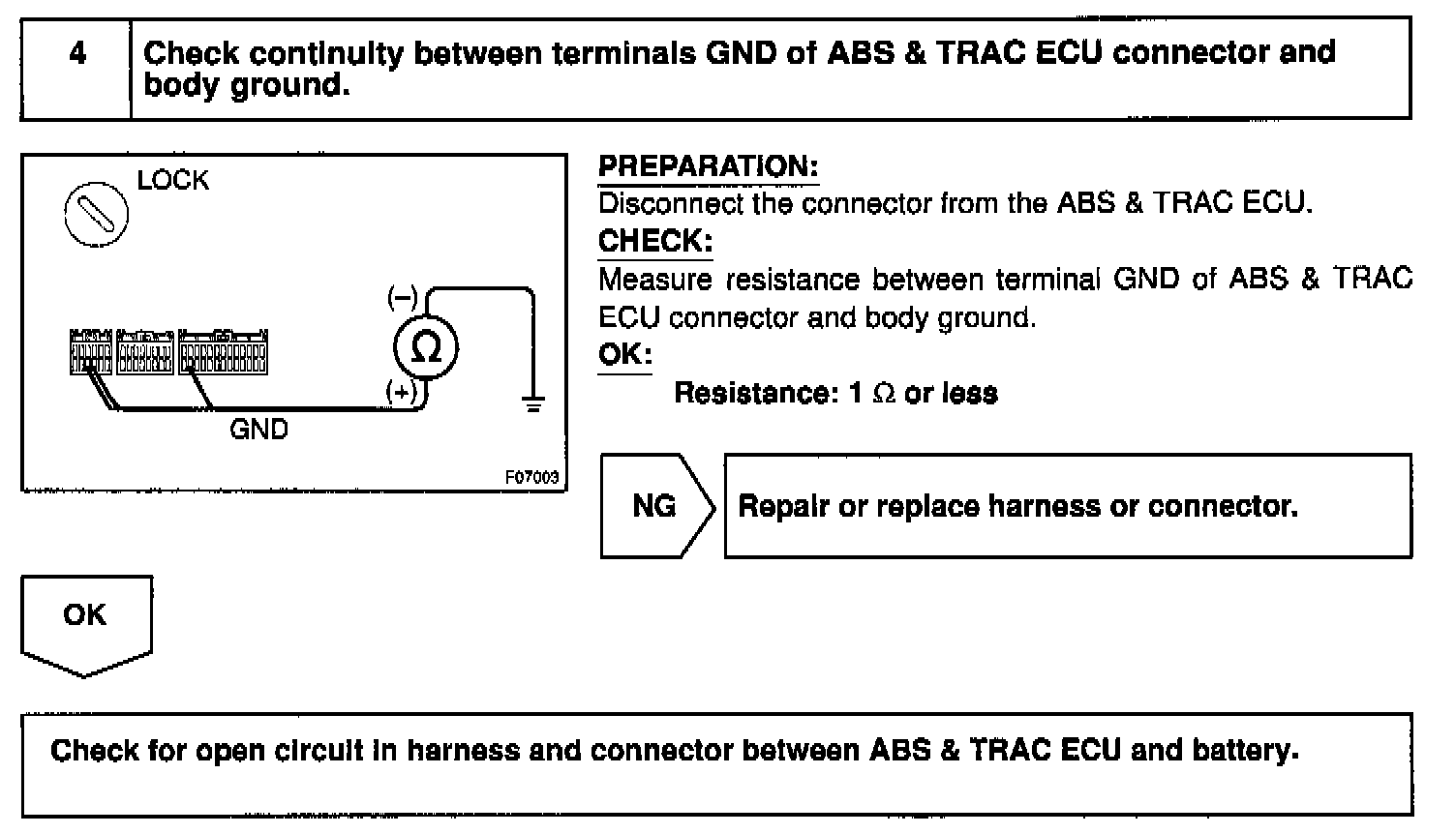

Step 4:

INSPECTION PROCEDURE
