DTC 11

CIRCUIT DESCRIPTION
This relay supplies power to each ABS & TRAC solenoid. After the ignition switch is turned ON. If the initial check is OK, the relay goes on.

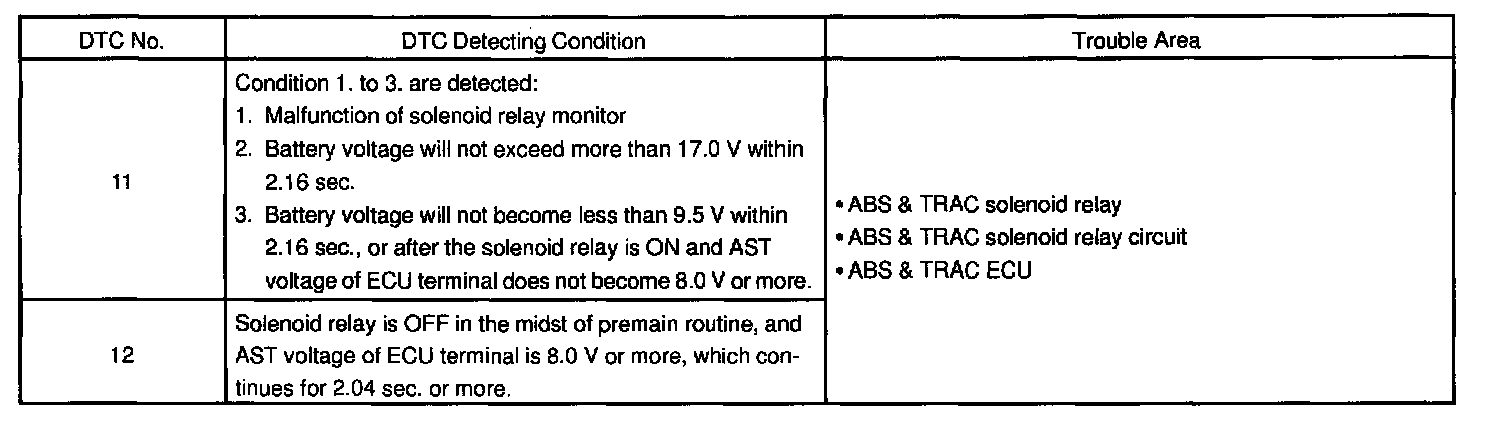

DETECTING CONDITIONS

Fail safe function:
If any trouble occurs in the ABS & TRAC solenoid relay circuit, the ECU cuts off current to the ABS & TRAC solenoid relay and prohibits ABS control and TRAC control.

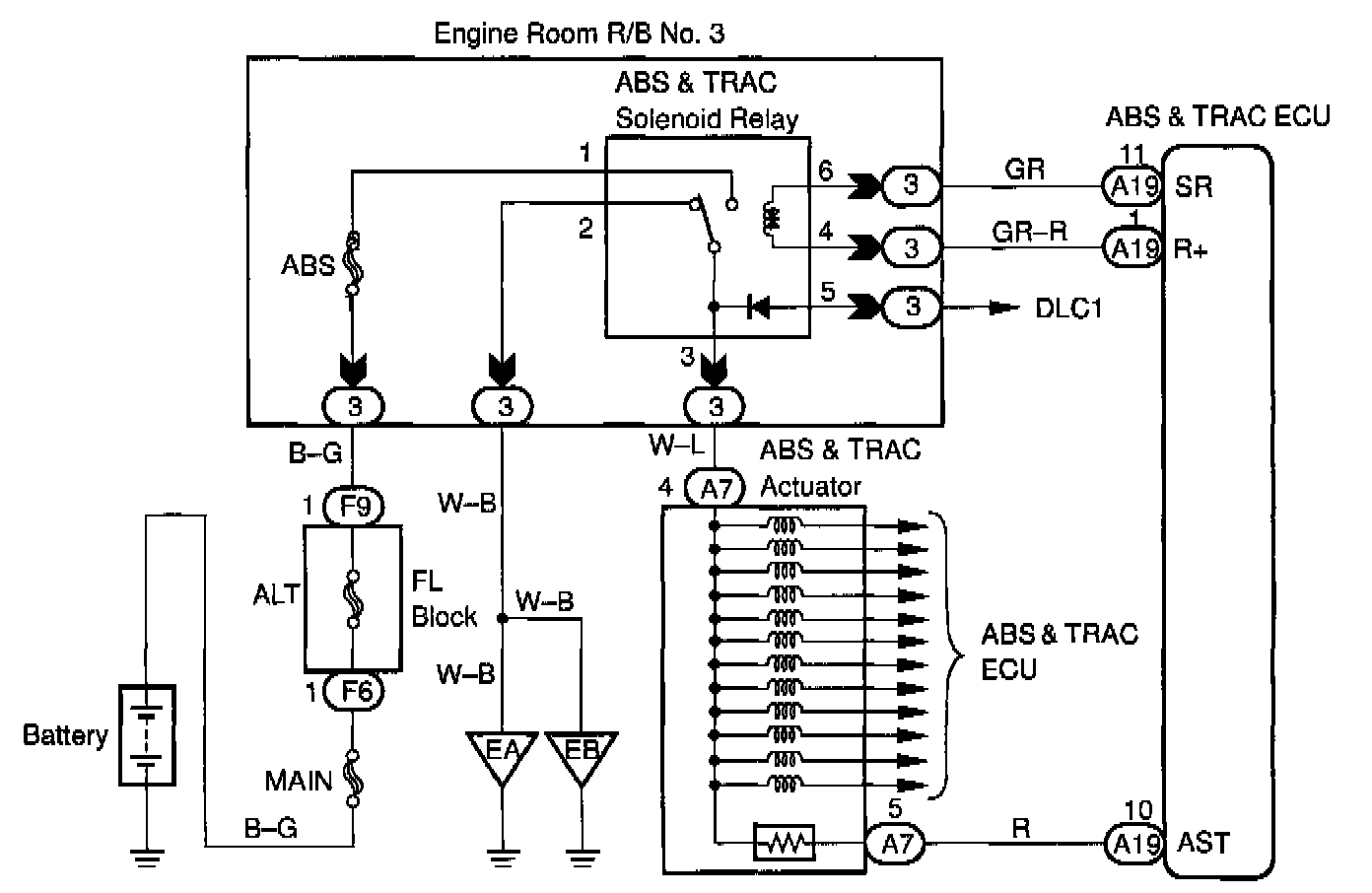

WIRING DIAGRAM

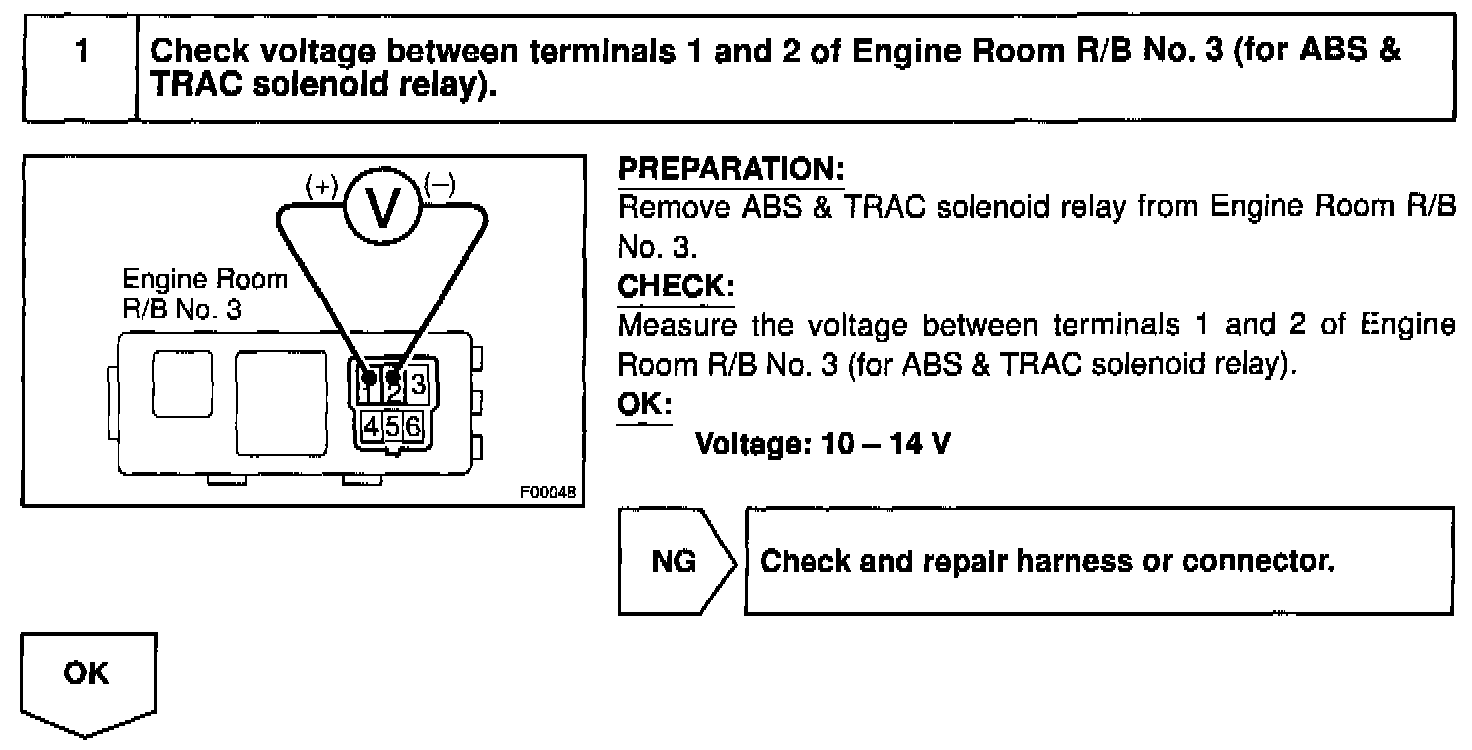

Step 1:

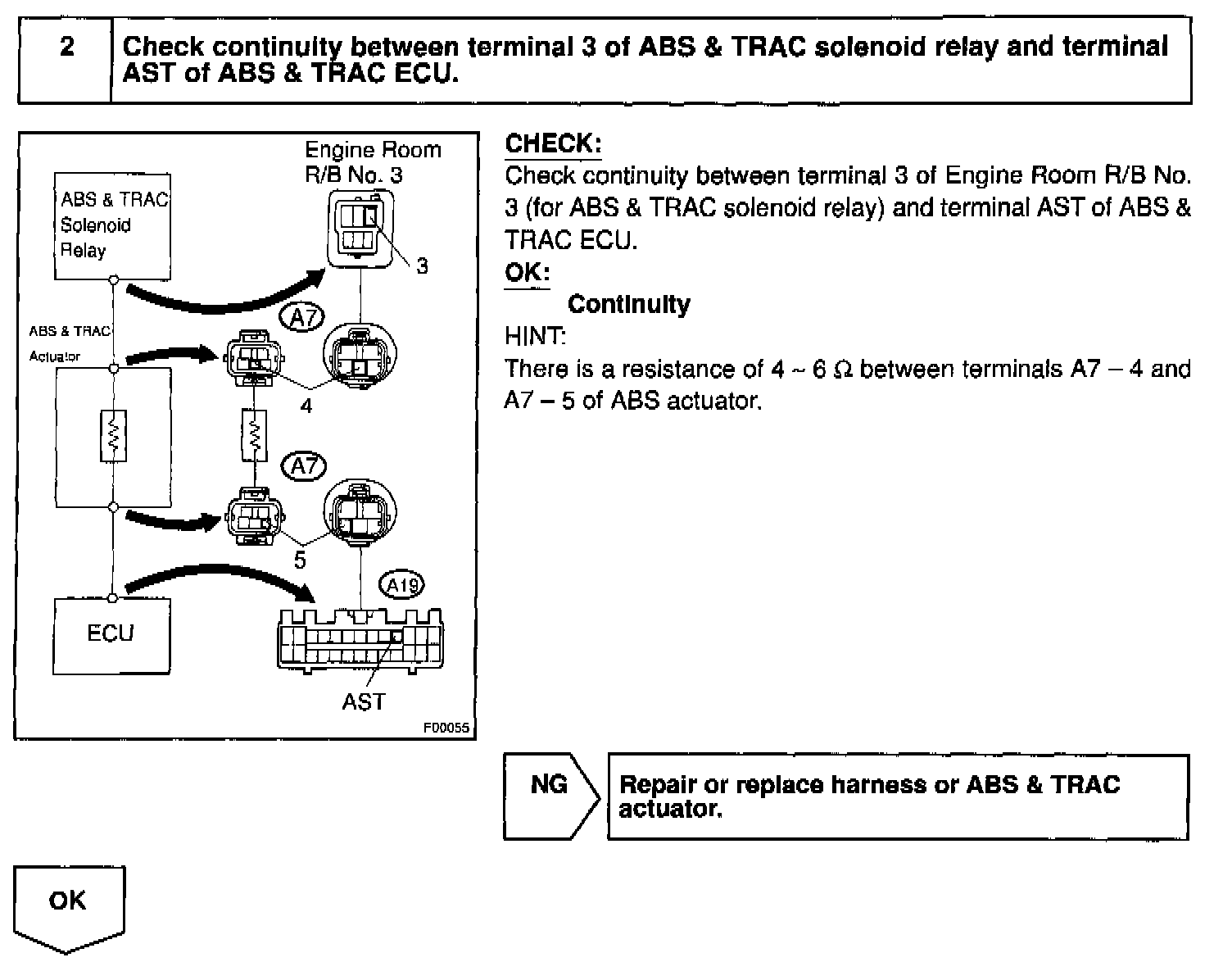

Step 2:

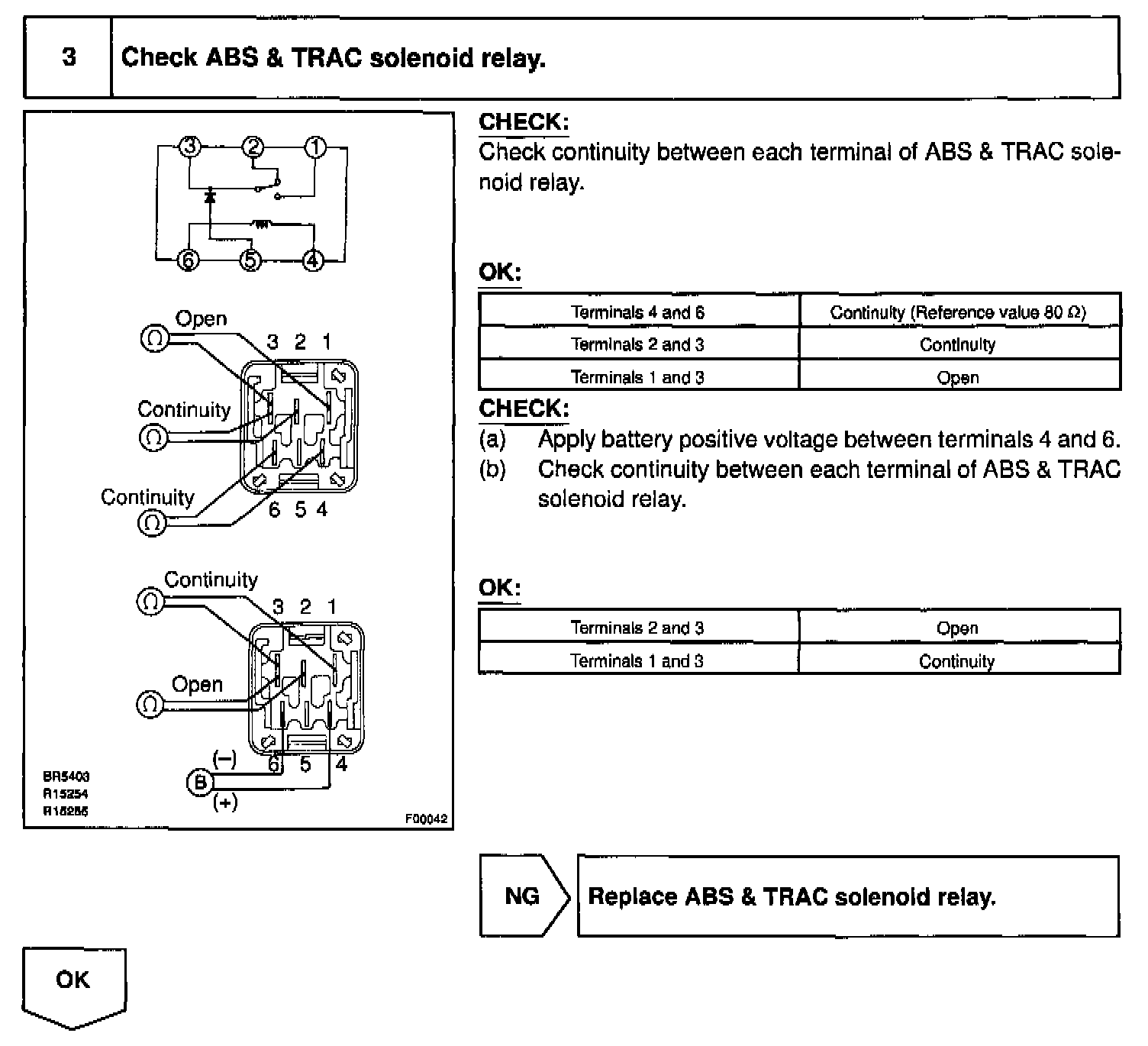

Step 3:

Step 4:

INSPECTION PROCEDURE
